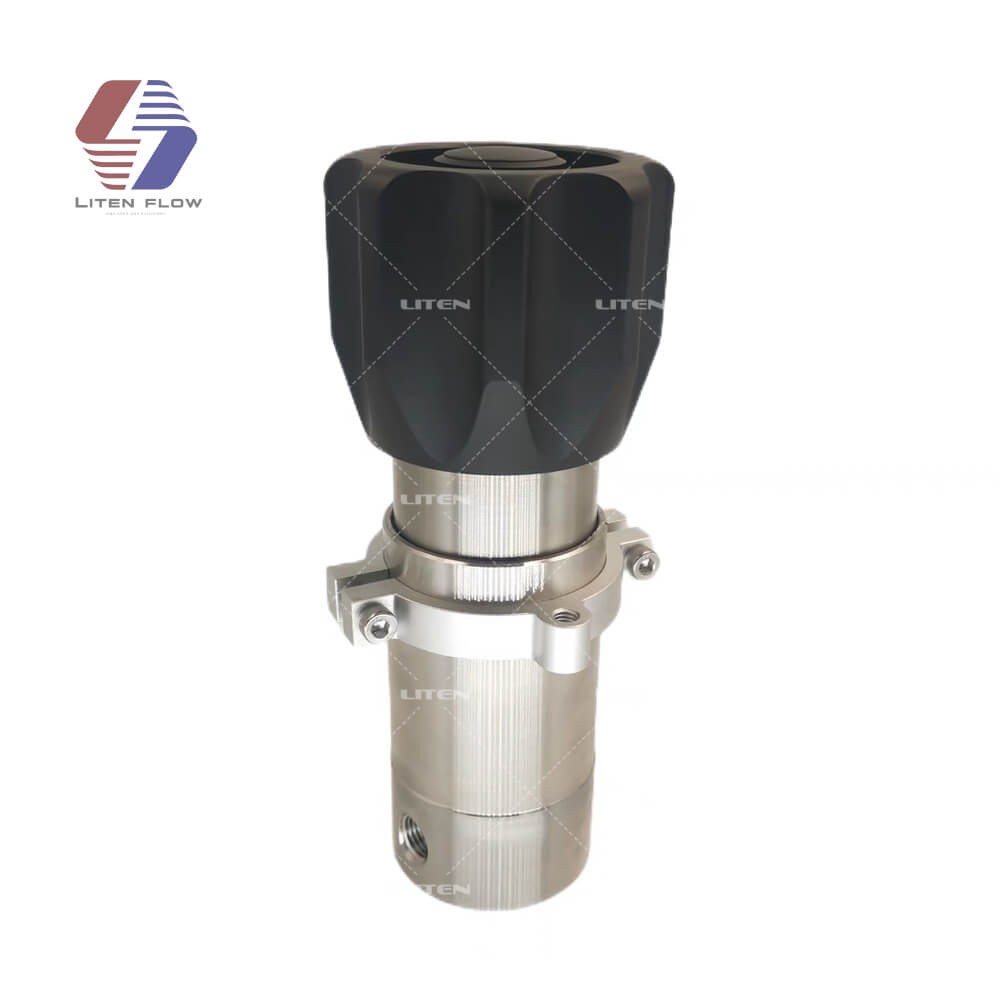

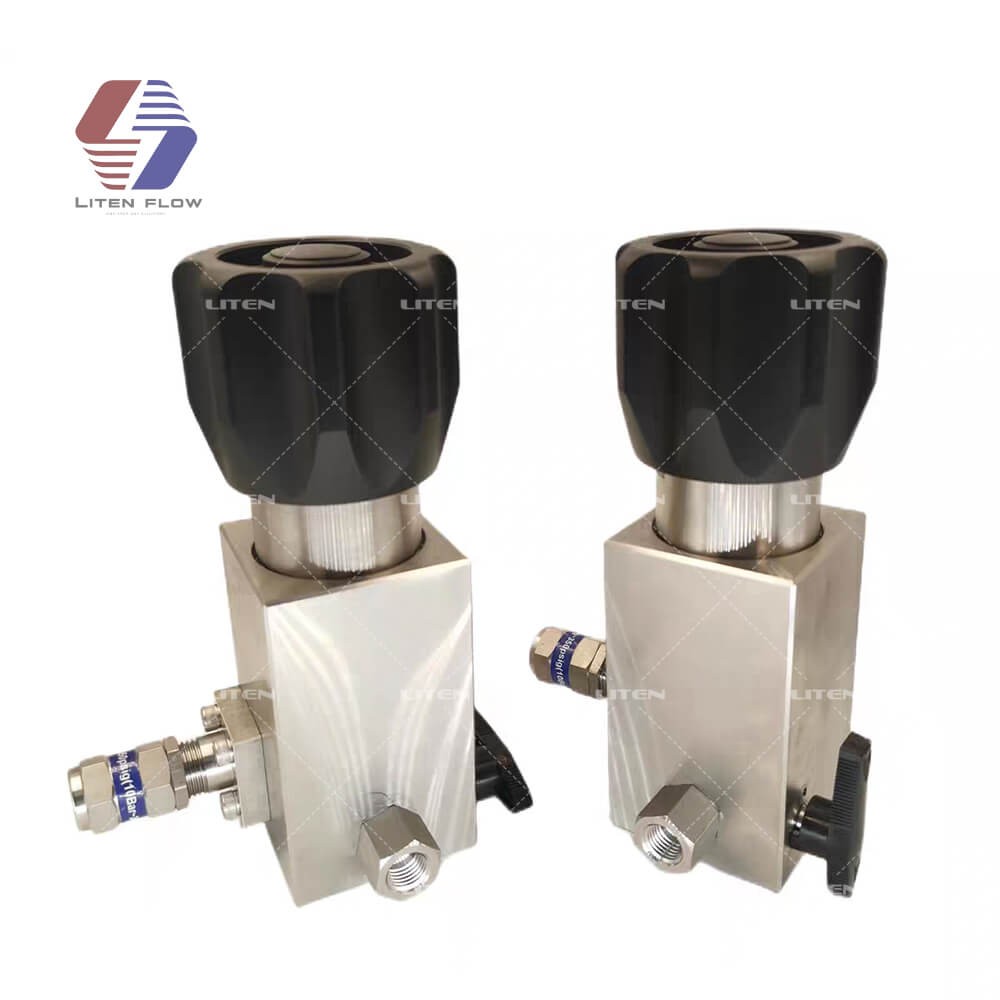

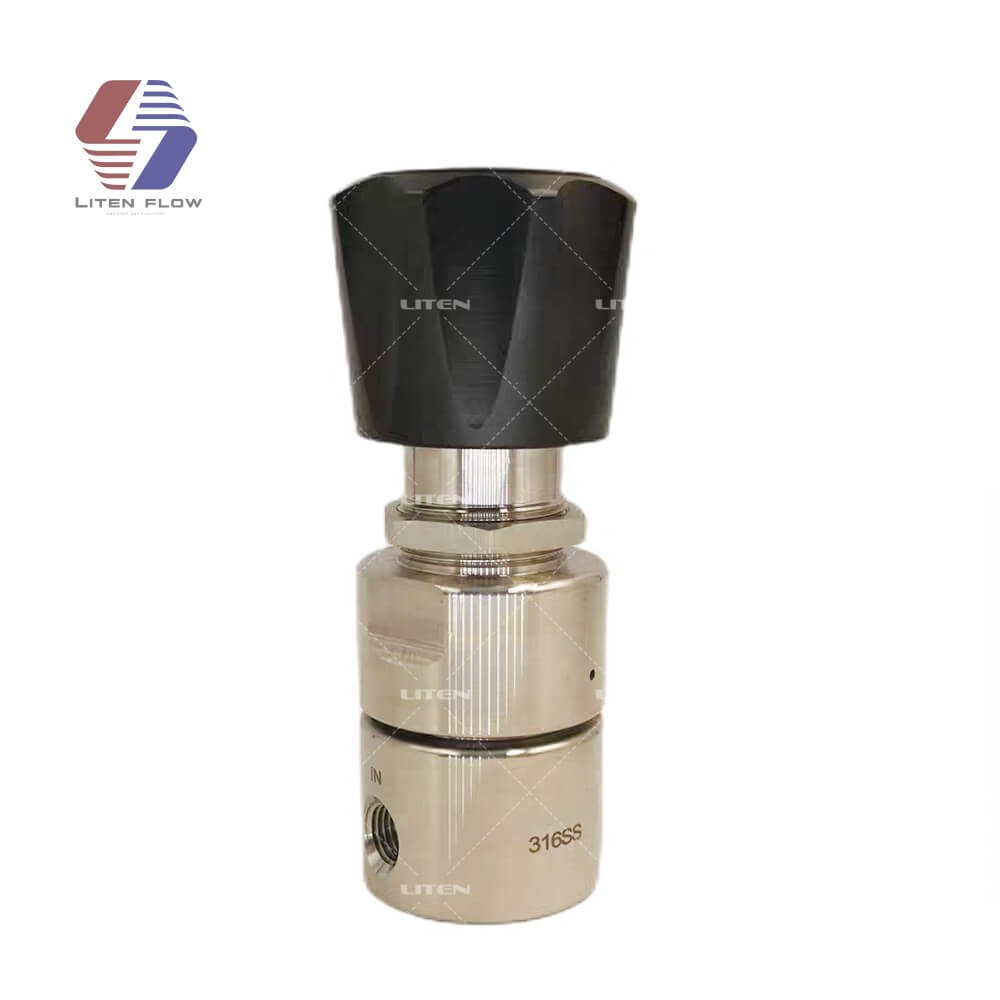

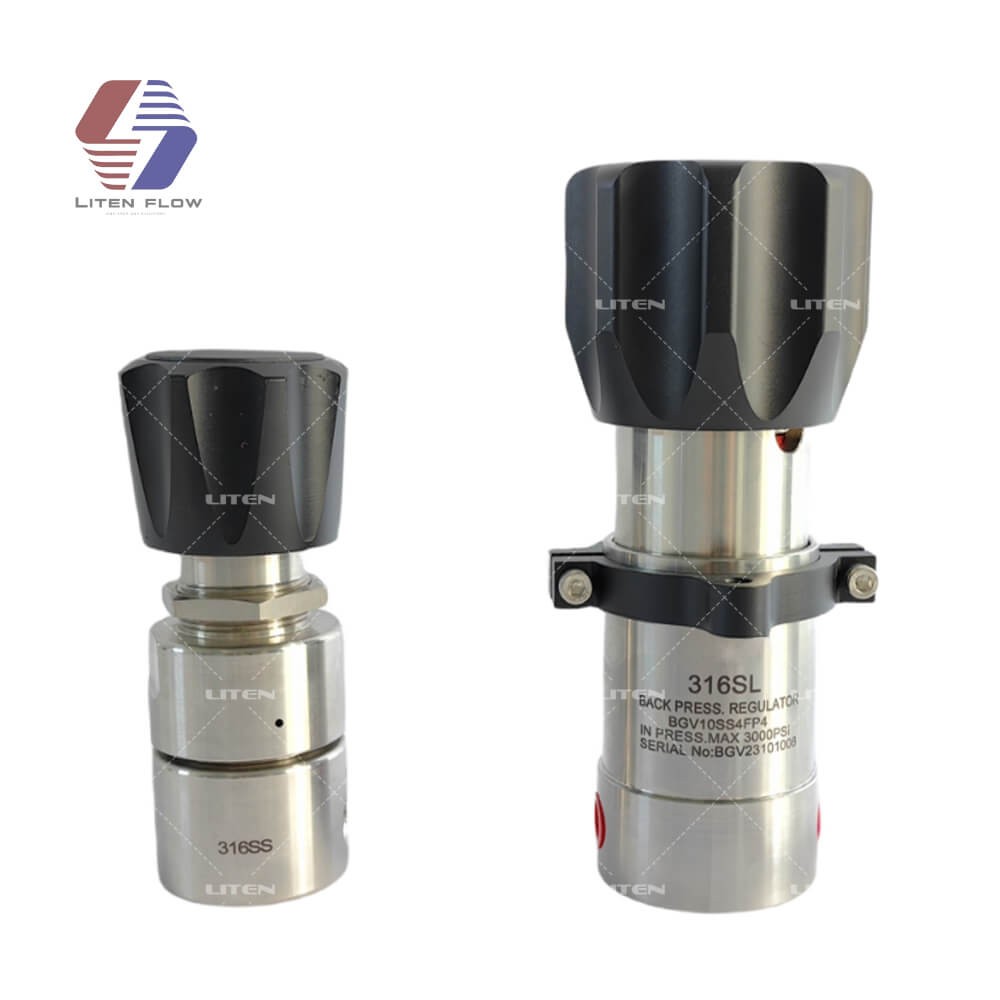

20,000 PSI High-Pressure Stainless Steel Pressure Regulator
Precision Pressure Control for Demanding Hydraulic & Instrumentation Applications
Our 20,000 PSI Pressure Regulator is engineered for superior performance, durability, and reliability in high-pressure hydraulic and instrumentation systems. Crafted from premium 316 Stainless Steel and 17-4PH Stainless Steel, this robust piston-sensed regulator ensures precise pressure reduction from extremely high inlet pressures to stable, controlled outlet pressures.
Key Features
Premium Stainless Steel Construction: Manufactured with corrosion-resistant 316 SS and high-strength 17-4PH SS for long-lasting durability in harsh environments.
Robust Piston-Sensed Design: Provides accurate and stable pressure control by directly sensing downstream pressure, minimizing fluctuations.
Integrated Inlet Filter: Protects the regulator and downstream equipment by filtering out contaminants, ensuring reliable operation.
Pressure Reducing Flow Control: Efficiently reduces high inlet pressures to precise lower outlet pressures, safeguarding sensitive instruments and control devices.
Technical Specifications
Parameter
Details
Maximum Inlet Pressure
6,000 psig / 10,000 psig / 15,000 psig (models available)
Outlet Pressure Ranges
0–500 psig, 0–800 psig, 10–1,500 psig, 15–2,500 psig, 25–4,000 psig, 50–6,000 psig, 200–10,000 psig
Working Temperature
-20°F (-29°C) to 250°F (121°C)
Port Size
1/4" Female NPT
How It Works
Our pressure regulator is designed to reduce high source or instrument supply pressures-up to 15,000 PSI-to a specific, stable lower operating pressure tailored to your system's requirements. The outlet pressure is maintained within a precise range to protect downstream equipment.
○ Easy Adjustment: Simply turn the spring adjuster clockwise to increase outlet pressure or counter-clockwise to decrease it, allowing quick and precise tuning.
○ Reliable Performance: The piston-sensed mechanism ensures consistent pressure control even under varying flow conditions.
Applications
Instrumentation and control devices needing stable supply pressures
High-pressure testing and calibration setups
Industrial processes involving aggressive fluids or harsh conditions
