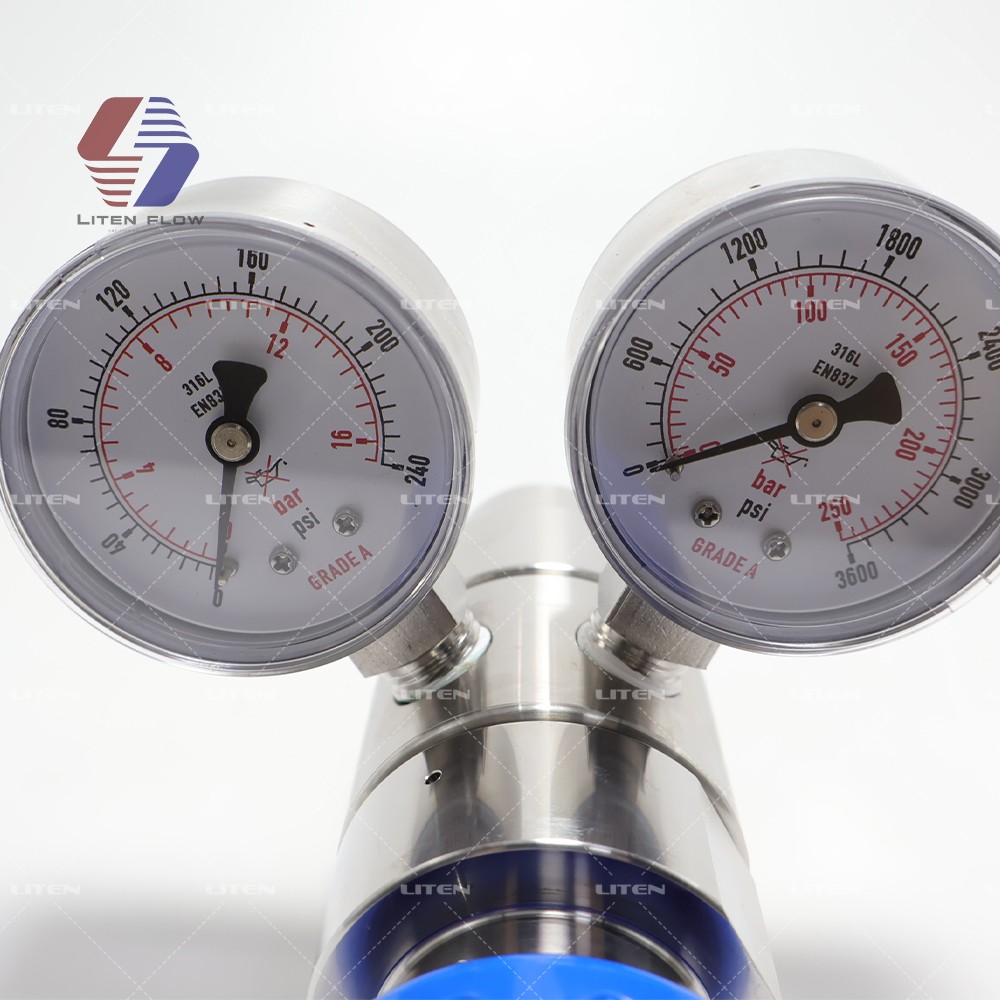

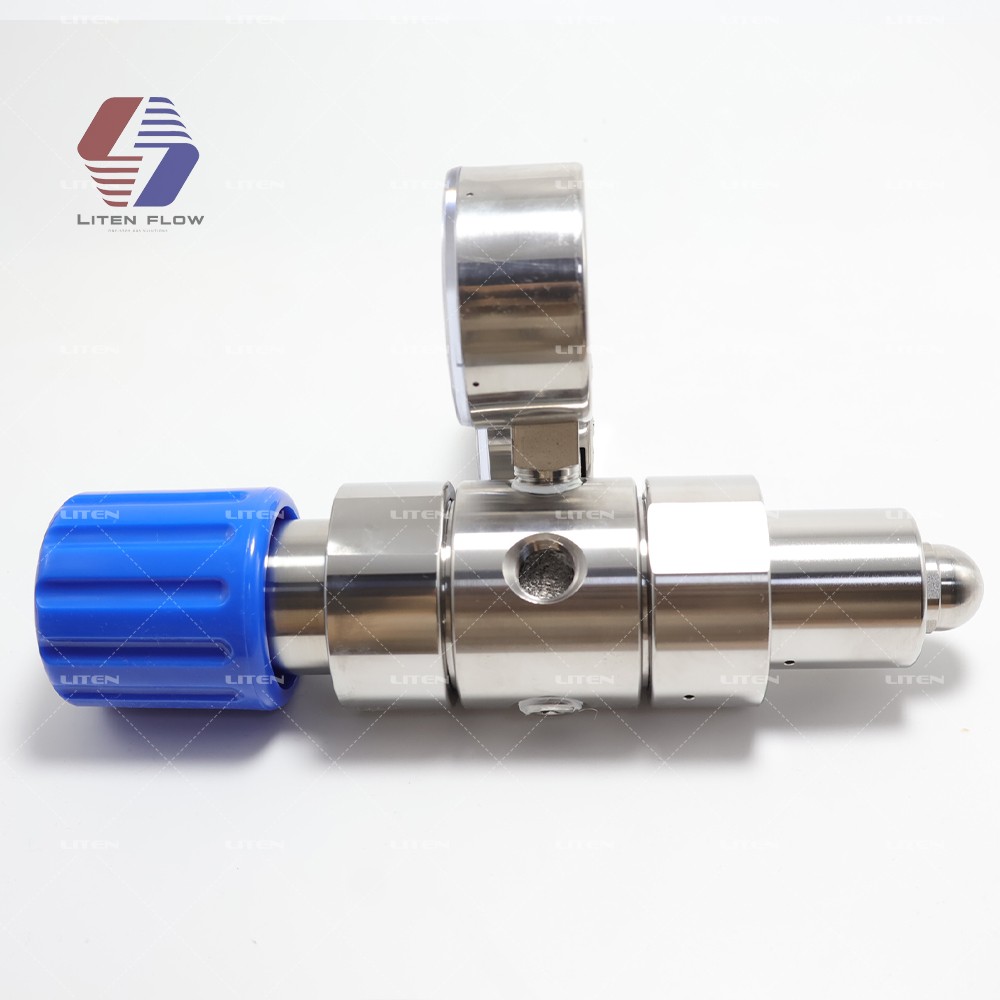

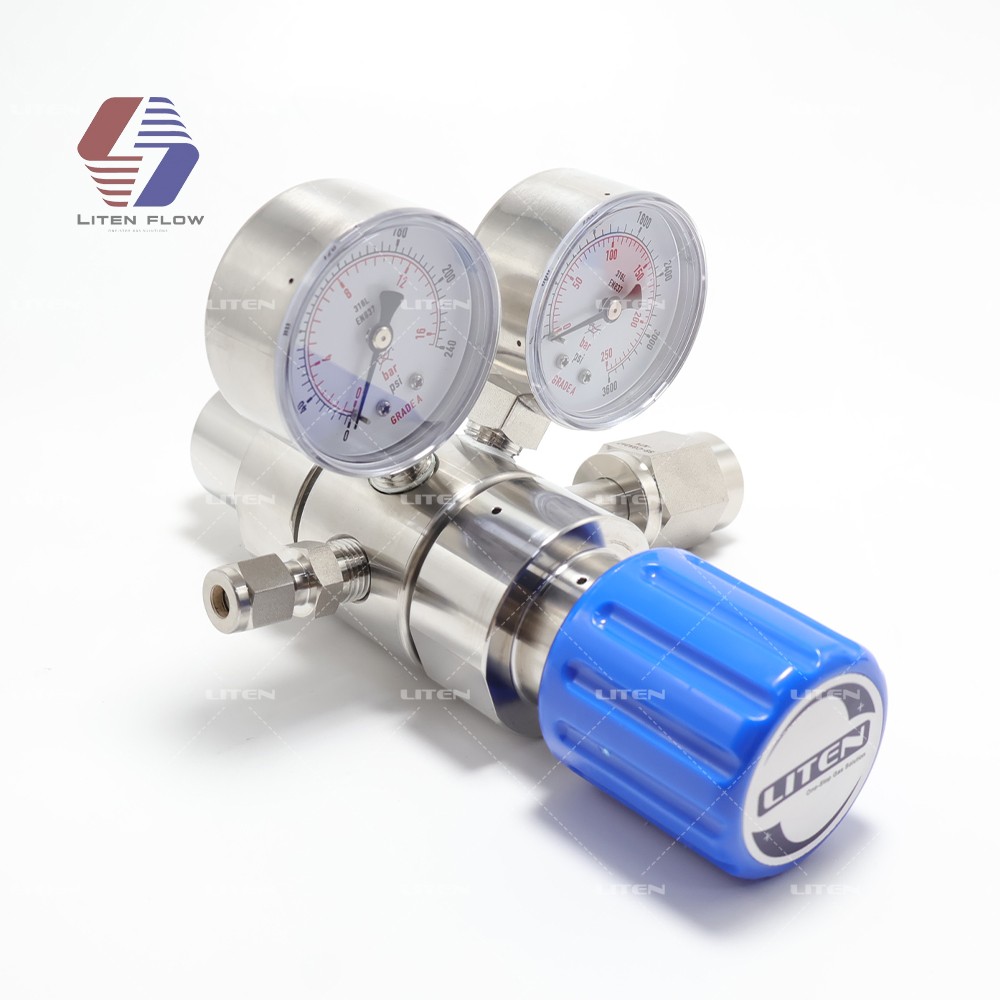

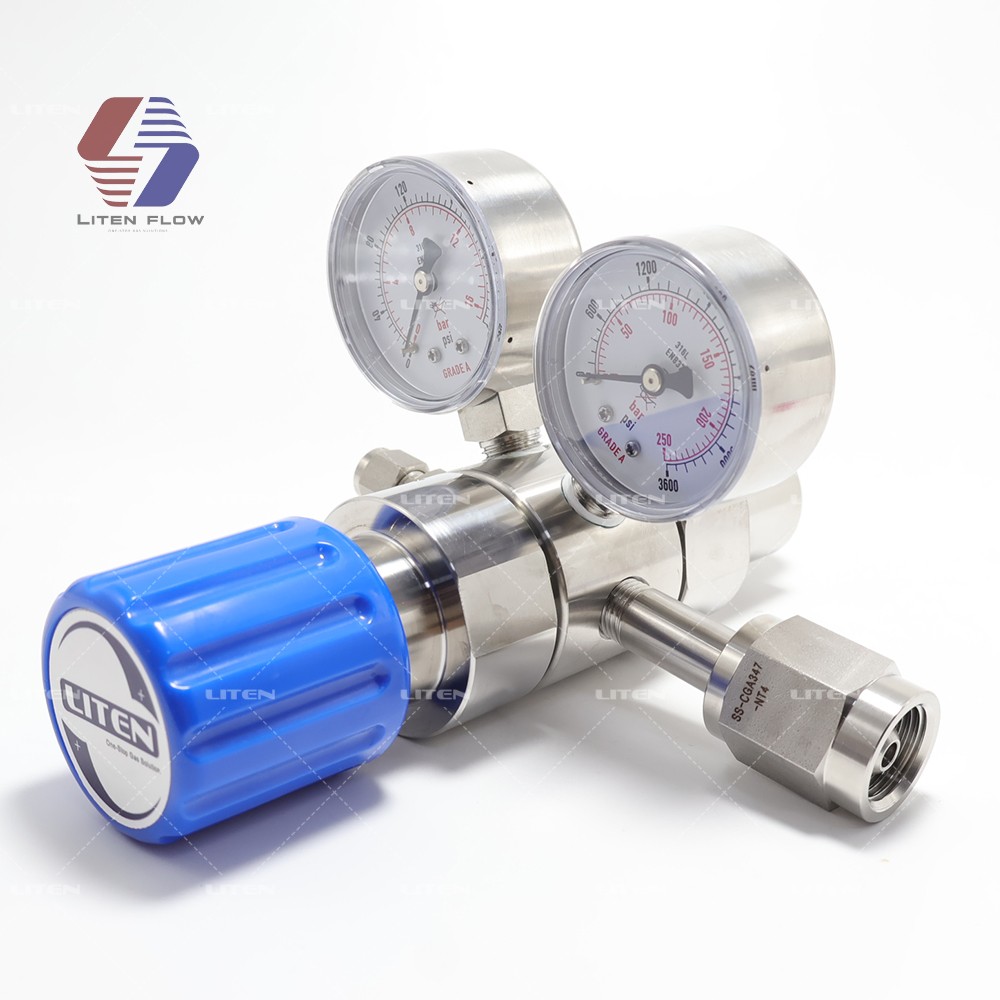

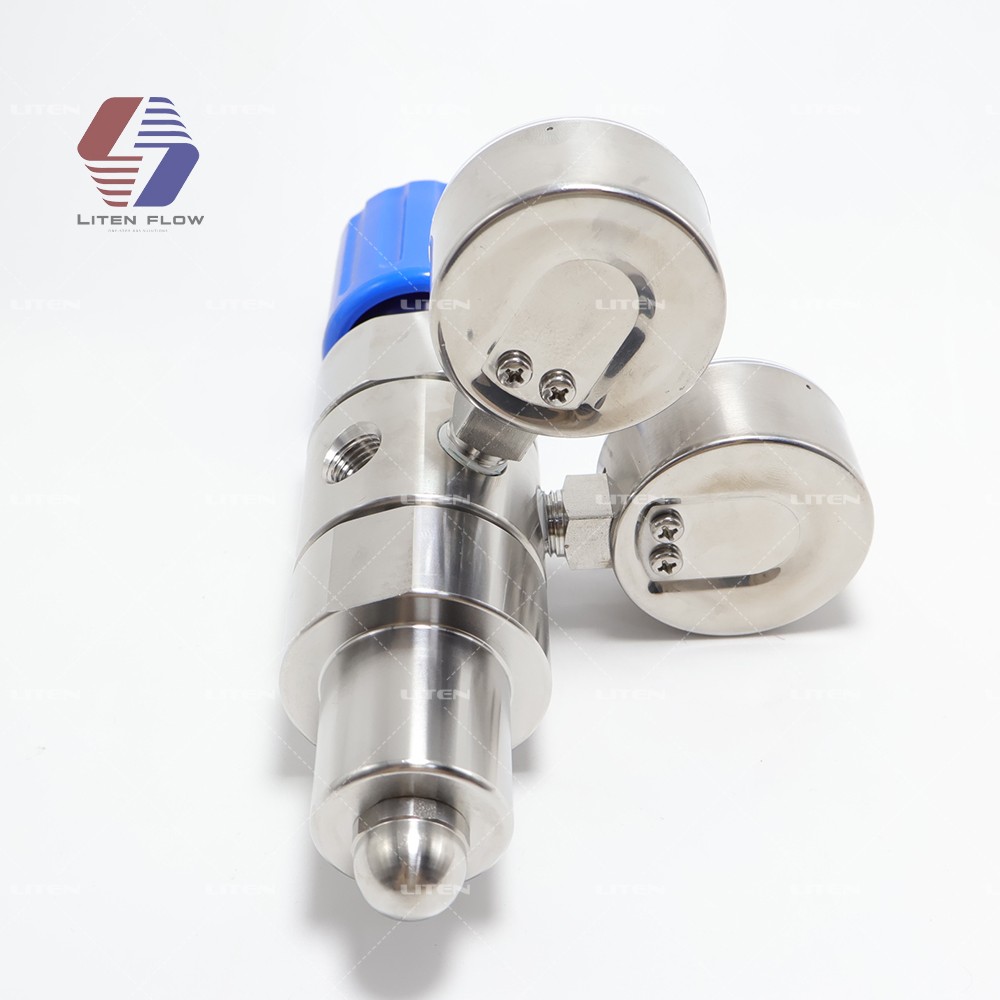

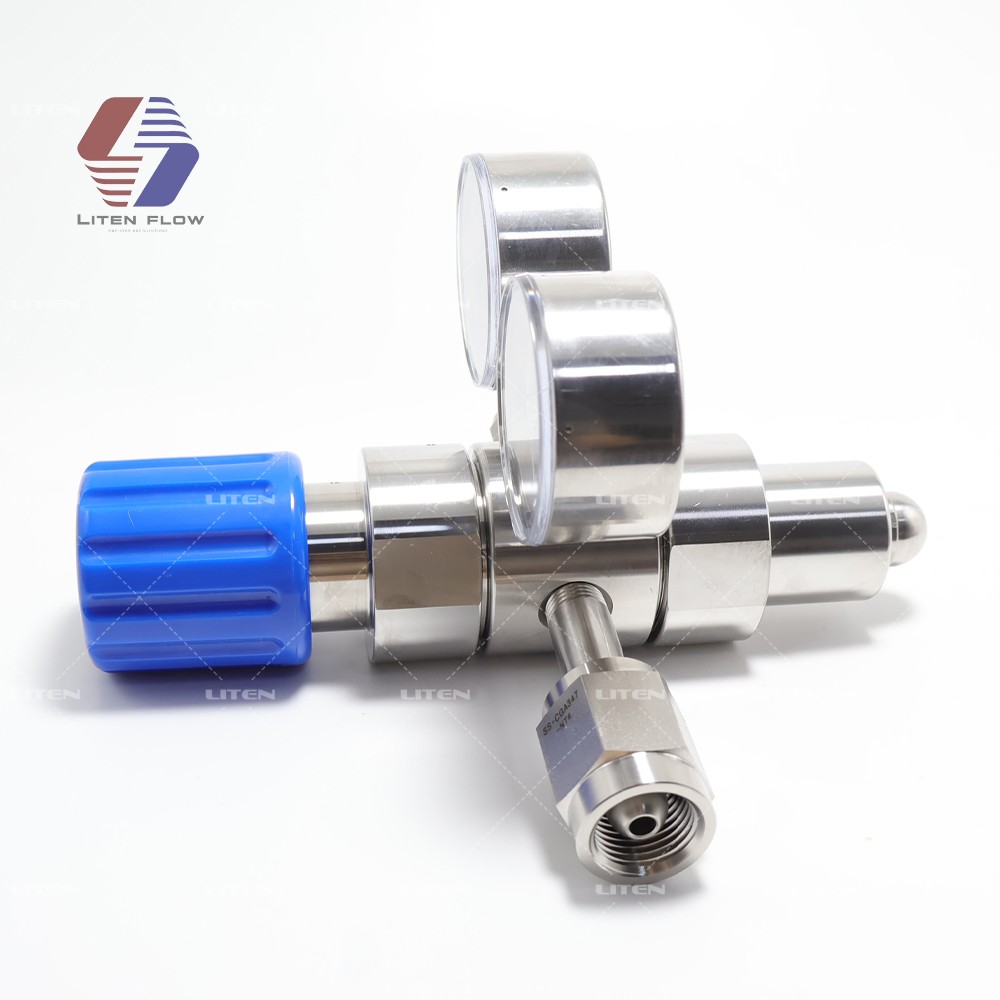

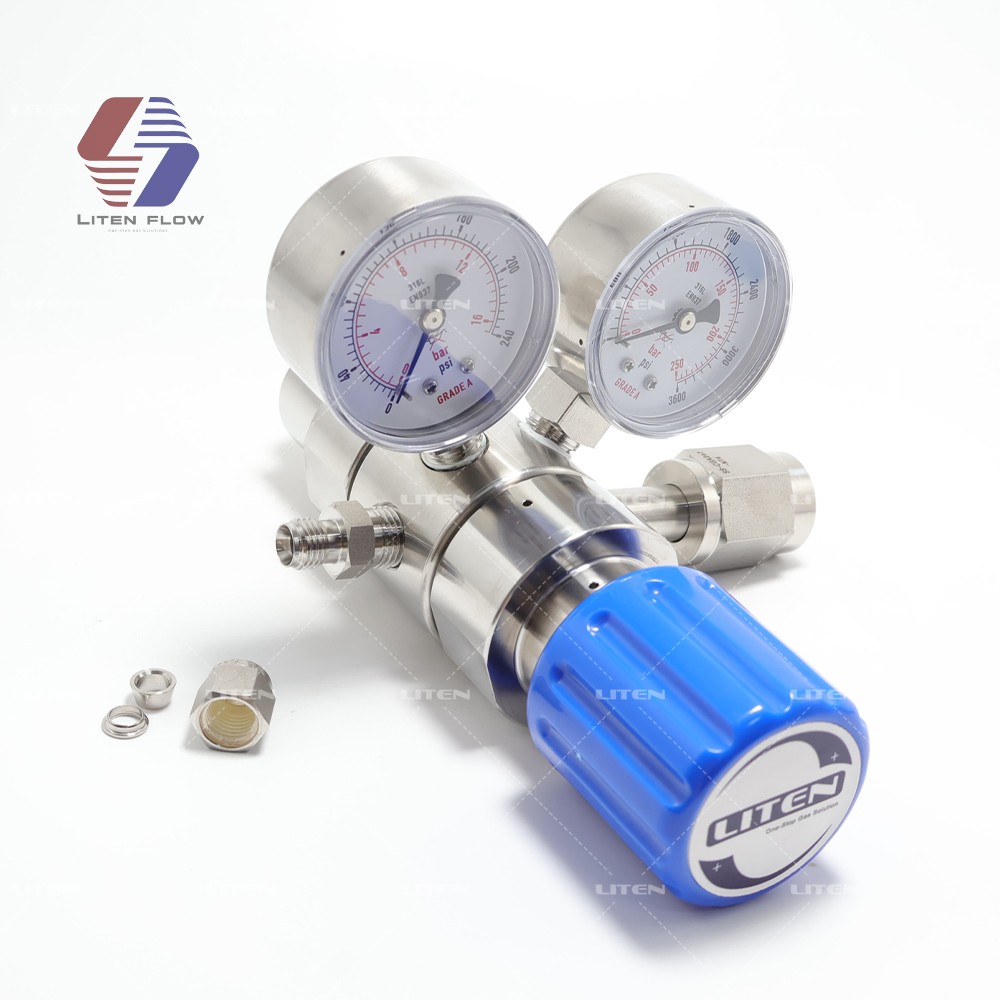

Two Stage Inert Gas Regulator 316L stainless steel 0-100 psi Analytical Cylinder Regulator with CGA-580 adpter

Maximum Inlet Pressurel: 3500psi
Outlet Pressure Ranges: 0~250psi
Boby Connection: : 1/4"FNPT
Internal and External Leak Rate: <1 x 10-9 mbar.L/s
Applicable temperature: -40 ℃ to +74 ℃

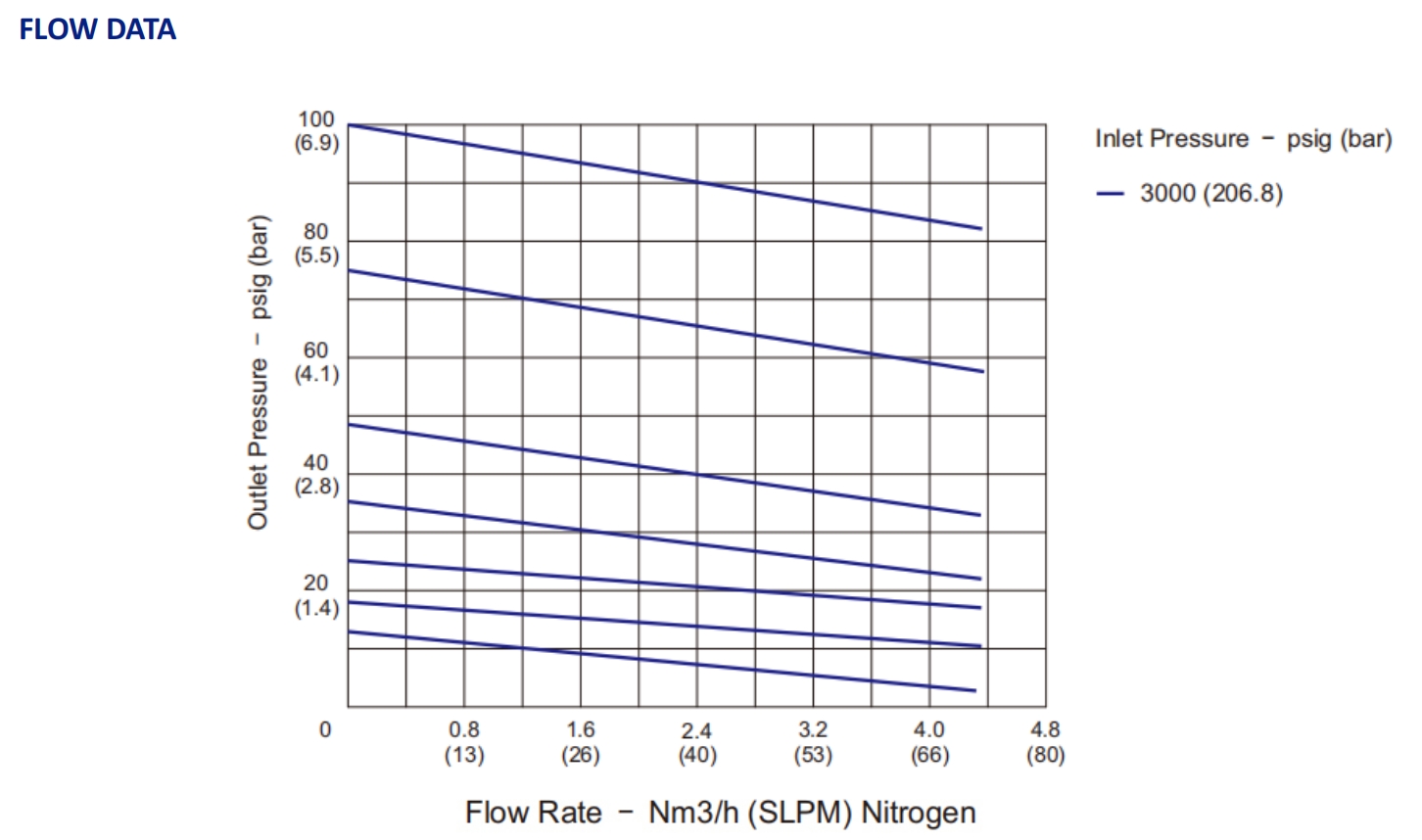

Flow Capacity: Cv = 0.08
Designed Leak Rate Bubble-Tight (helium)
Cylinder CGA 580,350,590 ect.
Gas Type: Argon,Helium,Nitrogen,Hydrogen, Co2 ect.
Valve body weight: About 1.8kg
Safety pressure:1.5 times the maximum input pressure

INQUIRY

Product Details

Product Tags

Two Stage Inert Gas Regulator 316L stainless steel 0-100 psi Analytical Cylinder Regulator with CGA-580 adpter

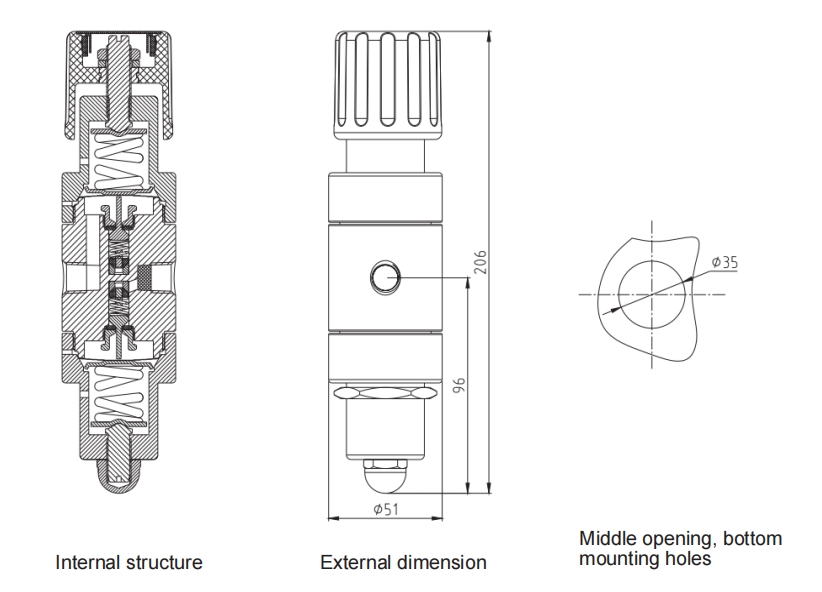

The Two Stage R31 Series Pressure Regulator raises the standard of performance for Instrument/Analyzer Regulators.The R31 provides two single stage regulators in series incorporated into one body, which gives the user the capability tomaintain a constant and precise outlet pressure when there are dramatic variations in inlet pressure, eliminating problems ofsupply pressure effect.
