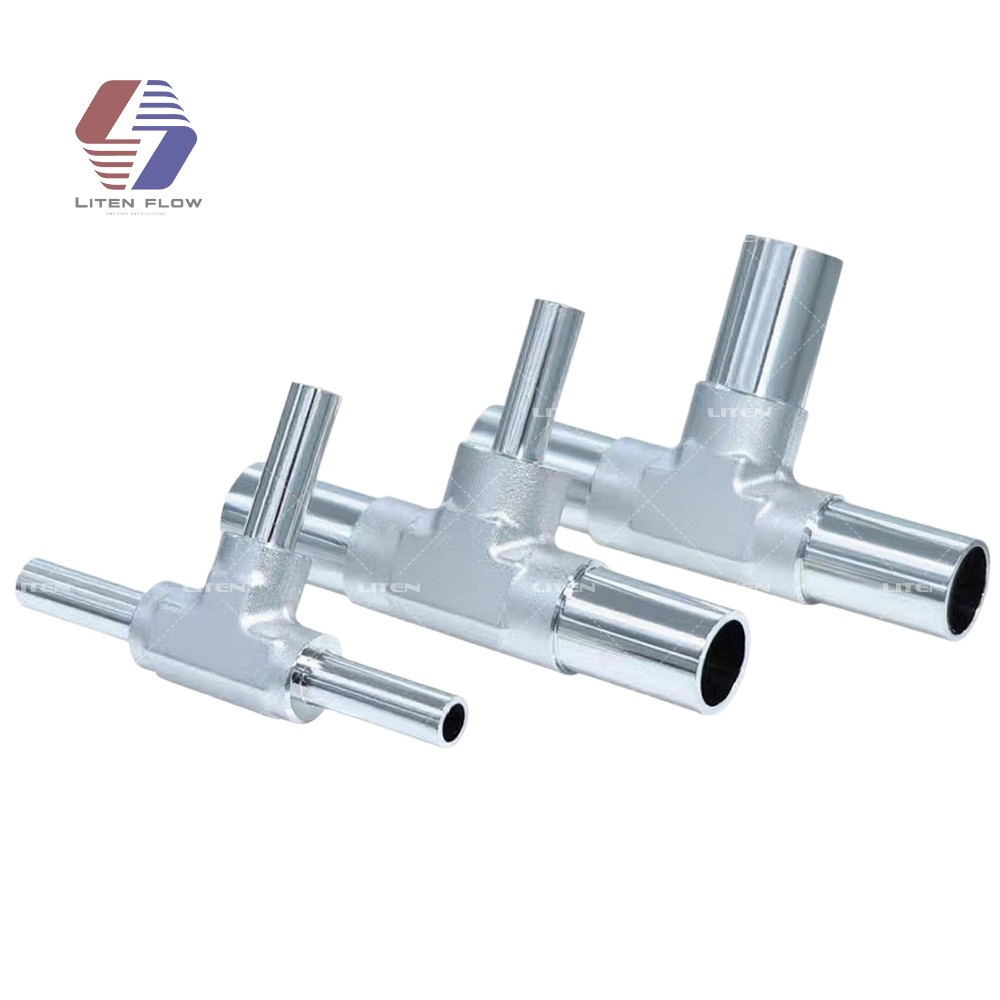

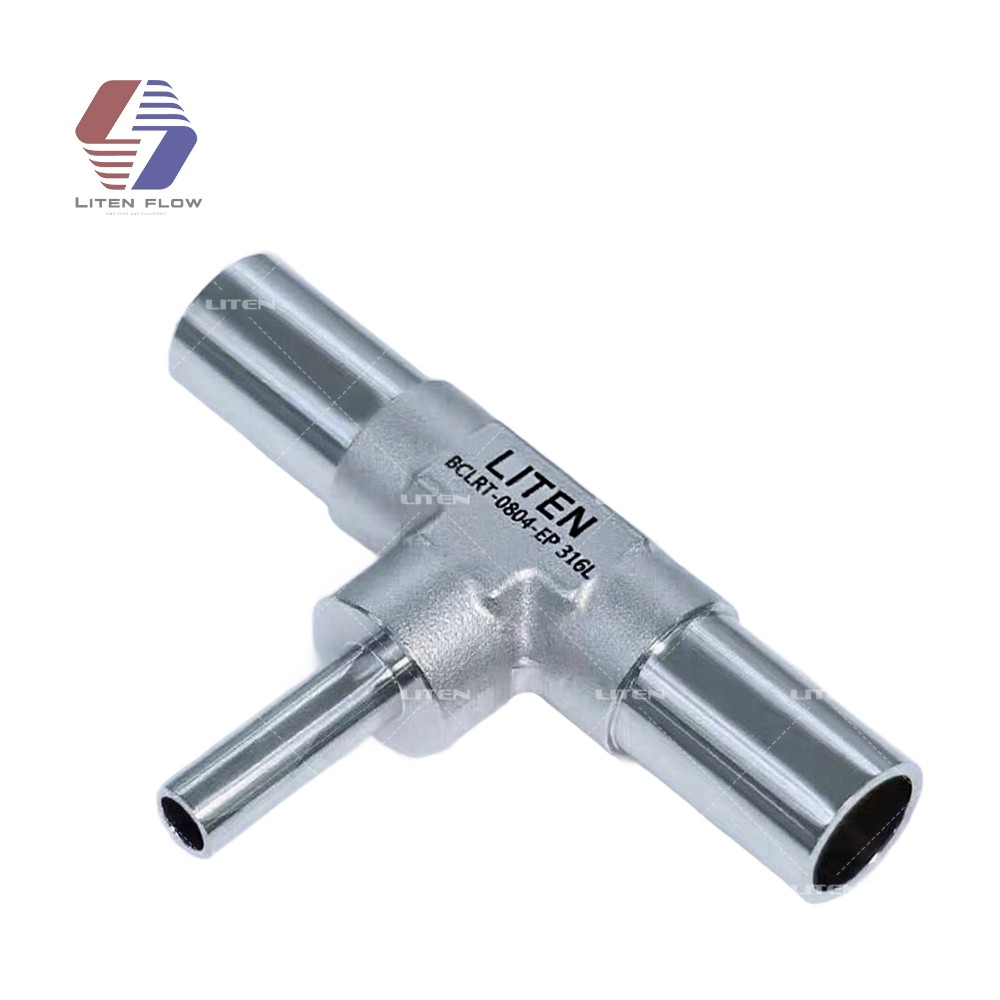

316L Stainless Steel Forged Orbital Weld Tee for Semiconductor High-Purity Gas Systems

Material: 316L Stainless Steel
Size Range: 1/4" to 1" inch
Surface Finish: Electrolytic Polishing (Ra ≤ 0.25μm)
Manufacturing Method: Forged
Max Pressure: 3000 psig
Packaging: Double Clean Packaging
Application: Semiconductor High-Purity Gas Delivery
Sealing Performance: Enhanced due to Forged Construction

INQUIRY

Product Details

Product Tags

Product Description

Our Orbital Weld Tee is expertly engineered for high-purity gas delivery systems in the semiconductor industry, where maintaining gas purity at ultra-high levels is critical. Manufactured from 316L stainless steel with electrolytic polishing (Ra ≤ 0.25μm), this fitting ensures minimal contamination, exceptional corrosion resistance, and outstanding mechanical strength.

Why Choose This Orbital Weld Tee for High-Purity Semiconductor Gas Systems?

Material Excellence: Made from 316L stainless steel, known for its low carbon content and excellent resistance to corrosion and contamination, essential for ultra-high purity gas delivery.

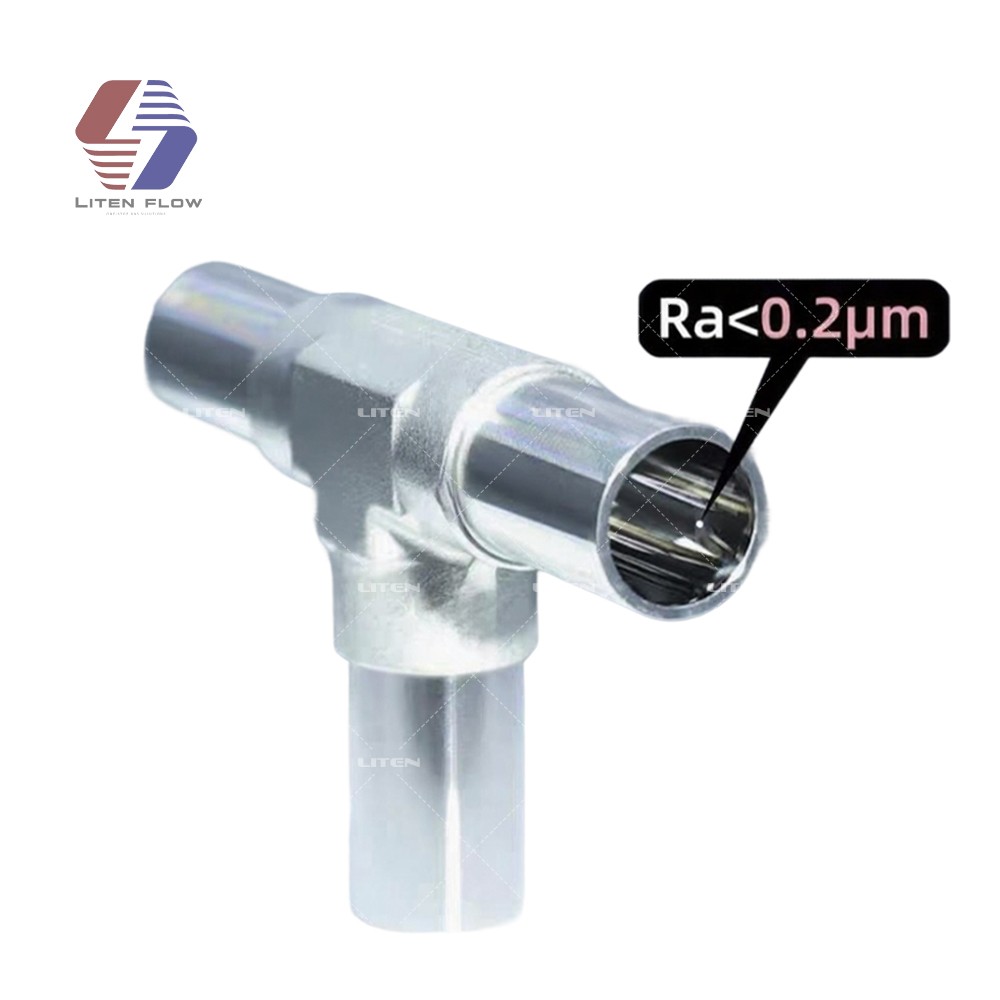

Electrolytic Polished Surface: The internal surface is polished to a roughness average of Ra ≤ 0.25μm, drastically reducing particle adhesion and preventing gas impurity contamination, meeting the stringent requirements of semiconductor gas pipelines.
Forged Construction for Superior Sealing: The forged manufacturing process produces a dense and uniform metal structure, significantly enhancing the fitting’s sealing performance. This ensures excellent leak-tightness and mechanical strength, critical for maintaining system integrity under pressures up to 3000 psig in high-purity gas applications.
Size Range: Available from 1/4" to 1" inch, compatible with typical semiconductor gas piping standards.
Double Clean Packaging: Guarantees product cleanliness upon delivery, preventing contamination before installation

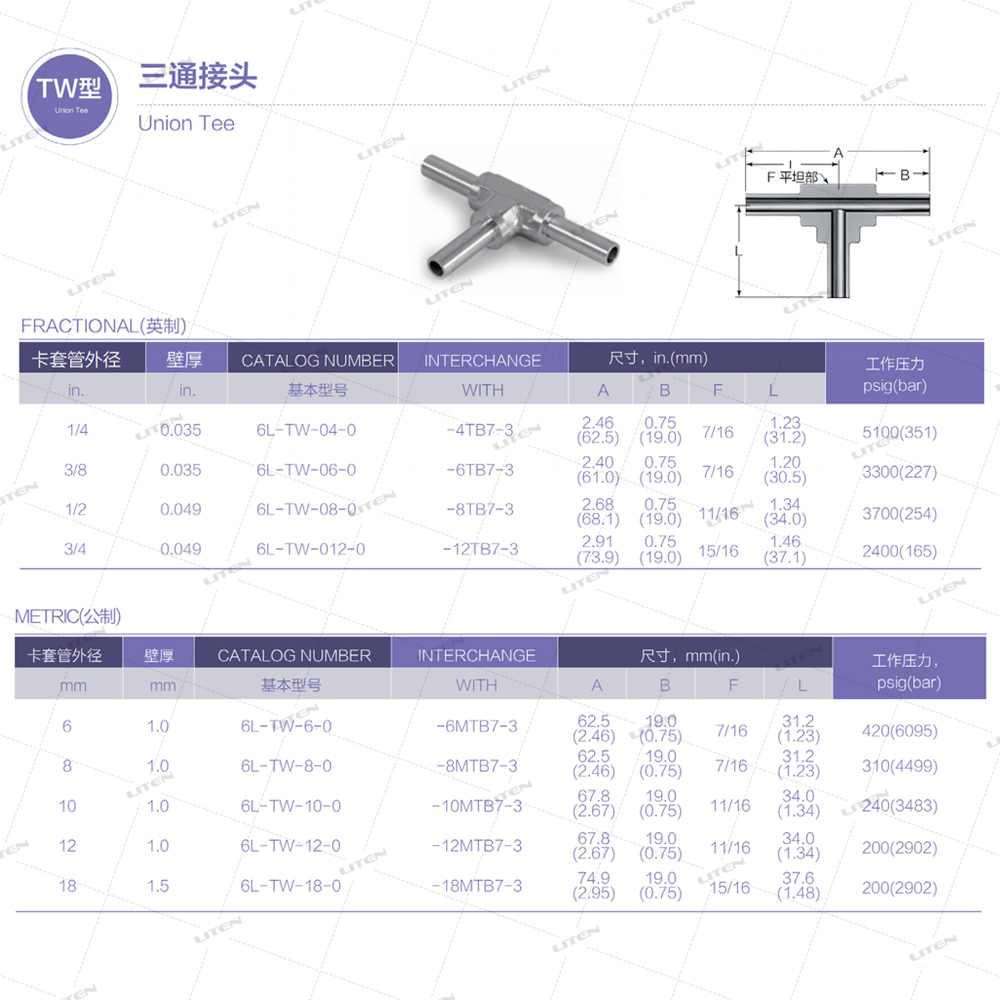

Key Technical Specifications

Feature	Specification
Product Name	Orbital Weld Tee
Material	316L Stainless Steel
Size Range	1/4" to 1" inch
Surface Finish	Electrolytic Polishing (Ra ≤ 0.25μm)
Manufacturing Method	Forged
Max Pressure	3000 psig
Packaging	Double Clean Packaging

Application in Semiconductor High-Purity Gas Systems

In semiconductor manufacturing, high-purity gases such as nitrogen, hydrogen, argon, and specialty gases must be delivered with minimal contamination to ensure device performance and yield. The Orbital Weld Tee is designed to:

Maintain ultra-low impurity levels by minimizing surface roughness and particle generation.
Resist corrosion and prevent metal particulate contamination, critical for gases with corrosive properties.
Support continuous gas flow with minimal dead space, reducing risk of gas stagnation and impurity buildup.
Withstand high pressures typical in semiconductor gas delivery systems, ensuring safety and system integrity.
Provide enhanced sealing performance due to its forged construction, reducing leakage risks and ensuring stable, reliable operation in critical high-purity gas lines
