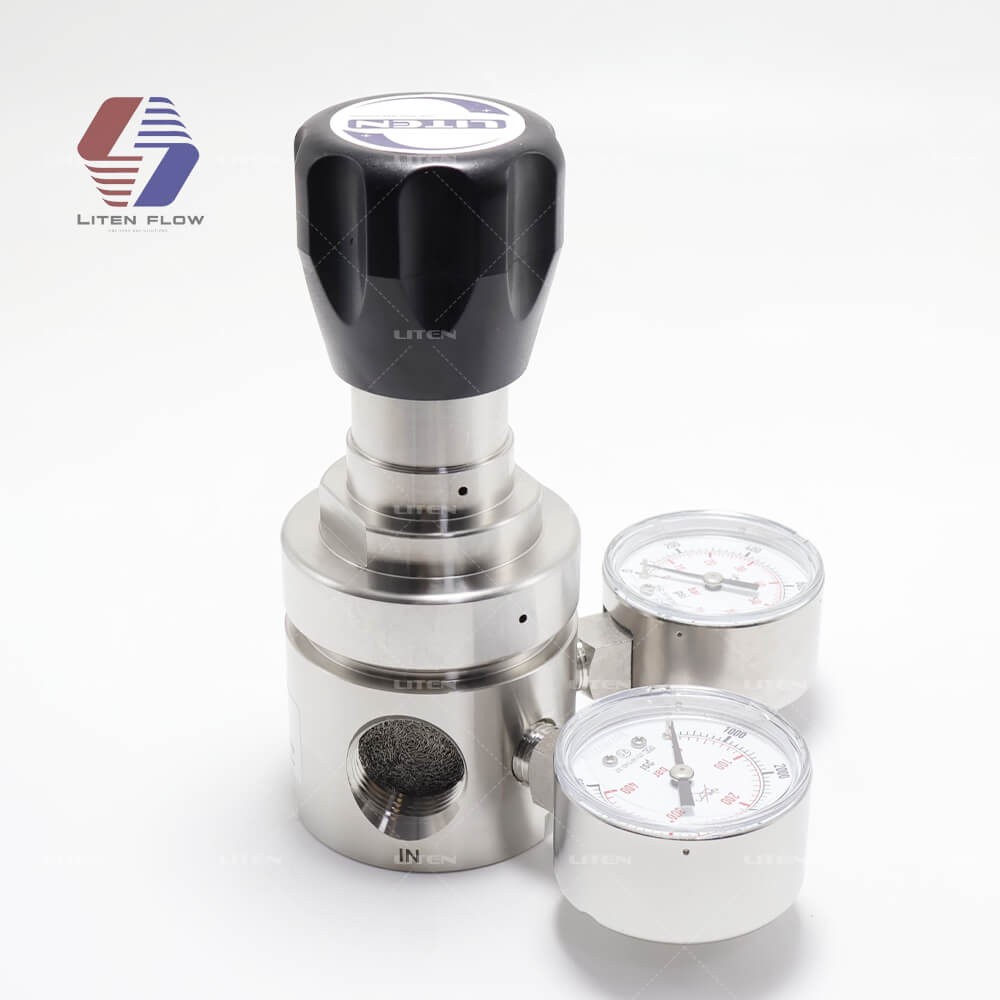

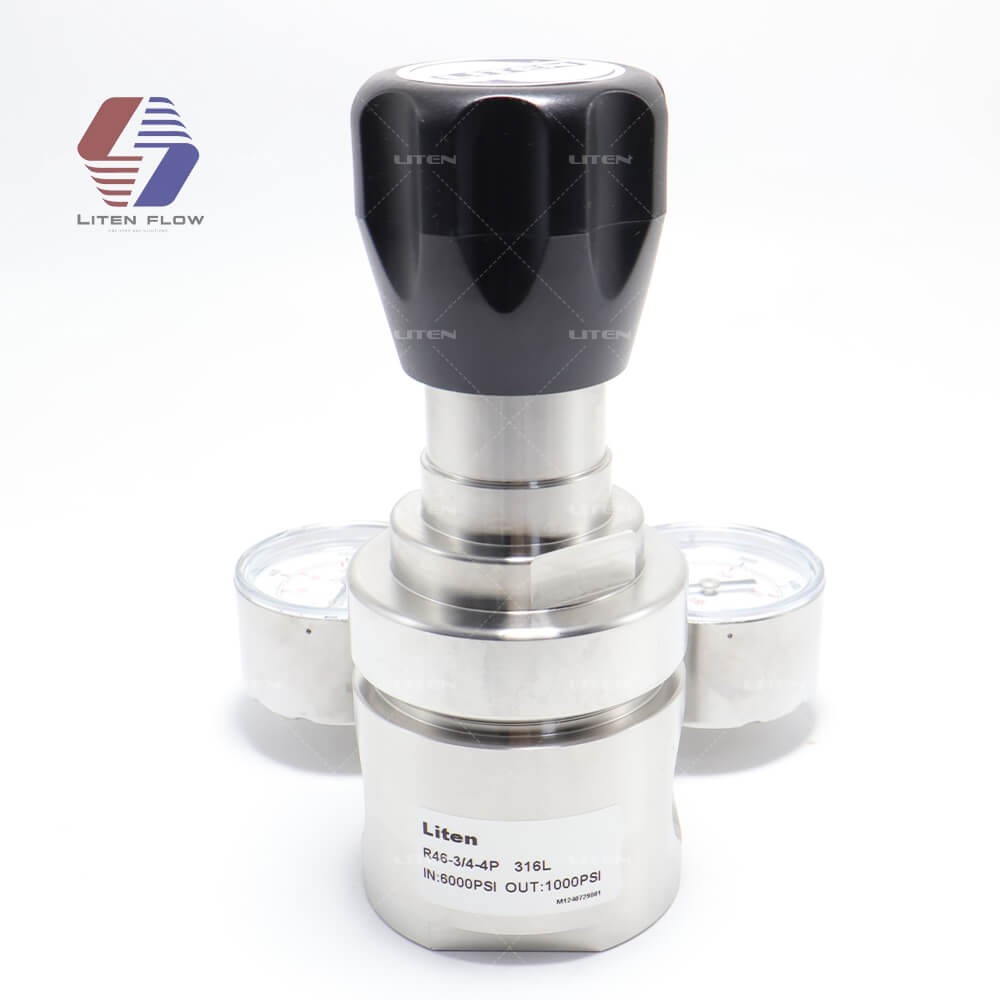

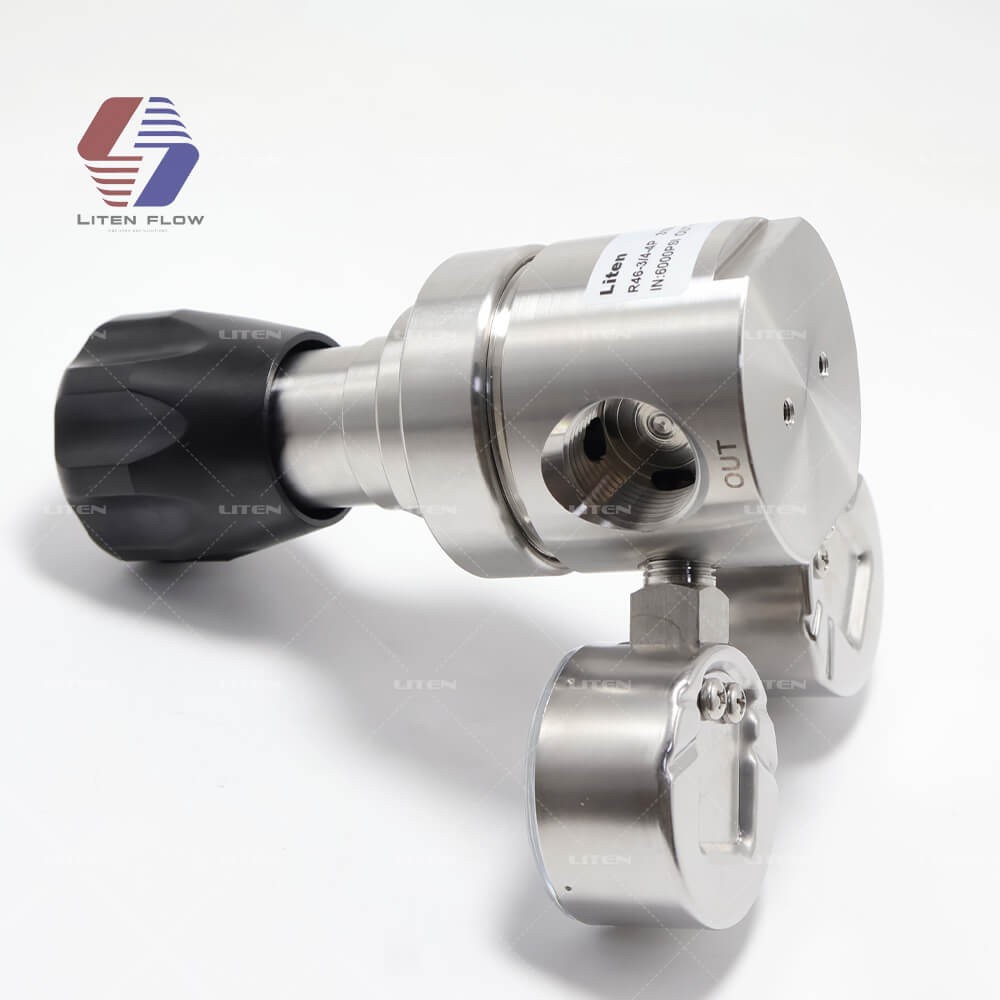

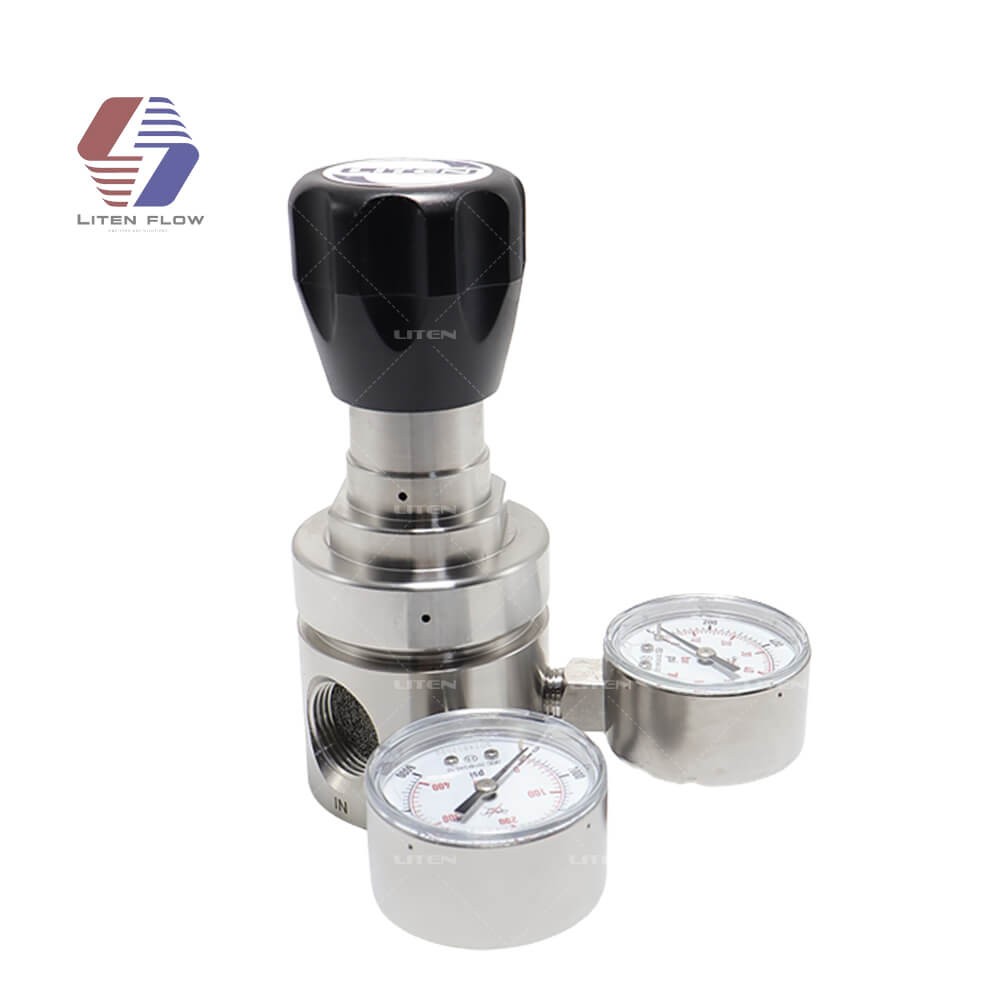

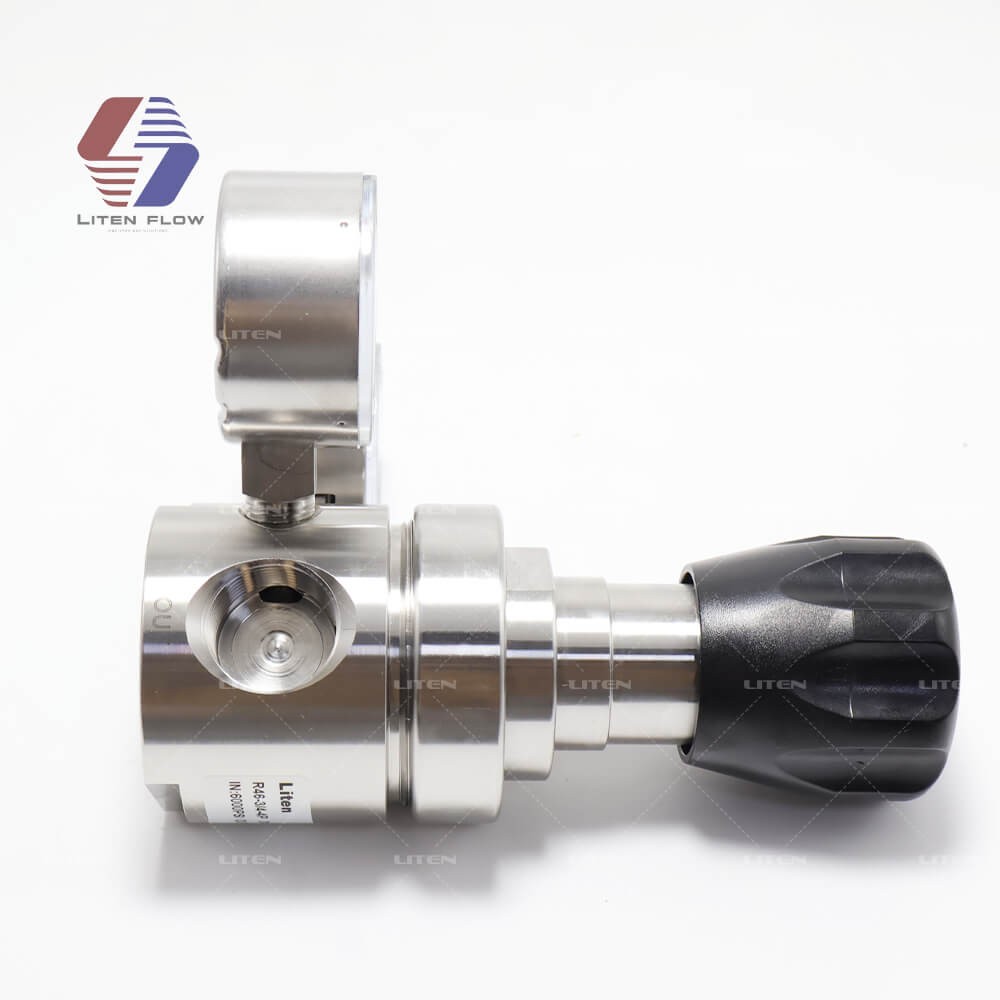

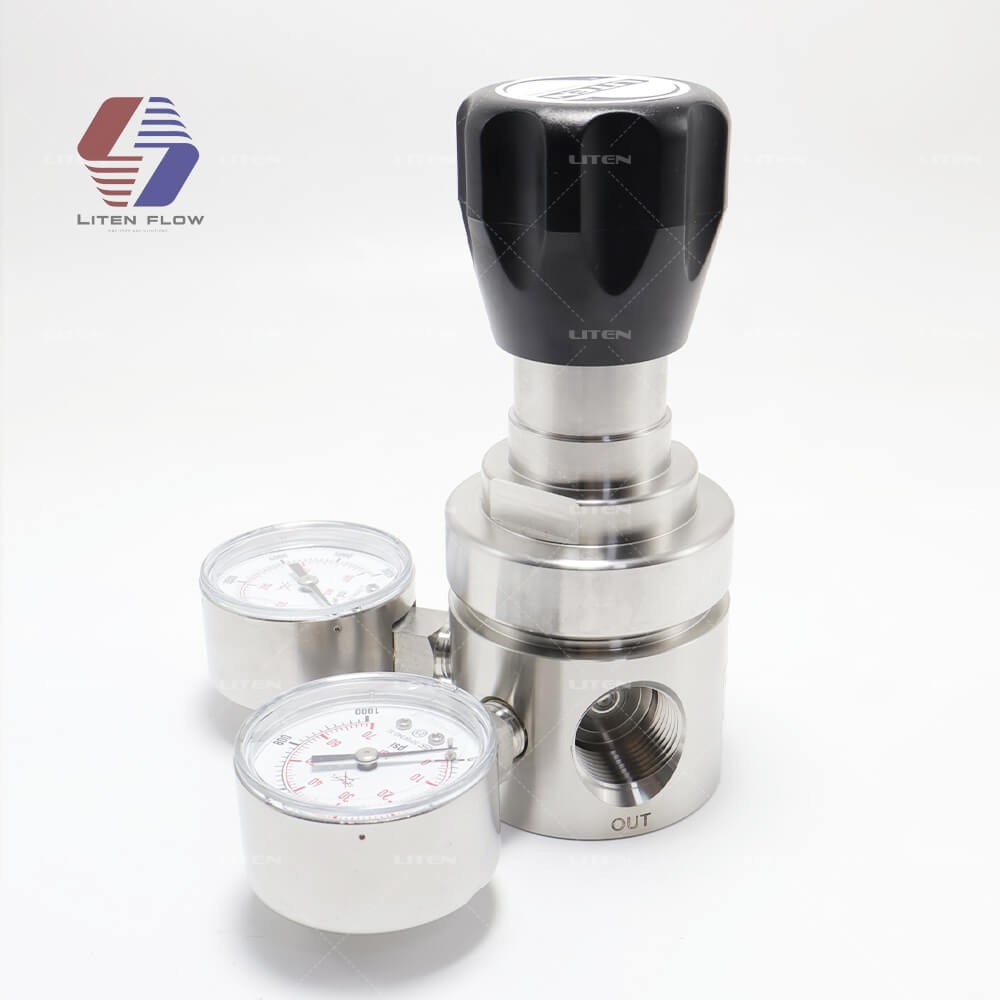

R46 Series 3/4" Female NPT Stainless Steel Pressure Regulator

Inlet Pressure: Up to 4500 PSIG | Outlet Pressure: Up to 600 PSIG | Cv: 10 | Material: 316L Stainless Steel | Includes Two Pressure Gauges

Overview

The R46 Series pressure regulator is engineered for demanding high-pressure, high-flow applications requiring precise and stable pressure control. Constructed from premium 316L stainless steel and featuring a robust piston-type design, this regulator delivers reliable performance and longevity in challenging environments.

Designed with a 3/4" Female NPT inlet port, the R46 Series can handle inlet pressures up to 6000 PSIG and regulate outlet pressures up to 2000 PSIG, making it ideal for industrial, laboratory, and instrumentation applications.

Key Features

Piston-Type Design: Ensures stable and accurate pressure regulation even under high flow conditions.

High Flow Capacity: Cv value of 1.0 supports substantial flow rates without compromising control precision.

Durable 316L Stainless Steel: Provides excellent corrosion resistance and mechanical strength for extended service life.

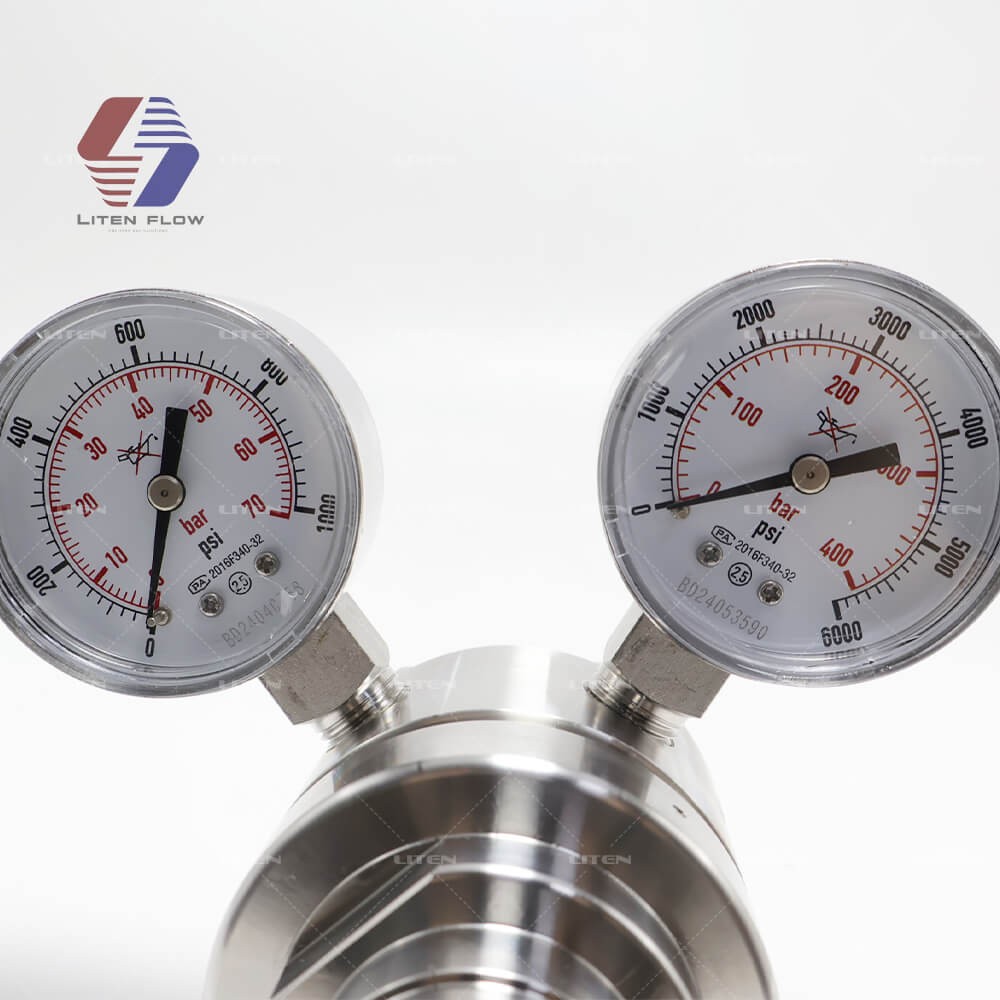

Dual Pressure Gauges Included: Allows real-time monitoring of both inlet and outlet pressures for enhanced safety and control.

Cleanliness Standard: Meets ASTM G93 Class C cleanliness requirements, suitable for sensitive applications. (Add "-O2" suffix when ordering for oxygen service compatibility.)

Standard Connection: 3/4" Female NPT inlet for easy integration into existing piping systems.

Technical Specifications

Application

High-pressure gas delivery systems
Industrial process control
Laboratory instrumentation
Medical gas systems (with oxygen service option)
High-flow hydraulic and pneumatic systems
