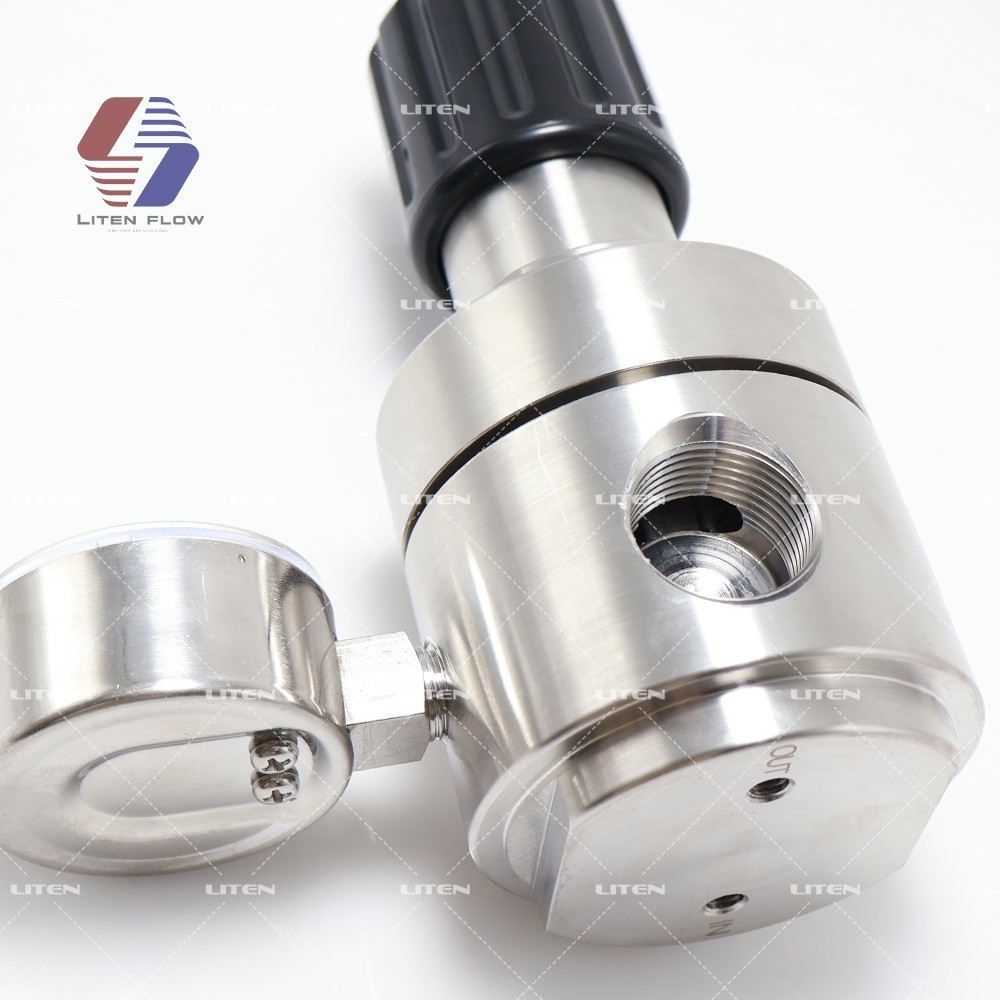

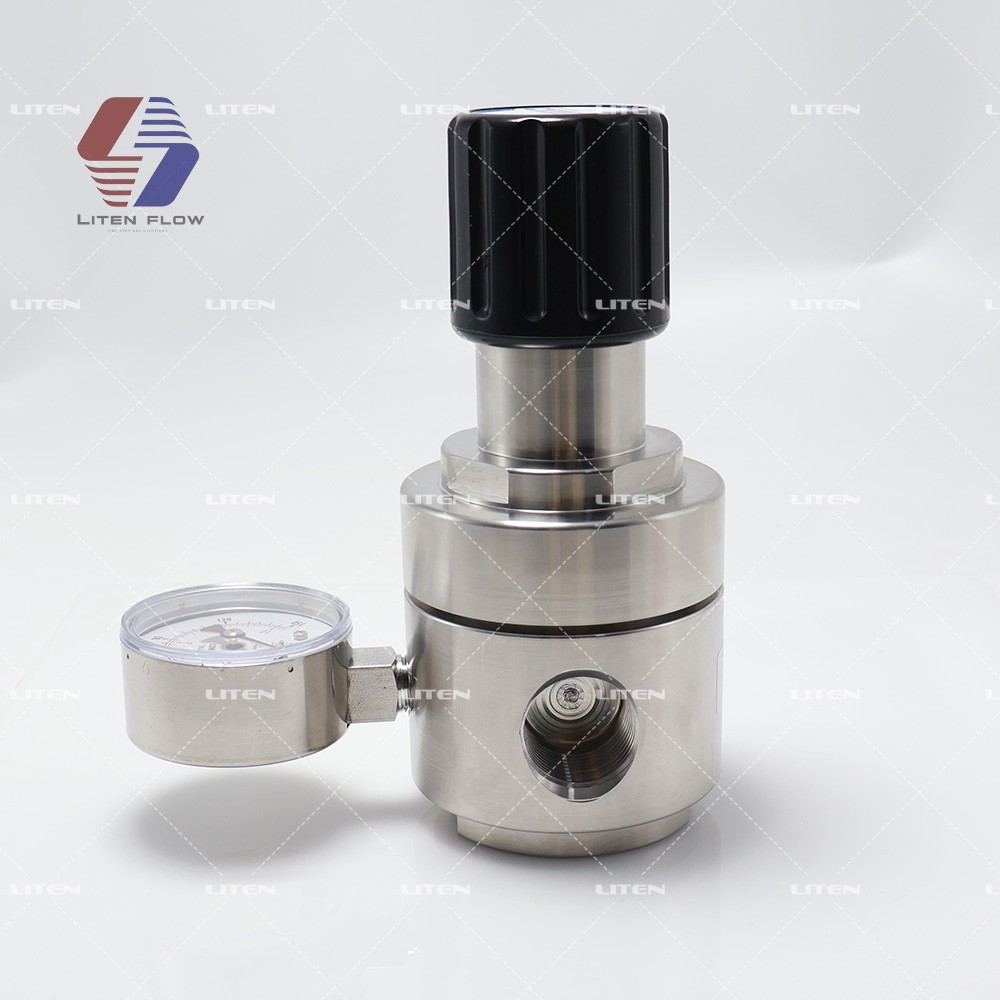

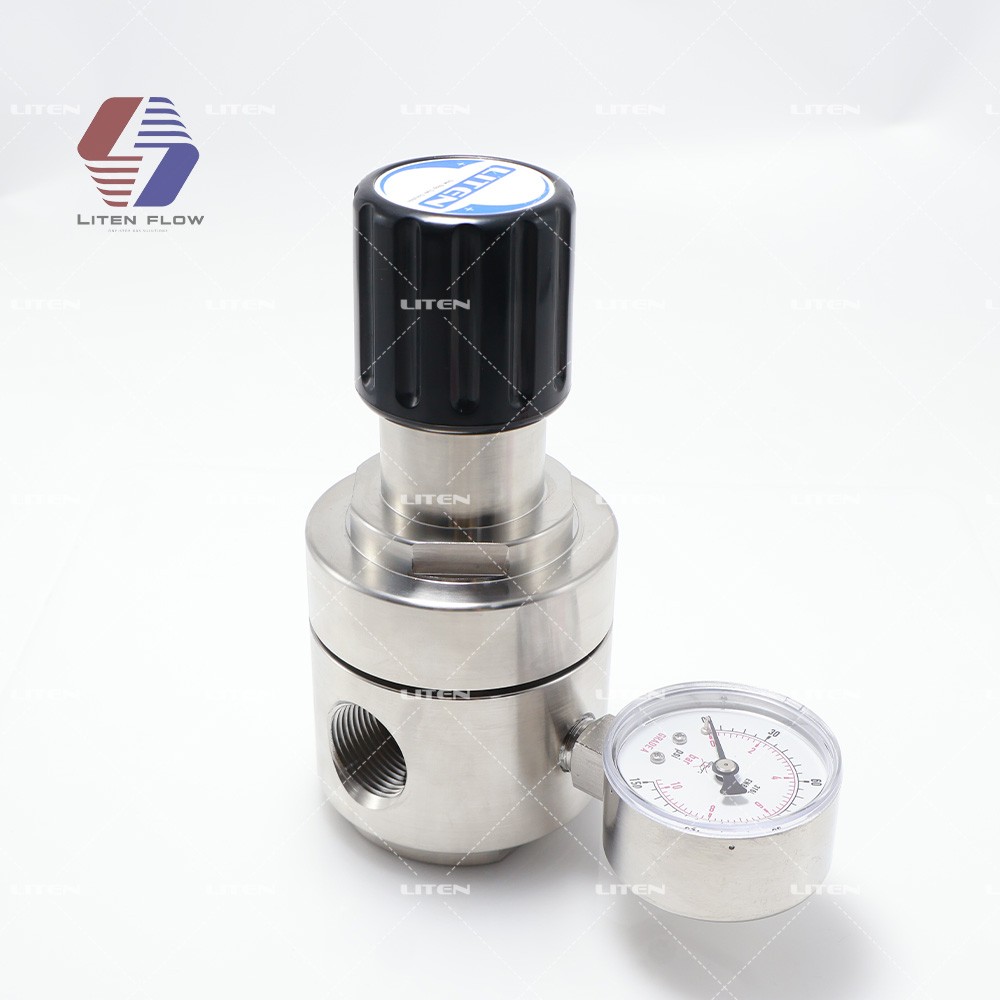

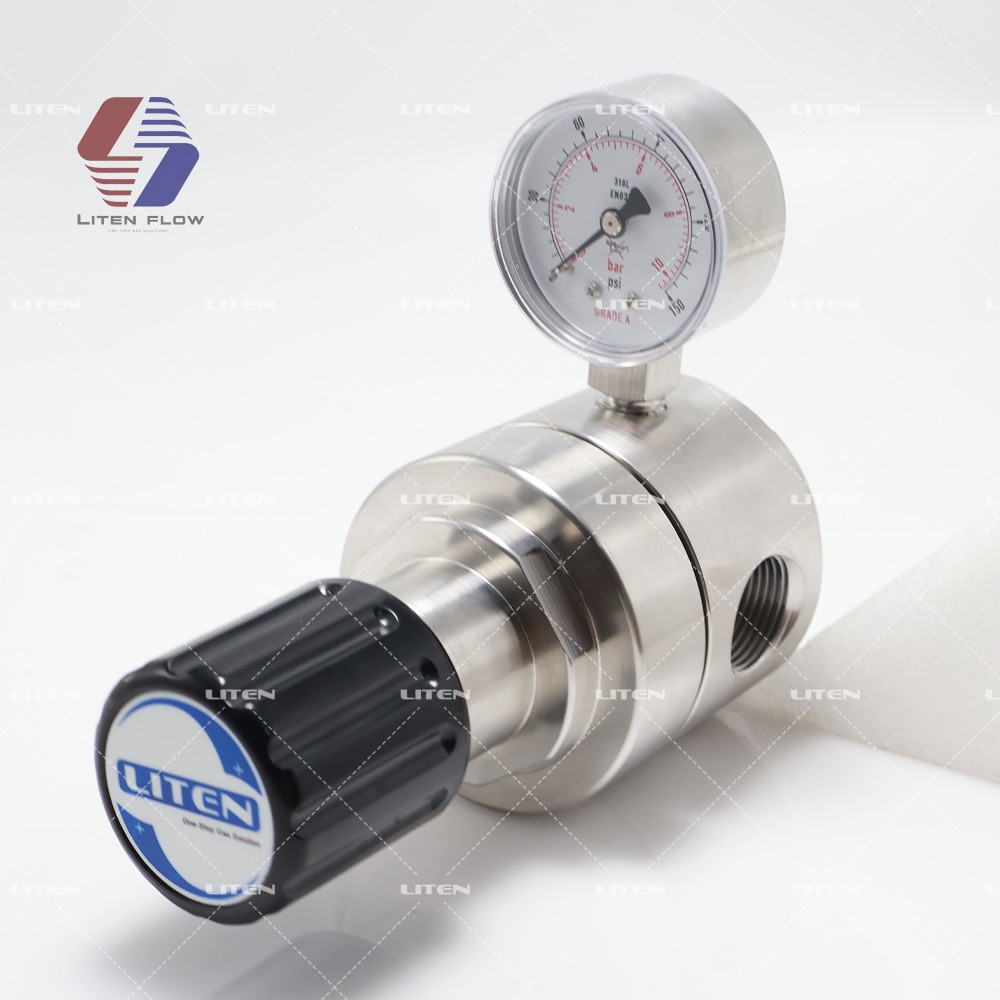

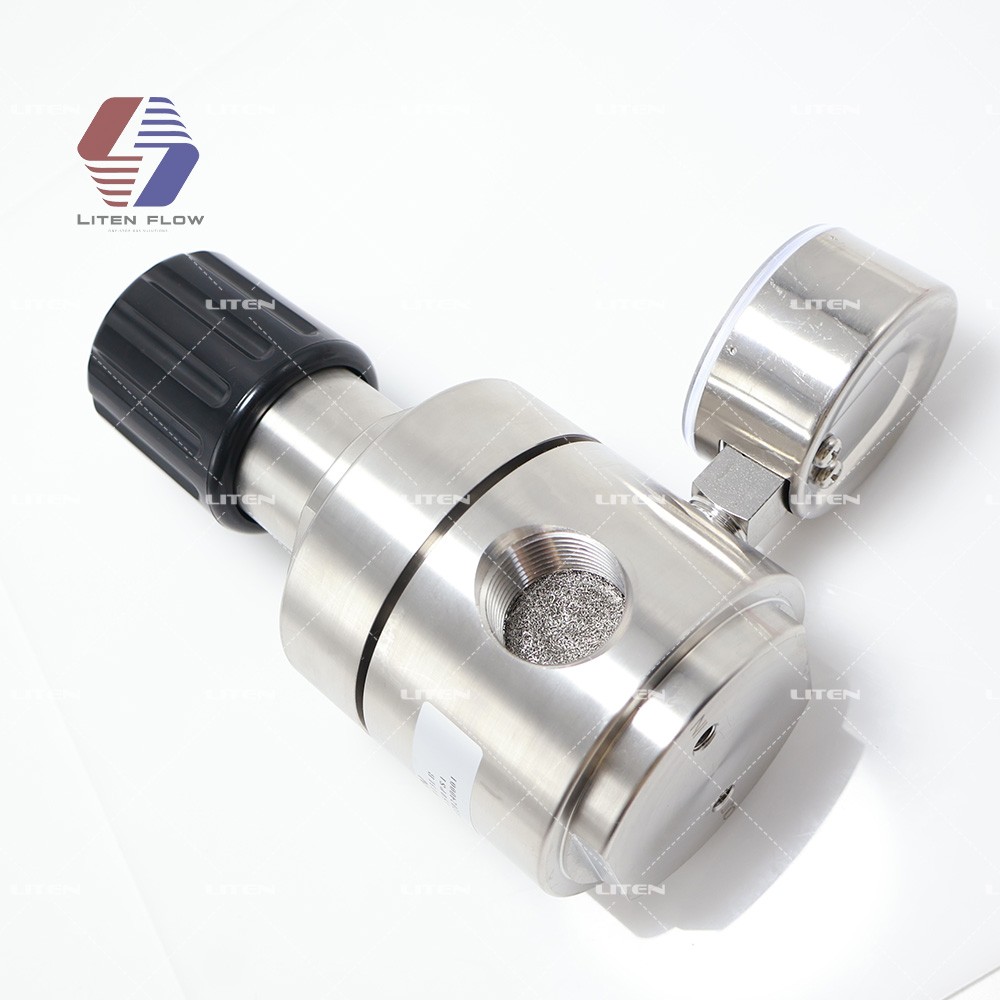

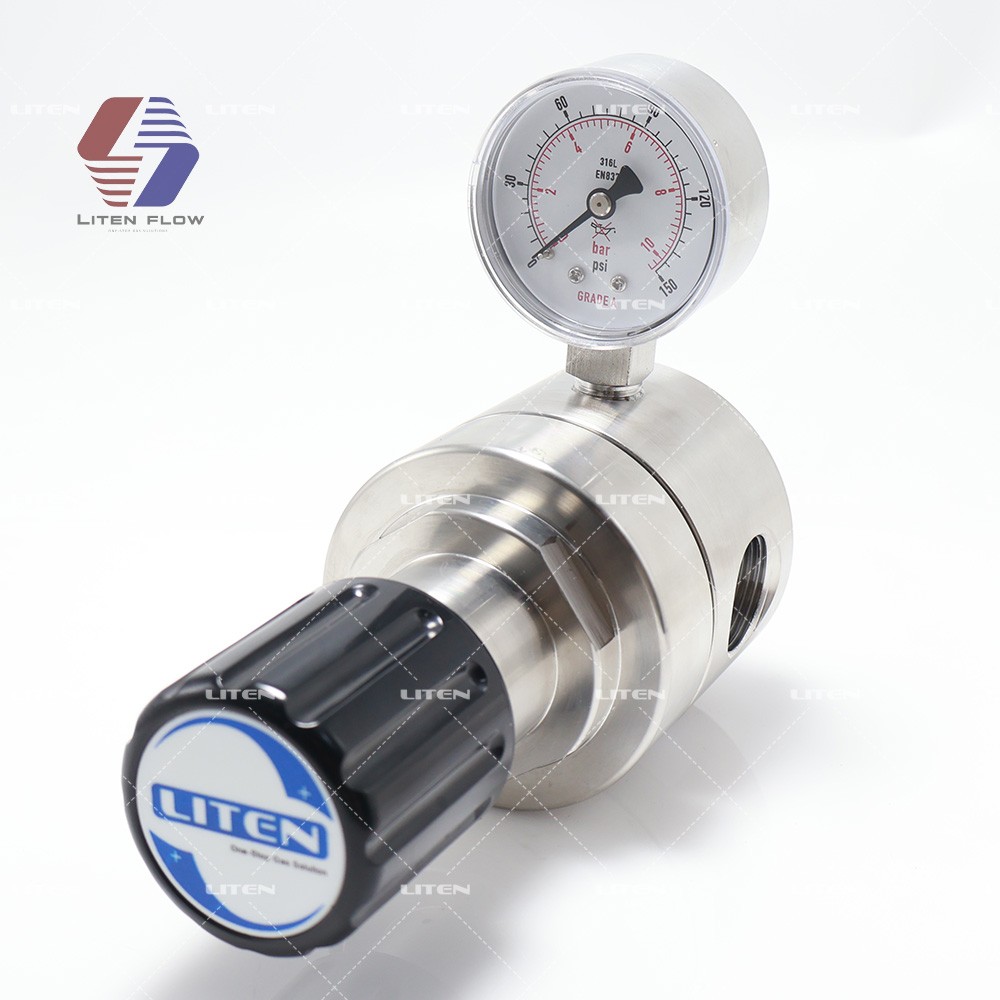

R23 High Flow Pressure Regulators In 500 out 150psi,3 prots,3/4

R23 High Flow Pressure Regulators In 500 out 150psi,3 prots,3/4

◎ Inlet pressure: 0~500psi
◎ Outlet pressure: 0~150psi
◎Valve seat material: PCTFE, PTFE
◎ Diaphragm material: SS316L,Hastelloy
◎ Female thread: 3/4" NPT(F)
◎ Leakage rate:2x10-8 atm.cc/sec He
◎ Cv value: 1.8
◎ Valve body weight: 2.7kg
◎ Applicable temperature: -40 ℃ to +74 ℃
◎ Safety pressure: 1.5 times the maximum input pressure

INQUIRY down load to pdf

Product Details

Product Tags

FEATURES

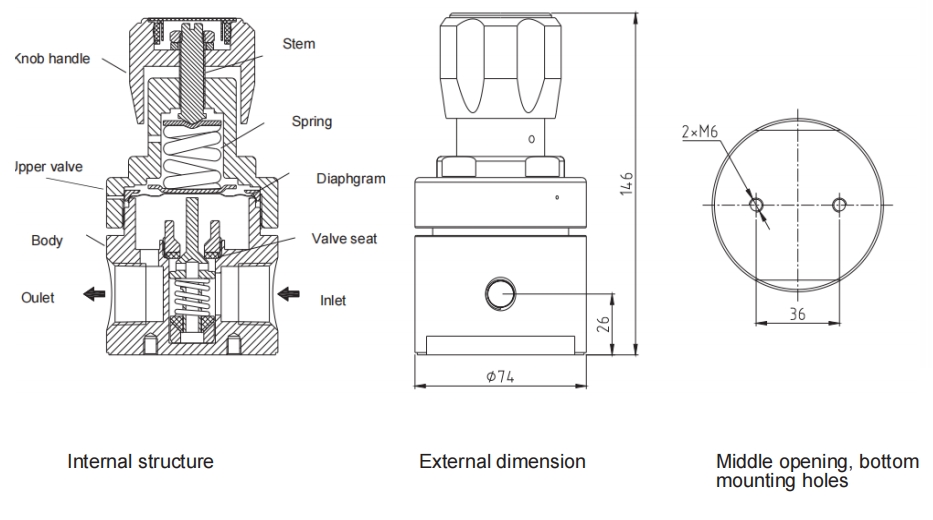

◎ Single-stage diaphragm structure

◎ Corrugated diaphragm design for excellent sensitivity and cycle life

◎ Purity up to 6.0, inlet pressure 0~500 psi, outlet pressure 0~150 psi;

◎ Suitable for inert, corrosive, toxic, flammable, and combustible gases.

Tags: High Flow Pressure Regulator 34"NPT REGULATOR Nitrogen regulator
