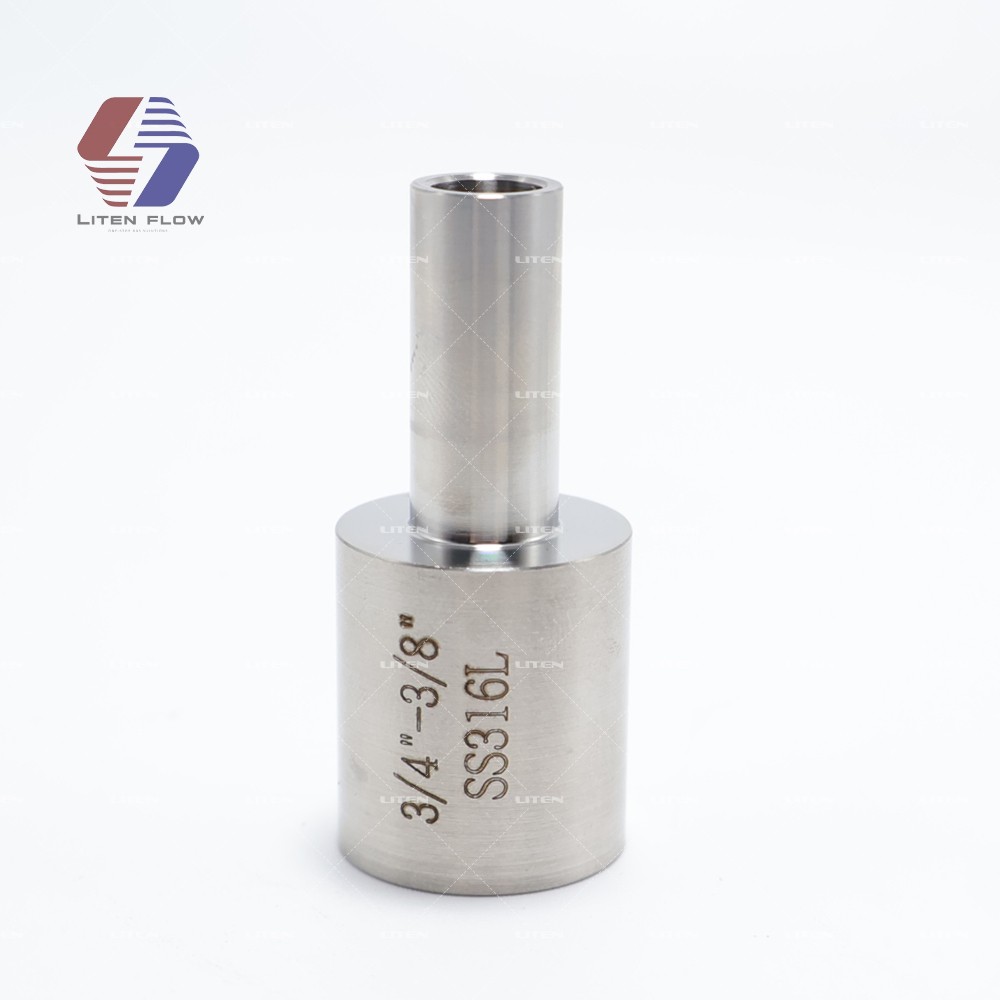

3/8" x 3/4" Automatic Tube Weld Concentric Reducer 316L Stainless Steel

OPERATING PARAMETERS
Product Name: Tube Butt Weld Reducing Union
Size: 1/4，3/8， 1/2， 3/4， 1 inch，6mm, 8mm,12mm,
Connection: Tube Butt Weld
Cleaning Process: Ultrahigh-Purity Process Specification(sC-01)
Material: 316L stainless steel
Working Pressure: 3000~6000psi
Working Temperature: -40~400℃
Grade: BA or EP
Usage/Application: Gas,Oil, Water
Brand: LITEN

INQUIRY

Product Details

Product Tags

UHP FITTING AUTOMATIC BUTTWELD REDUCING TEE WITHOUT SHOULDER 1/4 3/8 1/2 3/4 1 inch

Orbital Weld Fittings are specialized components used to join pipes and tubing in a high-purity system. They are designed to ensure a leak-free connection and are commonly used in industries that require a hygienic and sterile environment. Additionally, these fittings are available in Stainless Steel, Alloy, C.S., Duplex, Super Duplex, Hastelloy, Monel, and Inconel. The fittings are made from high-grade materials such as stainless steel and are manufactured with precise tolerances to ensure a perfect fit.

OPERATING PARAMETERS
Product Name	Tube Butt Weld Reducing Union
Size	1/4,3/8,1/2,3/4,1 inch ,6mm,8mm,12mm,
Connection	Tube Butt Weld
Cleaning Process	Ultrahigh-Purity Process Specification(sC-01)
Material	316L stainless steel
Working Pressure	3000~6000psi
Working Temperature	-40~400℃
Grade	BA or EP
Usage/Application	Gas,Oil,Water
Brand	LITEN

Key advantages

* Exceptionally tight metal-to-metal sealing
* Class 10 Cleanroom cleaned, assembled and double-packaged
* 3 available grades of internal surface finish: 0,08 / 0,15 / 0,40 Ra µm (3 / 5 / 16 Ra µinch)
* A large choice of metric and fractional dimensions
* Interchangable with components from other leading manufacturers
