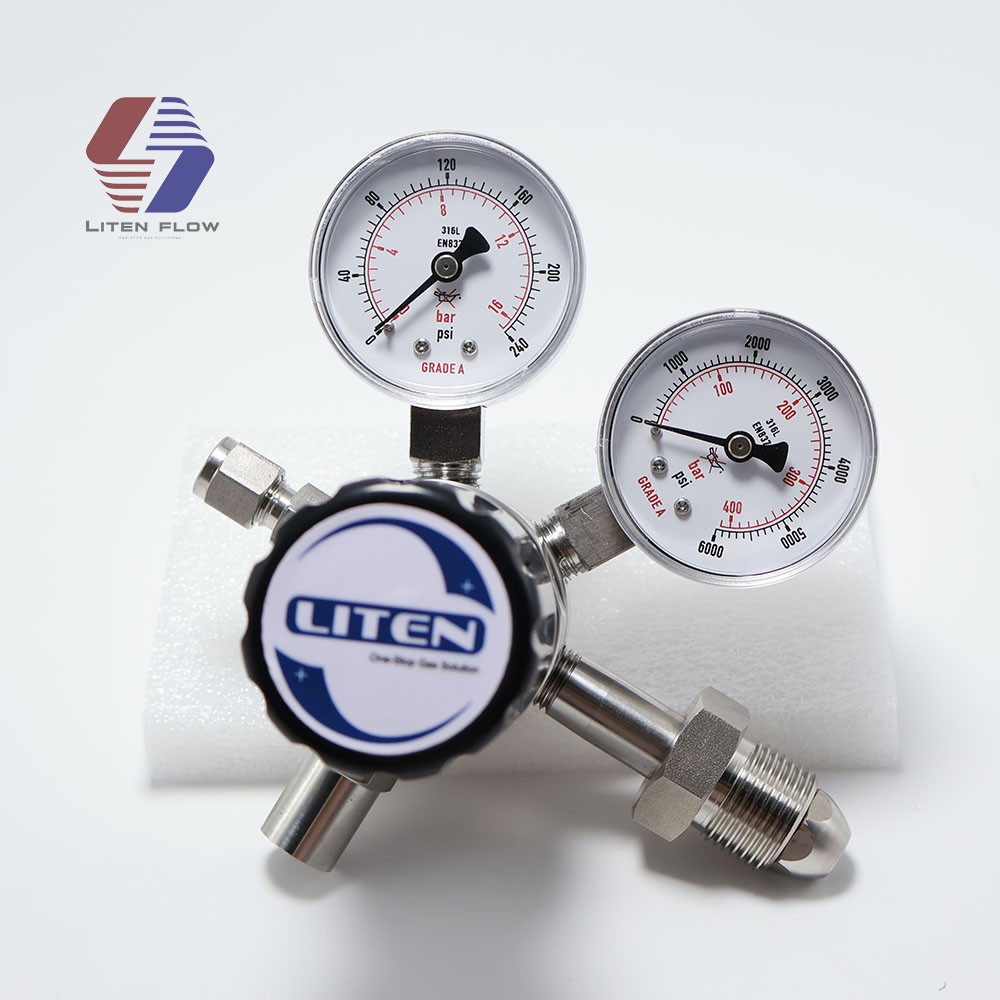

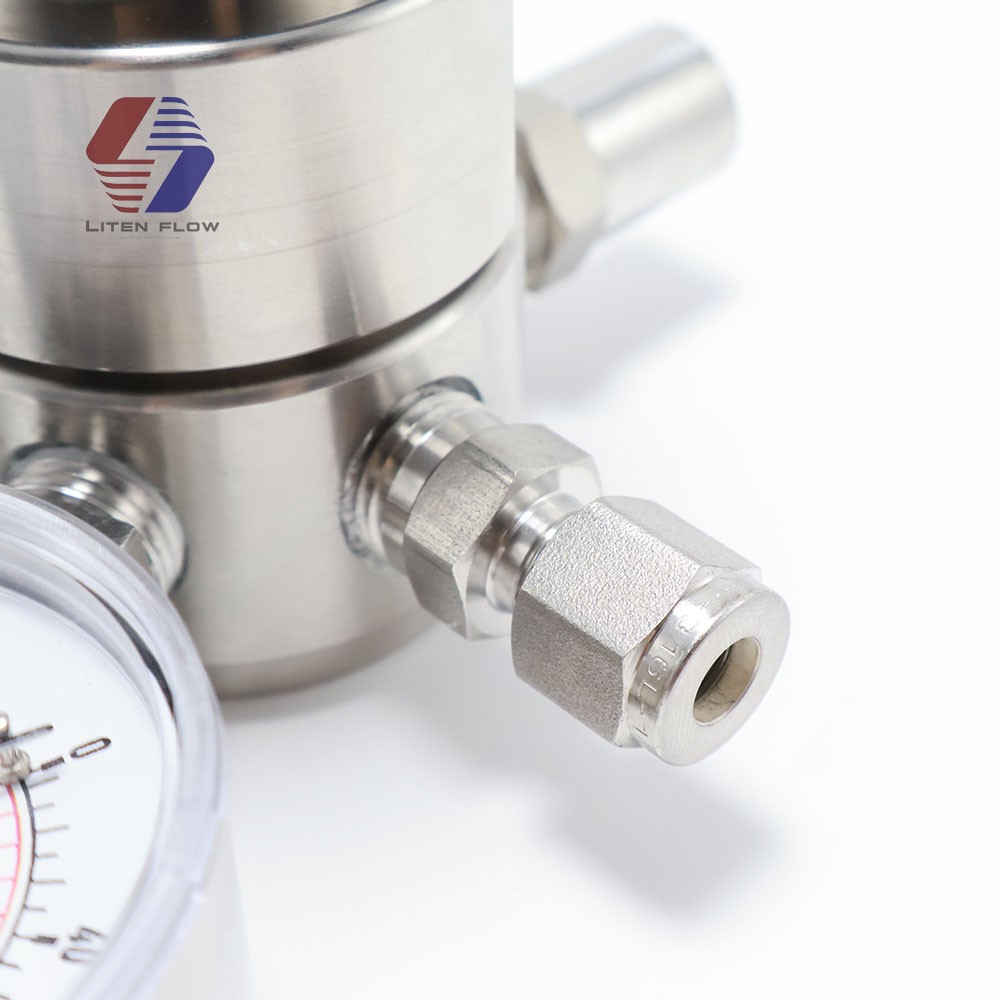

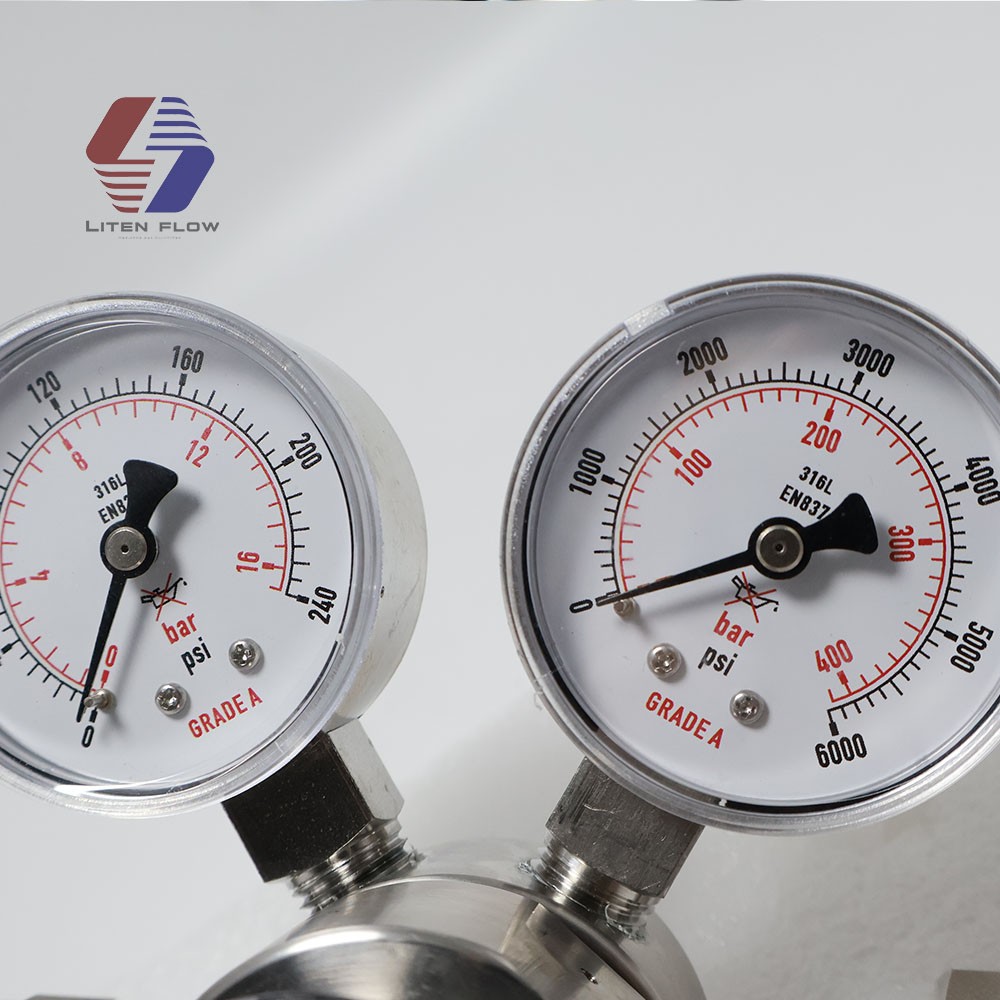

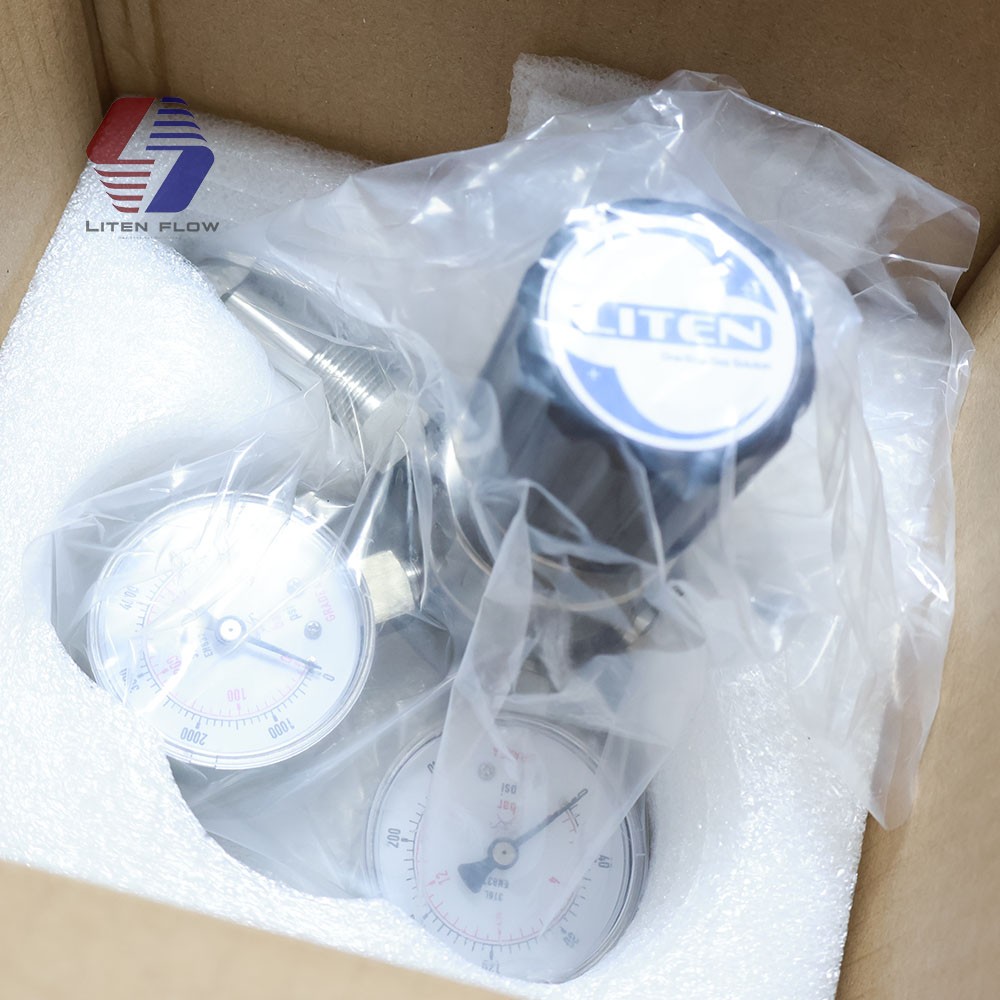

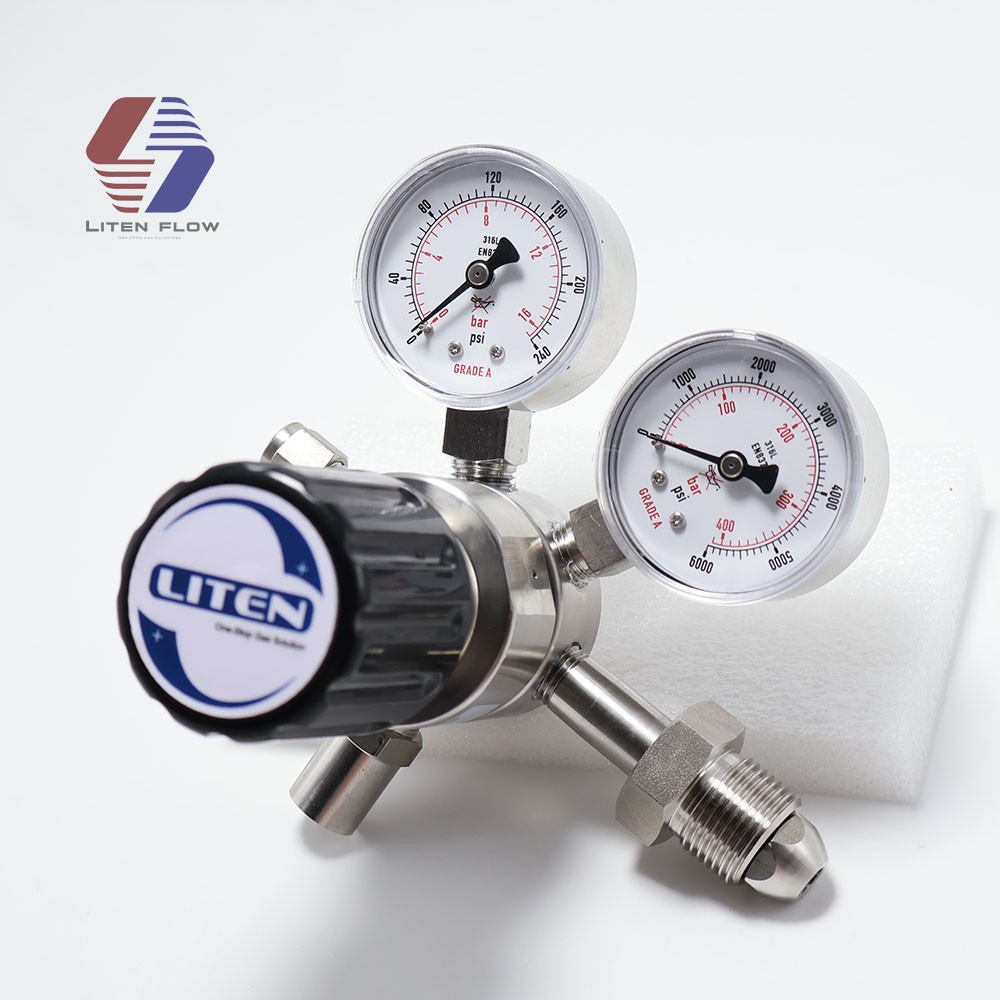

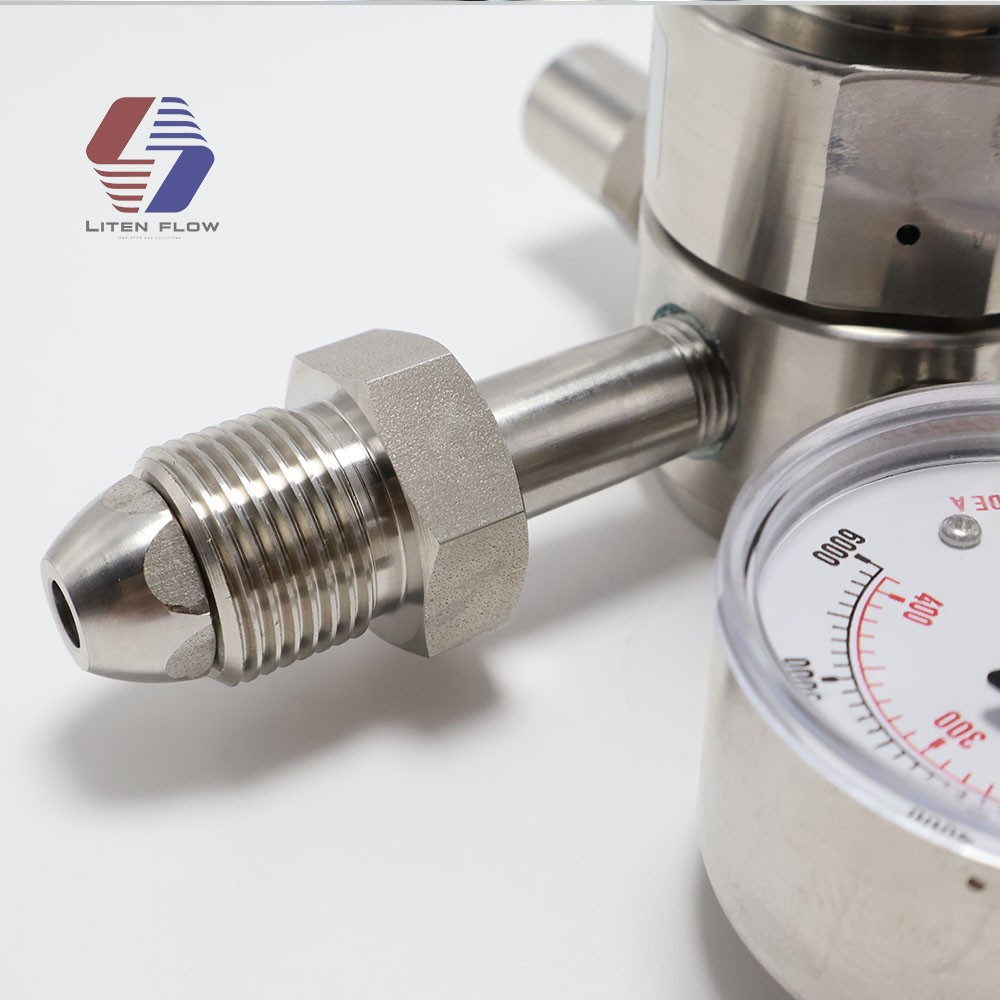

R41 High Pressure Regulator 1/4 NPTF In 210 Out 150 bar SS316L

R41 High Pressure Regulator 1/4 NPTF In 210 Out 150 bar SS316L

◎ Inlet pressure: 0~6000psi
◎ Outlet pressure: 0~2500psi
◎Valve seat material: PCTFE, PTFE
◎ Diaphragm material: SS316L,Hastelloy
◎ Female thread: 1/4" NPT(F)
◎ Leakage rate:2x10-8 atm.cc/sec He
◎ Cv value: 0.06
◎ Valve body weight: 1.1kg
◎ Applicable temperature: -40 ℃ to +74 ℃
◎ Safety pressure: 1.5 times the maximum input pressure

INQUIRY down load to pdf

Product Details

Product Tags

FEATURES

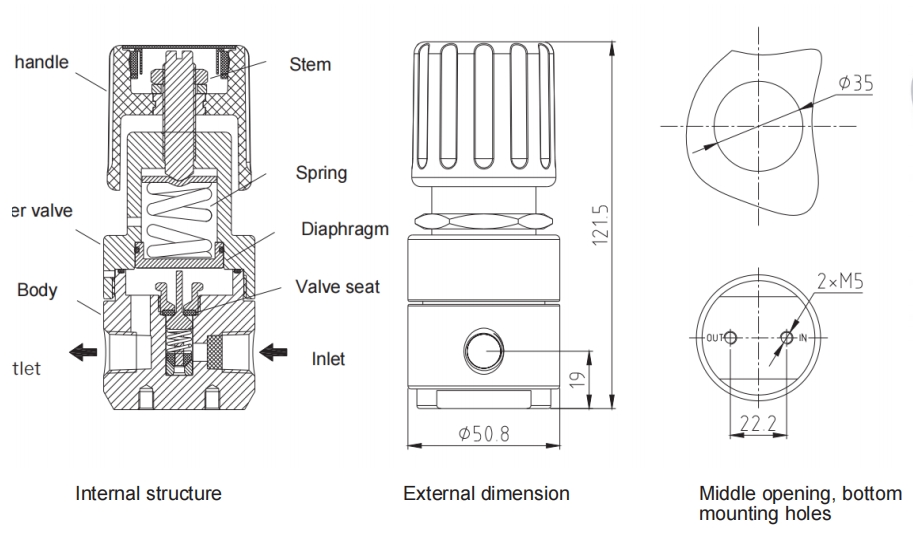

◎ Single-stage piston structure

◎ Corrugated diaphragm design for excellent sensitivity and cycle life

◎ Purity up to 6.0, inlet pressure 0~6000 psi, outlet pressure 0~2500 psi;

◎ Suitable for inert, corrosive, toxic, flammable, and combustible gases.

Tags: High pressure regulator 150bar regulator 4000psi regulator
