SS316L line Manifold Regulator 2

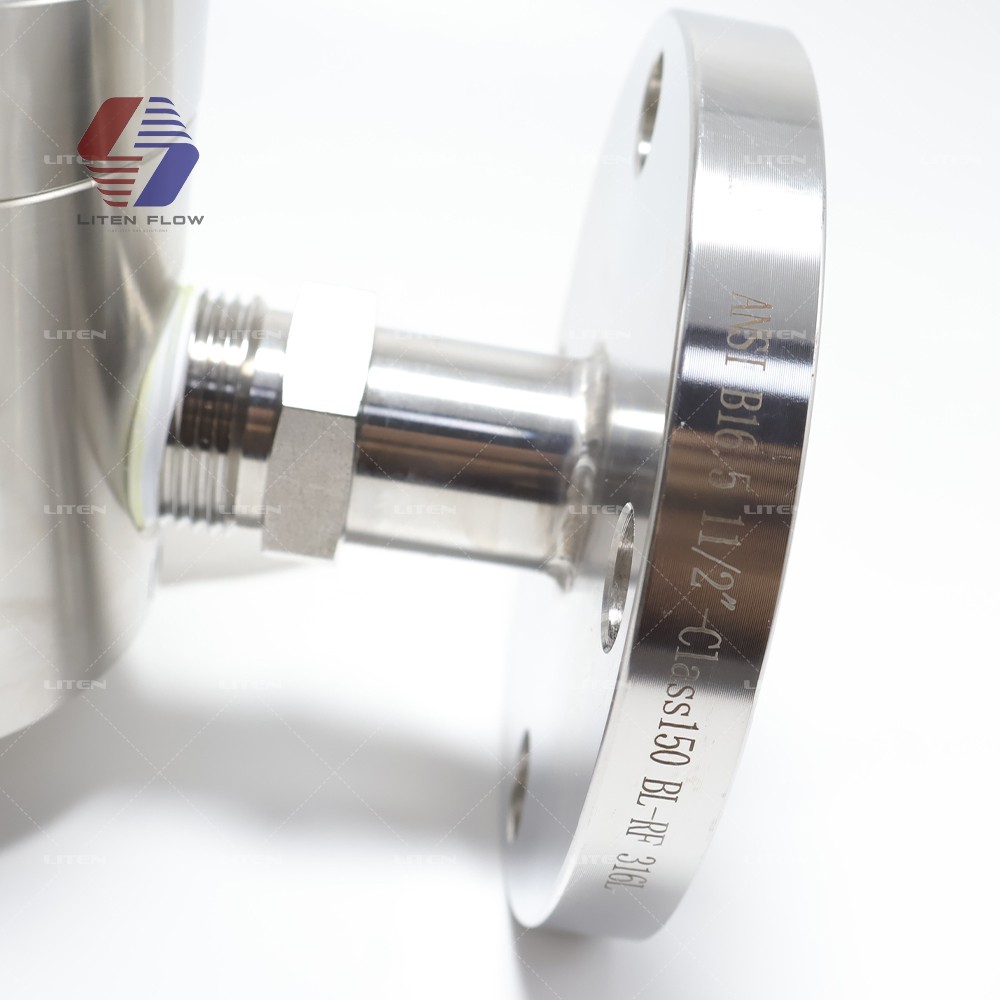

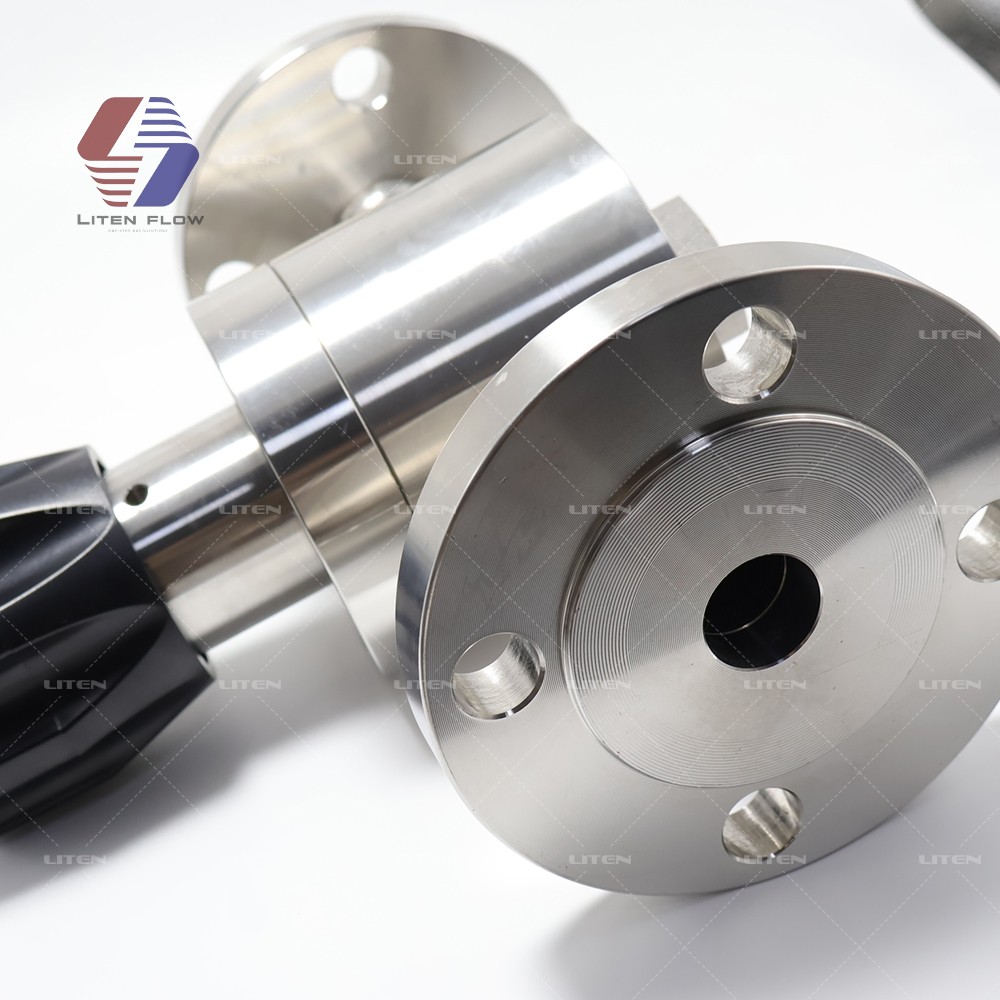

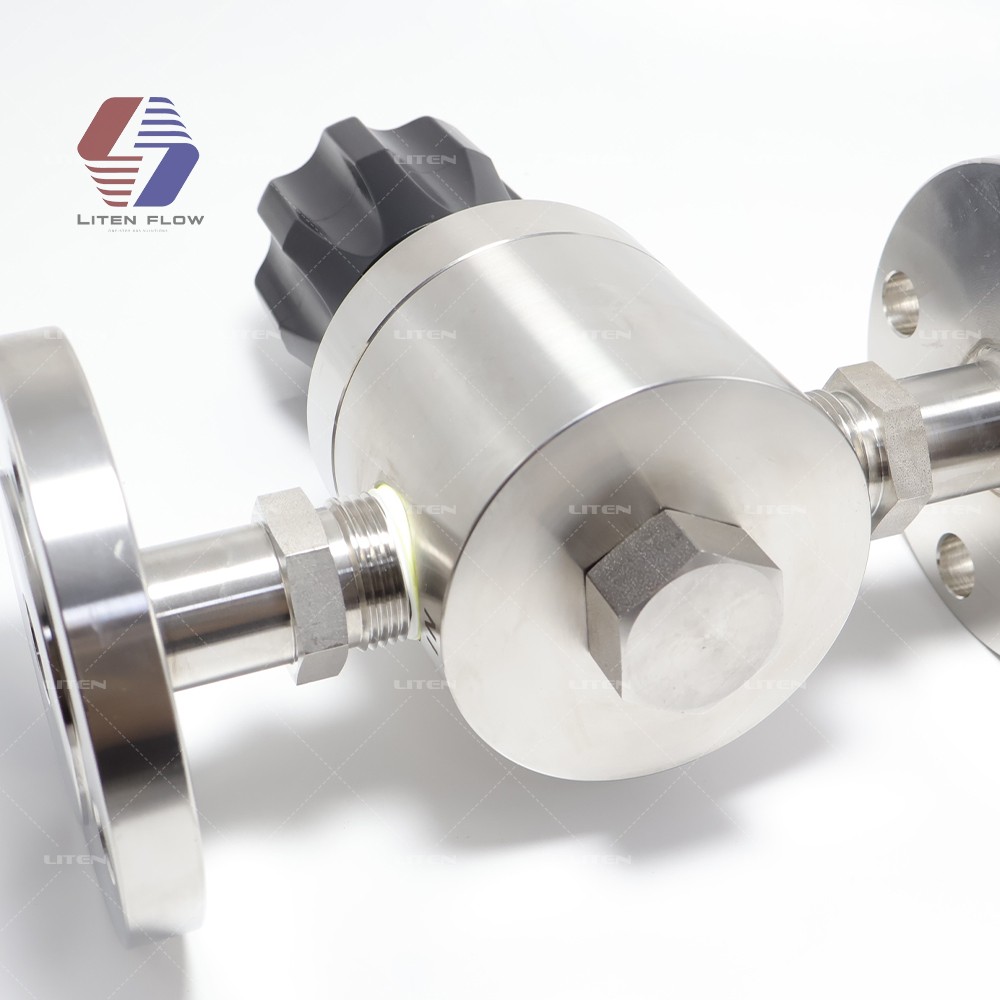

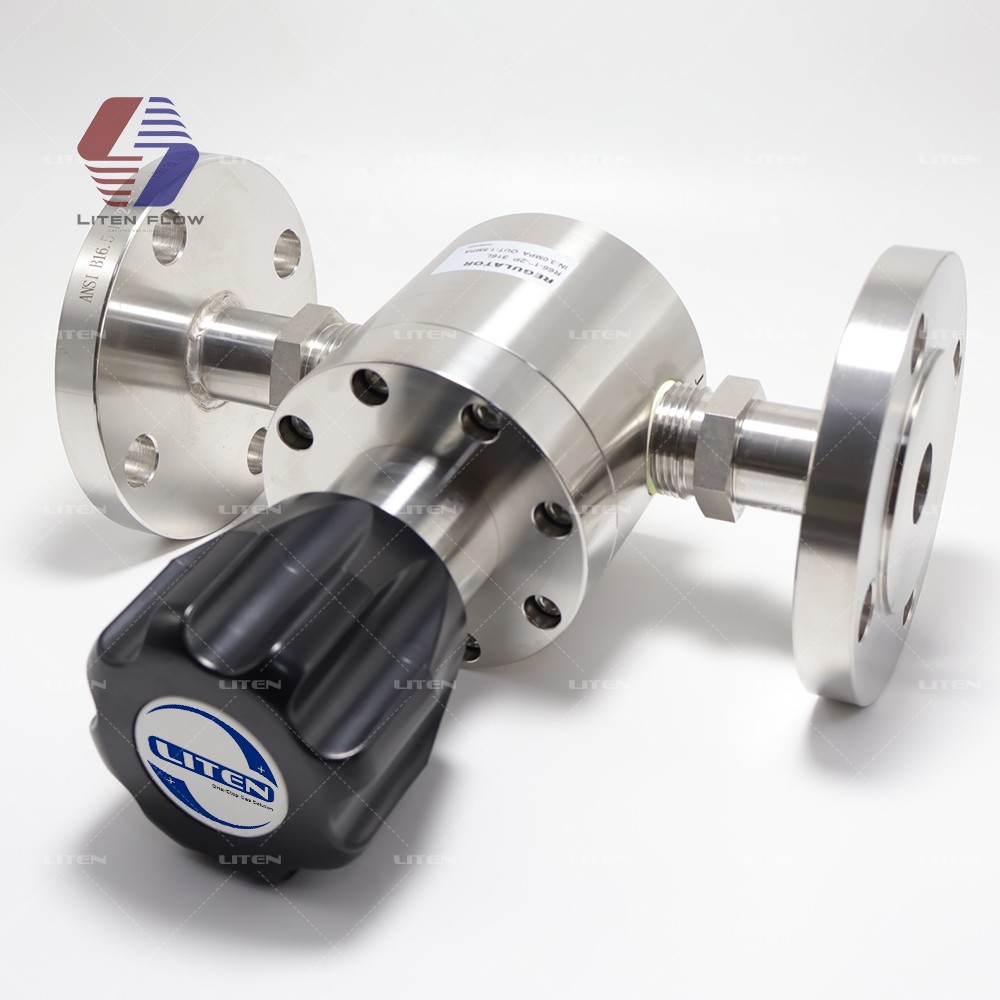

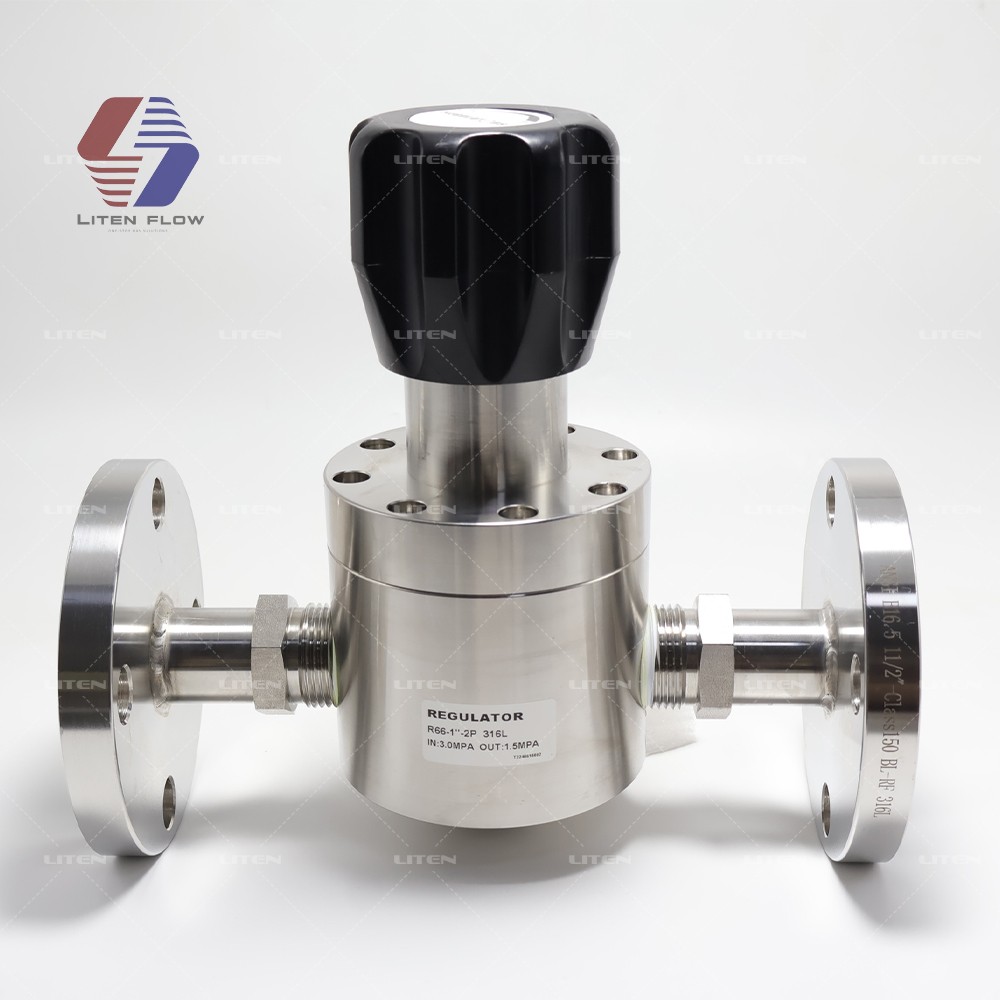

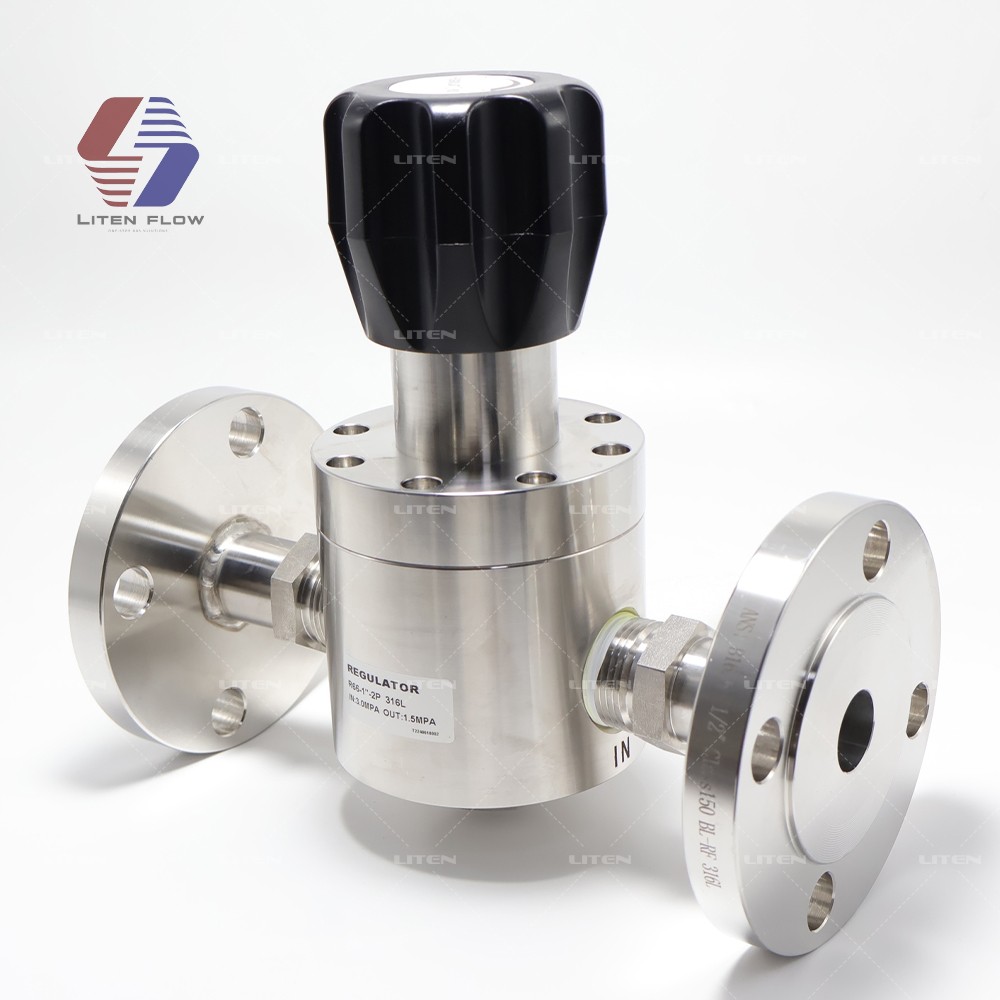

SS316L line Manifold Regulator 1" inlet & outlet connection flange type (SS316 PN16) Cv:5 min High Flow High Purity Regulator

OPERATING PARAMETERS
Maximum Inlet Pressure: 500Psig
Outlet Pressure Ranges: 0~50; 0~150; 0~250 Psig
Connection: 1"NPT
Internal and External Leak Rate: <1 x 10-9 mbar.L/s
Applicable temperature: -40 ℃ to +74 ℃

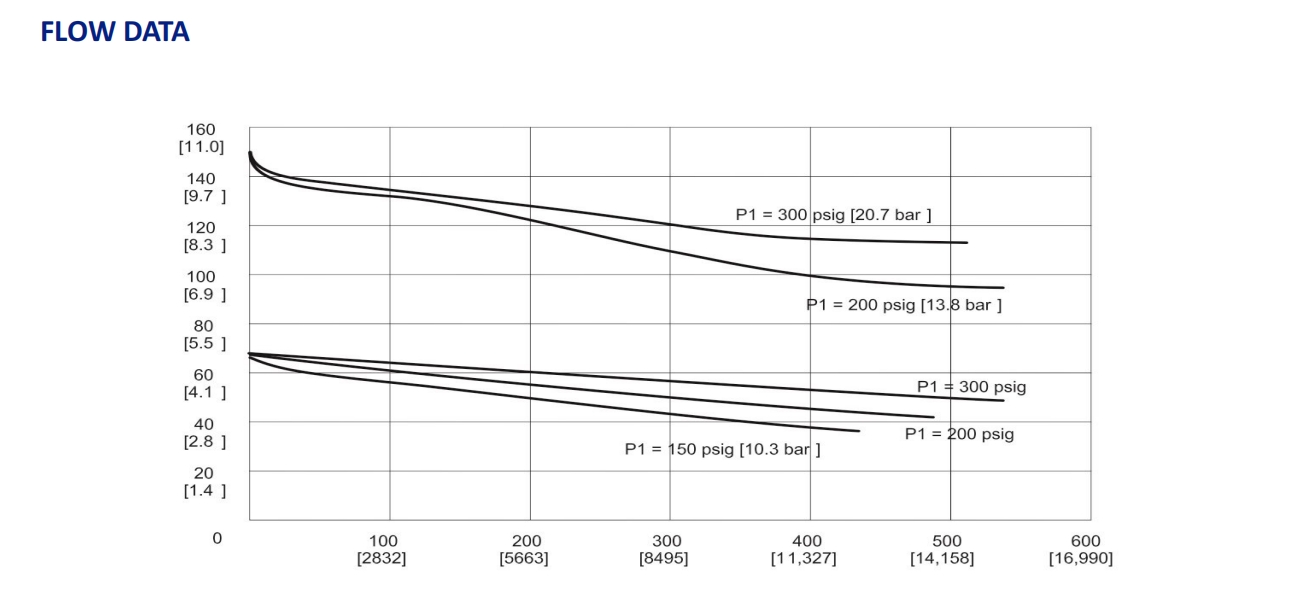

Flow Capacity: Cv = 5.0
Valve body weight: Abput 12kg
Safety pressure: 1.5 times the maximum input pressure

INQUIRY down load to pdf
