316L Stainless Steel Flexible Metal Hose with Safety Cable

Product Name: 316L Stainless Steel Flexible Metal Hose with Safety Cable
Material: 316L Stainless Steel
Braiding Material: Stainless Steel
Safety Cable Material: Stainless Steel
Working Pressure: 3000 PSI (20 MPa)
Operating Temperature: Up to 200°C
Inner Diameter: Approx. 6 mm
Outer Diameter: Approx. 13 mm
Connection Type: 1/4 NPT Female Thread
Structure: Corrugated Metal Tube + Stainless Steel Braid + Safety Cable
Applicable Medium: Oxygen, Nitrogen, Argon, Hydroge

INQUIRY

Product Details

Product Tags

Product Overview

The 316L Stainless Steel Flexible Metal Hose with Safety Cable is designed for high pressure gas connection and delivery applications.

Manufactured with 316L stainless steel corrugated tubing, stainless steel braided reinforcement and safety cable protection, this flexible hose provides excellent pressure resistance, corrosion resistance and reliable performance.

It is widely used for gas cylinder connection, laboratory gas supply systems, industrial gas pipelines and specialty gas equipment.

Product Parameters

Product Name	316L Stainless Steel Flexible Metal Hose with Safety Cable
Material	316L Stainless Steel Tube + Stainless Steel Braid
Working Pressure	3000 PSI (20 MPa)
Operating Temperature	Up to 200°C
Connection Type	1/4 NPT Female Thread (Custom Available)
Applicable Medium	Oxygen, Nitrogen, Argon, Hydrogen, Helium, CO₂ and Compatible Gases
Customization	Length, connection type and assembly configuration available

Key Features

316L stainless steel flexible hose material

316L Stainless Steel Construction

Premium 316L stainless steel material provides excellent corrosion resistance, pressure resistance and long service life for demanding gas applications.

flexible metal hose with stainless steel safety cable

Reliable Connection & Safety Cable Design

The reinforced braided structure and stainless steel safety cable improve connection reliability and help control hose movement during operation.

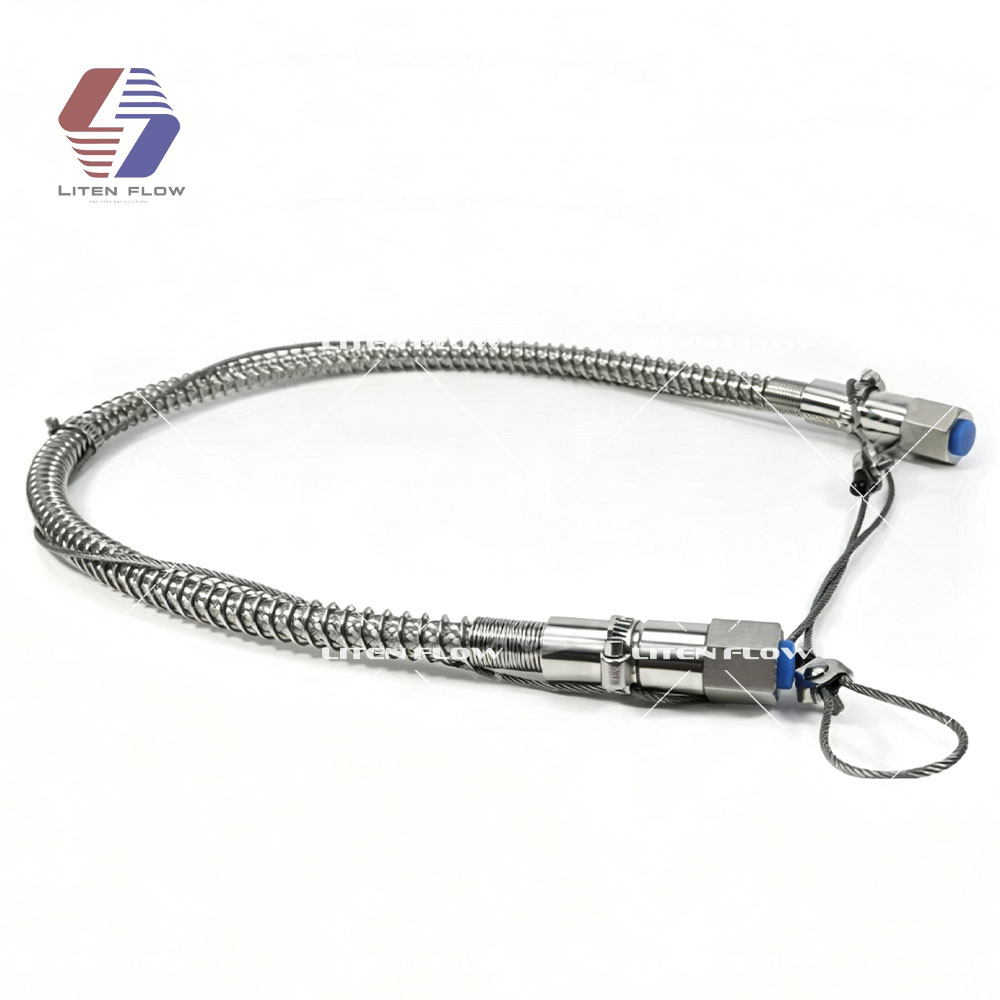

custom length stainless steel flexible gas hose

Flexible Configuration & Custom Options

Available with different lengths, thread connections and assembly configurations to meet various gas system requirements.

Applications

Gas Cylinder Connection Systems
Laboratory Gas Supply Systems
Industrial Gas Pipeline Systems
Semiconductor and Specialty Gas Equipment
High Pressure Gas Delivery Applications

Why Choose LITEN FLOW

LITEN FLOW provides professional gas control components and accessories for industrial gas, laboratory gas and specialty gas applications. Our product range includes regulators, valves, fittings and flexible hose assemblies.

We support customized solutions including connection types, dimensions and assembly requirements to meet different gas system projects.

FAQ

Q: What material is this flexible metal hose made of?

The hose is manufactured from 316L stainless steel with stainless steel braided reinforcement.

Q: What pressure rating is available?

The standard working pressure is up to 3000 PSI (20 MPa).

Q: Can the hose length and connection be customized?

Yes, LITEN FLOW supports customized hose length, thread type and assembly configuration.
