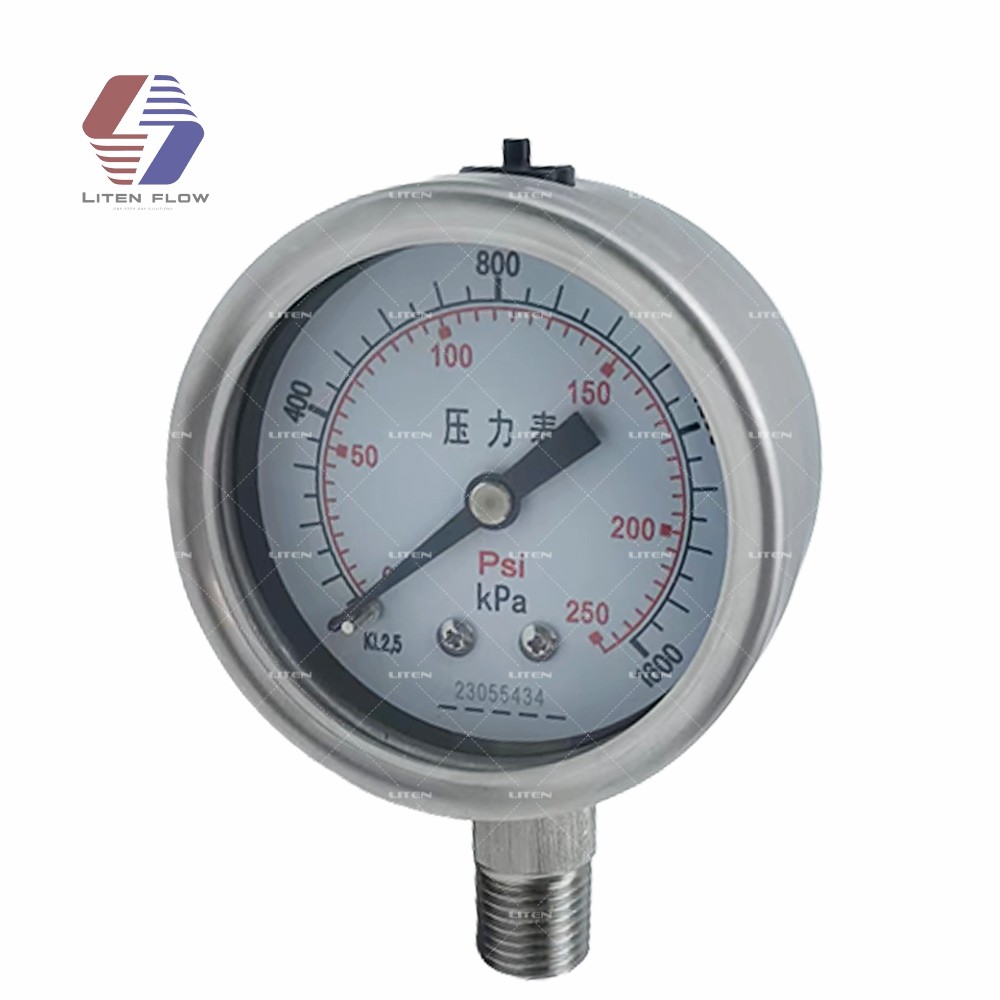

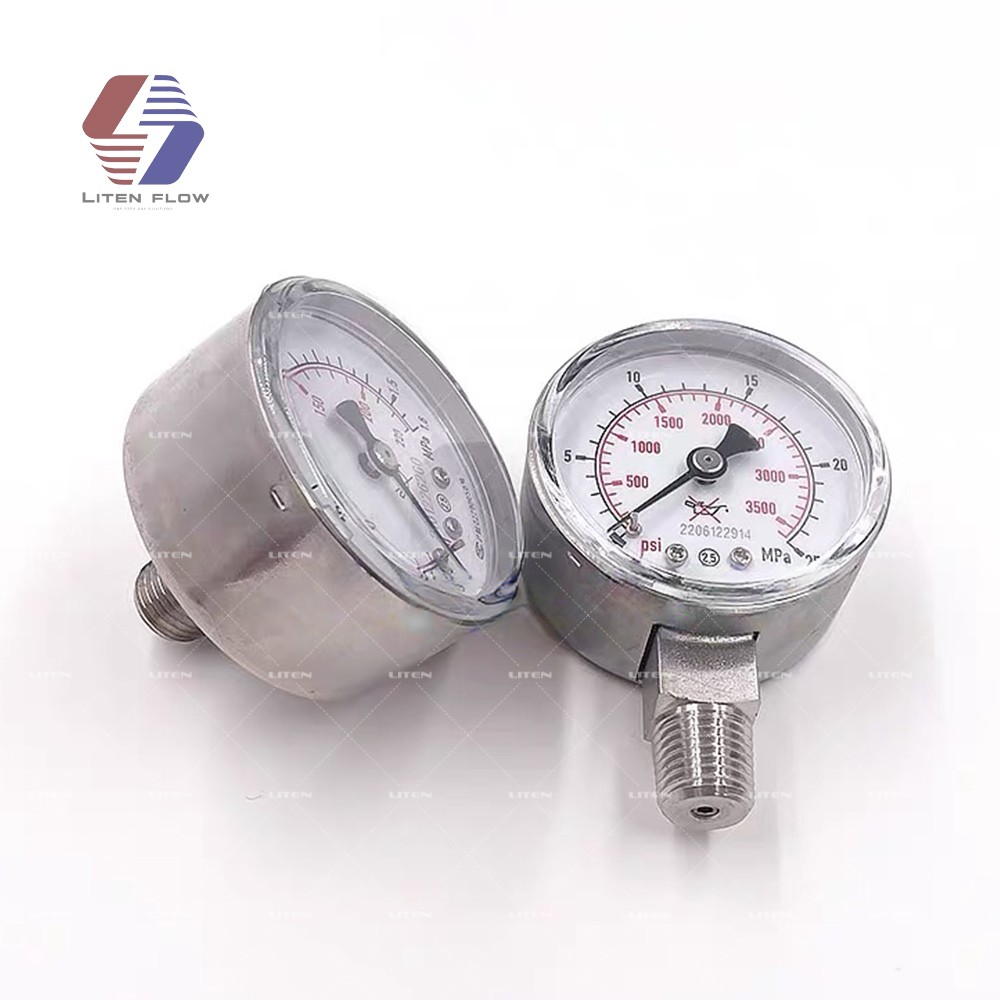

Product Name: Pressure Gauge
Pressure range: 0~500psi
Dial Size: 40.50.63.100.150mm
Accuracy : +1%,+1.5%,+2.5%
Case material: SUS304
Bourdon material: SUS316
Internalss material: SUS316
Pointer: Aluminium
Connection: M20x1.5, 1/4"NPT, 1/2NPT or other
Ambient temperature:  -40--70℃
Protection: IP65

Product Details

Product Tags

FEATURE:


  • ASME B40.1 Grade A Accuracy Compliance ± 2-1-2 % of span
  • Oil, Water, Air, Compressor, Hydraulics, HVAC, Gaseous & Liquid media that are not highly viscous or crystallizing and not corrosive or oxidizing to Stainless Steel
  • Dual Scale: psi / bar with kPa guidance.
  • Burdon tube type, Stainless Steel Wetted Parts & Case, Polycarbonate Window Lens
  • ALL STAINLESS STEEL Wetted Parts, Case, Connection
