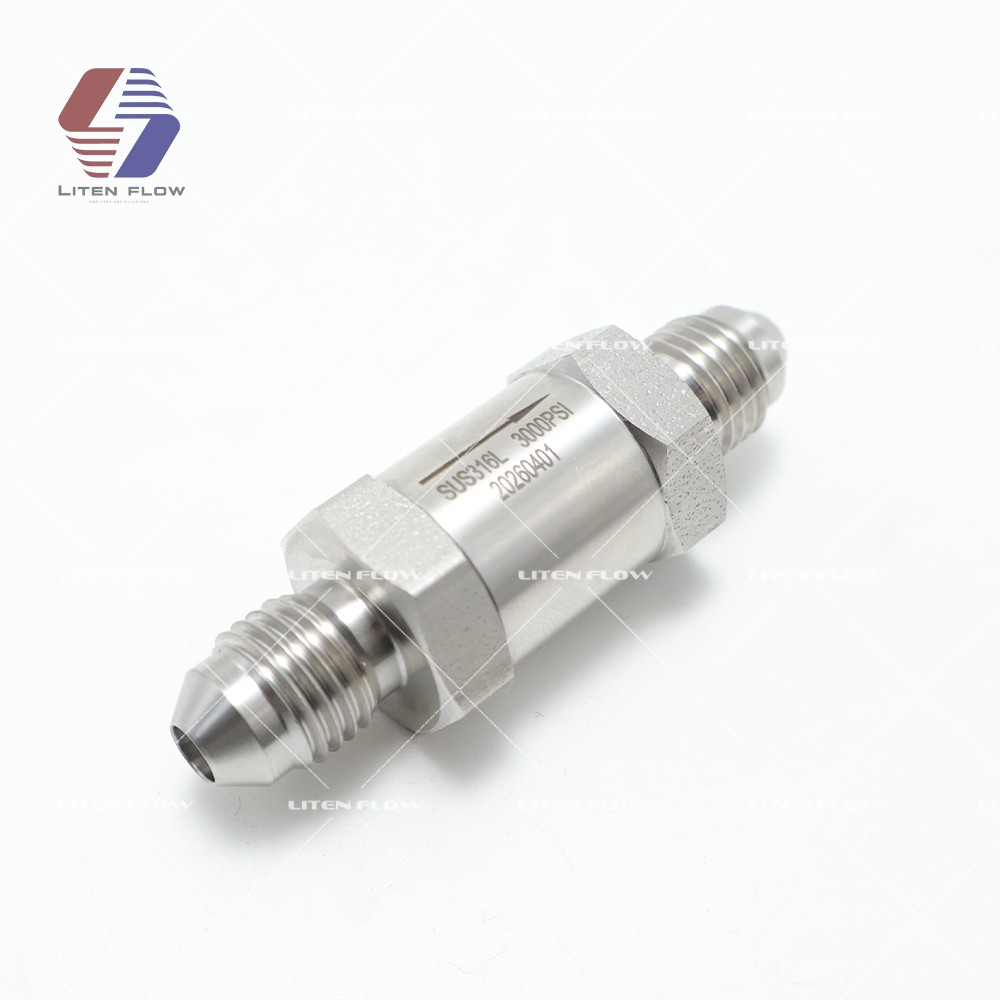

37° JIC Flared Ends 316 Stainless Steel Check Valve

Material: 316L Stainless Steel
Connection: 37° JIC Flared Ends
Size: 2mm-12mm / 1/16"-1/2"
Pressure Rating: 3000 psi (207 bar)
Max Pressure: 6000 psi
Temperature: -23°C to +204°C
Medium: Gas / Liquid
Application: Gas Pipeline, Instrumentation, Industrial Systems

INQUIRY

Product Details

Product Tags

Product Overview

The 37° JIC Flared Ends 316 Stainless Steel Check Valve is designed for reliable one-way flow control in high-pressure gas and liquid pipeline systems. Made from premium 316/316L stainless steel, it provides excellent corrosion resistance, durability, and stable performance in demanding industrial environments.

Featuring a precision-machined body and 37° JIC flare connection design, this check valve is widely used in instrumentation systems, gas supply equipment, chemical processing systems, and industrial fluid control applications.

Product Parameters

Product Name	37° JIC Flared Ends 316 Stainless Steel Check Valve
Body Material	316L Stainless Steel
Connection Type	37° JIC Flared Ends
Connection Size	Metric 2mm-12mm / Imperial 1/16"-1/2"
Working Pressure	3000 psi (207 bar / 20.7 MPa)
Maximum Pressure	Up to 6000 psi
Opening Pressure	0.01 MPa
Operating Temperature	-23°C to +204°C
Applicable Medium	Gas and Liquid

Key Features

316L stainless steel check valve material

316/316L Stainless Steel Material

Manufactured from premium 316/316L stainless steel, providing excellent corrosion resistance, durability, and reliable performance for industrial applications.

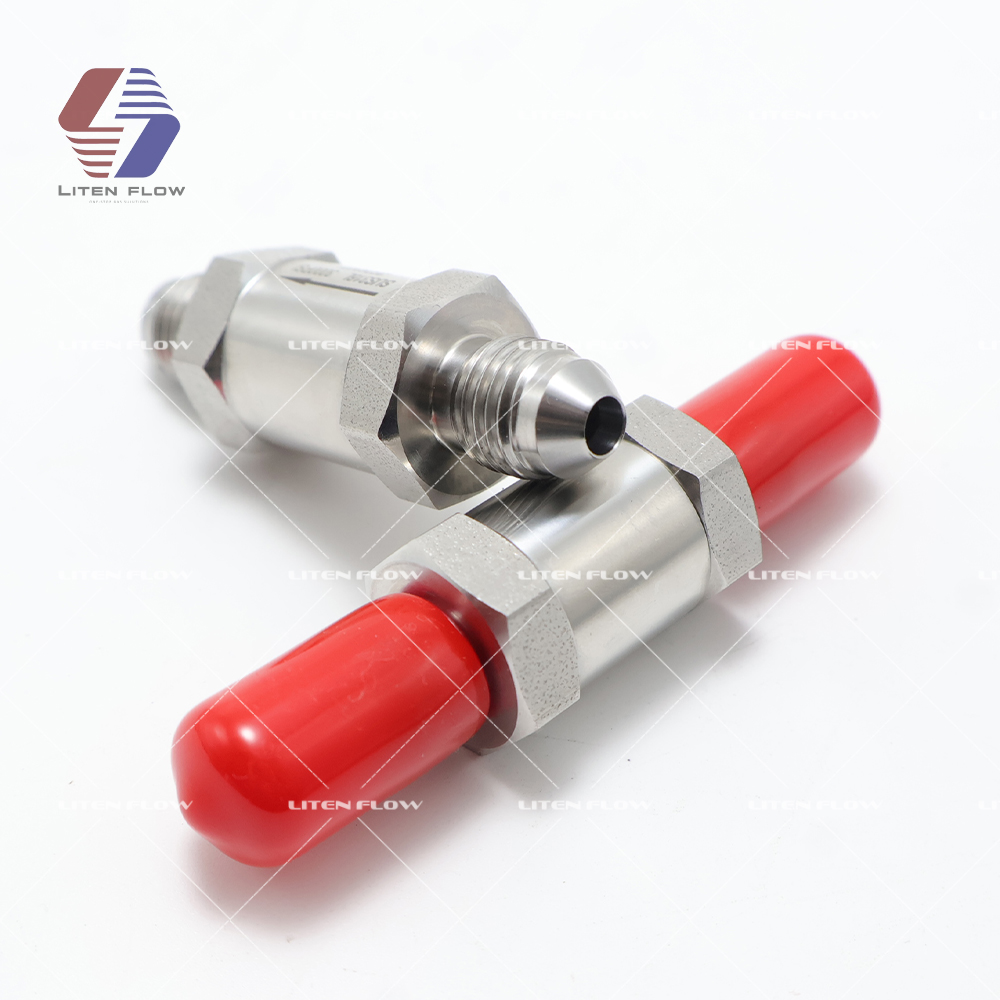

electroplated surface treatment stainless steel valve

Multi-Layer Electroplating Surface Treatment

The multi-layer surface treatment improves resistance to oxidation, corrosion, and temperature changes, helping maintain long-term stable performance.
