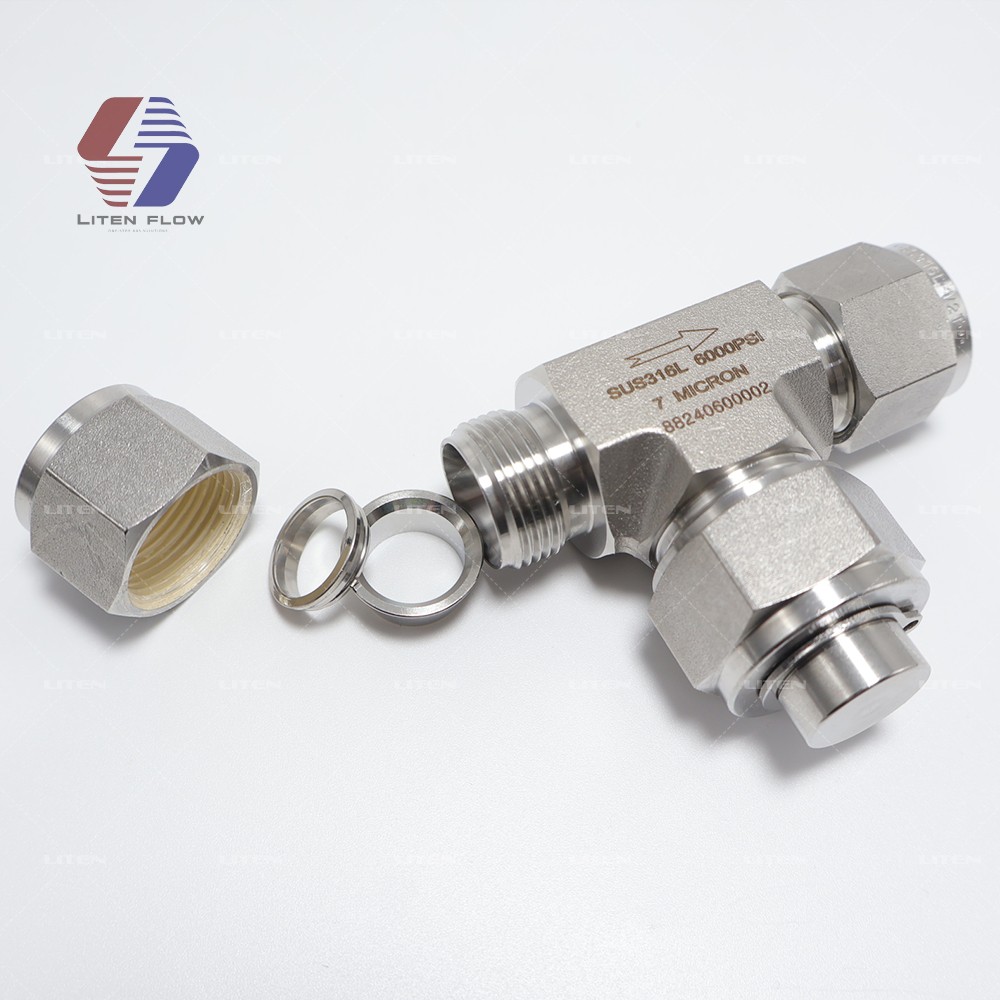

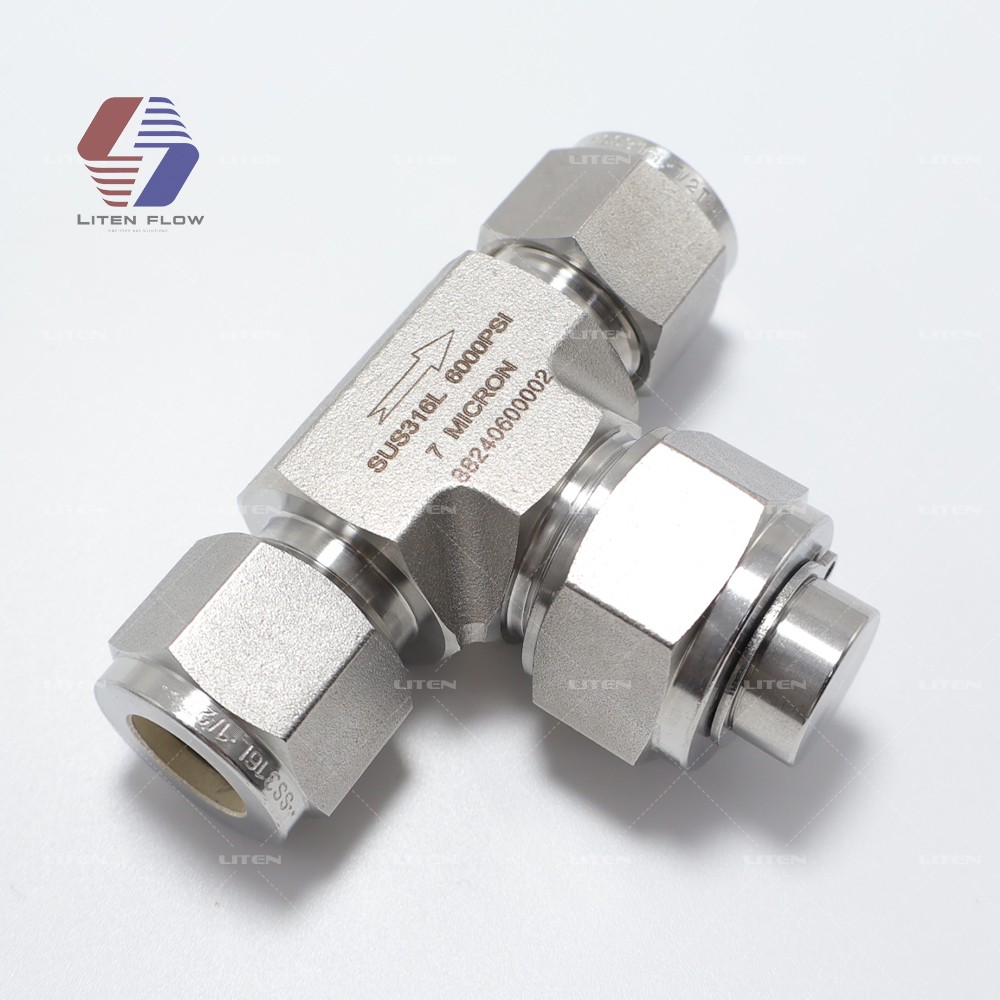

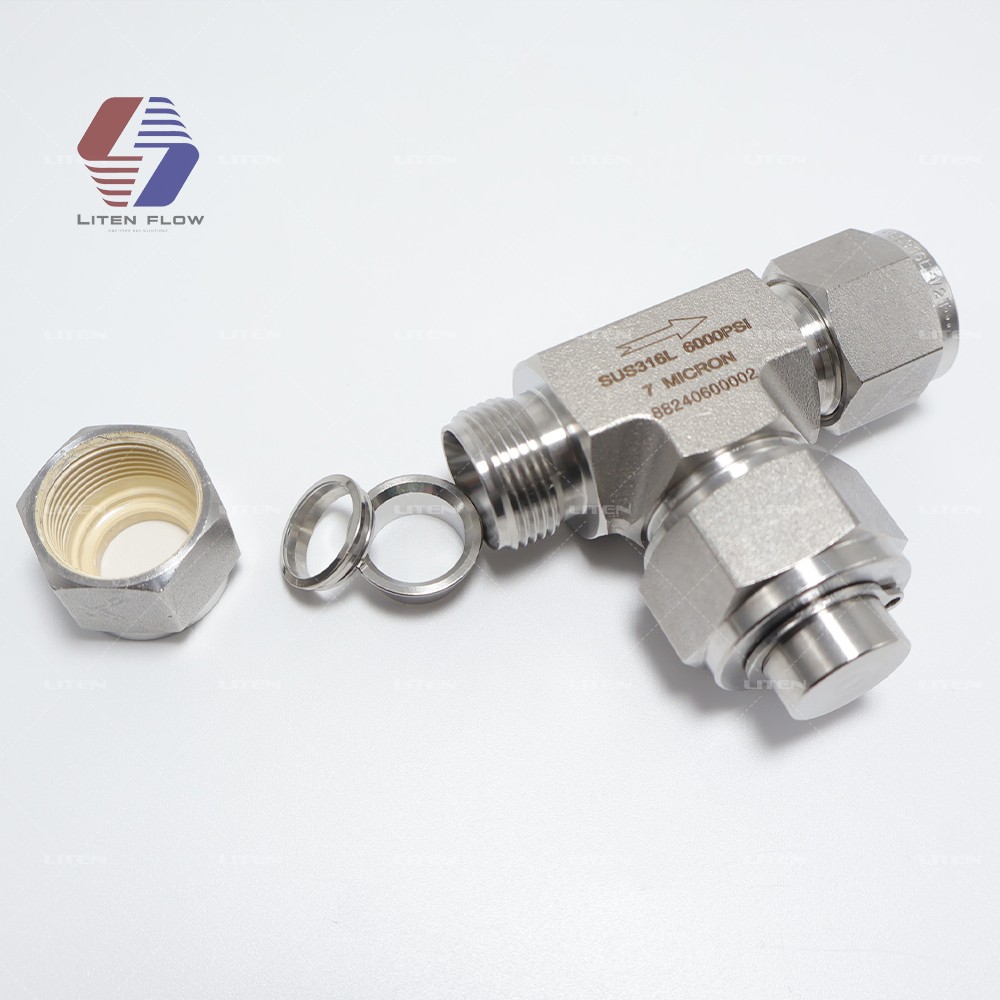

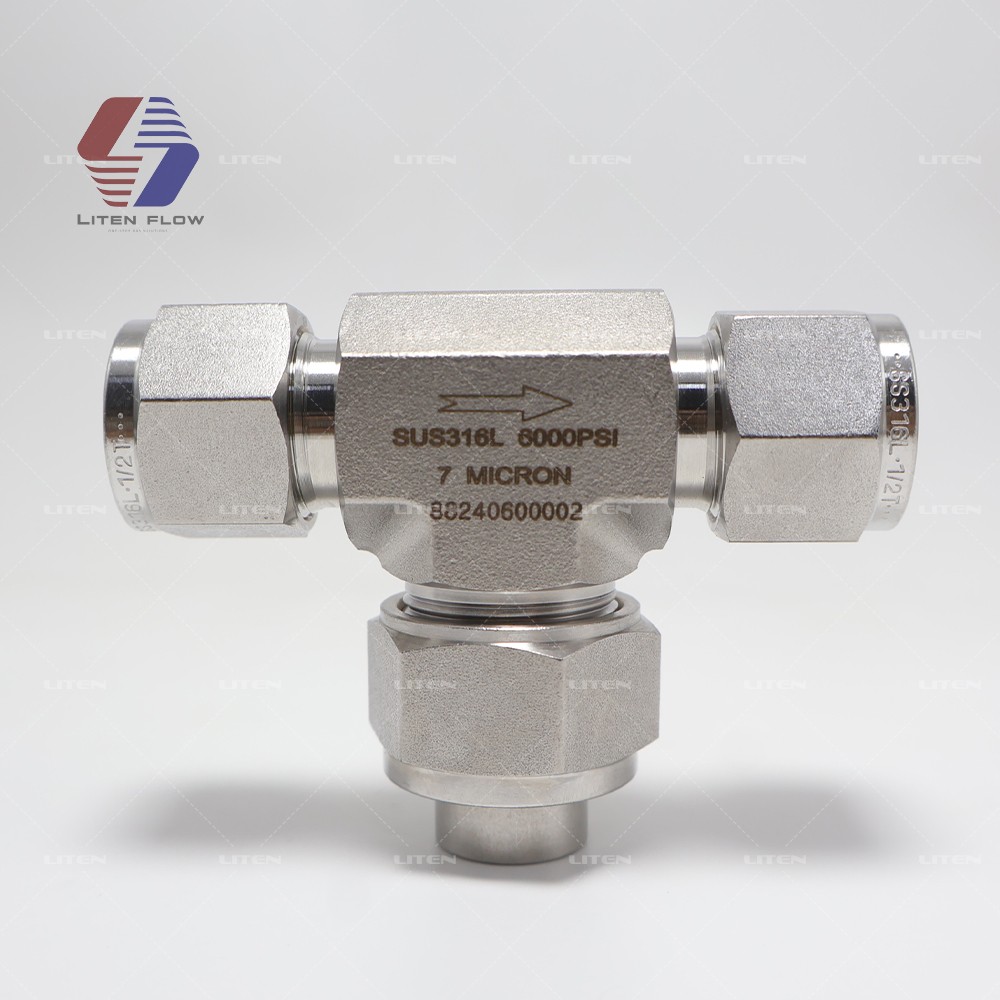

Stainless Steel Tee-Type Filter 1/2 Tube Particulate Filter 6000psi

Brand: LITEN

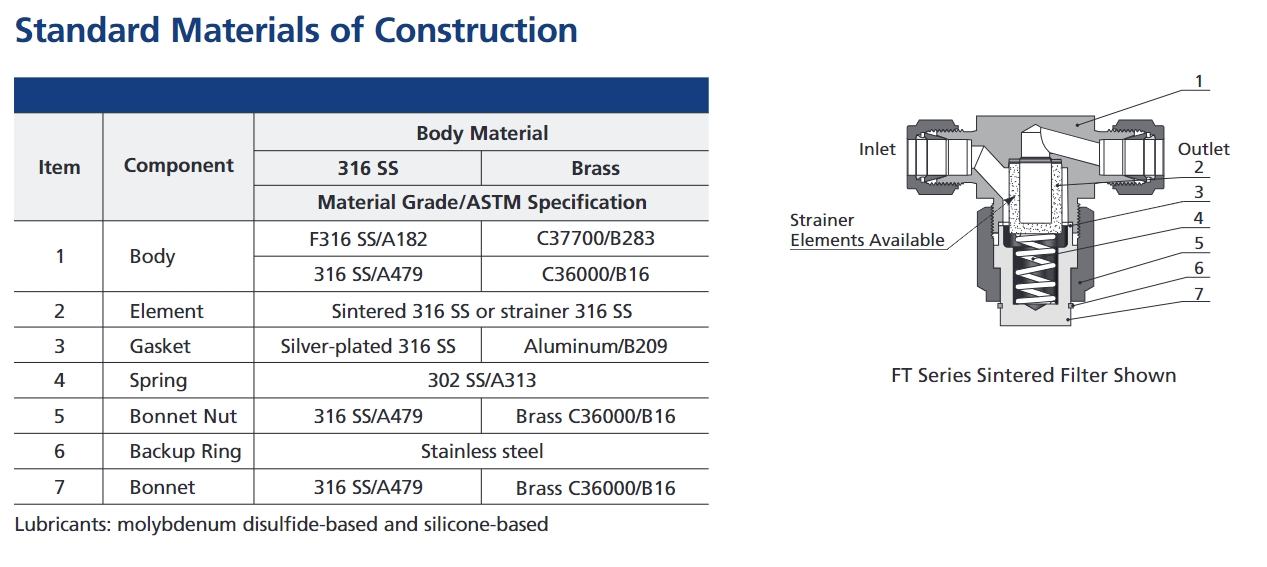

Body Material: 316 Stainless Steel

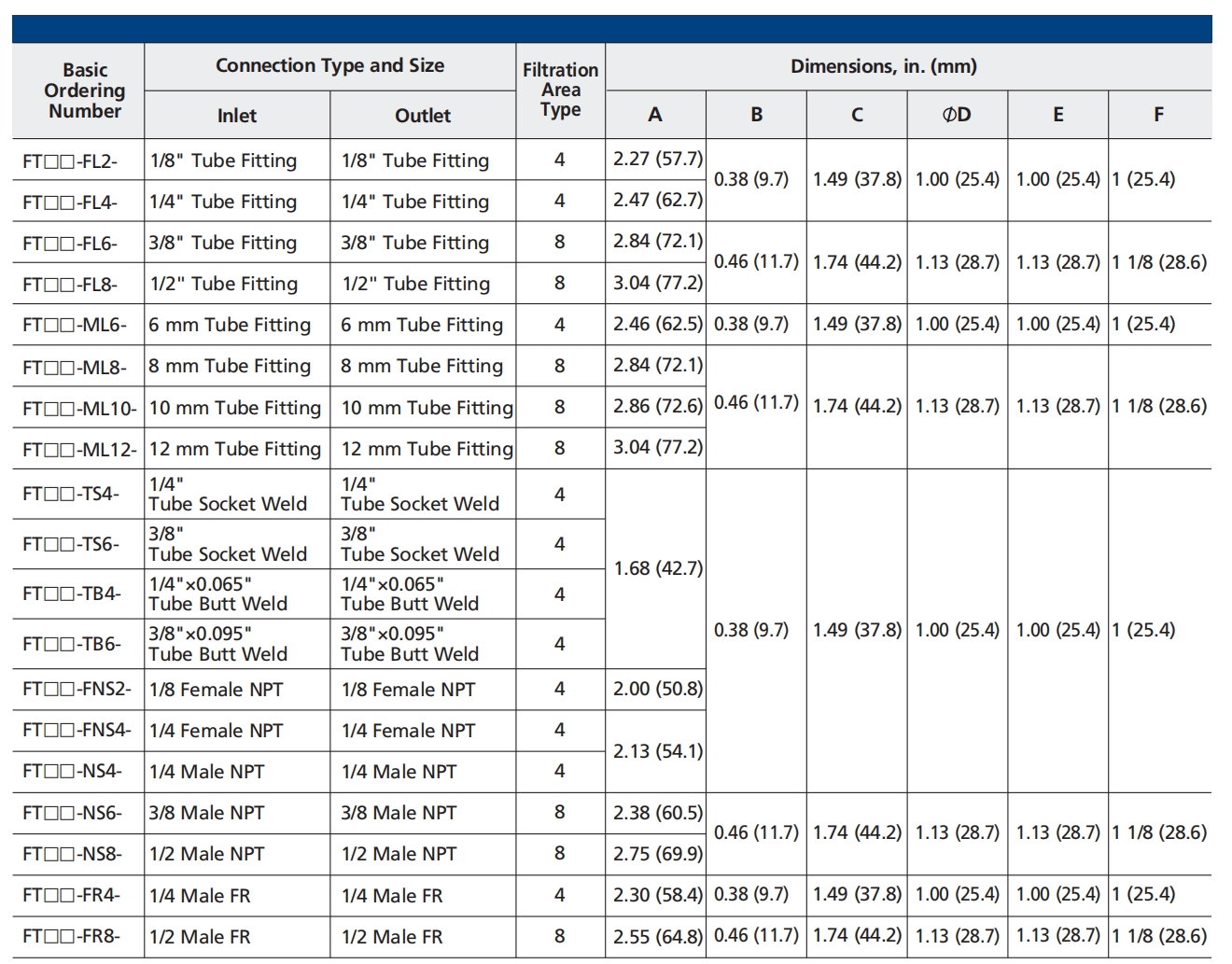

Connection Type: Compression tube fittings, NPT fittings, BSP/ISO tapered, FSR face seal fittings
Tube Size: 1/4", 1/2", 3/8",3/4" ,6mm, 8mm, 10mm, 12mm ect.
Filter Rating: 2,5,7,10,15,40 Microns ect.
Seal Material: Fluorocarbon Rubber
Max. Pressure: 6000 psig CWP
Temp. Range: -40° to 400°F
Standards: ASTM A 182 Type F316

INQUIRY

Product Details

Product Tags

FEATURES:

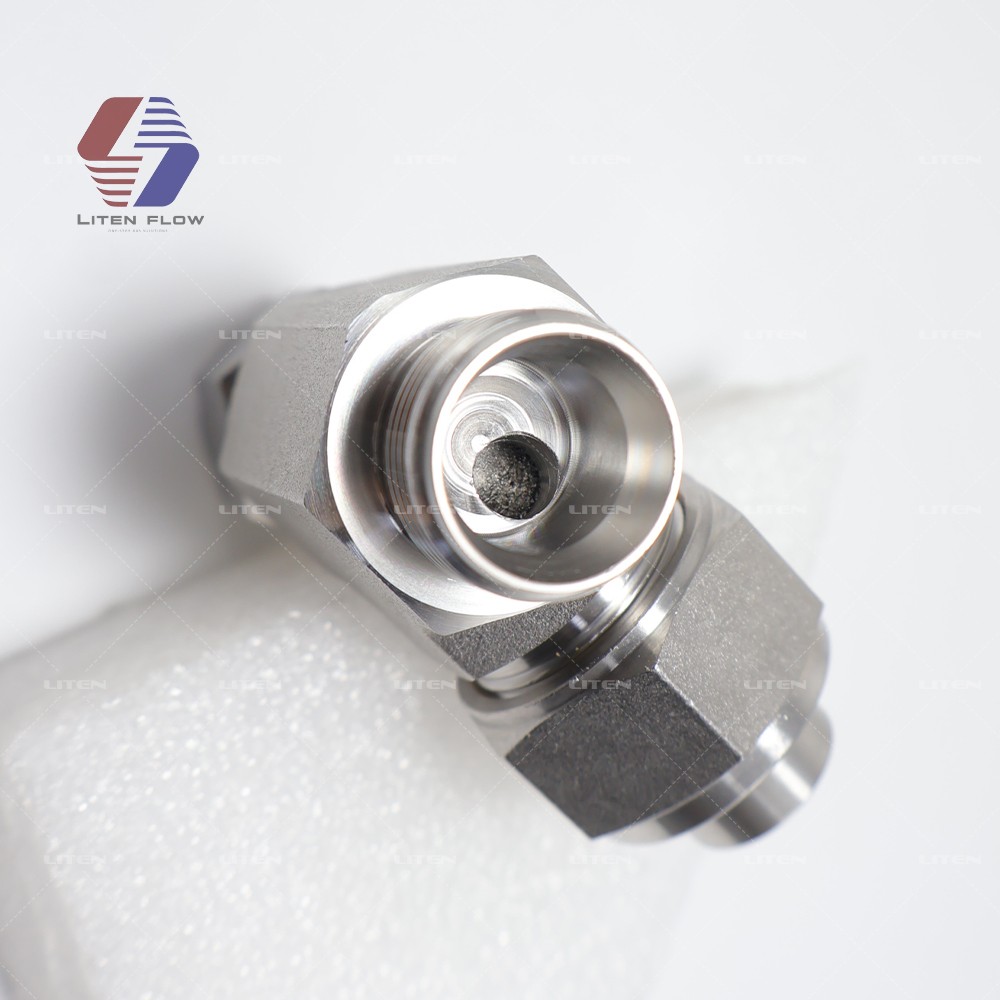

• Easily removable filter element for cleaning or replacement without removing filter from the system

• Stainless steel 316 material for body and filter element • Sintered filter element provides fine filtration • Maximum working pressure: 6000 psig (400 bar) • Working temperature: -40° to 400°F • Maximum differential pressure: 1000 psig • End connections include: Compression tube fittings, NPT fittings, BSP/ISO tapered, FSR face seal fittings

• 100% tested to ensure optimal performance
