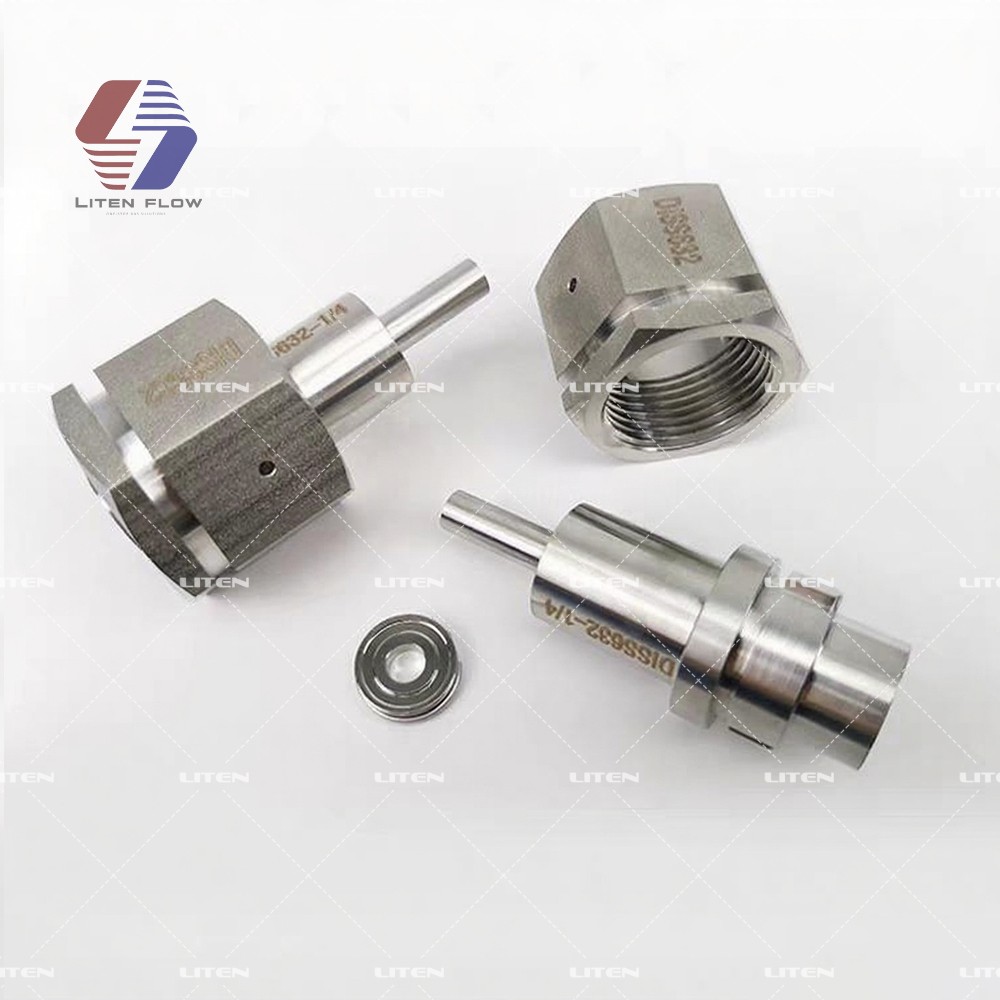

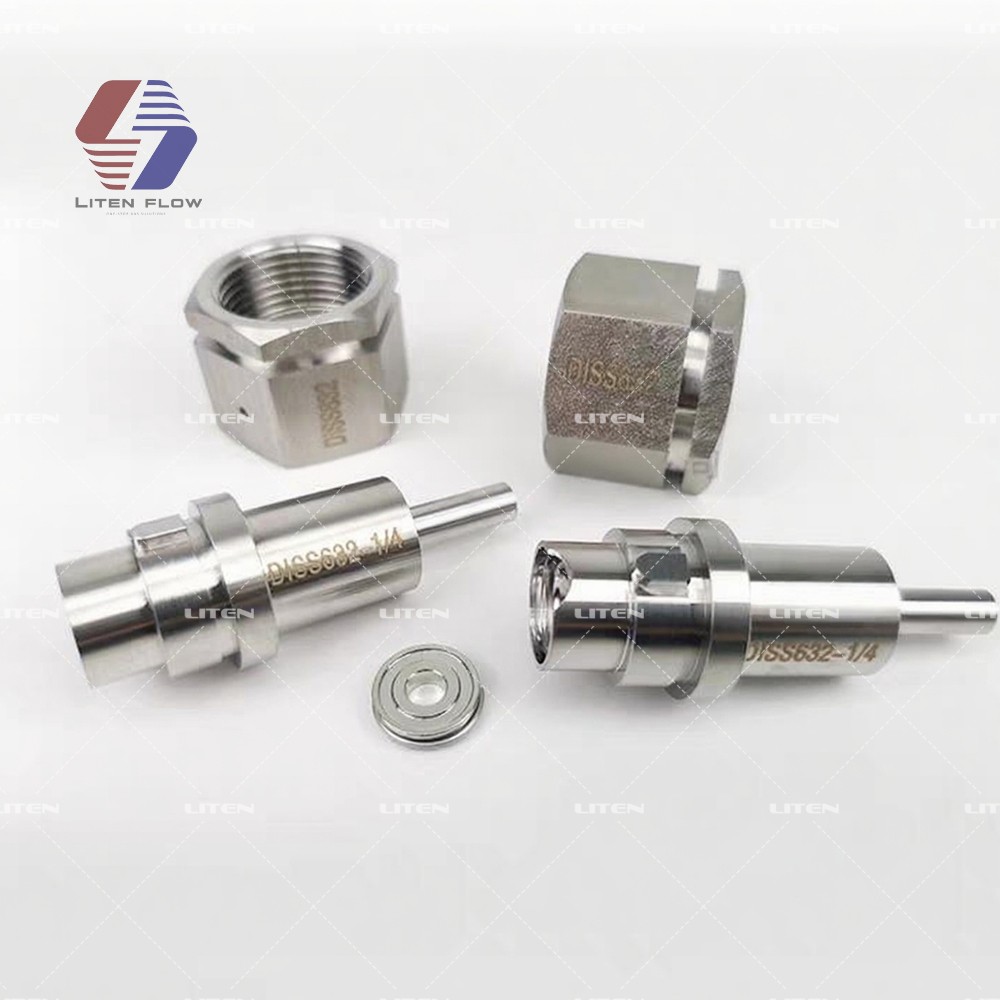

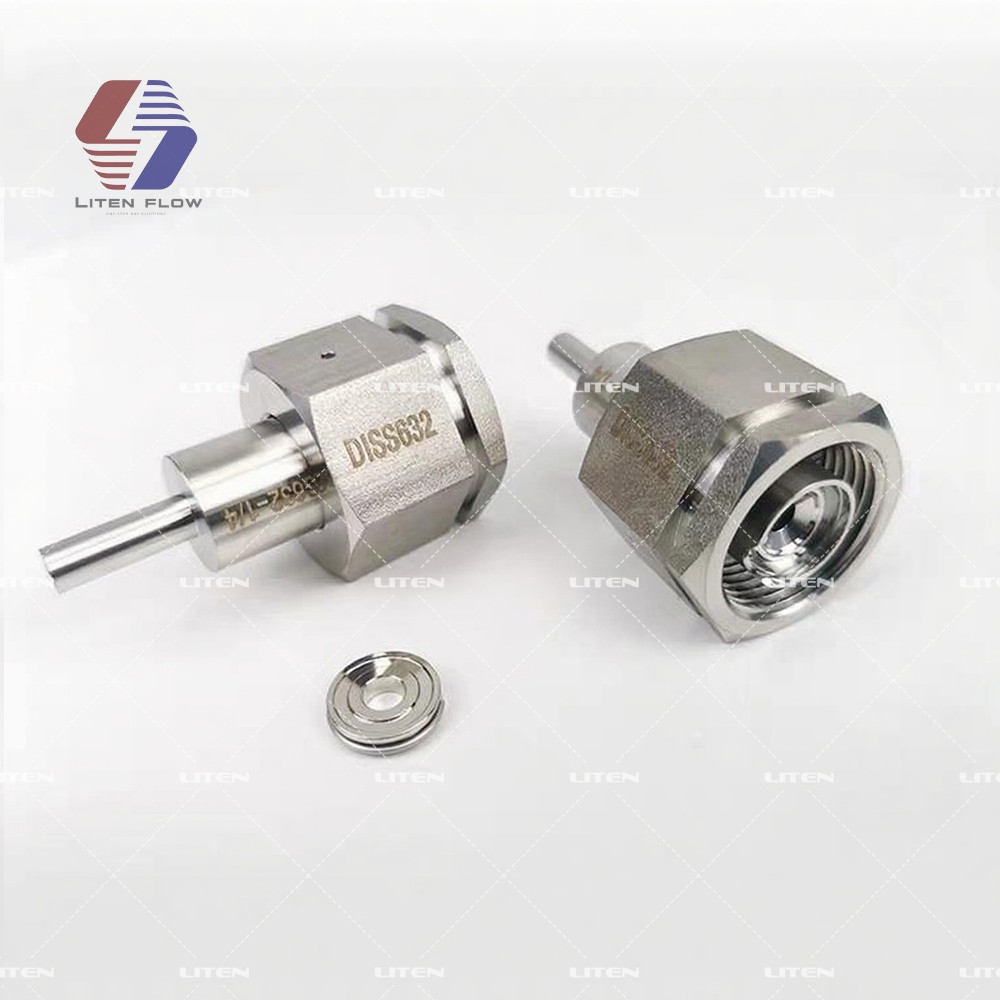

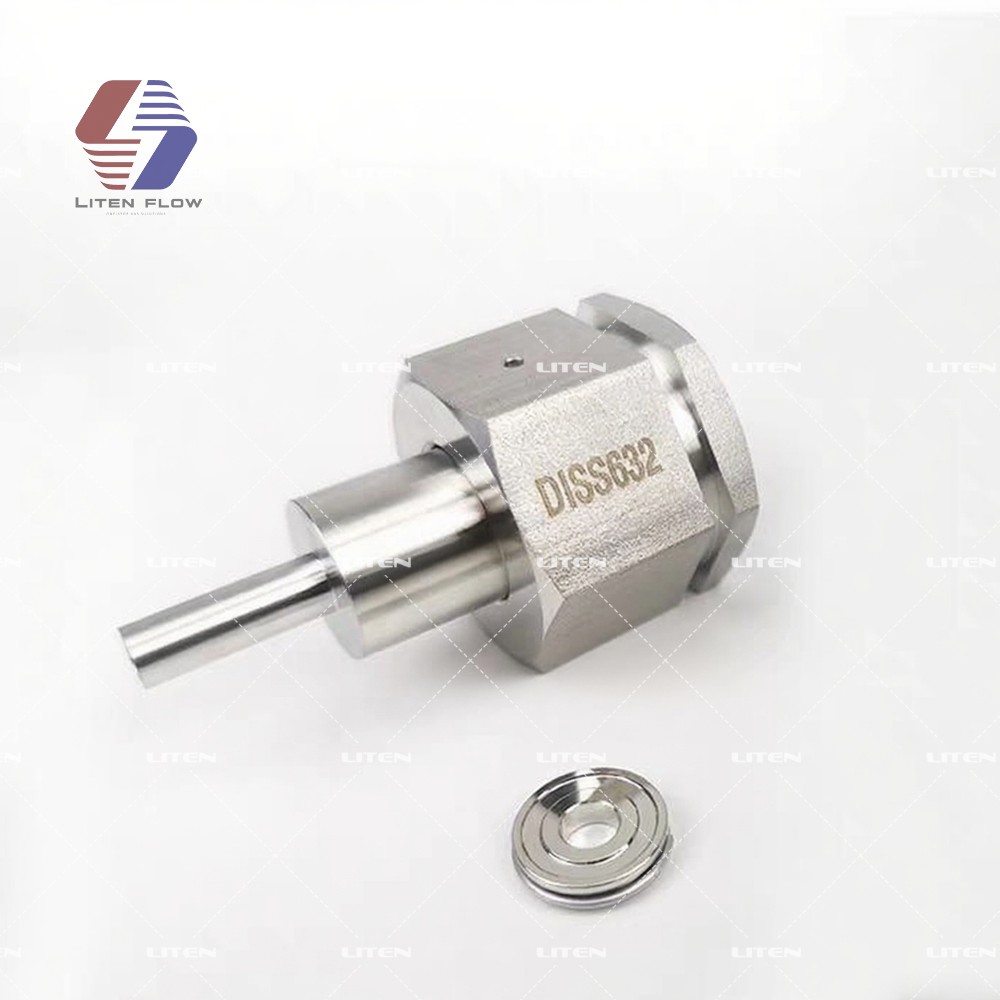

DISS632 Dichloromethane Specialty Gas Gallium Silicon Tetrachloride High-Purity Gas Cylinder Valve Fitting

Model: DISS632 Nut and Nipple
Material: 316L Stainless Steel (excellent corrosion resistance, traceable batch number)
Finish: Electro-polished (Ra <9); optional silver-plated threads
Size: 632 thread × 1/4" tube stub, 2.50" length, 1/4" OD × 0.035" wall
Pressure Rating: Up to 6000 psi
Gas Purity: 7.0 Ultra High Purity
Weldability: Supports socket/butt weld
Customization: Length, connection type, and gasket material per customer request
Weight: ~160g
Brand: LITEN
Others: ASME/ANSI compl

Product Details

Product Tags

Upgrade your gas delivery systems with the DISS632 Cylinder Connector (Nut and Nipple)—precision-engineered using high-grade 316L stainless steel for outstanding corrosion resistance and long-term reliability. This connector is specifically designed for ultra-high purity (UHP) gas applications, making it ideal for laboratories, semiconductor manufacturing, microelectronics, and other demanding industries.

Attribute Value
Model DISS632 Nut and Nipple
Material 316L Stainless Steel
Surface Finish Electro-polished (EP), Ra <9; optional silver-plated threads
Size 632 thread x 1/4” tube stub, 2.50” length, 1/4” OD x 0.035” wall
Pressure Rating Up to 6000 psi
Gas Purity Level 7.0 Ultra High Purity
Weight ~160g
Brand LITEN
Standards ASME, ANSI compliant
Customization Length, connection type, sealing material
Sample Available for quality testing

Typical Applications
Semiconductor manufacturing
Laboratory gas systems
Microelectronics
High-purity gas distribution panels
Analytical instrumentation
Research & development
