Product name:

High accuracy pressure sensor

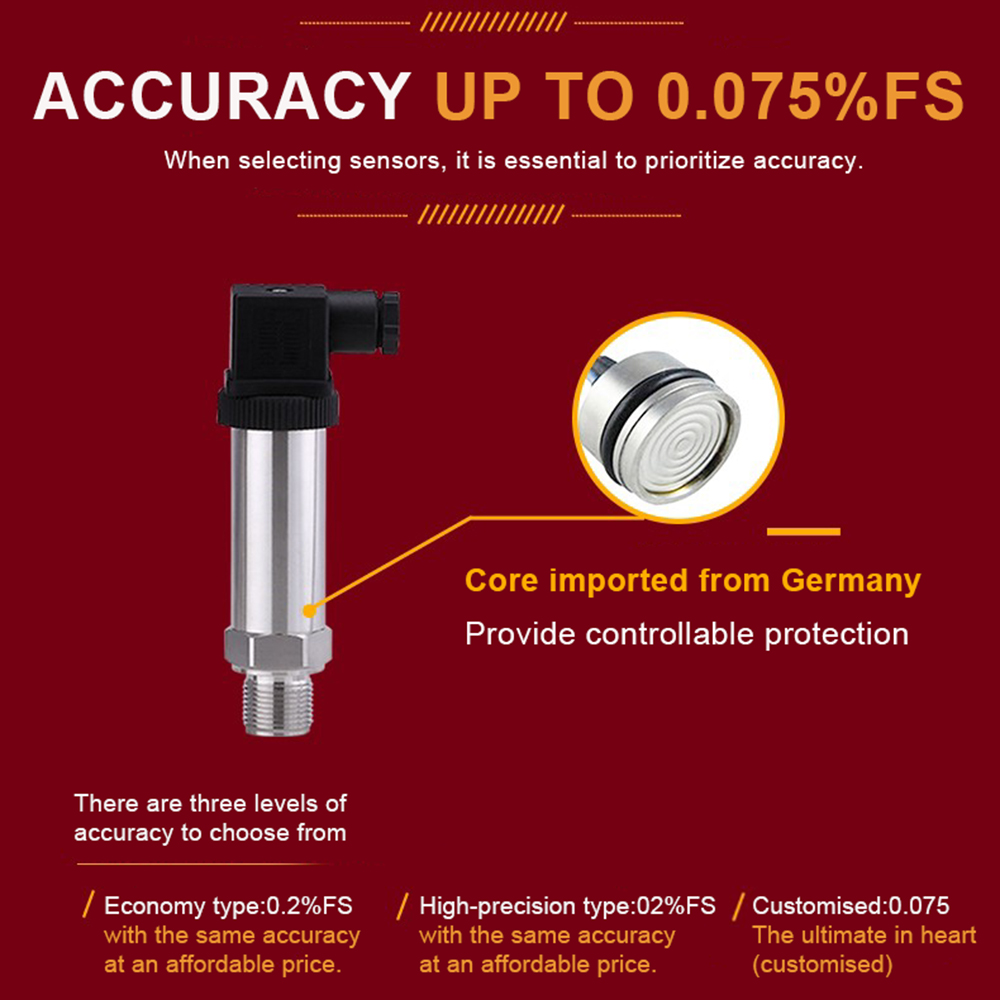

Accuracy:

0.2%FS, 0.1%FS, 0.0.75%FS

Overload pressure:

300%FS (maximum range is 70KPa and below)

200%FS (maximum range is within 70KPa-16MPa)

150%FS (maximum range is 16MPa-60MPa)

Working voltage:

Standard 24VDC±5% 8VDC-30VDC (without display)

12VDC-34VDC (with LCD display)

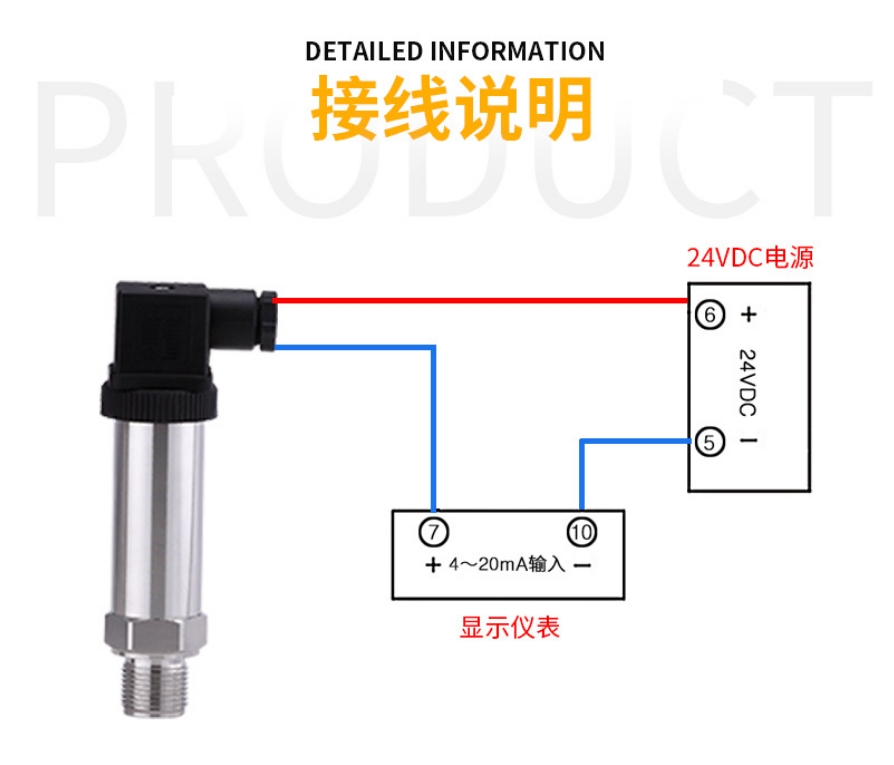

Output signal:

4~20mADC (two-wire system)

0-5V/0-10V (three-wire system) customized

Medium temperature:

1000/3000/6000psi

Working Temperature:

-20~80°C

Overvoltage effect:

less than 0.25% of the maximum range

Power supply influence:

less than 0.01% of output range

Temperature drift:

≤0.01%FS/℃

Relative humidity:

0～100%

Stability:

±0.2 FS/year (0.2 level)

Diaphragm Material:

316L Stainless Steel

Electronic housing:

304 stainless steel

Brand:

LITEN

Orginal:

Guangdong, China
