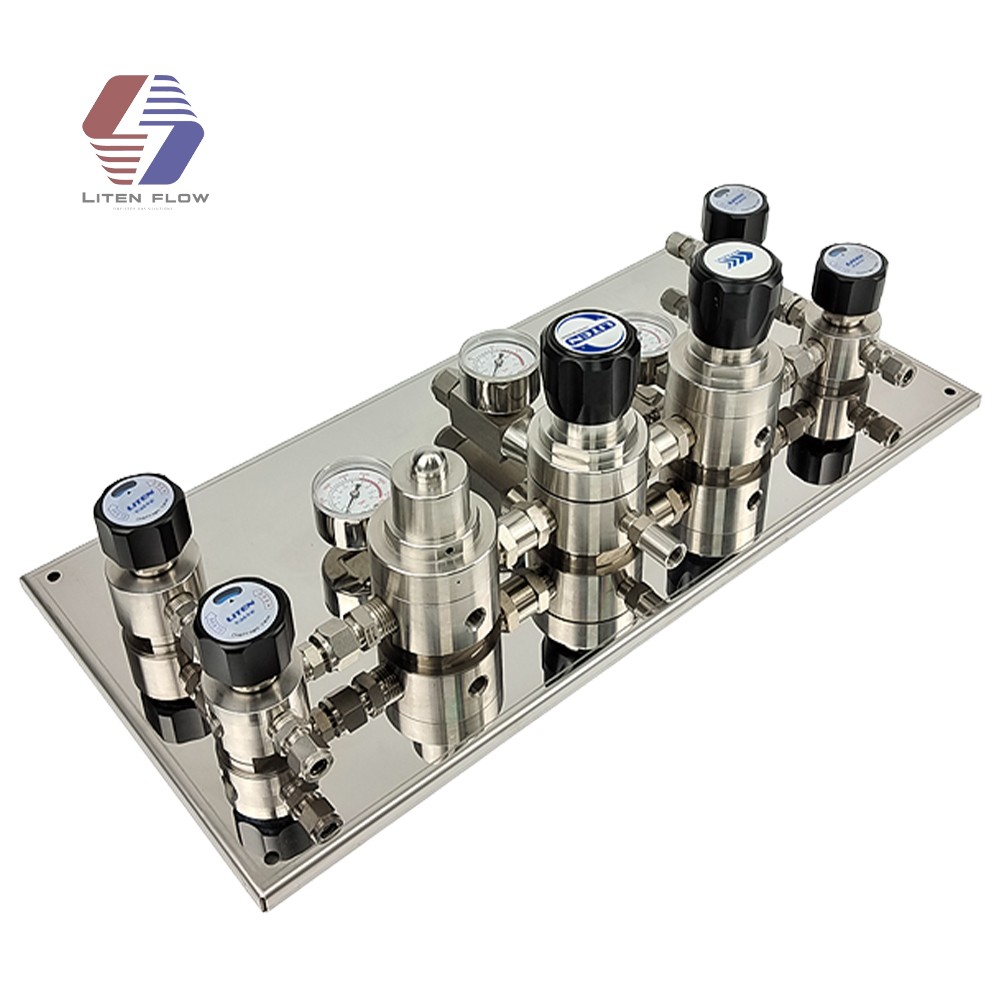

DA22 Series Dual Stage Medium Flow Automatic Switching Supply Gas Control Panel

Product Name: DA22 Series Dual Stage Medium Flow Automatic Switching Supply Gas Control Panel
Model: DA22
Product Type: Dual Stage Medium Flow Switching Gas Control Panel
Gas Supply Mode: Main and standby cylinder automatic switching
Pressure Reduction Type: Dual Stage Pressure Reduction
Inlet Pressure: 0-3000 psi
Outlet Pressure Range: 0-150 psi
Flow Coefficient: Cv = 1.0
Port Thread: 1/2" NPT Female
Inlet Direction: Horizontal / Vertical
Valve Assembly: With input and purge valves, w

INQUIRY

Product Details

Product Tags

Product Overview

The DA22 Series Dual Stage Medium Flow Automatic Switching Supply Gas Control Panel is designed for dual-sided gas cylinder pressure reduction and continuous gas supply. It supports main and standby gas source operation and automatically switches to the standby side when the pressure of the priority side drops below the set value.

With dual stage pressure regulation, selectable inlet direction, pressure gauge options, multiple inlet and outlet connection choices, and optional signal pressure gauge, pressure sensor, or safety valve configuration, the DA22 Series is suitable for industrial gas control, specialty gas pipeline, laboratory gas supply, analytical instruments, and research gas systems.

Product Parameters

Product Name	DA22 Series Dual Stage Medium Flow Automatic Switching Supply Gas Control Panel	Outlet Pressure Range	0–150 psi
Series	DA22	Pressure Gauge Range	0–250 psi / 0–100 psi / 0–50 psi / 0–25 psi
Product Type	Dual Stage Automatic Switching Gas Control Panel	Gauge Unit	psi/bar or none
Max Inlet Pressure	3000 psi / 500 psi	Inlet Connection	1/4" NPT(F), 1/4" OD, 3/8" OD, 6mm OD
Flow Coefficient	Cv = 1.0	Outlet Connection	1/4" NPT(F), 1/4" OD, 3/8" OD, 6mm OD
Port Thread	1/2" NPT Female	Inlet Direction	Horizontal / Vertical
Valve Assembly	With input and purge valves, with or without output valve	Installation Options	Signal Pressure Gauge / Pressure Sensor / Safety Valve / None
Operating Temperature	Need to confirm	Leakage Rate	Need to confirm
Body Material	Need to confirm	Typical Applications	Industrial gas control, specialty gas pipeline, laboratory gas supply

Key Features

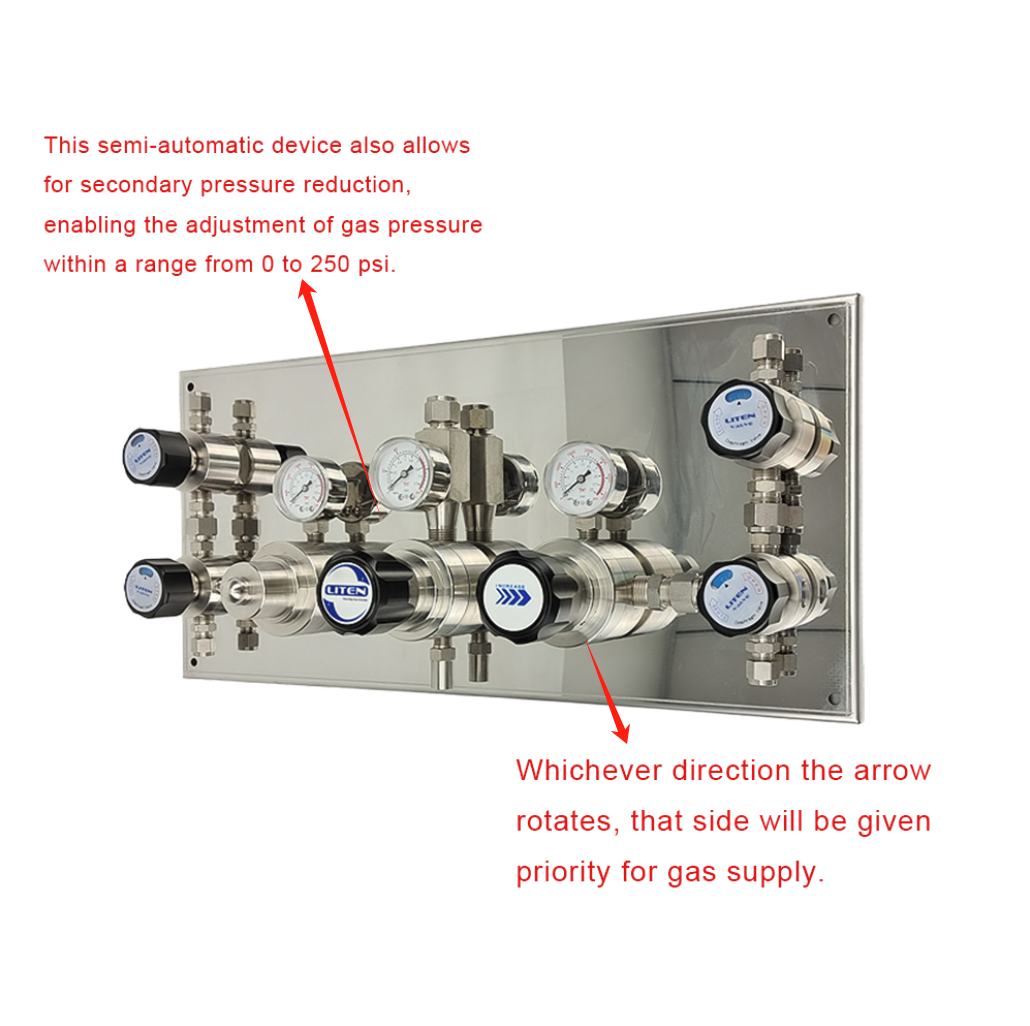

DA22 automatic switching gas control panel detail

Automatic Switching for Continuous Gas Supply

For users who need uninterrupted gas delivery, the DA22 automatic switching structure changes from the priority side to the standby side when cylinder pressure drops below the set value, helping reduce shutdown risk in laboratory and process gas lines.

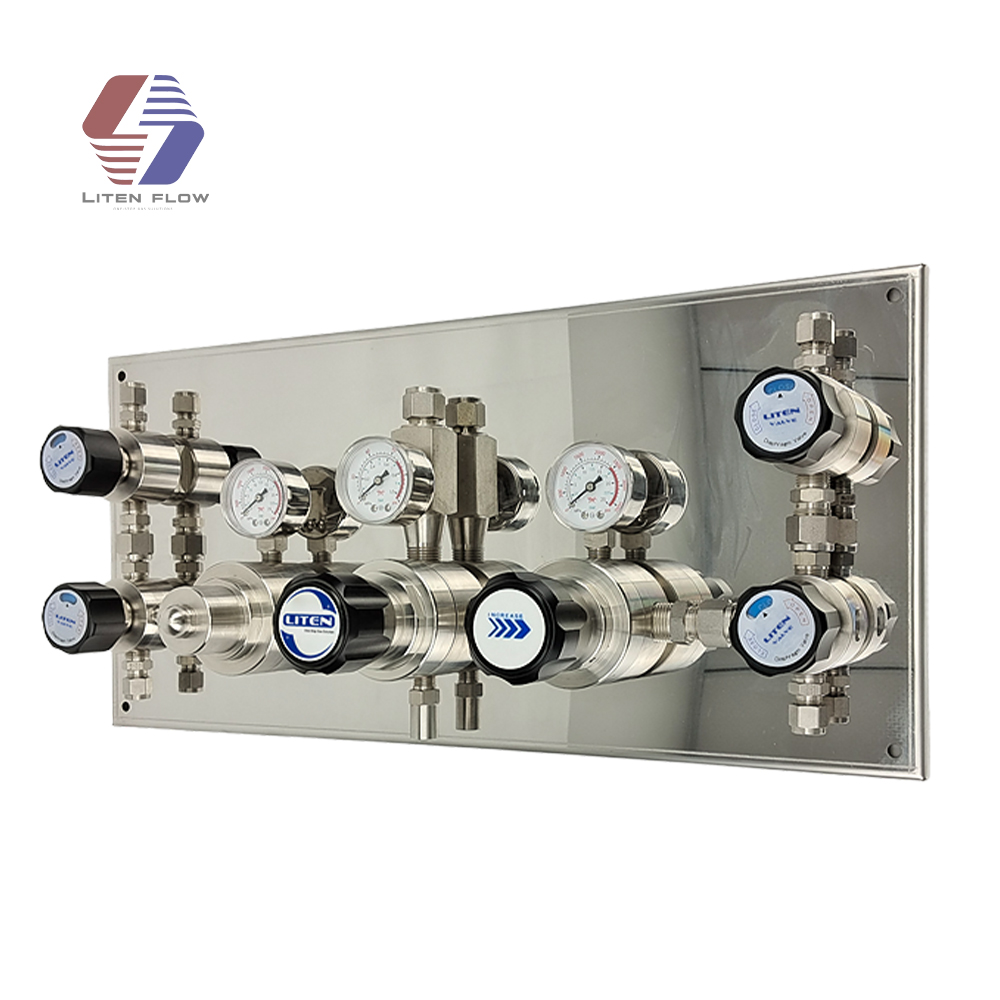

Dual Stage Pressure Regulation

Dual stage pressure reduction helps keep outlet pressure more stable when inlet cylinder pressure changes, supporting analytical instruments, gas panels, test equipment, and medium flow gas supply systems.

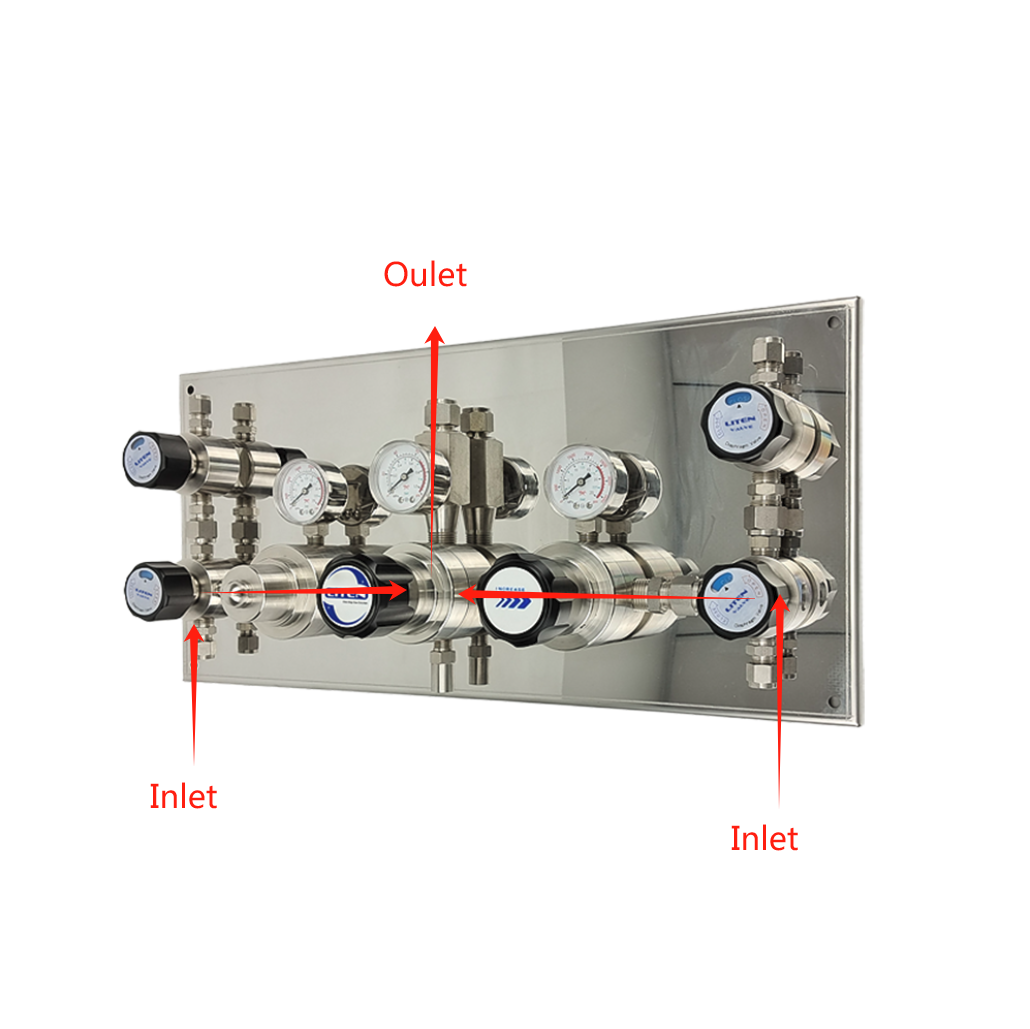

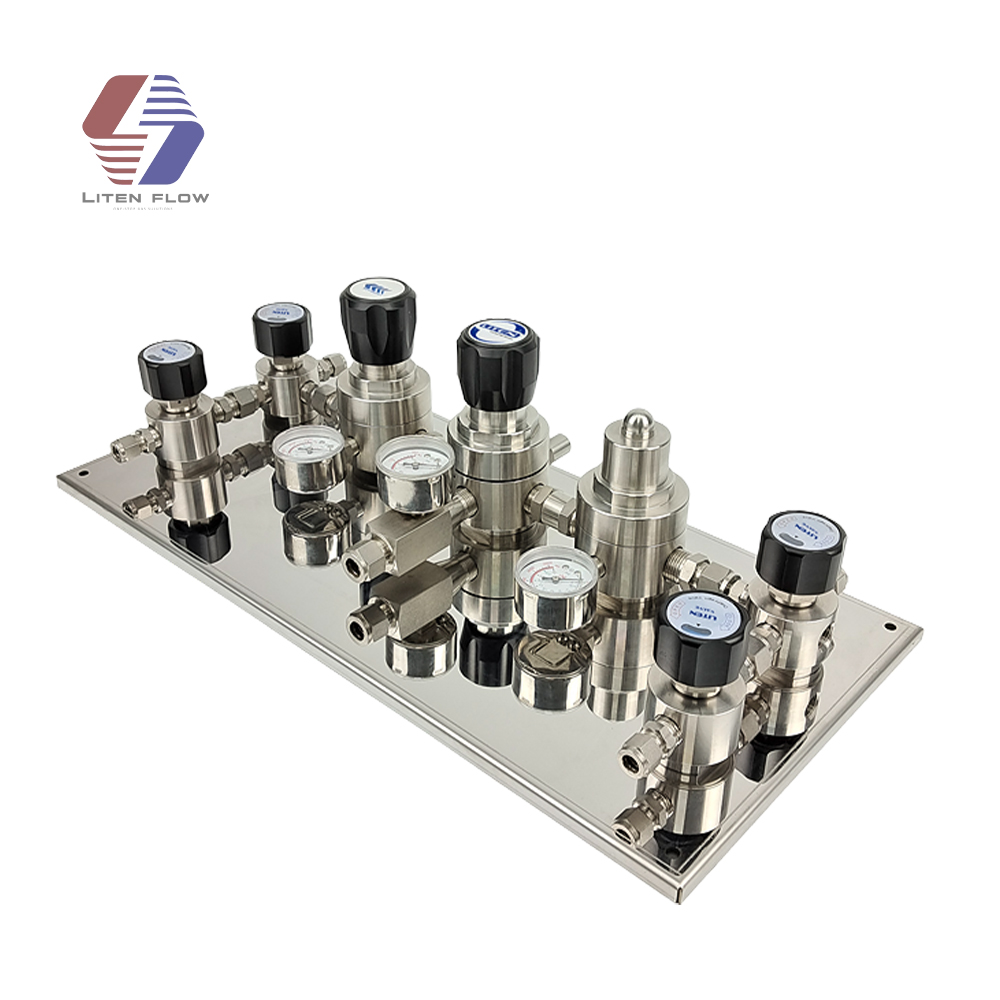

DA22 inlet outlet connection and panel mounting detail

Configurable Connections and Options

Selectable inlet direction, pressure gauge range, inlet and outlet connections, pressure sensor option, signal pressure gauge option, and safety valve option help buyers match the panel to project requirements.

Model Selection Guide

The following ordering information helps users select a suitable DA22 configuration according to valve assembly, inlet direction, pressure range, pressure gauge range, gauge unit, inlet connection, outlet connection, and installation method.

Ordering Information

Series	Valve assembly	Inlet direction	Pressure Range	Pressure Gauges	Pressure gauges	Inlet connection	Outlet connection	Installation method
DA22	-1	1	-D	G	-00	-00	-00	-C
DA22	1: With input and purge valves, and an output valve. 2: With input and purge valves, without an output valve.	1: Horizontal 2: Vertical	D: 3000 psi F: 500 psi	G: 0~250 psi I: 0~100 psi K: 0~50 psi L: 0~25 psi	P: psi/bar W: None	01: 1/4" NPT(F) 11: 1/4" OD 12: 3/8" OD 15: 6mm OD More...	01: 1/4" NPT(F) 11: 1/4" OD 12: 3/8" OD 15: 6mm OD More...	C: Signal Pressure Gauge T: Pressure Sensor R: Safety Valve N: None

Note: For gas type, pressure range, connection standard, or customized configuration, please contact LITEN before ordering.

Application Scenarios

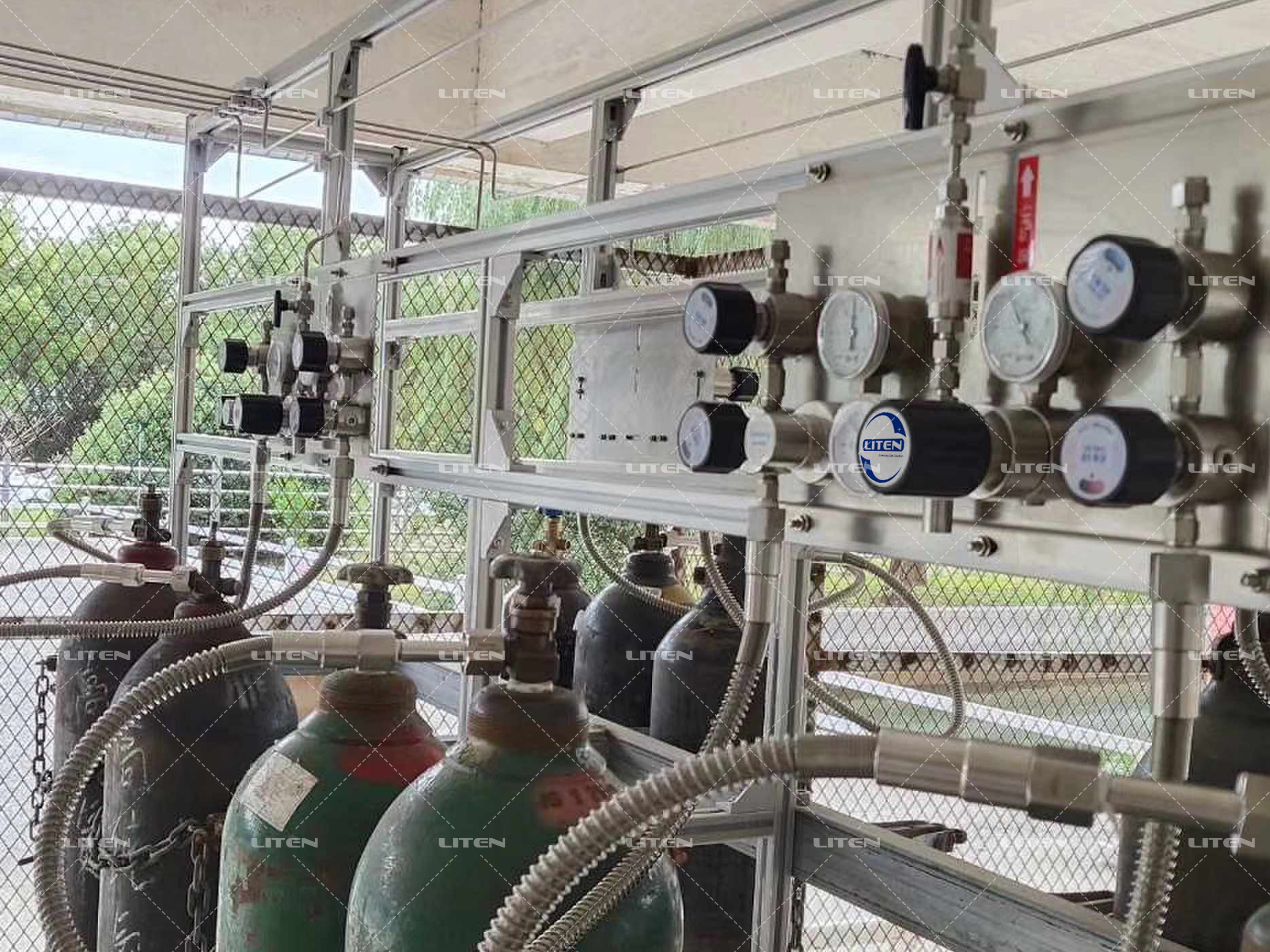

Industrial Gas Control

Used for nitrogen, argon, oxygen, hydrogen, helium, carbon dioxide, and other industrial gas supply systems requiring continuous gas delivery.

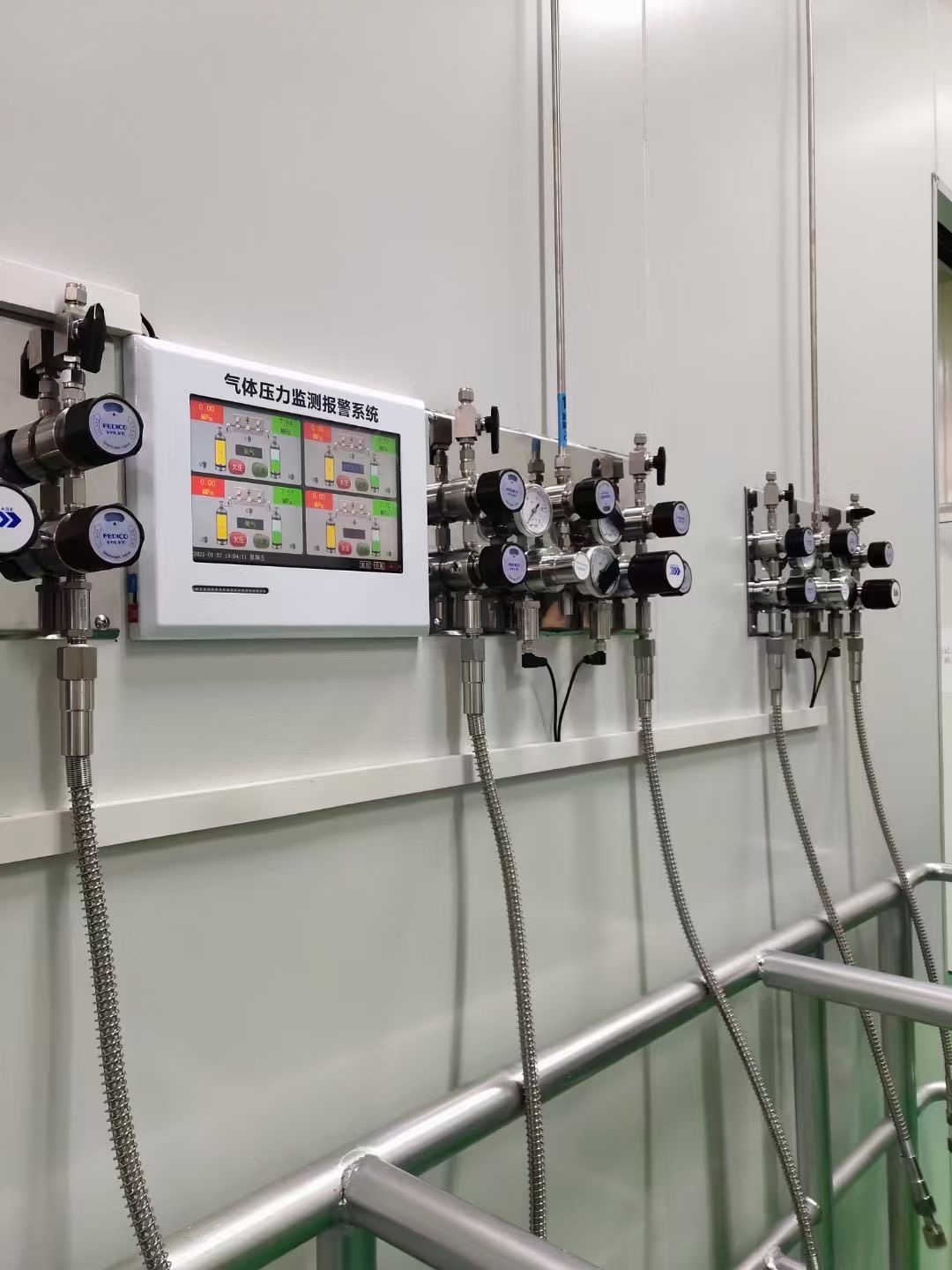

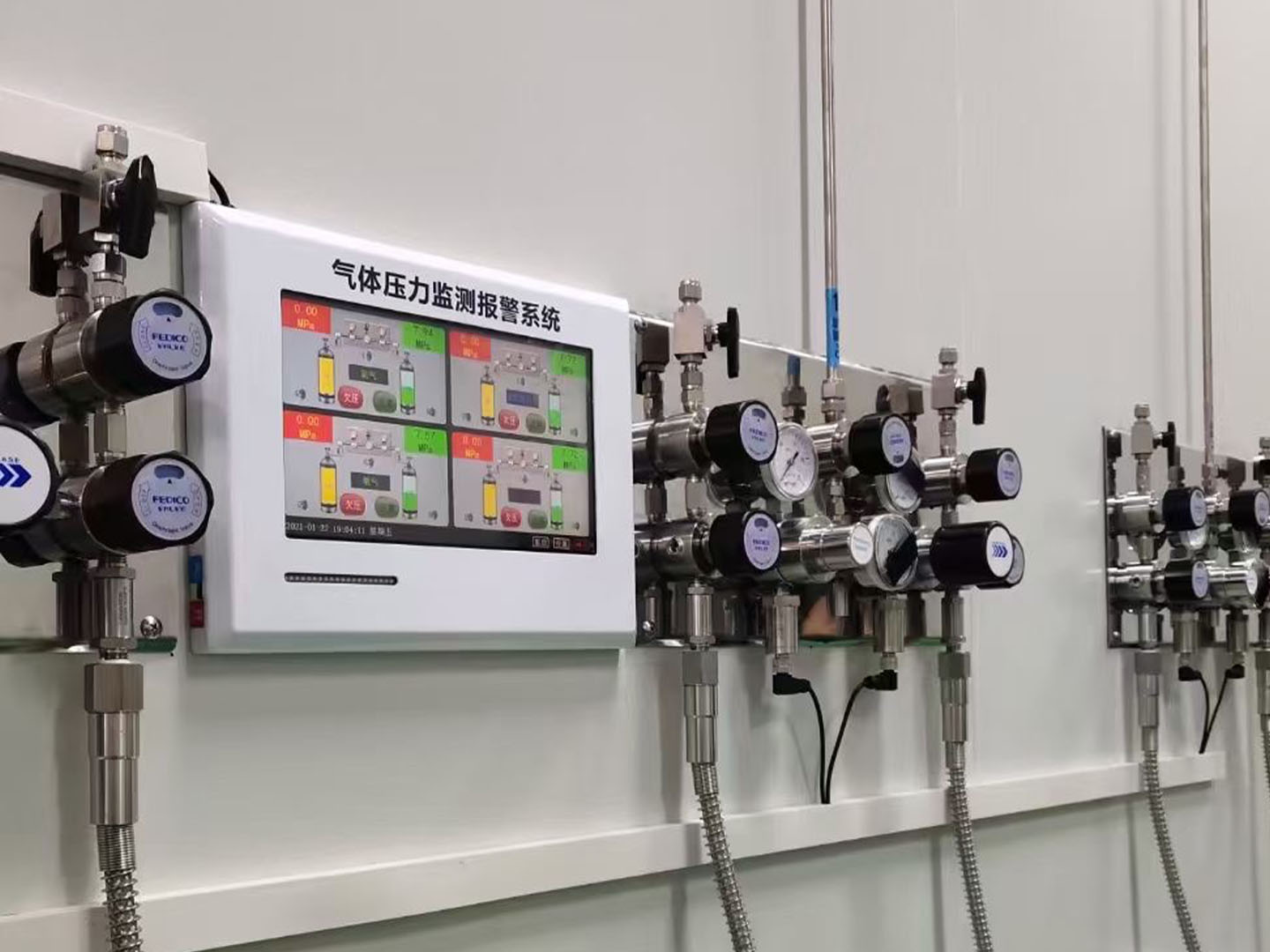

Specialty Gas Pipeline

Suitable for specialty gas pipeline engineering, medium flow gas distribution, and process gas control applications.

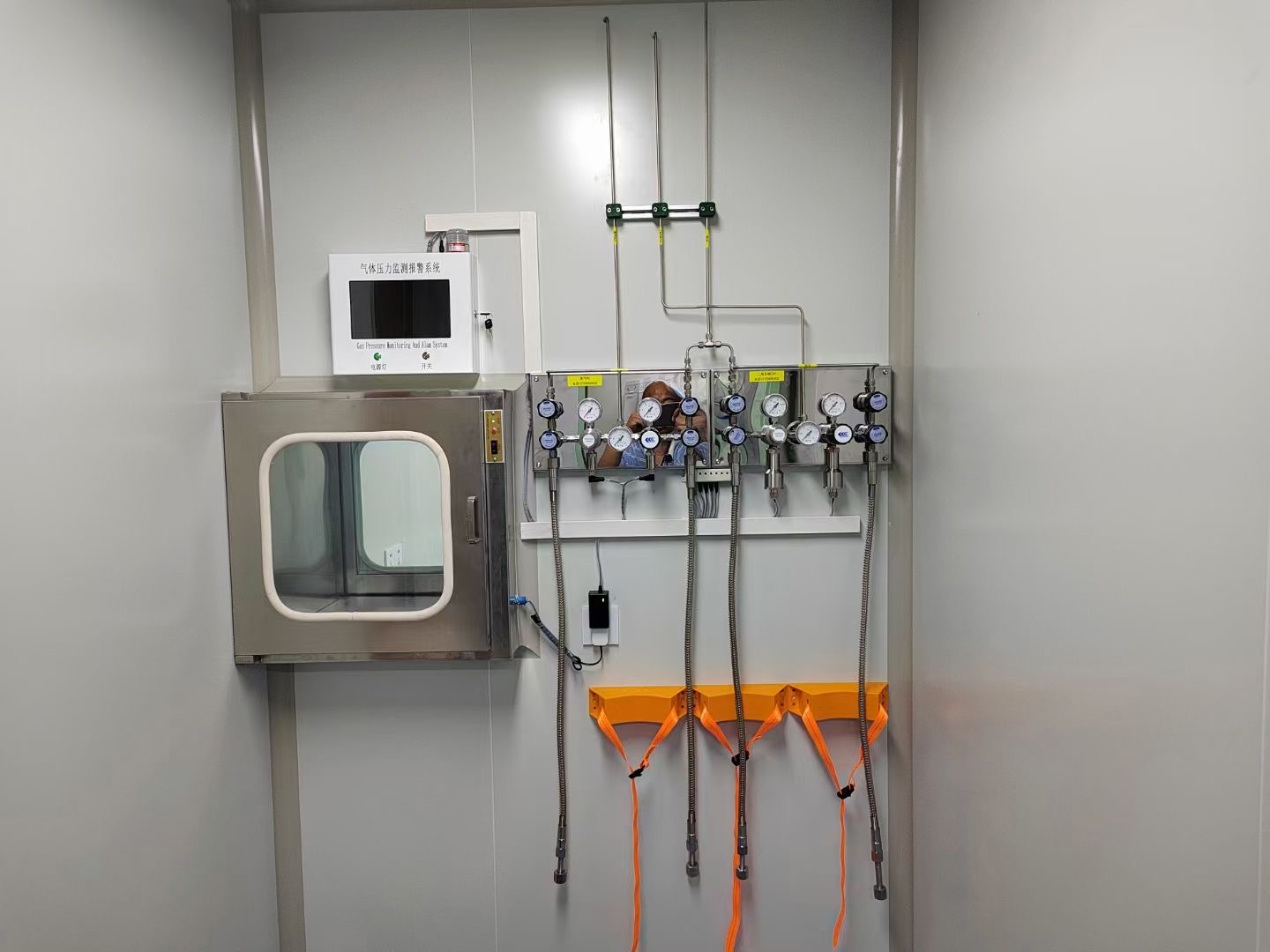

DA22 gas supply panel for laboratory analytical instrument gas supply

Laboratory Gas Supply

Applicable for laboratory gas panels, analytical instrument gas supply, and point-of-use gas pressure control systems.

Quality Control

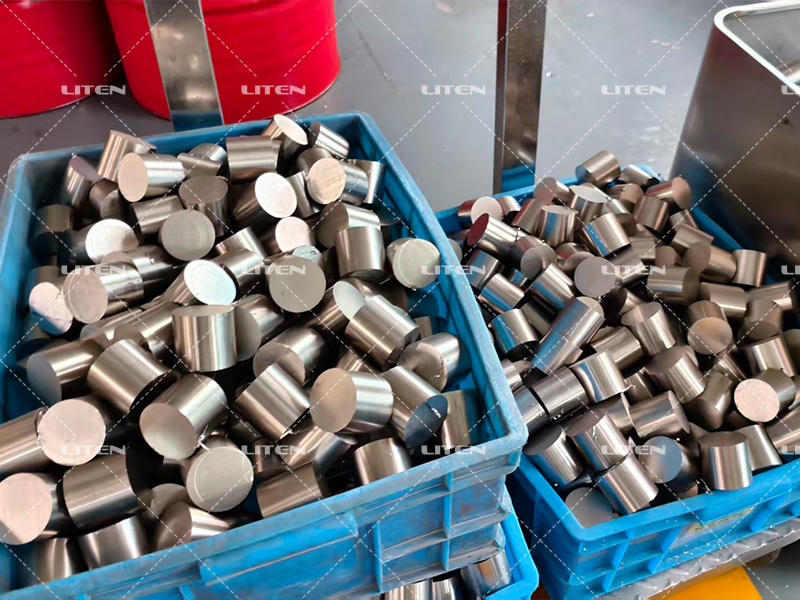

Material Inspection

Raw materials are checked before machining and assembly.

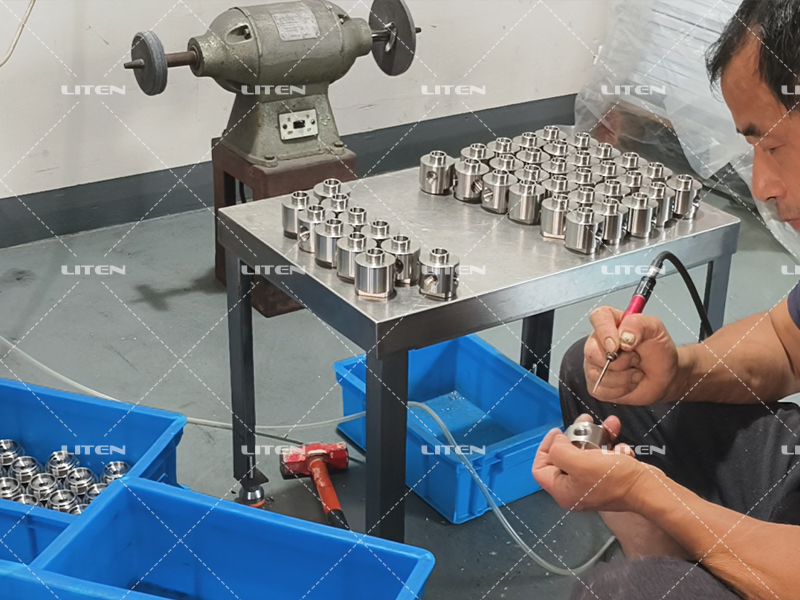

Dimensional Inspection

Key dimensions and thread specifications are inspected before shipment.

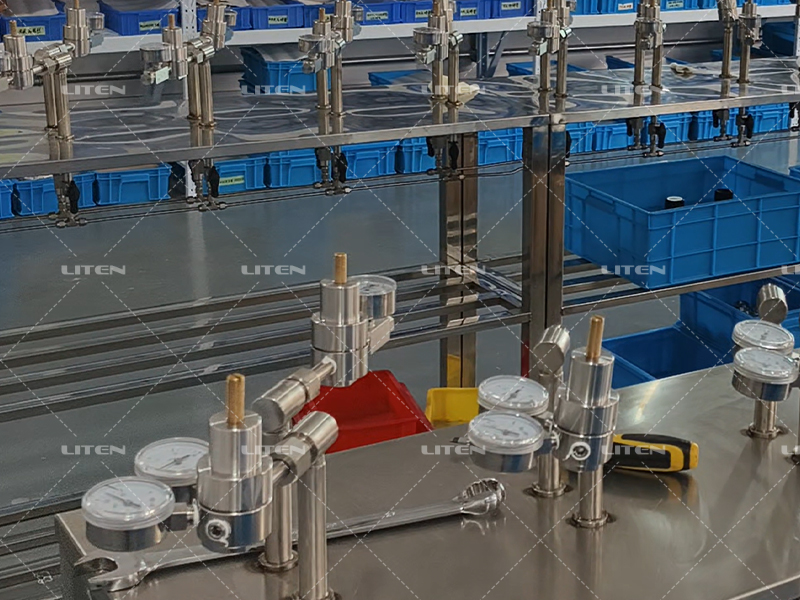

Leak Testing

Sealing performance can be tested according to product requirements.

Safe Packaging

Products are cleaned, protected, and packed for safe international delivery.

FAQ

Q1: What is the DA22 automatic switching gas control panel used for?

It is used for dual-sided gas supply systems where continuous gas delivery is required, including laboratory gas supply, specialty gas pipeline, industrial gas control, and analytical instrument gas systems.

Q2: What inlet pressure options are available?

The DA22 Series provides 3000 psi and 500 psi pressure range options. The final configuration should be selected according to cylinder pressure and system requirements.

Q3: Can the connection type be customized?

Yes. Inlet and outlet connections can be selected from 1/4" NPT(F), 1/4" OD, 3/8" OD, 6mm OD, or other options according to project requirements.

Q4: What information is needed to select the correct DA22 configuration?

Please confirm gas type, inlet pressure, outlet pressure range, flow requirement, inlet and outlet connection standard, inlet direction, gauge requirement, and installation method.
