SA21 Semi automatic Changeover Panel 2 SA21 Cylinder Gas Regulator all 316L stainless steel for 6.0N High Purity Gas

Maximum Inlet Pressure: 3000psi
Outlet Pressure Ranges: 0~250psi
Connection: 1/4"NPT(Female) or other
Leakage Rate: 2x10 atm.cc/sec He (Helium)
Internal and External Leak Rate :<1 x 10-9 mbar.L/s
Operating Temperature: -40 ℃ to +74 ℃
Flow Capacity
Cv = 0.06
Safety pressure: 1.5 times the maximum input pressure

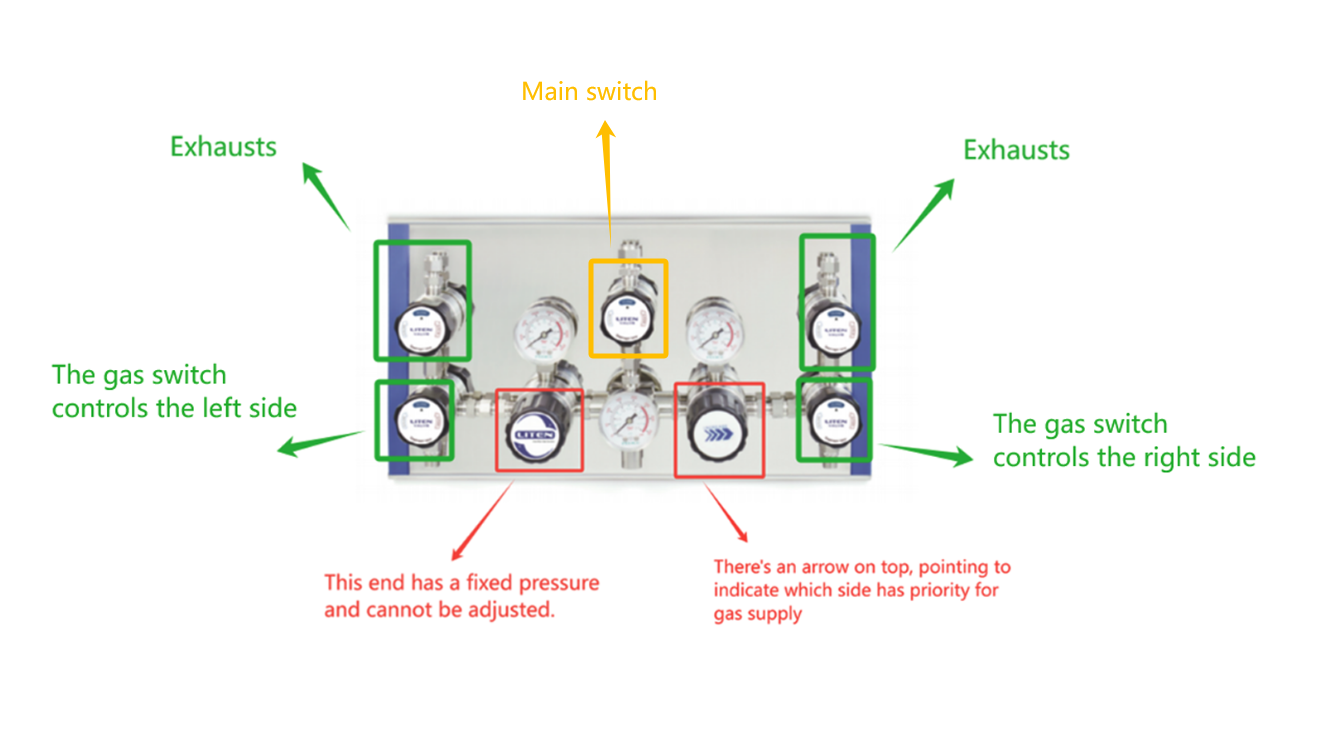

Diaphragm Valve Knob with "Open/Close" Indicator
Pressure Regulator and Piping Undergo Pressure and Leak Testing

INQUIRY

Product Details

Product Tags

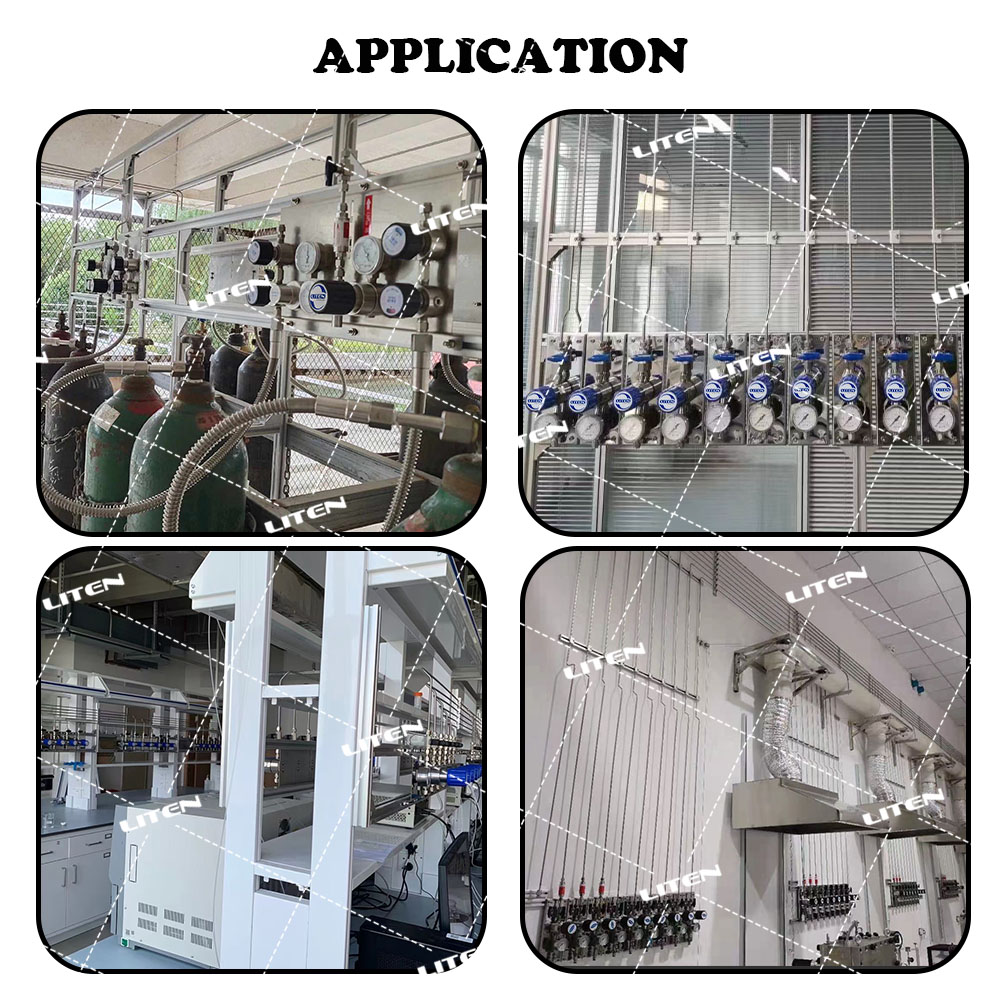

The semi-automatic manifold range is designed to operate on single cylinders, cylinder packs, liquid vessels or combinations of them. They are designed to provide a continuous supply of gas, automatically changing from an empty bank to a full one, thus avoiding interruption of gas supply to the downstream pipeline and equipment.



The fully automatic manifold range is designed to operate on single cylinders, cylinder packs, liquid vessels or combinations of them. They are designed to provide a continuous supply of gas, automatically changing from an empty bank to a full one and then back again when the empty side is re-supplied, without the manifold being re-set, thus avoiding interruption of gas supply to the downstream pipeline and equipment. They are ideal for Laser applications.
