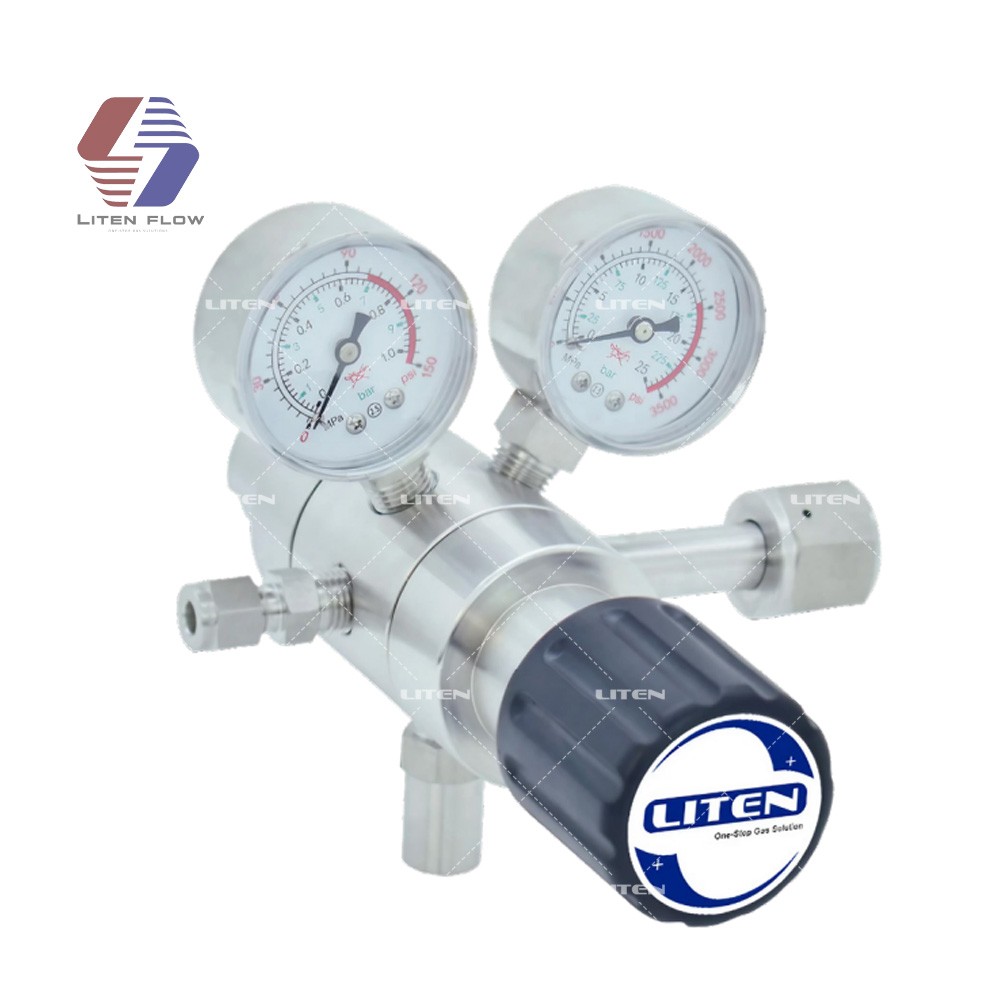

R31 Dual Stage Medical Gas Mixture Pressure Regulator

R31 Dual Stage Medical Gas Mixture Pressure Regulator

◎ Inlet pressure: 0~3500psi
◎ Outlet pressure: 0~250psi
◎Valve seat material: PCTFE, PTFE
◎ Diaphragm material: SS316L,Hastelloy
◎ Female thread: 1/4" NPT(F)
◎ Leakage rate:2x10-8 atm.cc/sec He
◎ Cv value: 0.08
◎ Valve body weight: 1.4kg
◎ Applicable temperature: -40 ℃ to +74 ℃
◎ Safety pressure: 1.5 times the maximum input pressure

INQUIRY down load to pdf

Product Details

Product Tags

FEATURES

◎ Dual-stage diaphragm structure

◎ Corrugated diaphragm design for excellent sensitivity and cycle life

◎ Purity up to 6.0, inlet pressure 0~3500 psi, outlet pressure 0~250 psi;

◎ Suitable for inert, corrosive, toxic, flammable, and combustible gases.

Tags: Dual stage regulator medical gas regulator mixture gas regulator
