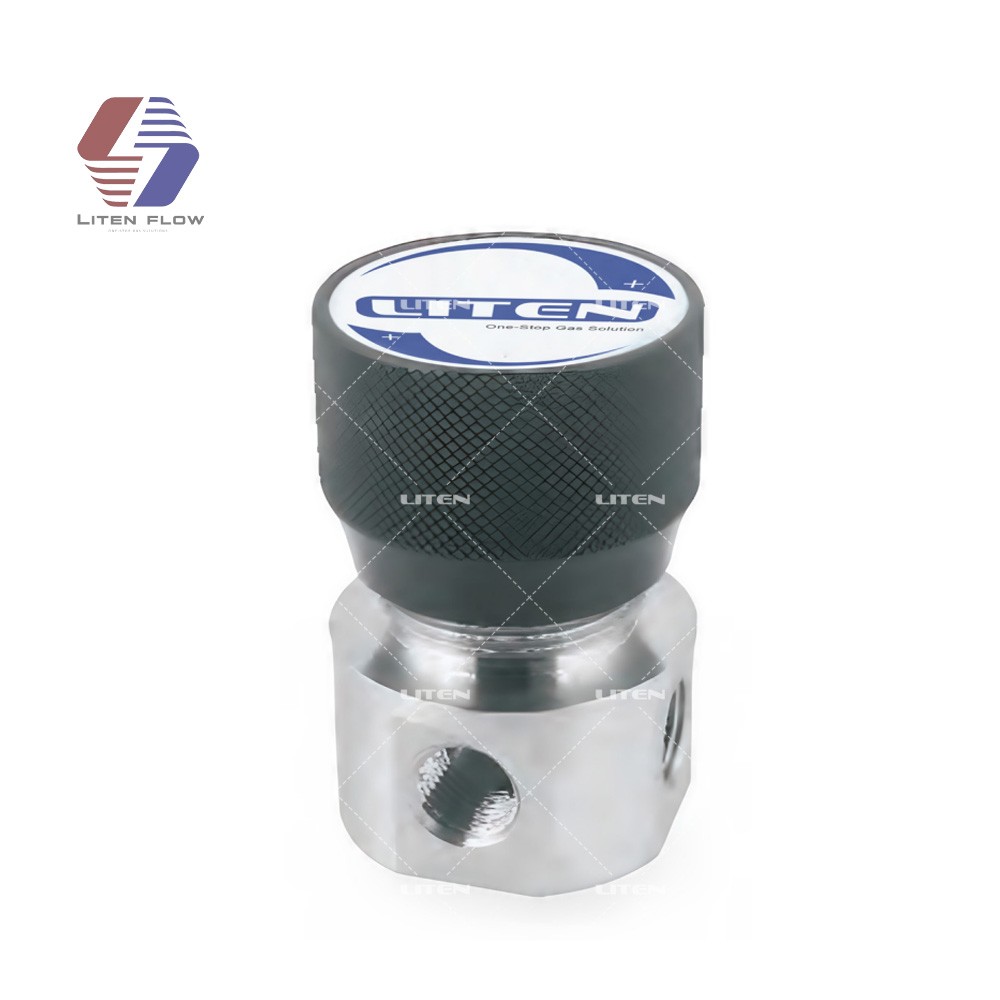

R71 Series Mini Piston Pressure Regulator

◎ Medium Contact Materials:
   Valve Body: 316, 316L, or Brass (Nickel Plated)
   Valve Seat: PCTFE, PEEK, or Vespel
   Piston: 316L
   O-Ring: Viton, Kalrez, or Buna-N
   Filter Element: 316L
◎ Operating Conditions:
   Maximum Rated Inlet Pressure: 6000 psig
   Outlet Pressure Ranges: 0~80, 0~140, 0~220, 0~700, 0~1200, 0~1800 psig
   Operating Temperature: -26°C to +74°C (-15°F to +165°F)
◎ Functional Performance:
   Test Pressure: 150% of the maximum rated pressure
   Burst Pressur

Product Details

Product Tags

FEATURES

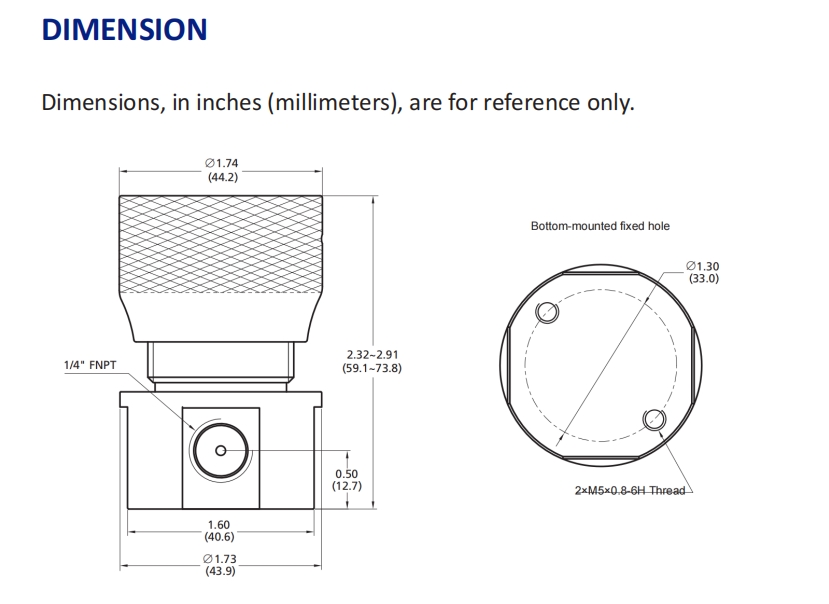

◎ Compact design with small external dimensions.
◎ Small internal volume.
◎ Inlet installation for 40μm filter element.

◎ Special cleaning and packaging process suitable for oxygen-rich environment.
