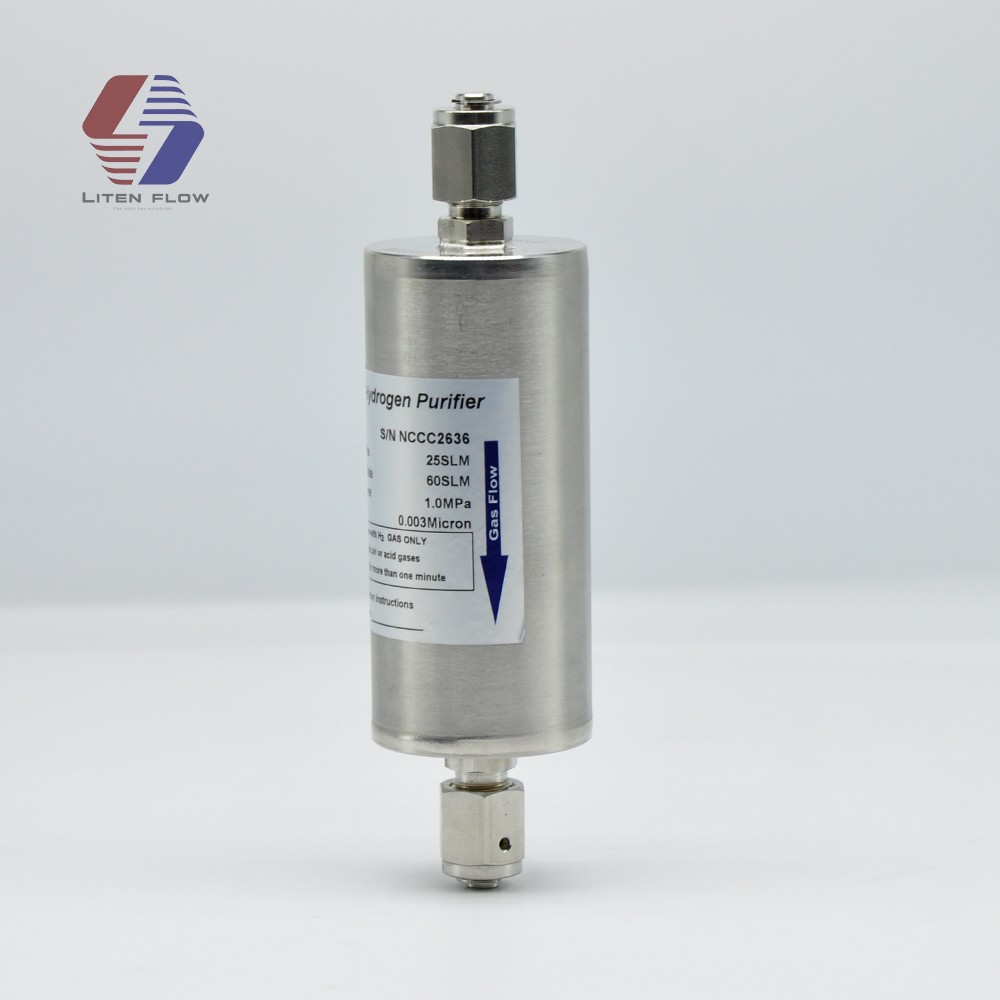

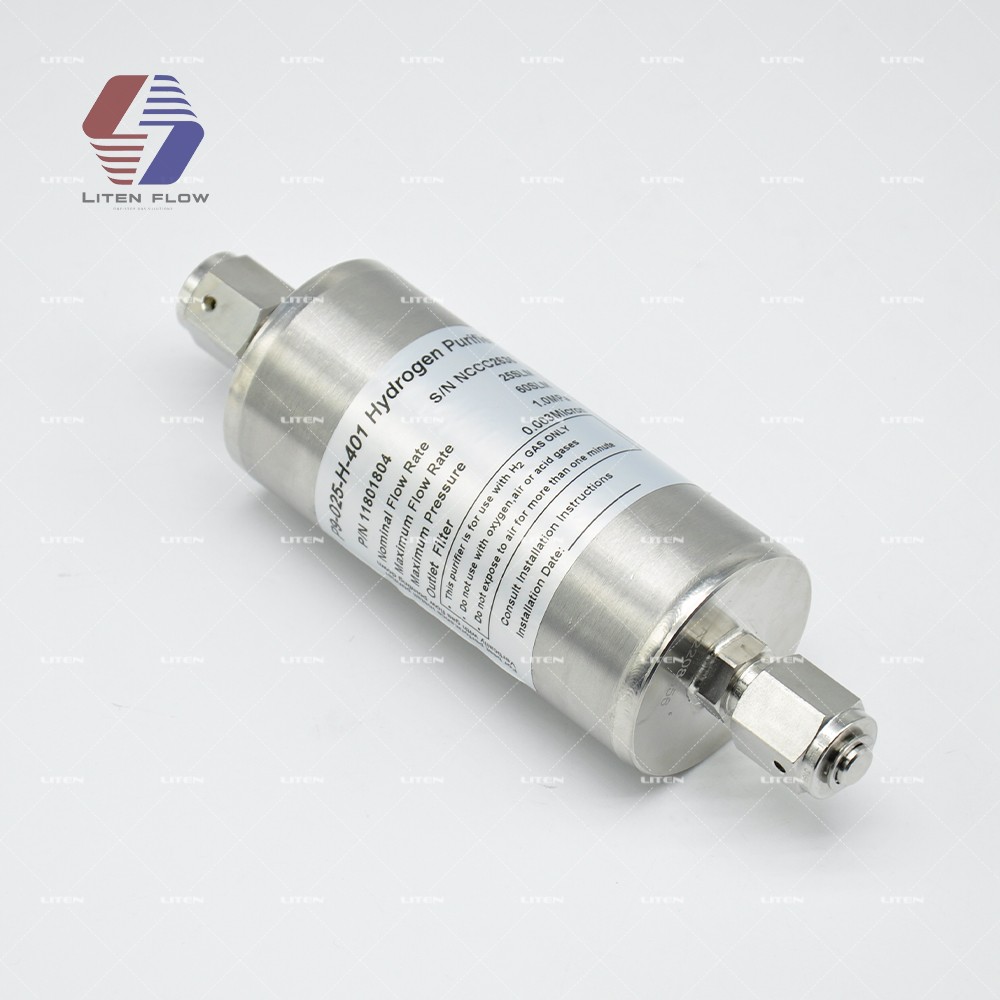

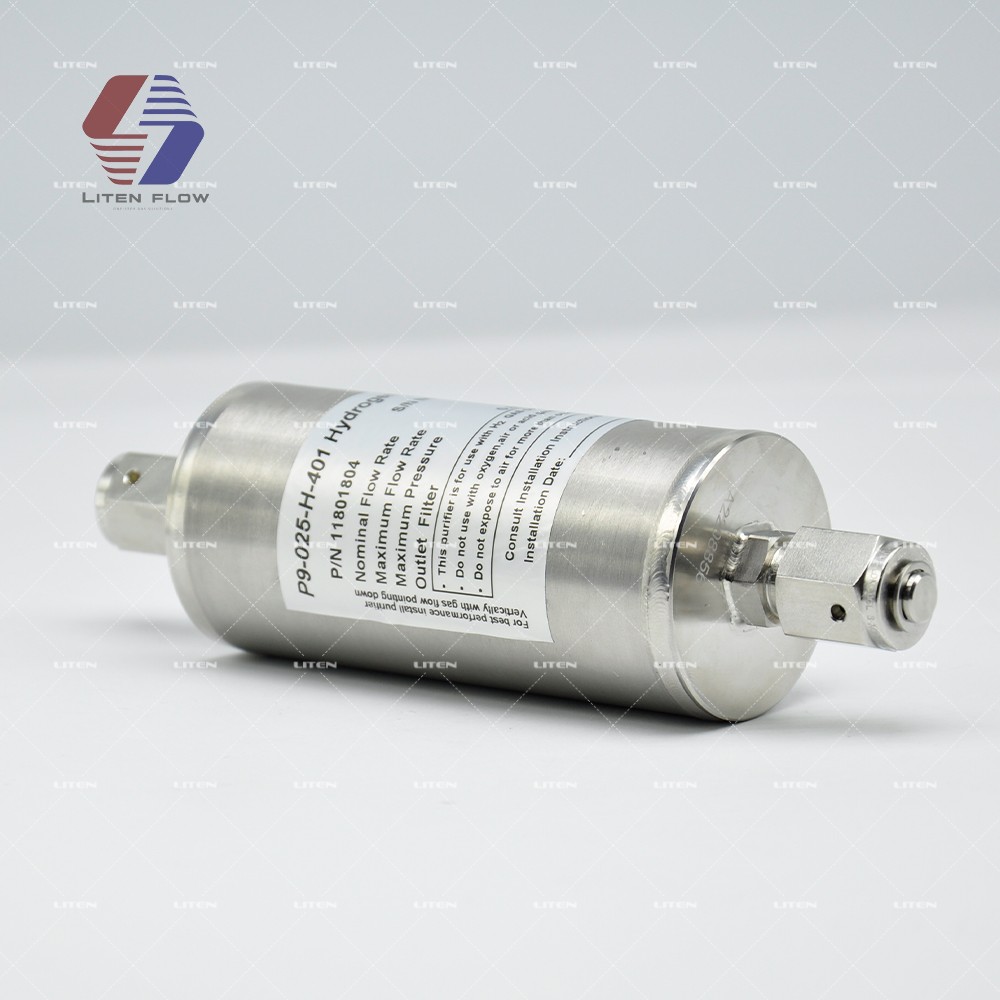

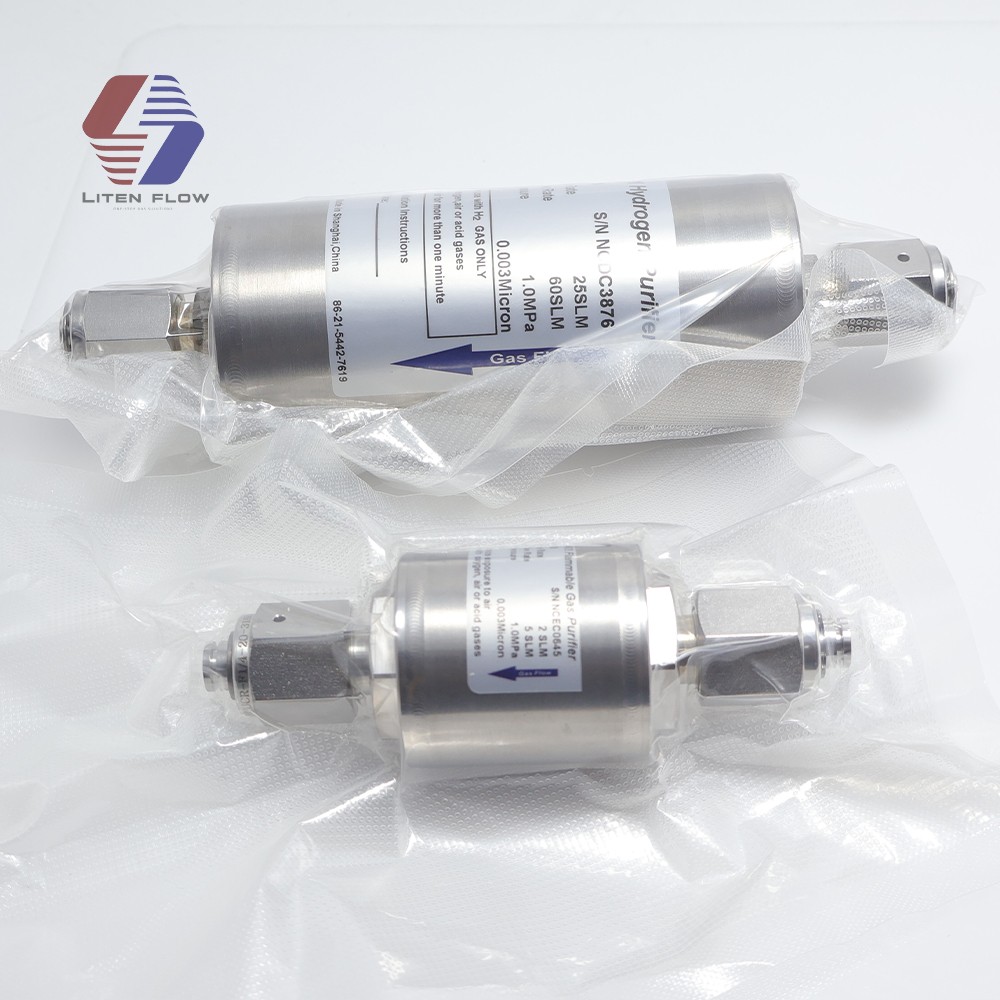

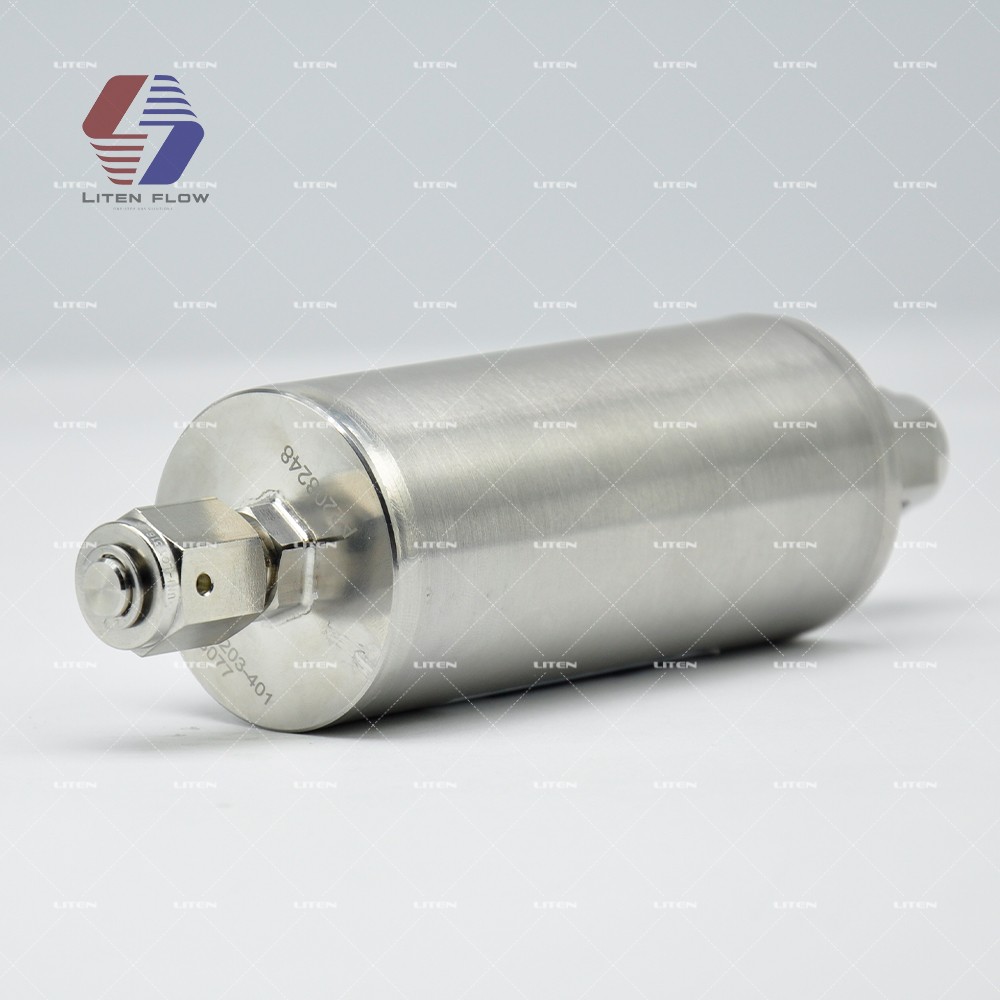

Gas Purifier In-line Gas Filter UltraPure UHP Hydrogen Hydride CH4 Gas 3000 PSI 60 Slm 0.003Micron 1/4

◎ Export gas with less than 1 ppb of each impurity
◎Uses high-performance purification materials
◎ 316L stainlesssteel electrochemical polishing purification tank
◎ Built-in imported 316L stainless steel filter
◎Can be configured with two-valve, three-valve and
◎four-valve valve assemblies
◎ Factory to provide water, oxygen test report
◎ Room temperature use, without electricity
◎ Produced in a class 100 ultra-clean room
◎ Can be regenerated by the original plant after saturati

INQUIRY down load to pdf

Product Details

Product Tags

Gas Purifier In-line Gas Filter UltraPure UHP Hydrogen Hydride CH4 Gas 3000 PSI 60 Slm 0.003Micron 1/4" Vcr System

As the first 9N purification equipment manufacturer in China, LITEN is always committed to providing customers with high quality and reliable purification products.

In order to better meet the market demand, CEP haslaunched the P9 series of domestic high performance POU gas purifier with higher localization rate in 2019, which achievesthe perfect

balance of high performance and high cost performance.

The P9 series domestic high-performance gas purifier adopts ambient catalyst technology, which removesimpurities such as H2O, O2, CO, CO2, H2, NMHC, etc. from process gas to

lessthan 1ppb at ambient temperature through a combination of chemical reaction and physical adsorption, and has a particle filter with 0.003um filtration accuracy built into the 316L stainlesssteel tank.

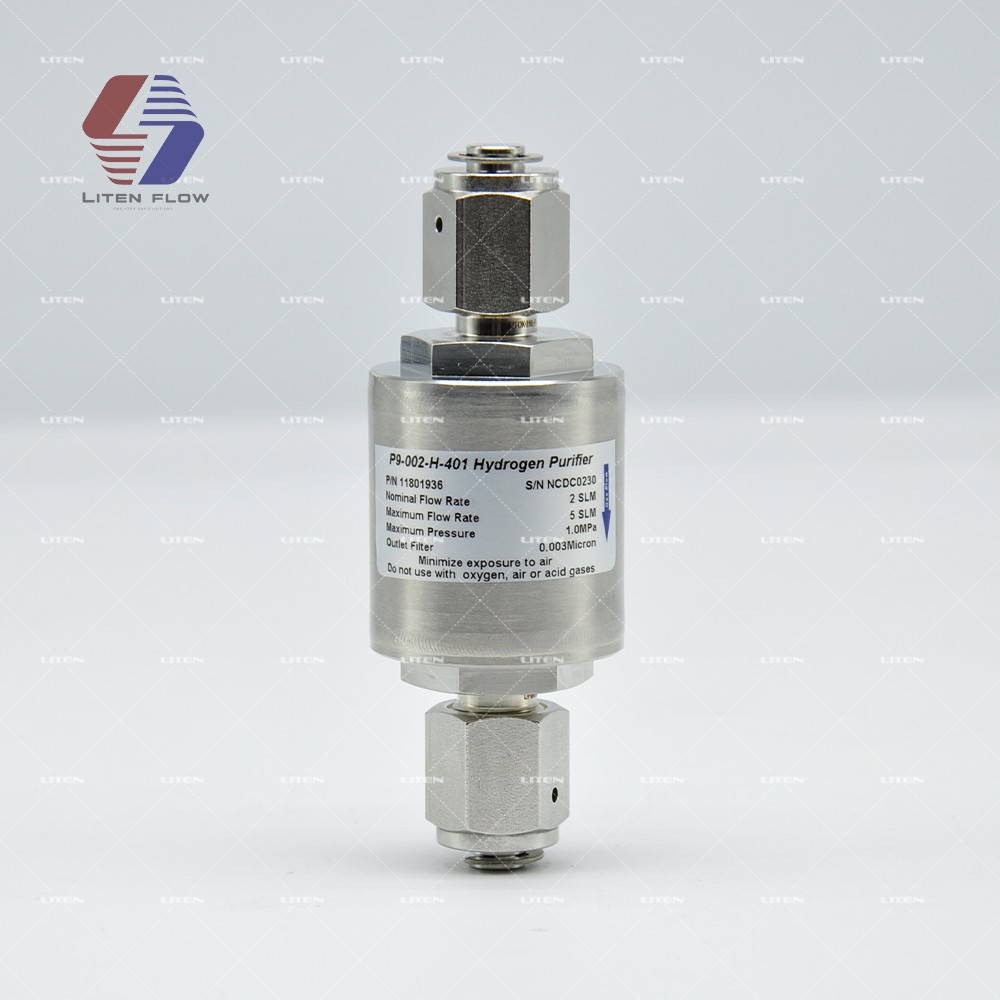

Model	P9-002
Regular flow	2slm
Max. flow rate	5slm
Purification tank material	316L SS
Particle filter	0.003μm 316L SS
Max. pressure	1.0MPa
Max. differential pressure*	0.1MPa
Inlet Connection	1/4”MVCR
Output Connection	1/4” MVCR
Distance between air inlet and outlet L	3.3”(84mm)
Purifier outer diameter D	1.5”(38.1mm)
Max. working temperature	40℃

3. Purification index

Gas type*	Purifiable gases*	Removed impurities	Purification index
Purification index -I	N2, Ar, He, Xe, Ne, Kr	H2O, O2, CO, CO2, H2, NMHC	<1ppb
Oxygen-O	O2, CDA	H2O, CO2, NMHC
Hydrogen -H	H2 H2 and inert gas mixture	H2O, O2, CO, CO2, NMHC

5. Other Model

Model	Regular flow	Max. flow rate
P9-002	2slm	5slm
P9-004	4slm	10slm
P9-025	25slm	60slm
P9-040	40slm	100slm
P9-060	60slm	150slm
P9-150	150slm	300slm
P9-260	250slm	500slm
P9-500	500slm	800slm
P9-900	900slm	1500slm
P9-1800	1800slm	3000slm
