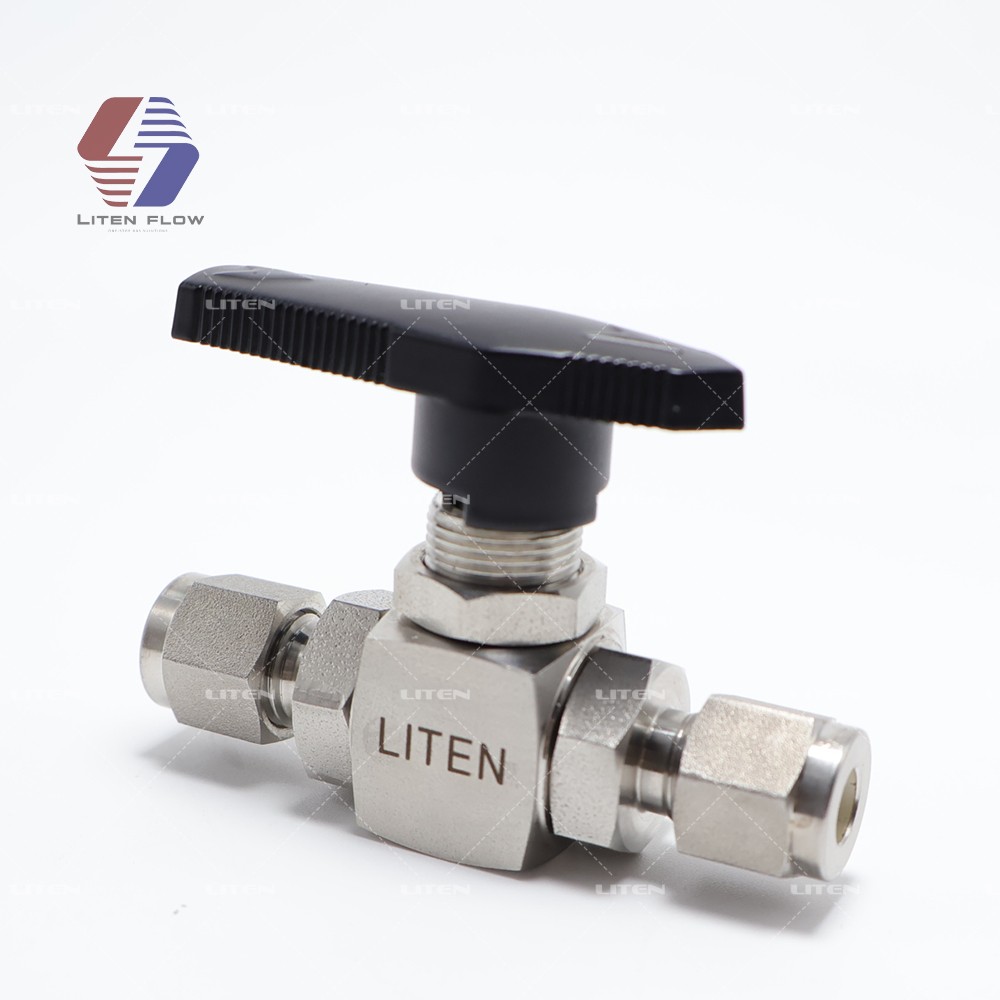

2-Way ball valve Turn Tubing Fitting Swagelok Compatible

2-Way ball valve Turn Tubing Fitting Swagelok Compatible

Material: 316/316L stainless steel
Port Size : 1/8" 1/4" 1/2" 3/4" 1" inch ; 3mm~25mm
Seal: PTFE/PCTFE
Working pressure: 1000/3000/6000psi
Working Temperature : -28℃~180℃
Connection:  2 way or 3 way
Other feature Can be panel mount
Cleaning Process Essential Oil Degreasing
Test High Pressure and Helium Leak Detection Test

Product Details

Product Tags

Body Material 304, 316L Manufacturing Capacity 1000/Month
Type of Connection Thread/Double Ferrules/Welding Warranty  1 year
Seal Type Soft Sealing Norms ISO/GB/JB/DIN
Manufacturing Forging and CNC Test Norms API 598/ GBT-13927-2008
Application Nontoxic Liquid or Gas, Steam, Oil Certificate ISO/TUV
Pressure Range 6000psi/414bar Standard  SAE J518c
Temperature Range -54-260ºC /-65.2-500ºF Thread BSPP BSPT NPT OD
