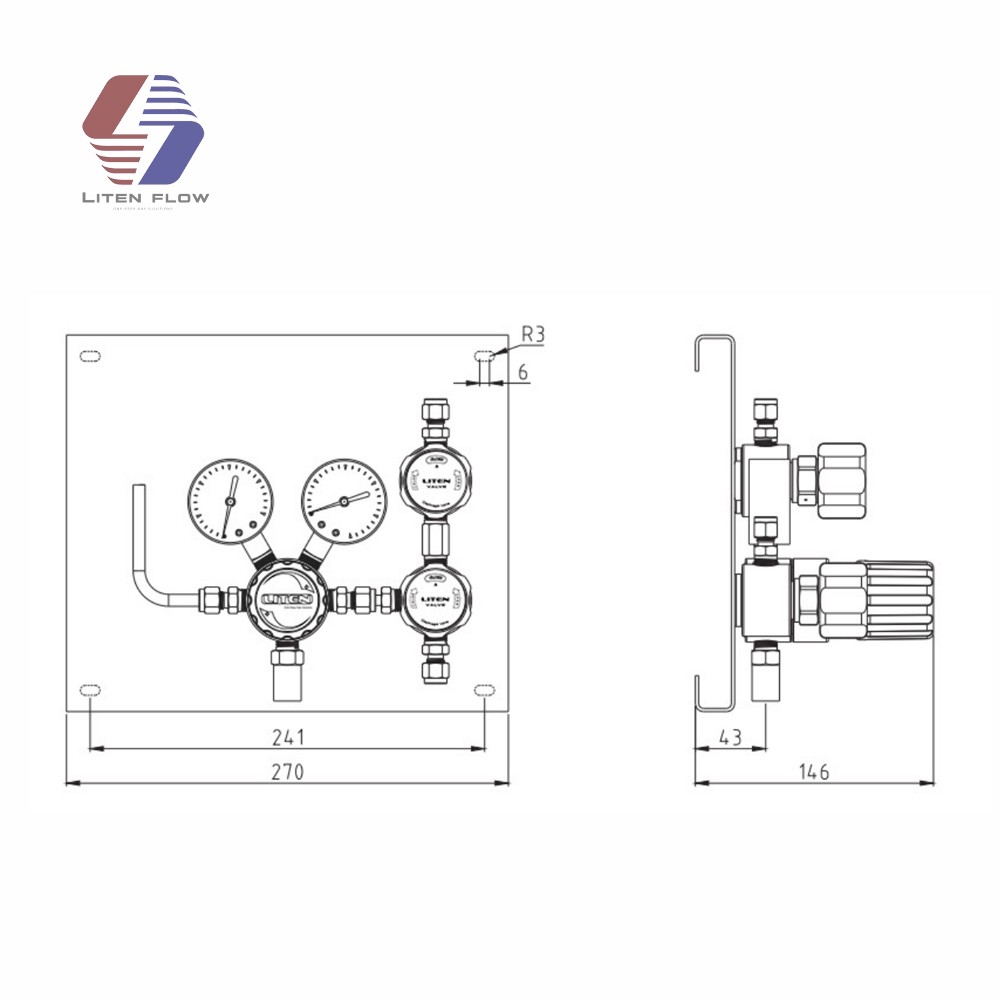

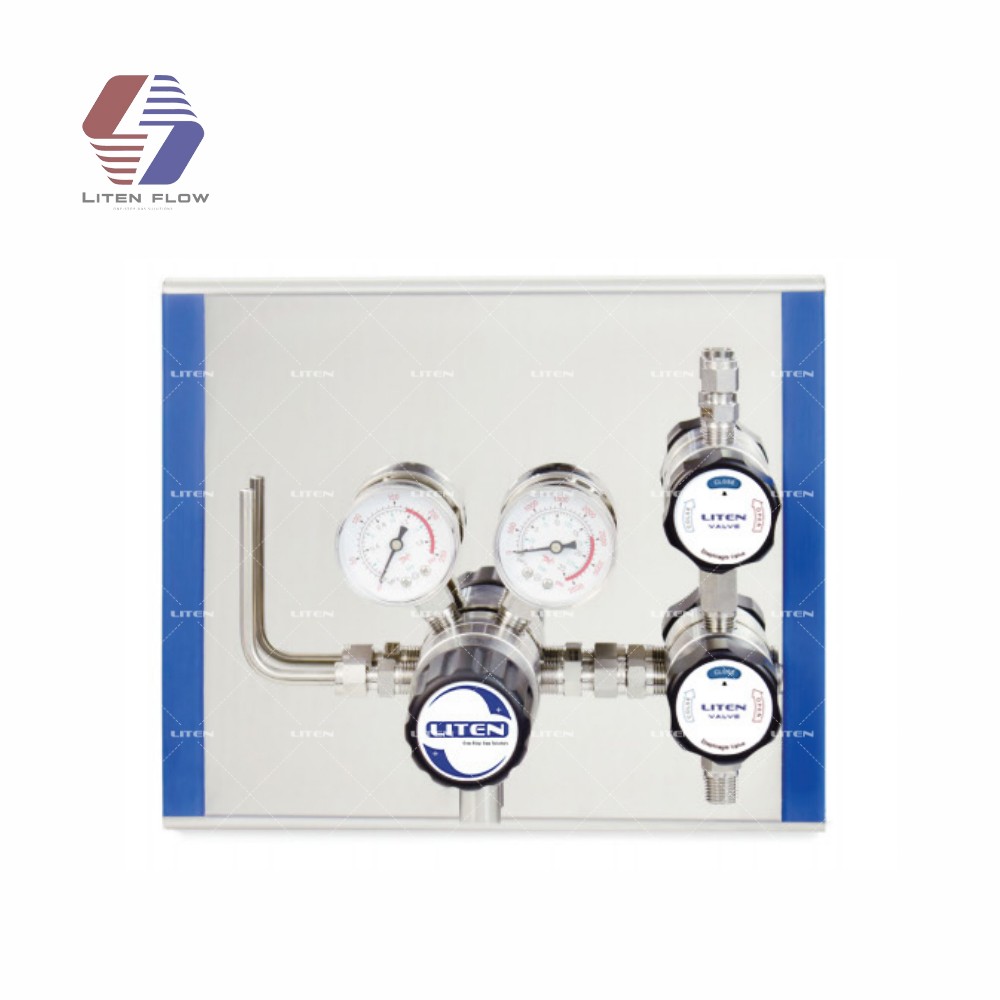

SP21 Series Single-Bank Supply Gas Control Panels
FEATURES
◎ Used for single-sided gas cylinder pressure reduction and gas supply with purging
function. Maximum input pressure can reach 3000 psi;
◎ Corrosion-resistant, assembled and tested in clean rooms, suitable for laboratory, gas analysis, and high-purity gas applications.
SPECIFICATION:
◎ Inlet Pressure: 0-3000 psi
◎ Outlet Pressure: 0-500 psi
◎ Flow coefficient (Cv): 0.12
◎ Port Thread: 1/4" NPT (Female)
◎ Operating Temperature: -40°C to +74°C
◎ Pressure Reducing Valve Leakage Rate: 2x10 atm.cc/sec He (Helium)
◎ Diaphragm Valve Knob with "Open/Close" Indicator
◎ Pressure Regulator and Piping Undergo Pressure and Leak Testing
