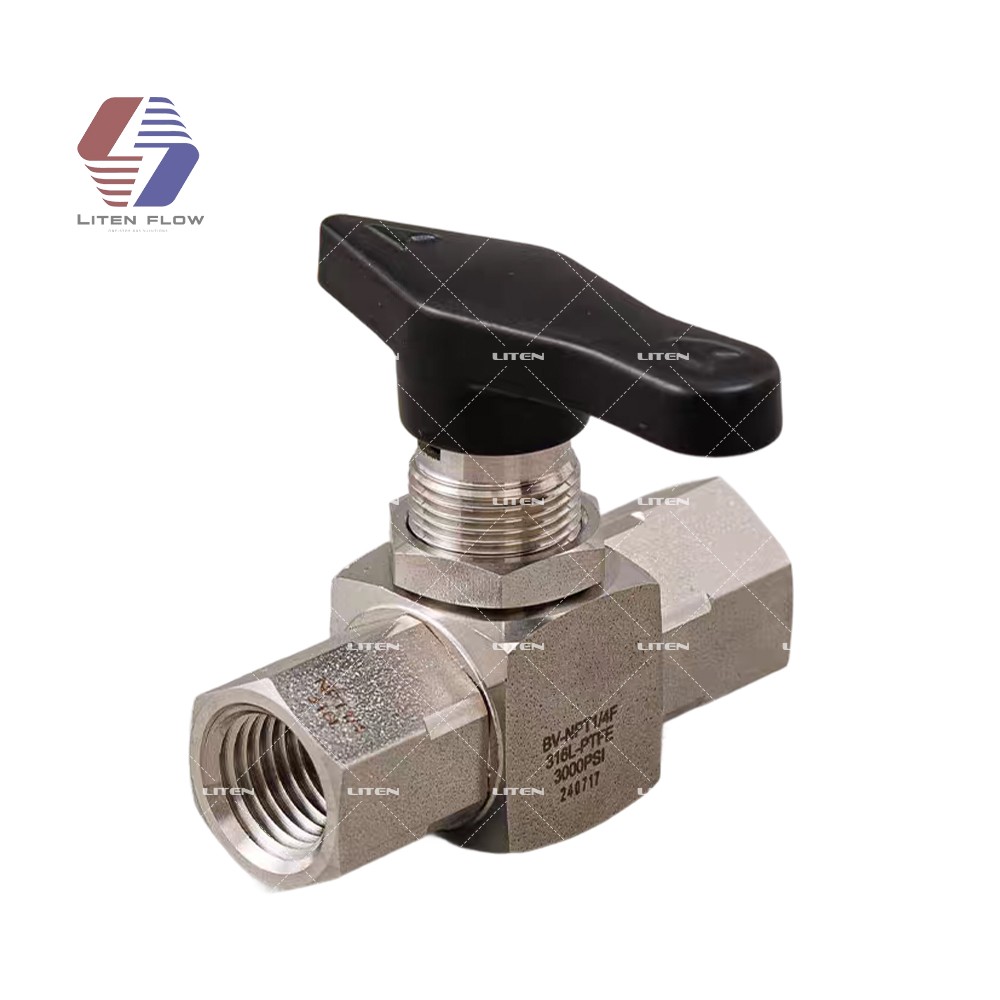

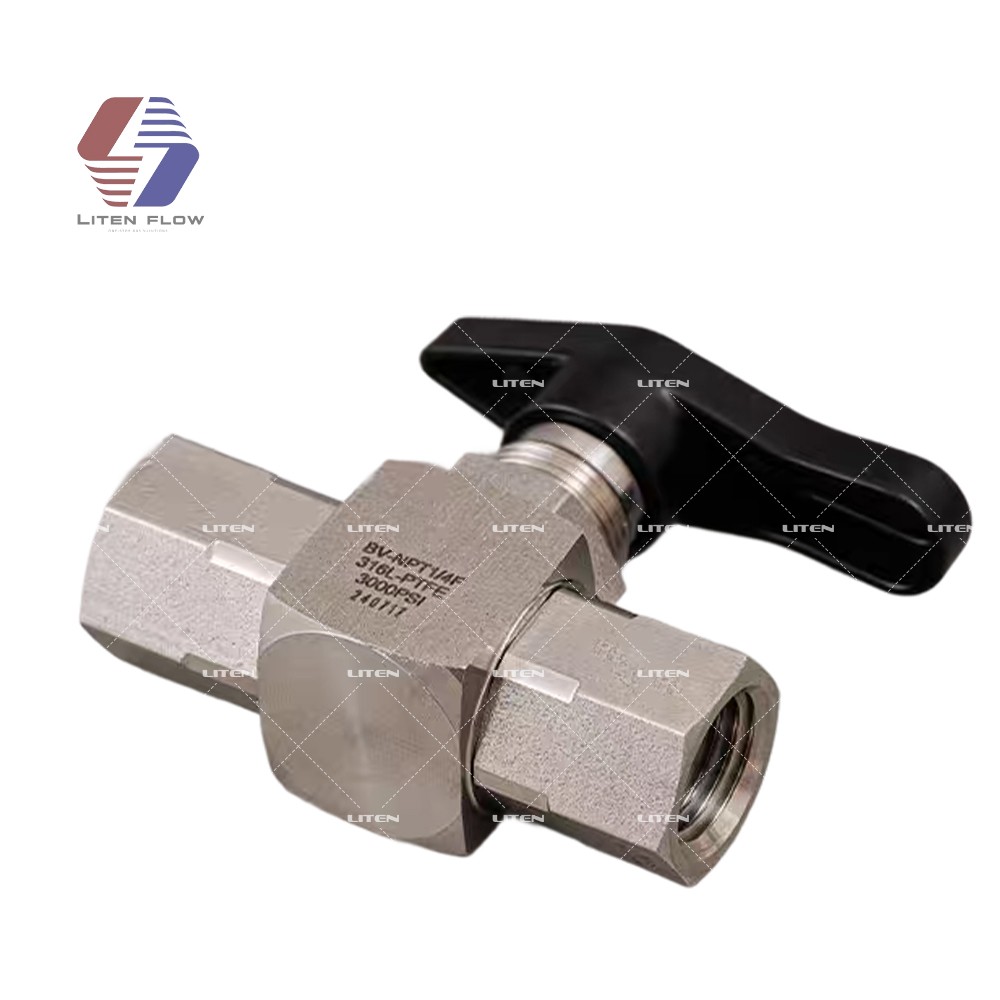

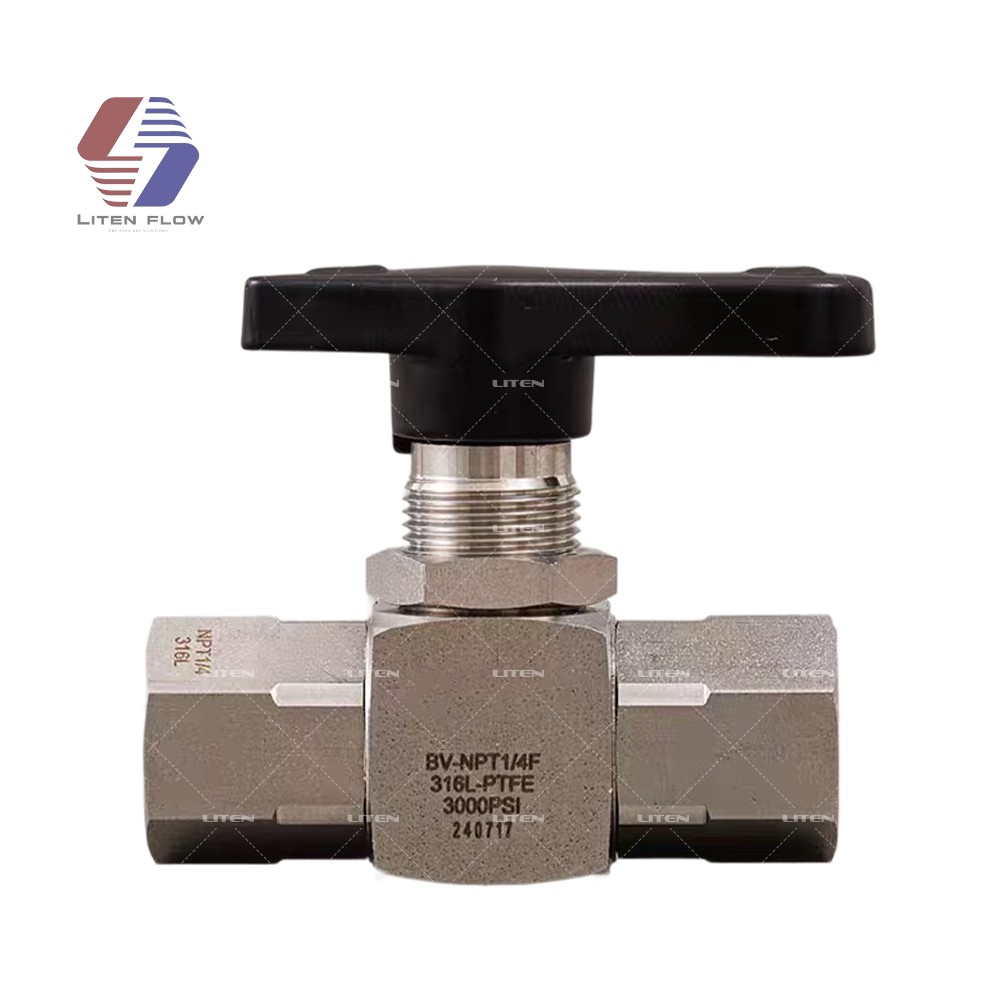

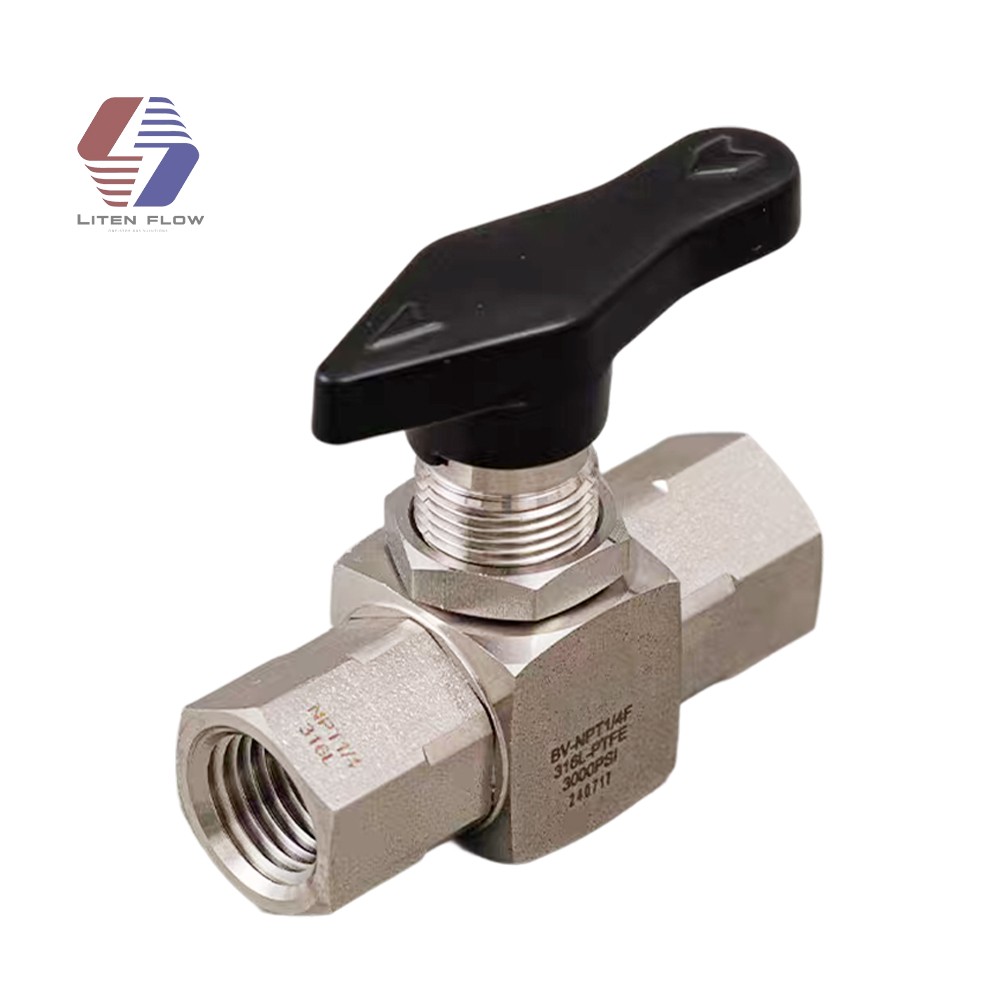

2 way Three Piece Ball Valve 1/4

2 way 1/4

Product name: 2 way female ball valve
Material: 316/316L stainless steel
Port Size: 1/8" 1/4" 1/2" 3/4" 1" inch ; 3mm~25mm
Seal: PTFE/PCTFE
Working pressure: 1000/3000/6000psi
Working Temperature: -28℃~180℃
Connection way:2 way or 3 way
Other feature: Can be panel mount
Cleaning Process: Essential Oil Degreasing
Testv High Pressure and Helium Leak Detection Test
MOQ: 1 pc
Warranty: 1 year
Brand: LITEN

INQUIRY

Product Details

Product Tags

Body Material	304, 316L	Manufacturing Capacity	1000/Month
Type of Connection	Thread/Double Ferrules/Welding	Warranty	1 year
Seal Type	Soft Sealing	Norms	ISO/GB/JB/DIN
Manufacturing	Forging and CNC	Test Norms	API 598/ GBT-13927-2008
Application	Nontoxic Liquid or Gas, Steam, Oil	Certificate	ISO/TUV
Pressure Range	6000psi/414bar	Standard	SAE J518c
Temperature Range	-54-260ºC /-65.2-500ºF	Thread	BSPP BSPT NPT
