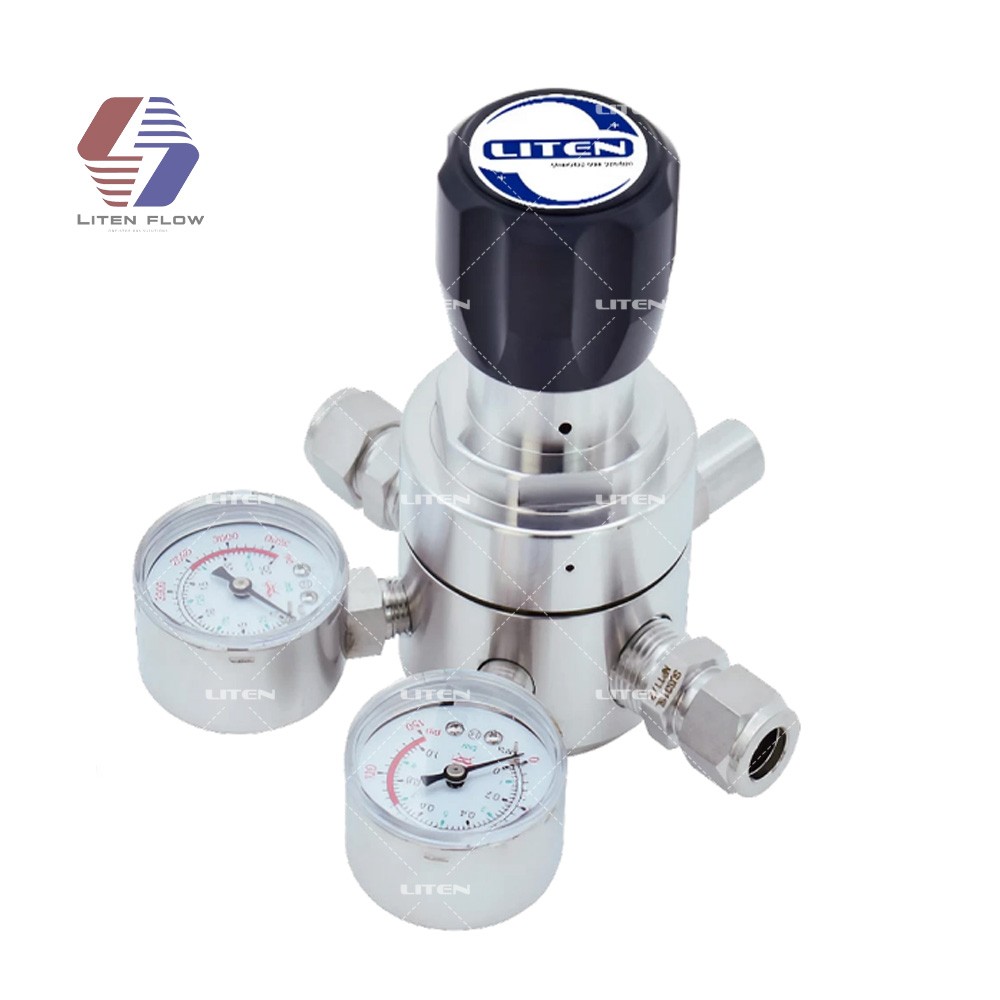

R22 SS316L Medium Flow Pressure Regulators,3 prots, 1/2

R22 SS316L Medium Flow Pressure Regulators,3 prots, 1/2

◎ Inlet pressure: 3000psi
◎ Outlet pressure: 250spi
◎ Valve seat material: PCTFE, PTFE
◎ Diaphragm material: SS316L,Hastelloy
◎ Female thread: 1/2"NPT(F)
◎ Leakage rate:2x10-8atm.cc/sec He
◎ Cv value: 1.0
◎ Valve body weight: 1.6kg
◎ Applicable temperature: -40 ℃ to +74 ℃
◎ Safety pressure: 1.5 times the maximum input pressure
down load to pdf

Product Details

Product Tags

FEATURES

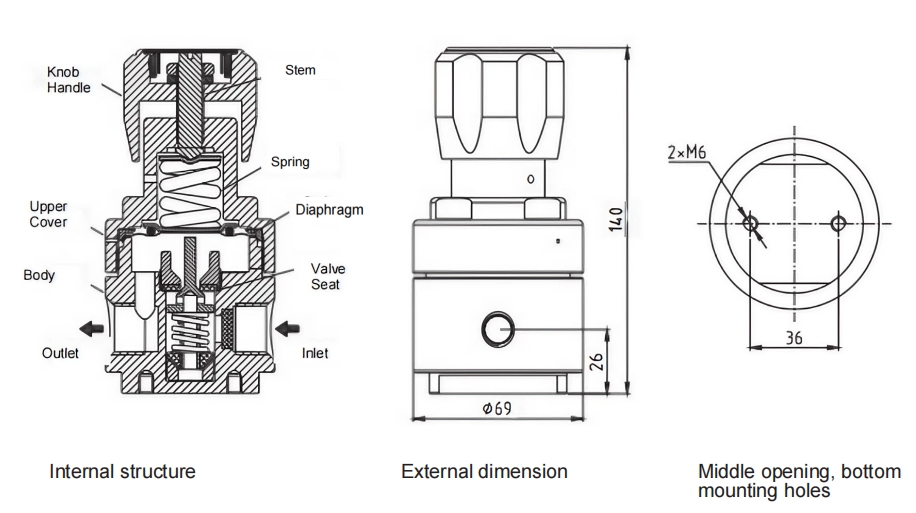

◎ Single-stage diaphragm structure
◎ Corrugated diaphragm design for excellent sensitivity and cycle life
◎ Purity up to 6.0, inlet pressure 0~3000 psi, outlet pressure 0~250 psi;
◎ Suitable for inert, corrosive, toxic, flammable, and combustible gases.
