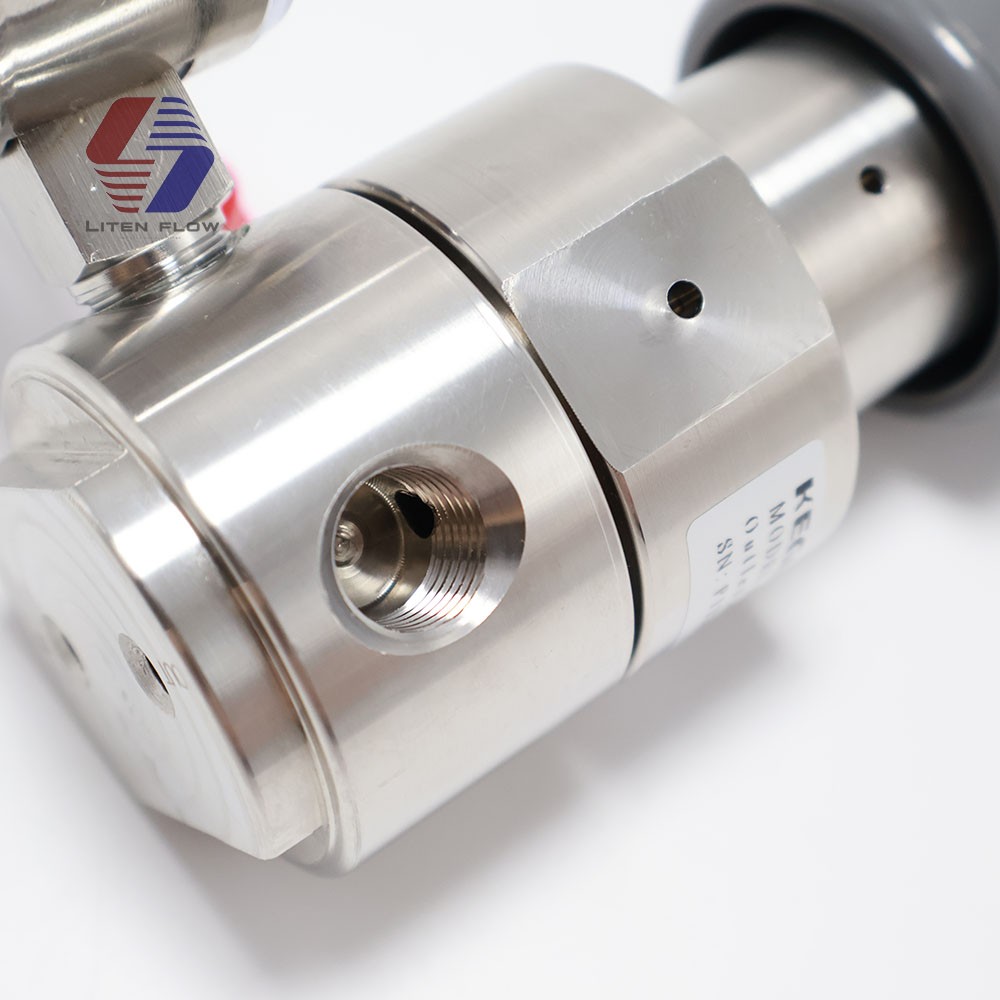

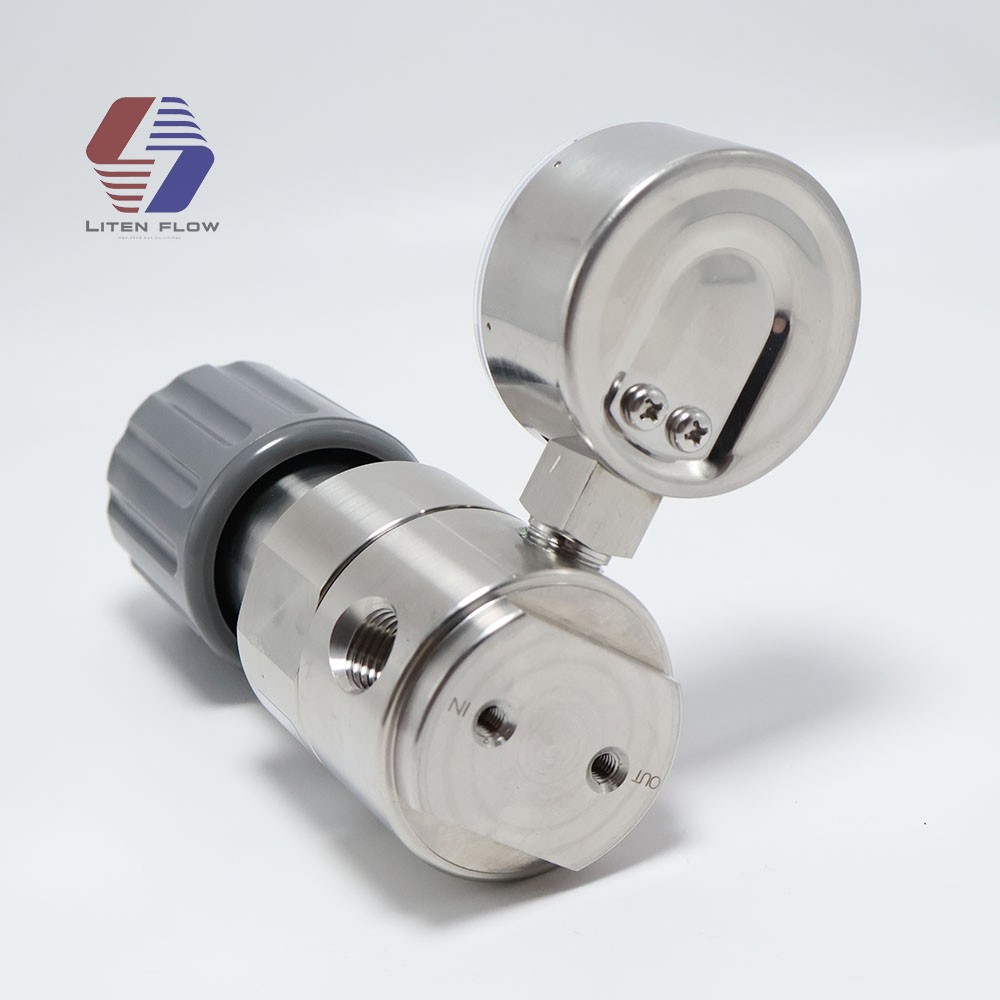

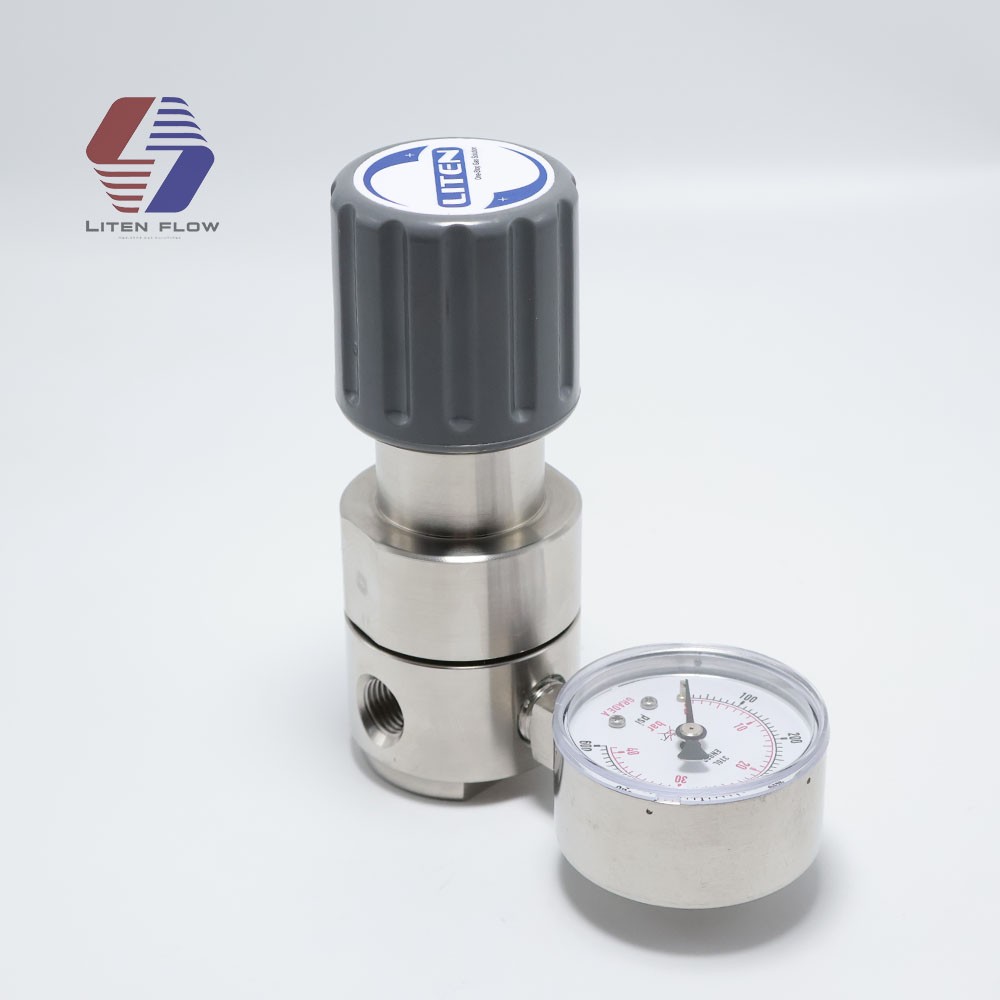

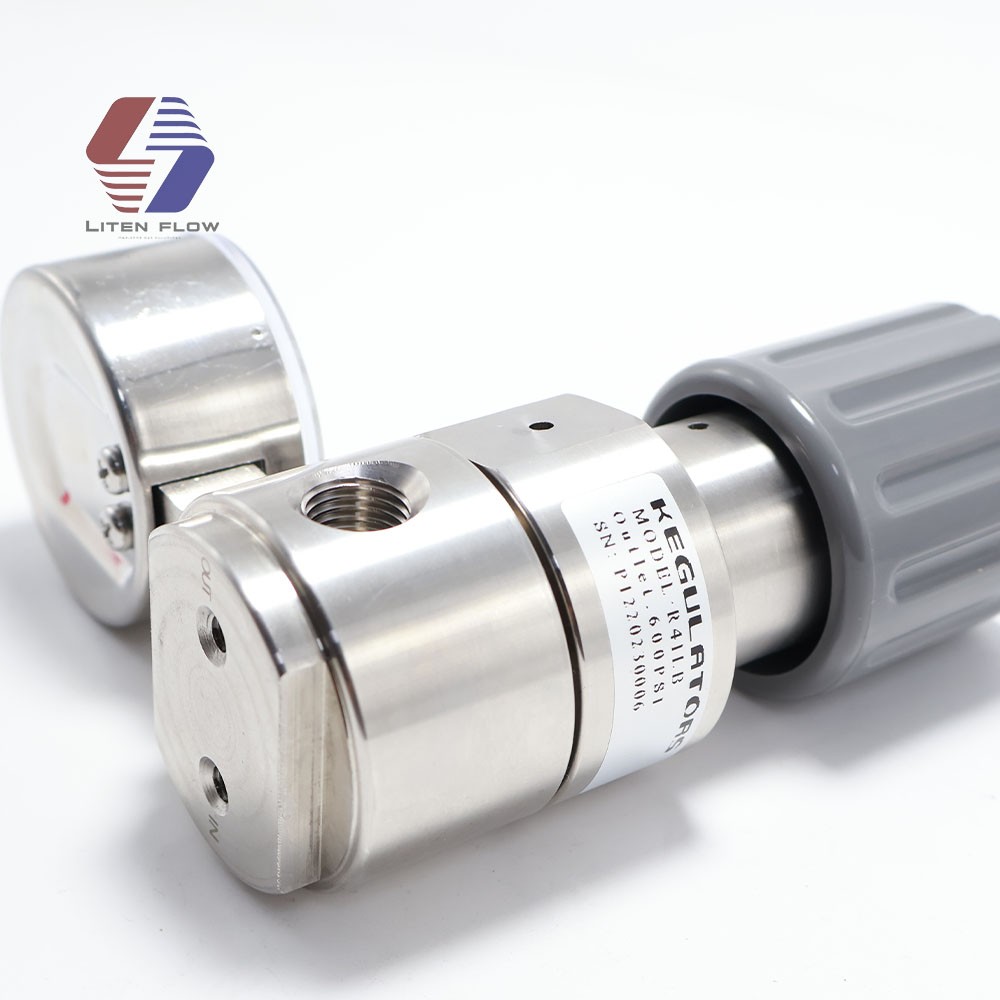

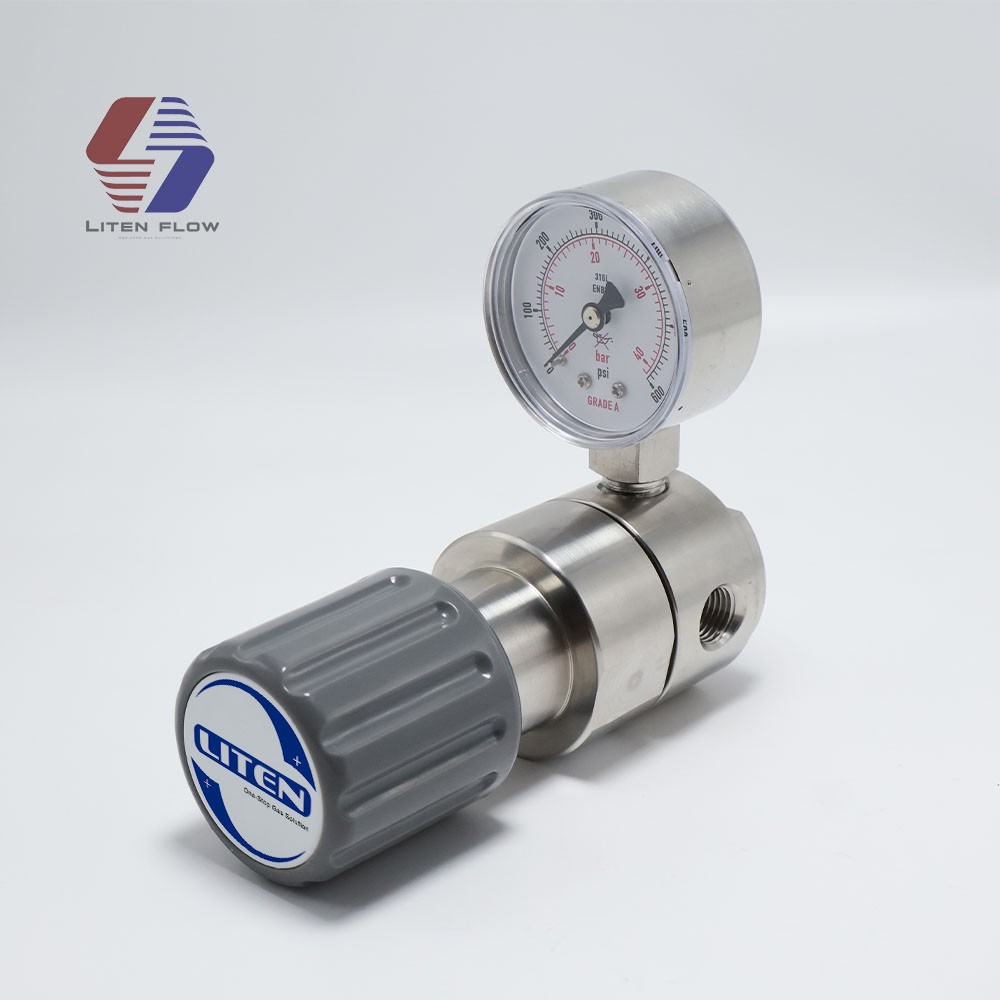

R21 SS 316L High Pressure Regulator 1/4 NPTF In 3500 Out 500 psi

◎ Inlet pressure: 0~3000psi
◎ Outlet pressure: 0~500psi
◎Valve seat material: PCTFE, PTFE
◎ Diaphragm material: SS316L,Hastelloy

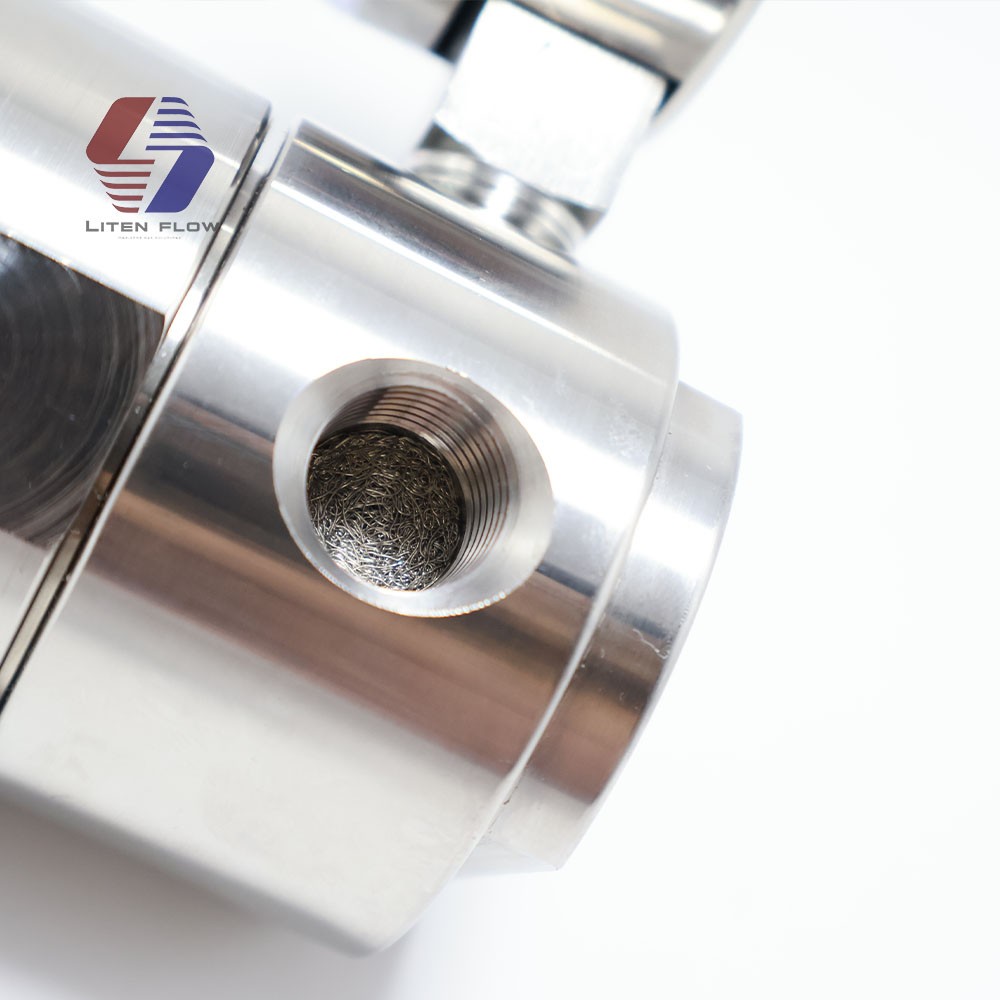

◎ Female thread: 1/4" NPT(F)
◎ Leakage rate:2x10-8 atm.cc/sec He
◎ Cv value: 0.12
◎ Valve body weight: 0.9kg
◎ Applicable temperature: -40 ℃ to +74 ℃
◎ Safety pressure: 1.5 times the maximum input pressure

INQUIRY down load to pdf

Product Details

Product Tags

FEATURES

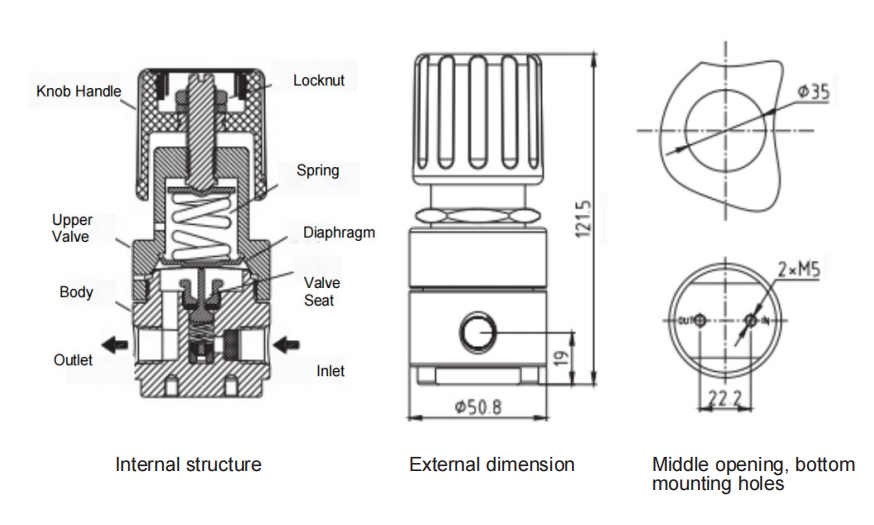

◎ Single-stage diaphragm structure
◎ Corrugated diaphragm design for excellent sensitivity and cycle life
◎ Purity up to 6.0, inlet pressure 0~3500 psi, outlet pressure 0~500 psi;

◎ Suitable for inert, corrosive, toxic, flammable, and combustible gases.
