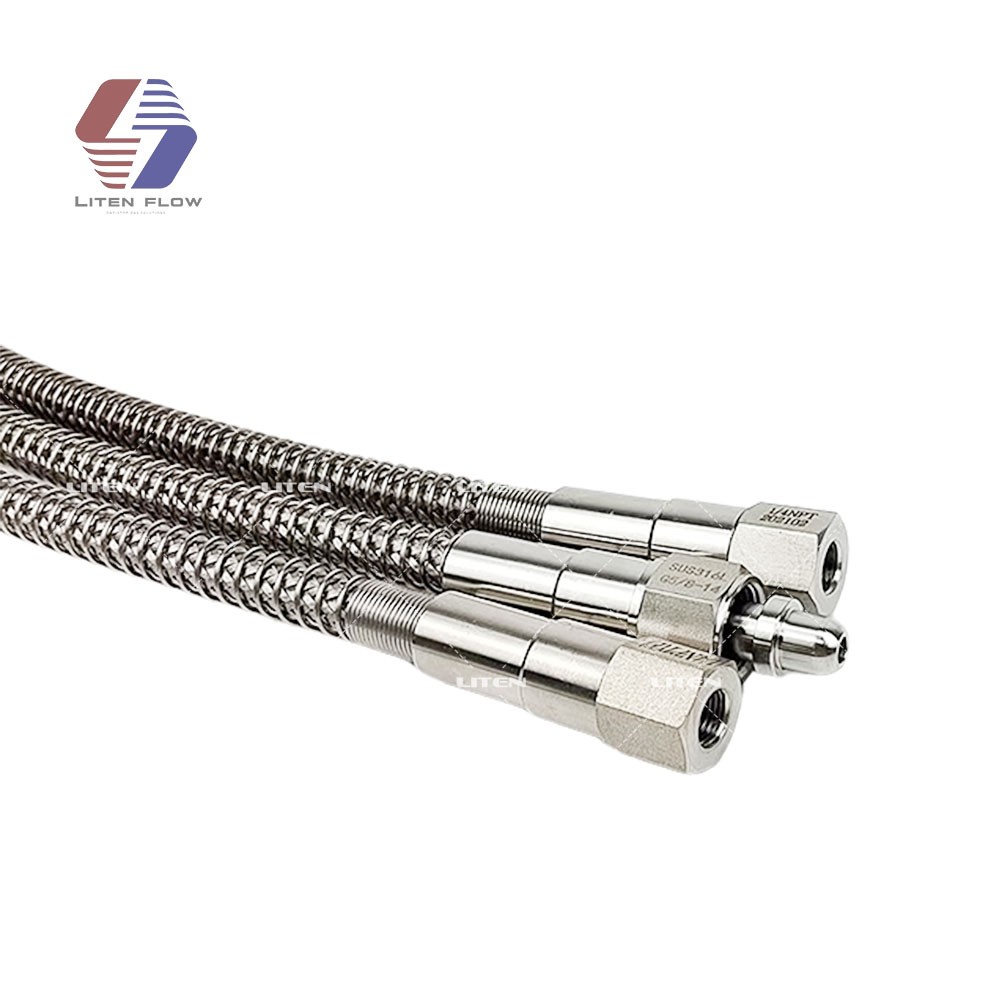

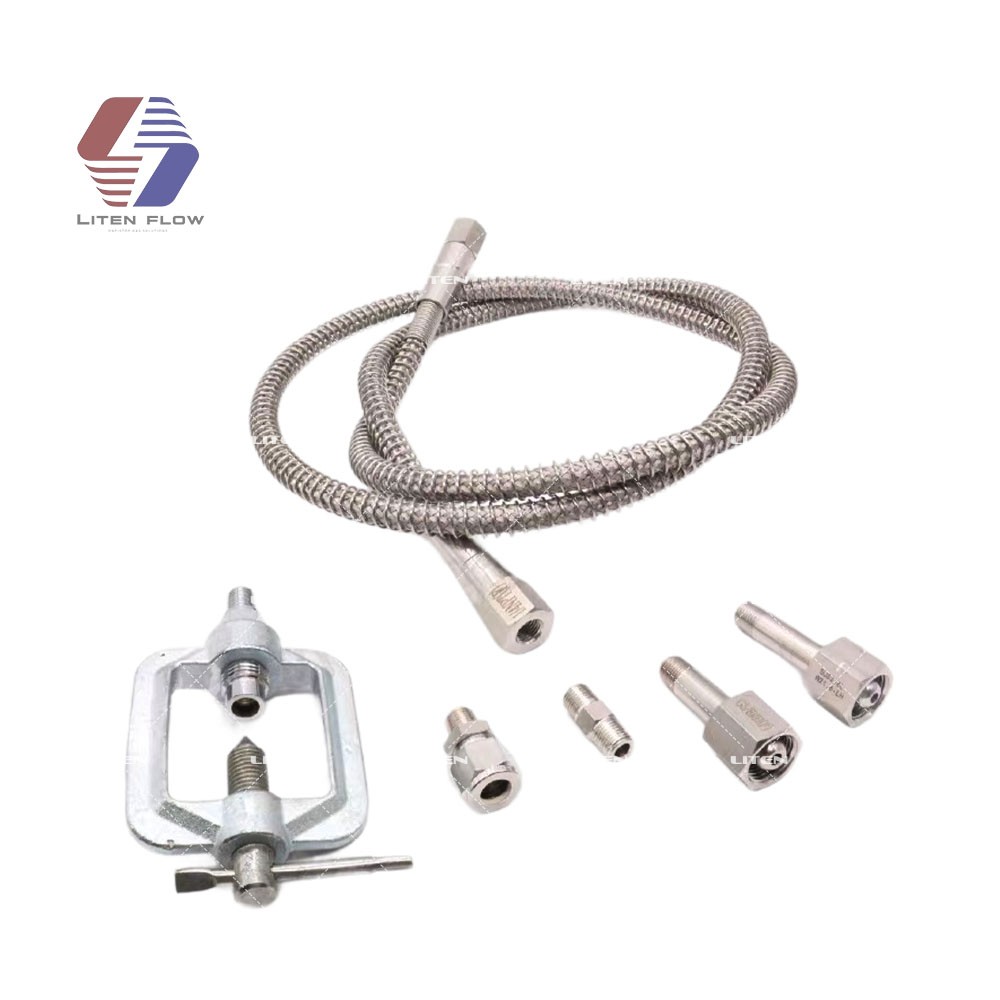

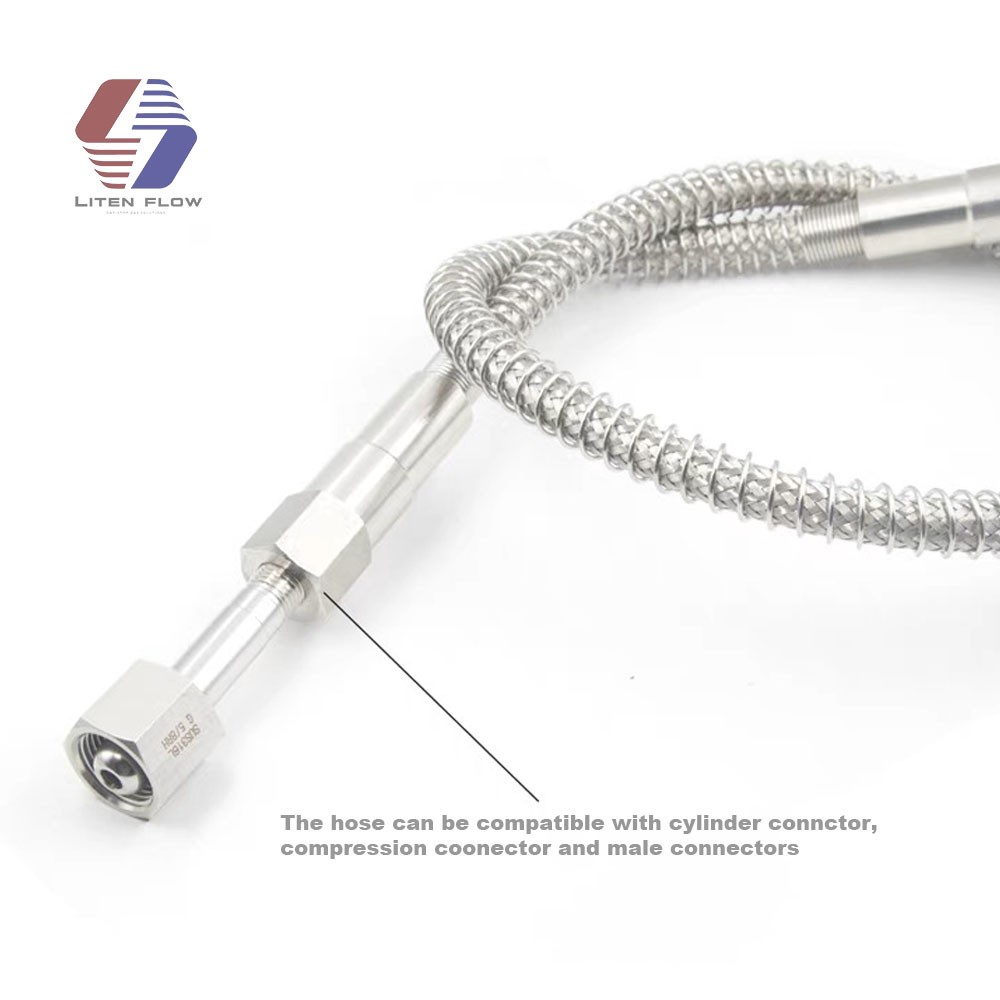

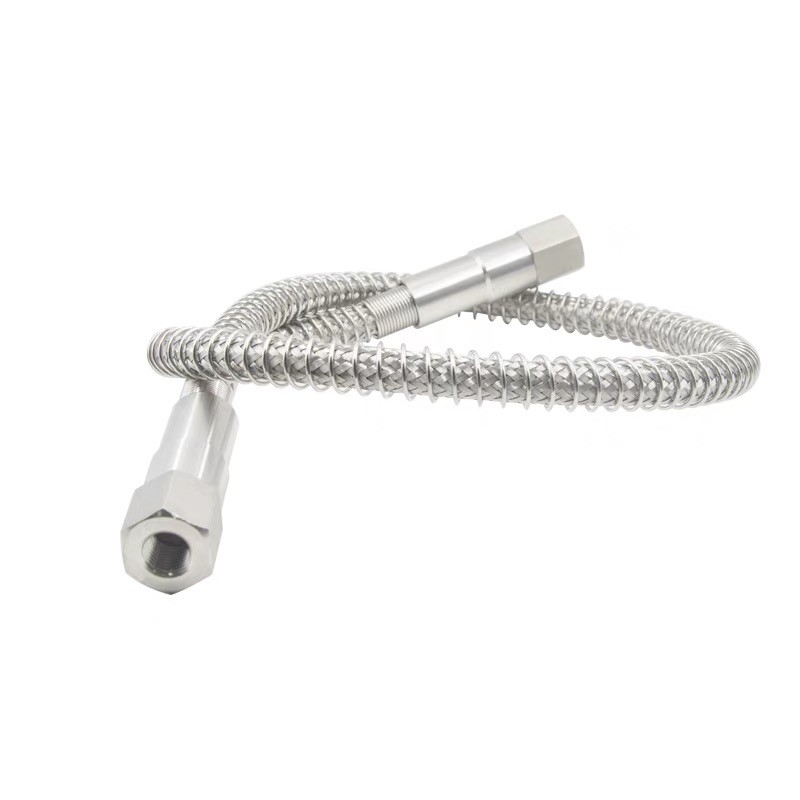

Product Name: 316L Stainless Steel High-Pressure Gas Hose

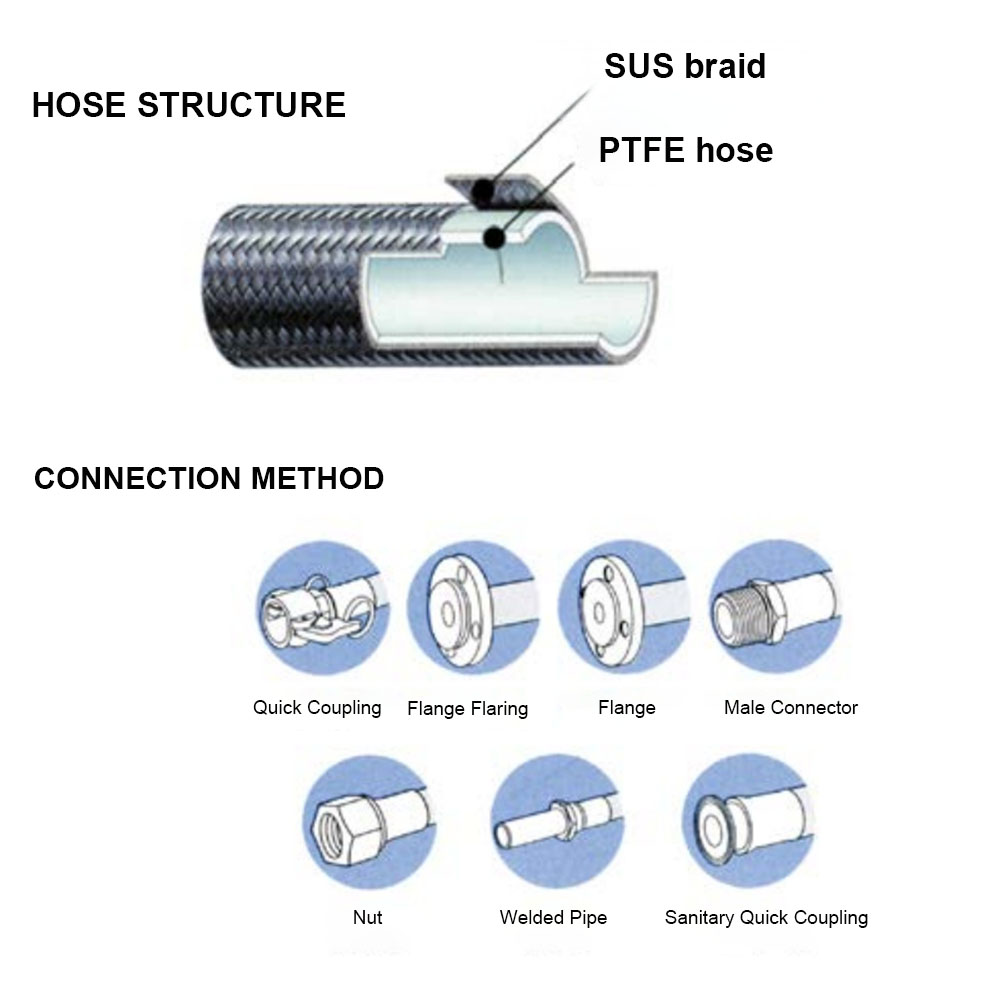

Material: The inner tube is made of polytetrafluoroethylene or 316L stainless steel corrugated tube, and the outer layer is stainless steel braided. It features an explosion-proof spring-fixed ring reinforced structure.
Pressure Range: Design pressure of 30MPA, maximum working pressure of 20MPA.
Product Specifications: Standard length of 1 meter, custom lengths available. Applicable Media: Gas, liquid, acidic or alkaline substances.
Features: The inner tube is oil-free treated, suitable for inflammable gases such as oxygen.
Material: The inner tube is made of polytetrafluoroethylene or 316L stainless steel corrugated tube, and the outer layer is stainless steel braided. It features an explosion-proof spring-fixed ring reinforced structure.
Pressure Range: Design pressure of 30MPA, maximum working pressure of 20MPA.
Product Specifications: Standard length of 1 meter, custom lengths available. Applicable Media: Gas, liquid, acidic or alkaline substances.
Features: The inner tube is oil-free treated, suitable for inflammable gases such as oxygen.
