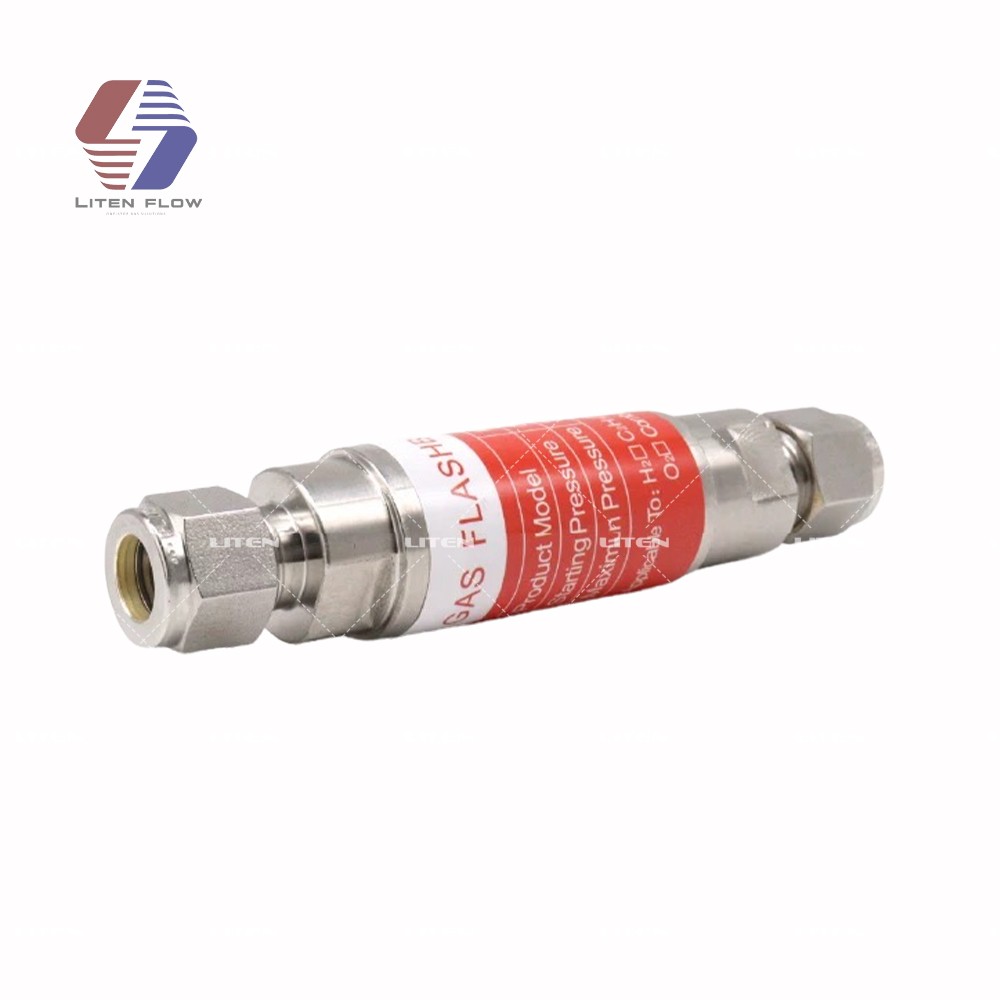

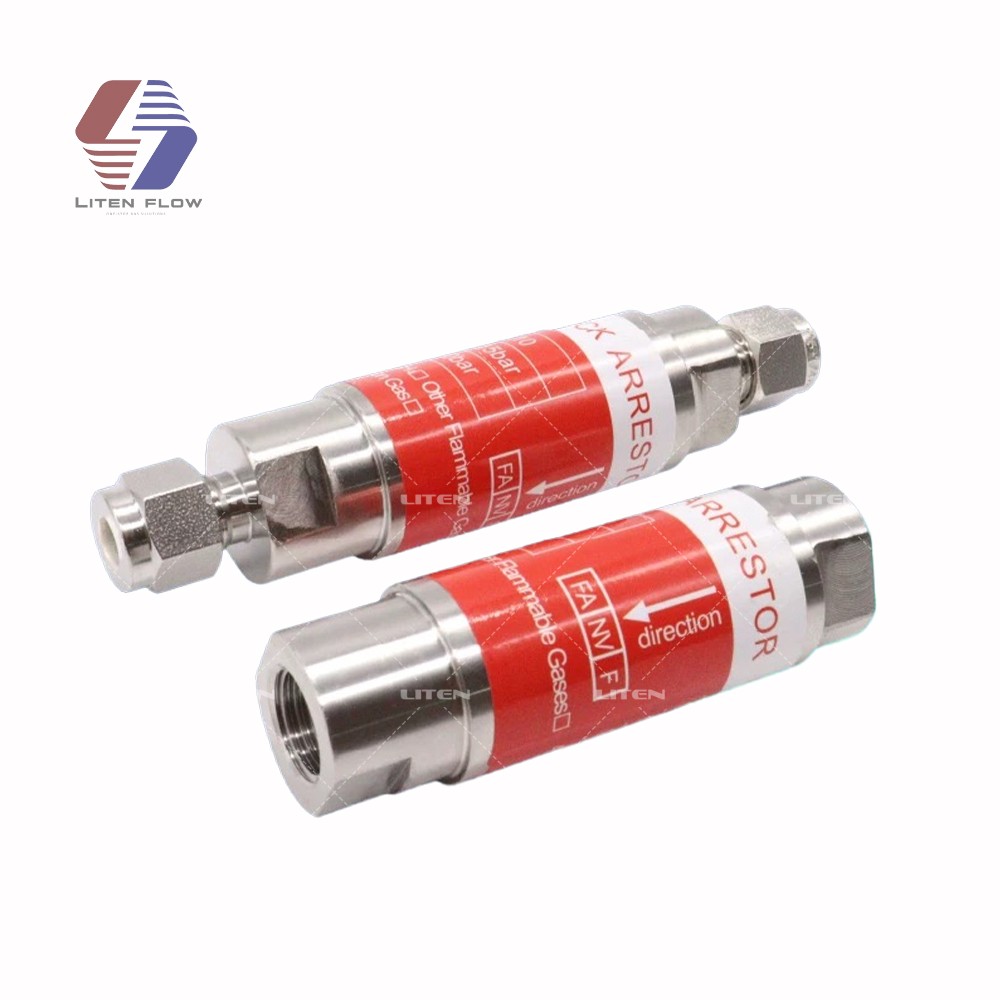

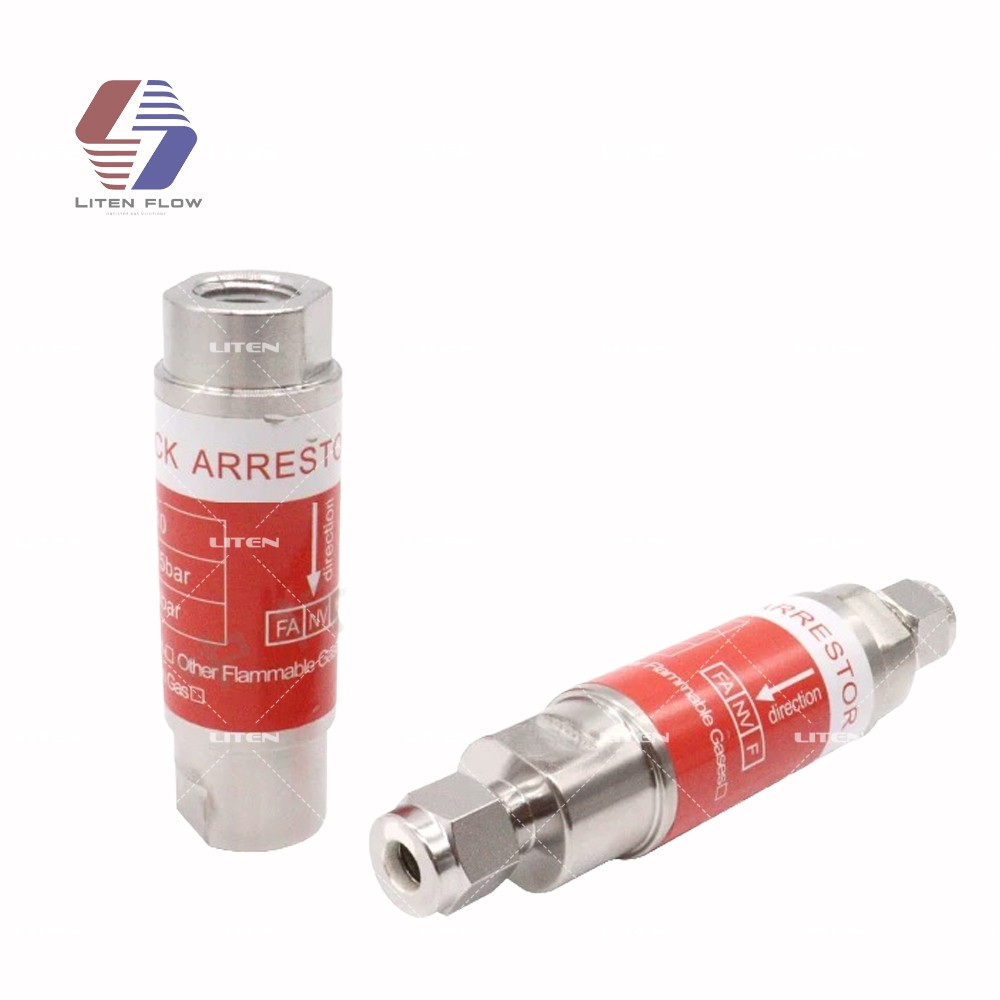

Laboratory Inline flashback arrestor for Oxygen Acetylene Hydrogen Propane

Material: 316L Stainless Steel
Working Pressure:
* Hydrogen: 50 psi / 3.4 bar
* Acetylene: 15 psi / 1.0 bar
* LPG: 70 psi / 5.0 bar

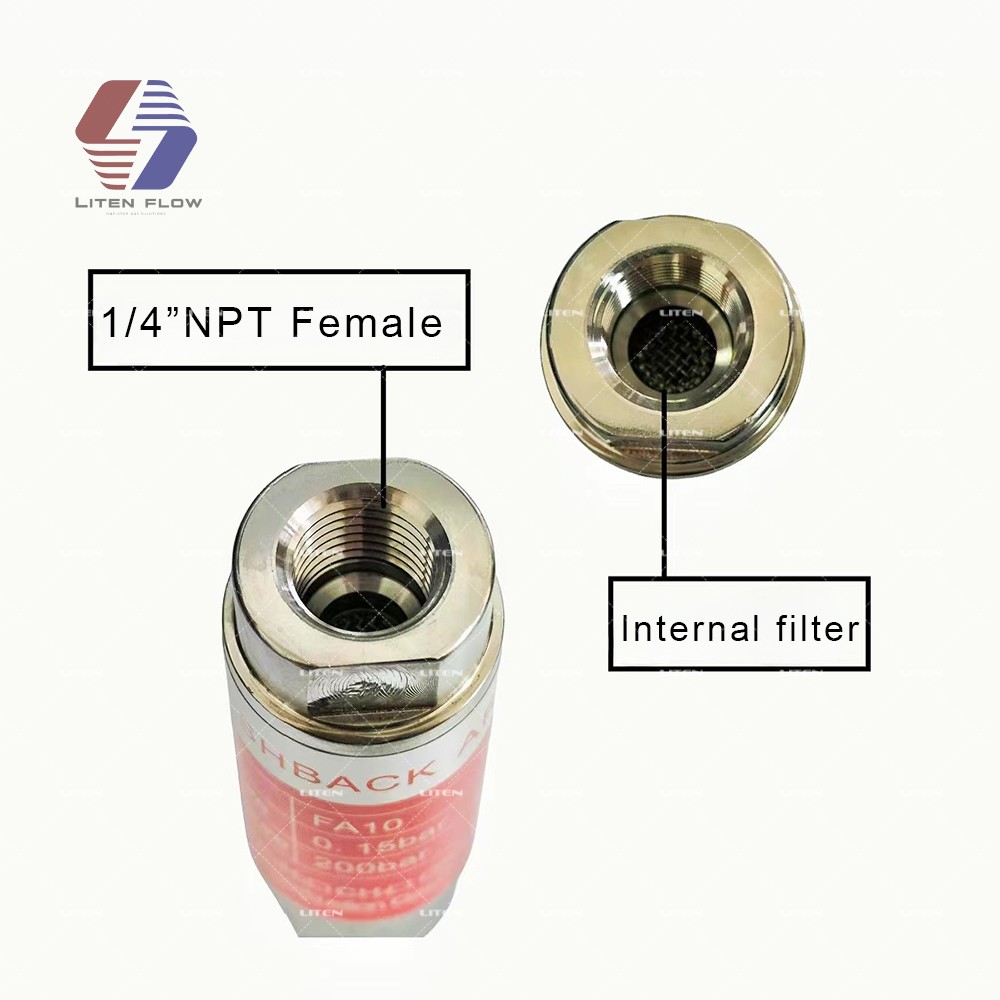

Connection Type: 1/4 NPT Female Thread

Product Description:
Applicable Media: Suitable for storage and transfer of nitrogen, natural gas, acetylene, oxygen, gasoline, kerosene, light diesel, benzene, toluene, crude oil, and other petroleum products.
Flame arresters can also be used in pipelines with open flame equipment to prevent flashback incidents. However, they cannot stop the open flame combustion of flammable gases and liquids at open ends. The corrugated filter elements are supported by stainless steel, copper-nickel alloy, aluminum, or aluminum alloy. Corrugated flame arresters can stop the intense flames of deflagration and withstand corresponding mechanical and thermal effects. They offer low flow resistance and are easy to clean and replace.

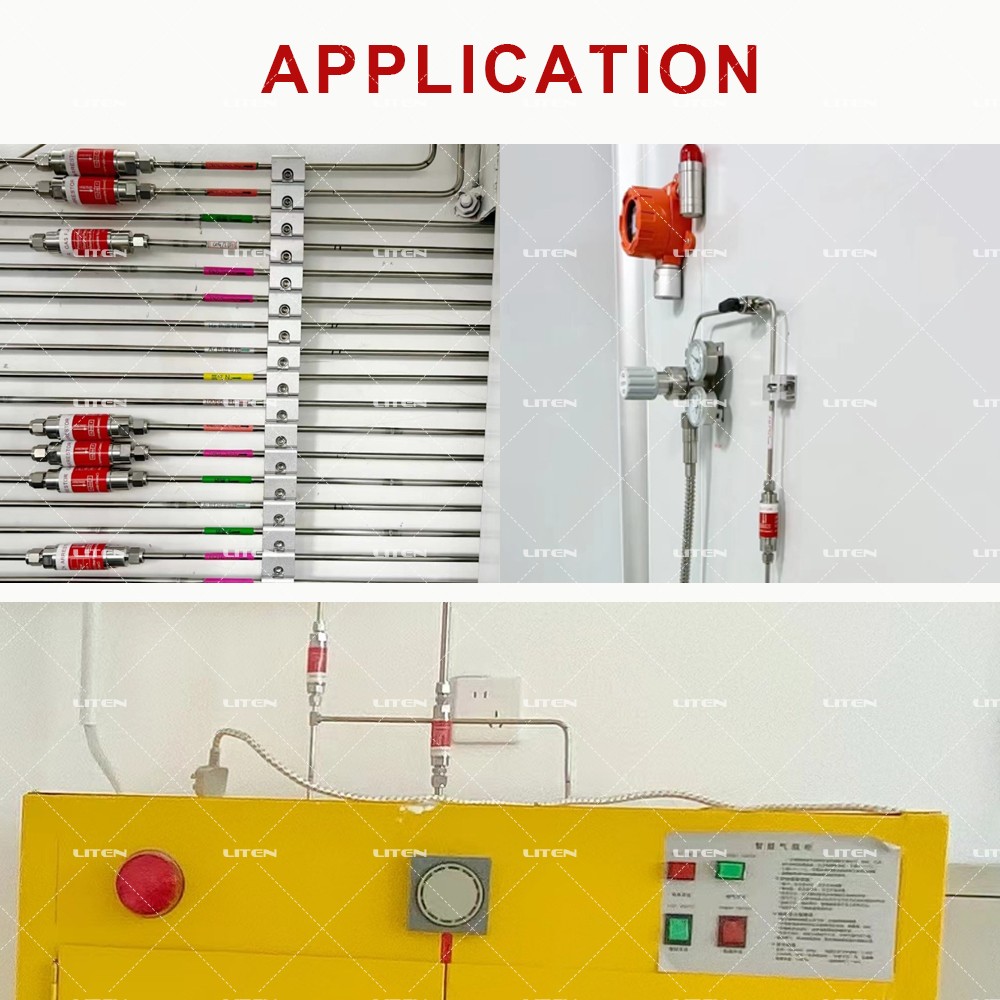

【Product Application】

1. Pipes for conveying flammable gases.

2. Flare systems.

3. Oil and gas recovery systems.

4. Pipelines for heating furnace fuel gas.

5. Gas purification and ventilation systems.

6. Gas analysis systems.

7. Coal mine gas emission systems.

【Product Maintenance】
To ensure the safety and performance of the flame arrester, regular inspection and maintenance are required.
1. Inspect the flame arrester every six months to check for blockages, deformation, or corrosion of the flame arrester element.
2. If the flame arrester element is blocked, clean it thoroughly to ensure that every hole is clear. Replace any deformed or
corroded flame arrester elements.
3. When reinstalling the flame arrester element, ensure that the sealing surfaces are tight and leak-free.
