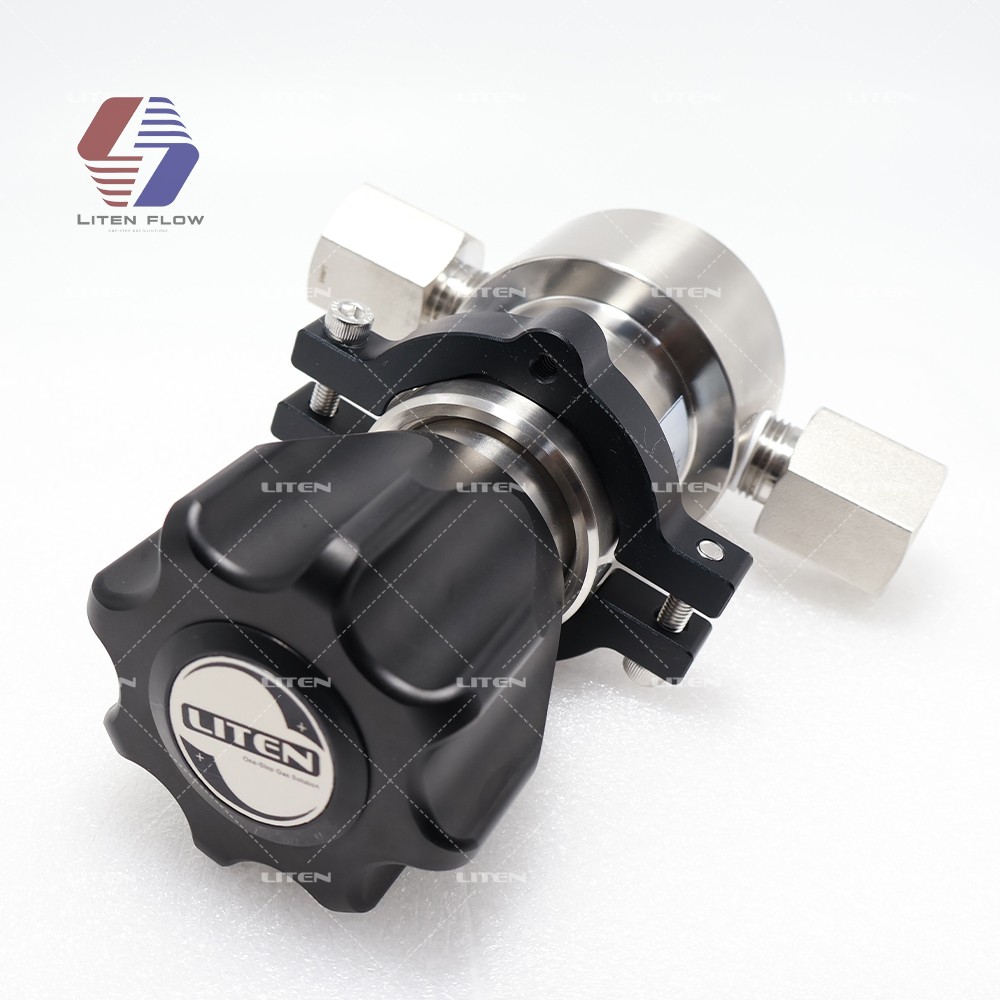

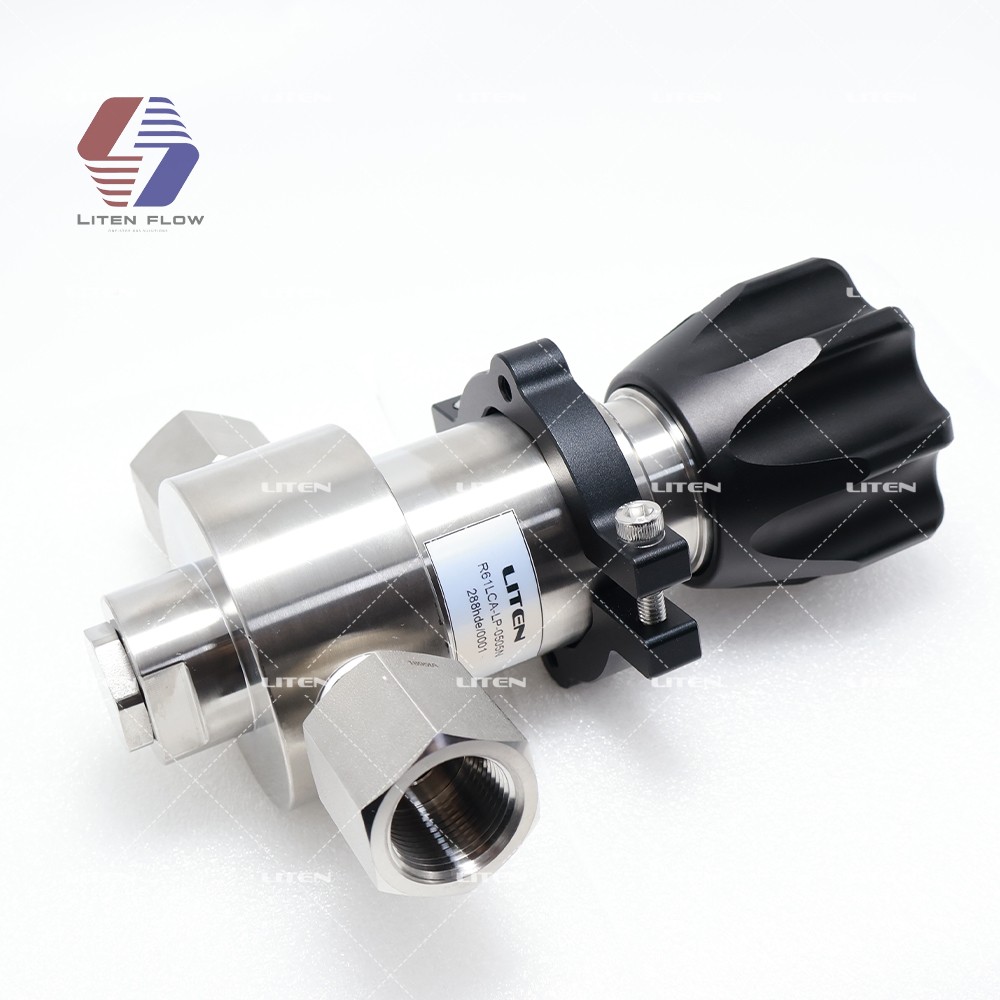

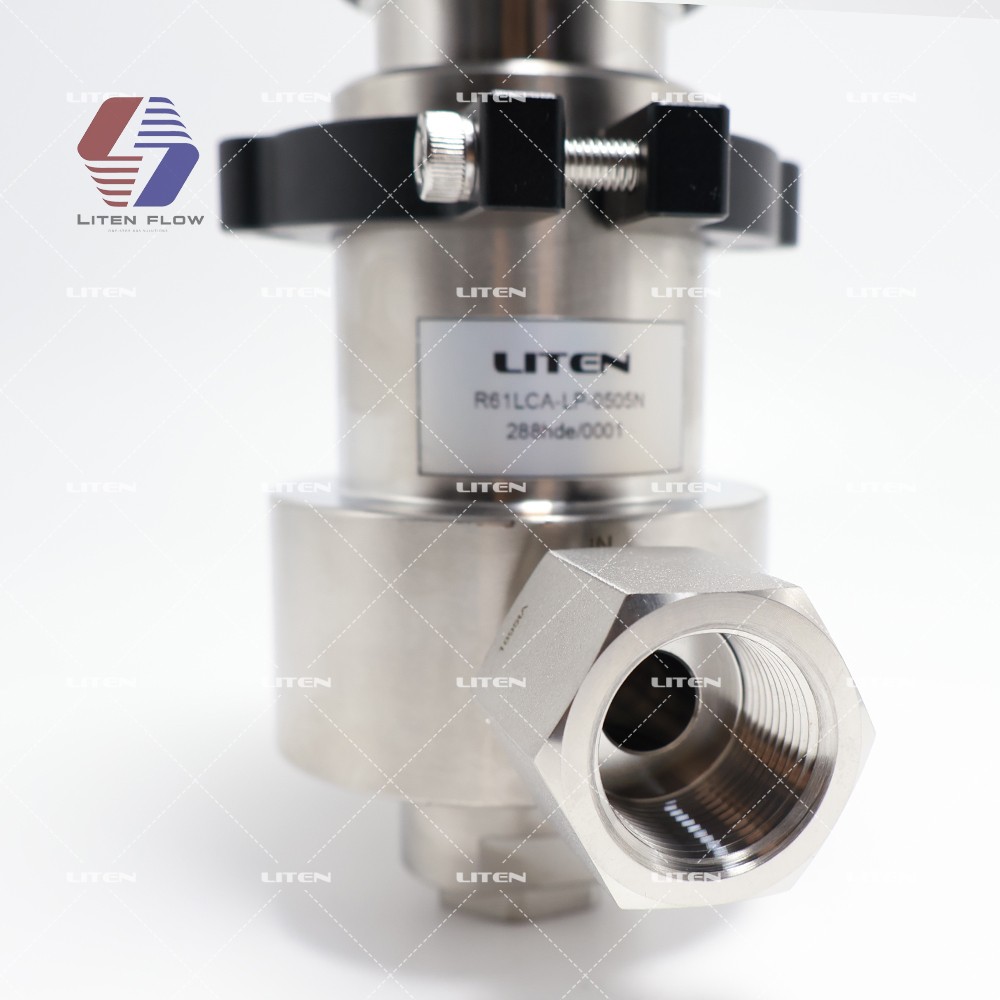

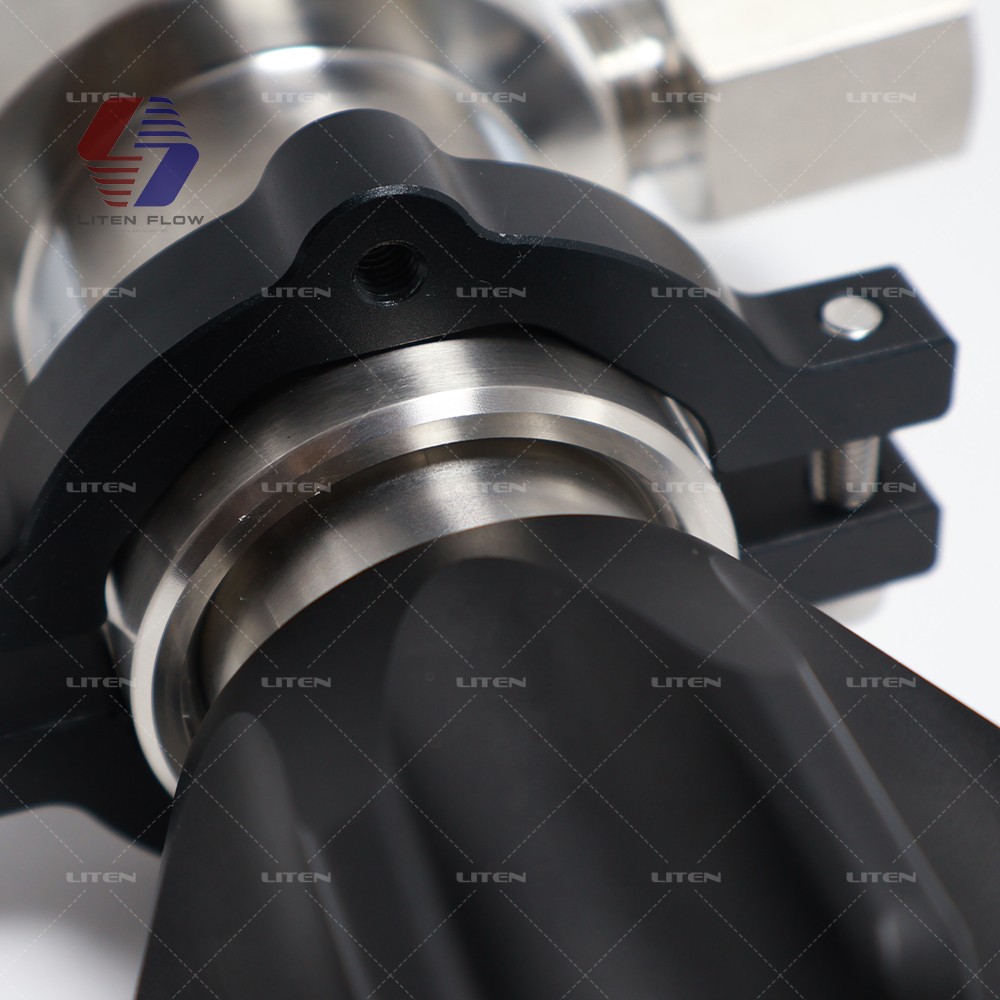

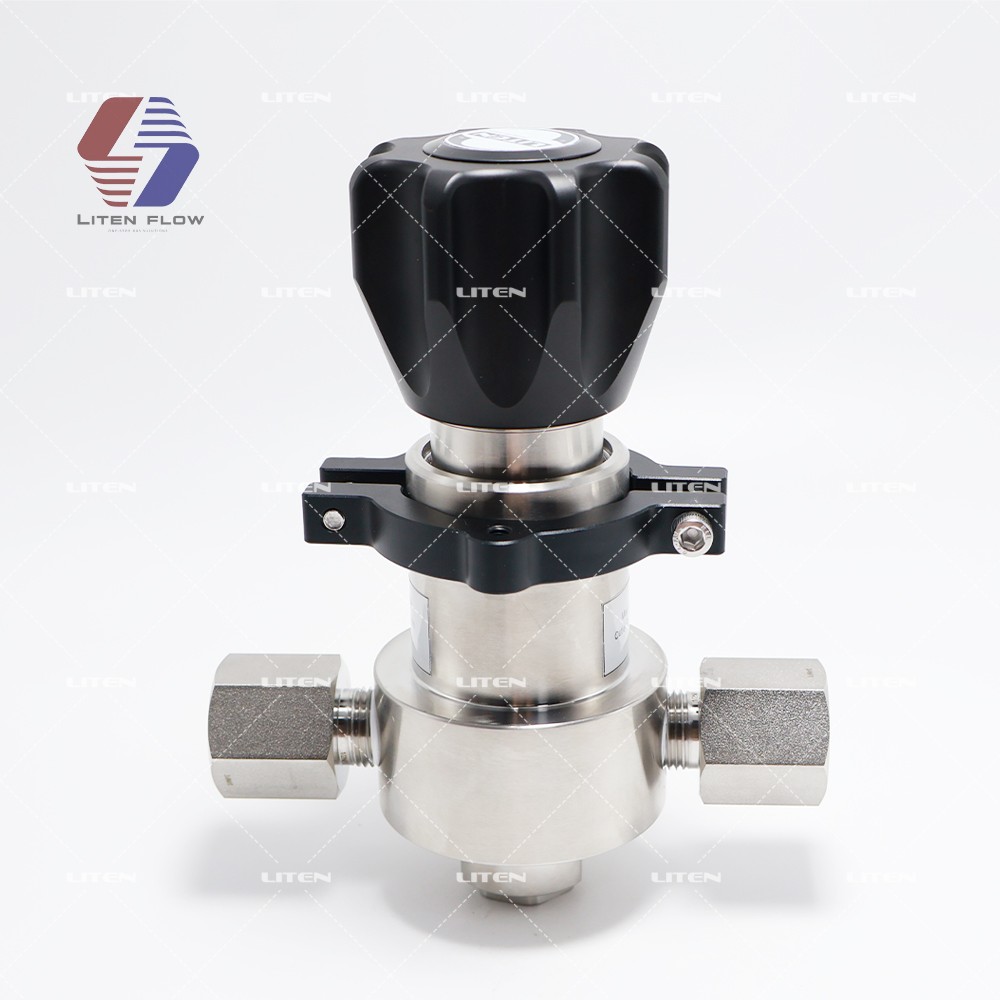

R61 Hydrogen Pressure Reducing Regulator inlet 4500psi Outlet 0-300 PSIG 3/4 npt 316 stainless steel

R61 Hydrogen Pressure Reducing Regulator inlet 4500psi Outlet 0-300 PSIG 3/4 npt 316 stainless steel

◎ Maximum Inlet Pressure:
   Stainless Steel: 4500 psig
   Brass: 3750 psig
◎ Outlet Pressure Ranges: 0~300, 0~600, 0~1000, 0~1500 psig
◎ Internal Component Materials:
   Valve Body: 316 Stainless Steel or Brass
   Valve Seat: PCTFE
   Piston: 316L
   O-Rings: Viton or Kalrez
◎ Operating Temperature: -26°C to +104°C (-15°F to +220°F)
◎ Leak Rates:
   Internal Leakage: No visible bubbles
   External Leakage: No visible bubbles

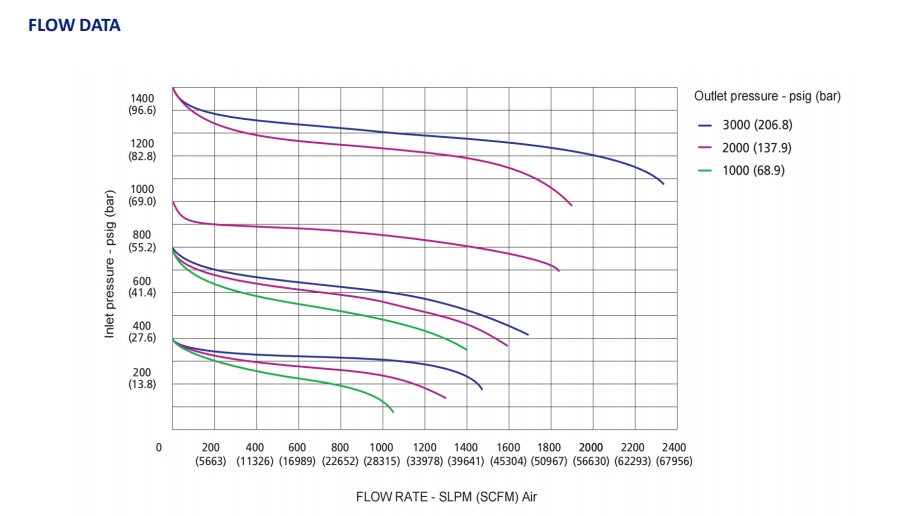

◎ Flow Coefficient (Cv): 2.0
◎ Weight (Regulator Only):
down load to pdf

Product Details

Product Tags

FEATURE:

◎ Suitable for high-flow applications

◎ Piston-sensed design offers an extended outlet pressure adjustment range

◎ Large piston diameter enhances pressure sensitivity
◎ Special cleaning and packaging processes suitable for oxygen-rich environments

OPERATING PARAMETERS
Maximum Inlet Pressure
Stainless Steel: 4500 psig
Brass: 3750 psig
Outlet Pressure Ranges
0~300, 0~600, 0~1000, 0~1500 psig
Female thread
1/2"NPT or 3/4"NPT
Design Proof Pressure
150% of maximum rated
