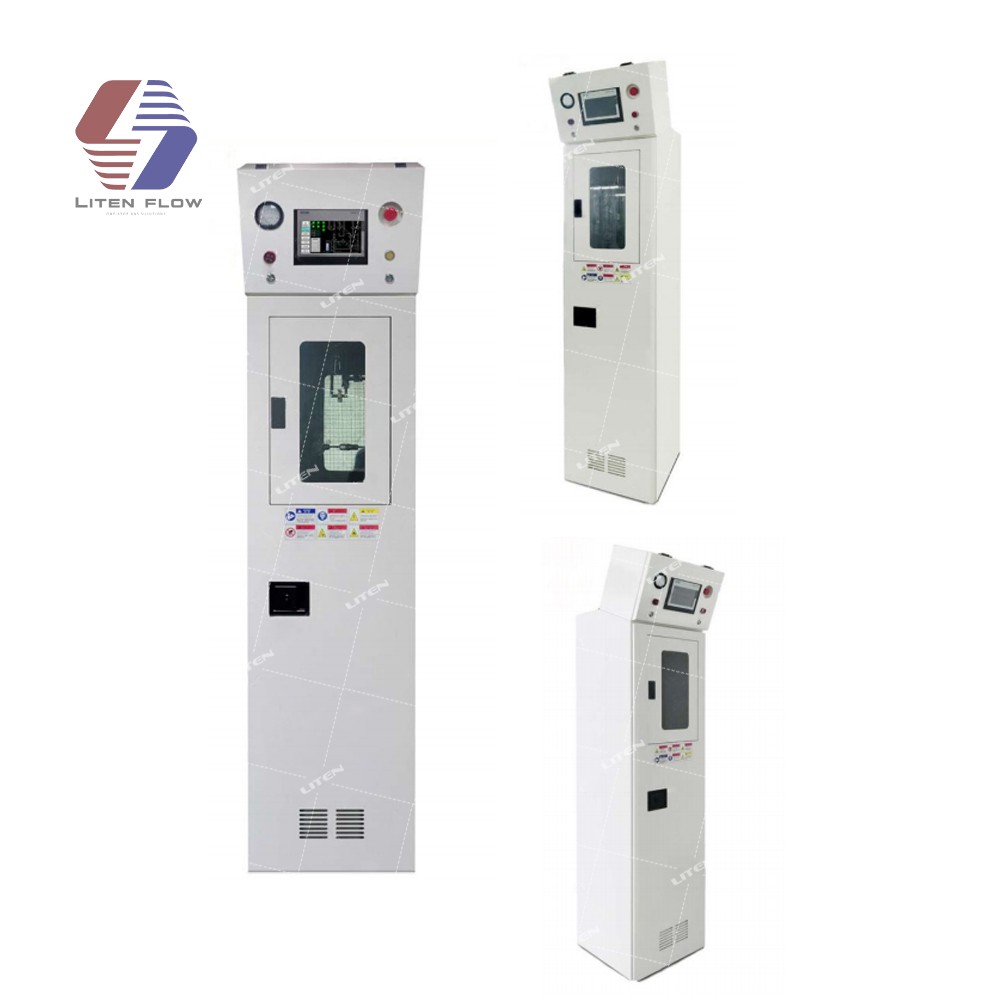

Single-Cylinder Semi-Automatic Specialty Gas Cabinet (Gas Cabinet)

Cylinder Type: Single-process
Operation Mode: Semi-automatic
Applicable Gases: Oxidizing gases, flammable gases
Cabinet Material: Explosion-proof coated steel or stainless steel
Dimensions: Cabinet W500×D500×H1900 mm; Control Box W500×D230×H320 mm
Safety Features: Leak alarm, remote cutoff, smoke & temperature sensors

INQUIRY

Product Details

Product Tags

The HY-GC100-2 Single-Cylinder Semi-Automatic Specialty Gas Cabinet is designed for secure storage and controlled delivery of oxidizing and flammable gases. Its compact, reliable design features advanced safety measures including explosion-proof housing and automated leak detection, making it ideal for electronics, semiconductor, and pharmaceutical industries.

Key Features
Cylinder Configuration: Single-process gas cylinder, semi-automatic operation
Applicable Gases: Oxidizing gases, flammable gases
Safety Features: Explosion-proof cabinet with powder-coated or stainless steel exterior, explosion-proof self-locking door, explosion-proof glass observation window
Automated Protections: Leak alarm, remote cut-off, automatic venting, automatic shut-off, smoke and temperature detection
Valve Systems: Manual and pneumatic diaphragm valves at both inlet and outlet, pressure gauge, pressure reducer, check valve, safety valve
Ventilation: 4” exhaust port with 1200 air exchanges per hour
Control Cabinet: Dimensions W500 × D230 × H320 mm
Power Supply: 220VAC, 50Hz, 24W with leakage protection
Optional Accessories: Gas purifier, vacuum generator for process gas

Attribute	Description
Model	HY-GC100-2
Gas Cylinder Count	1
Cabinet Dimension	W500 × D500 × H1900 mm
Control Cabinet	W500 × D230 × H320 mm
Vent Port Size	1/2" MVCR interface
Operation Type	Semi-automatic
Power Supply	220VAC, 50Hz, 24W, leakage protection
Air Exchange Rate	1200 air changes per hour via 4” vent
