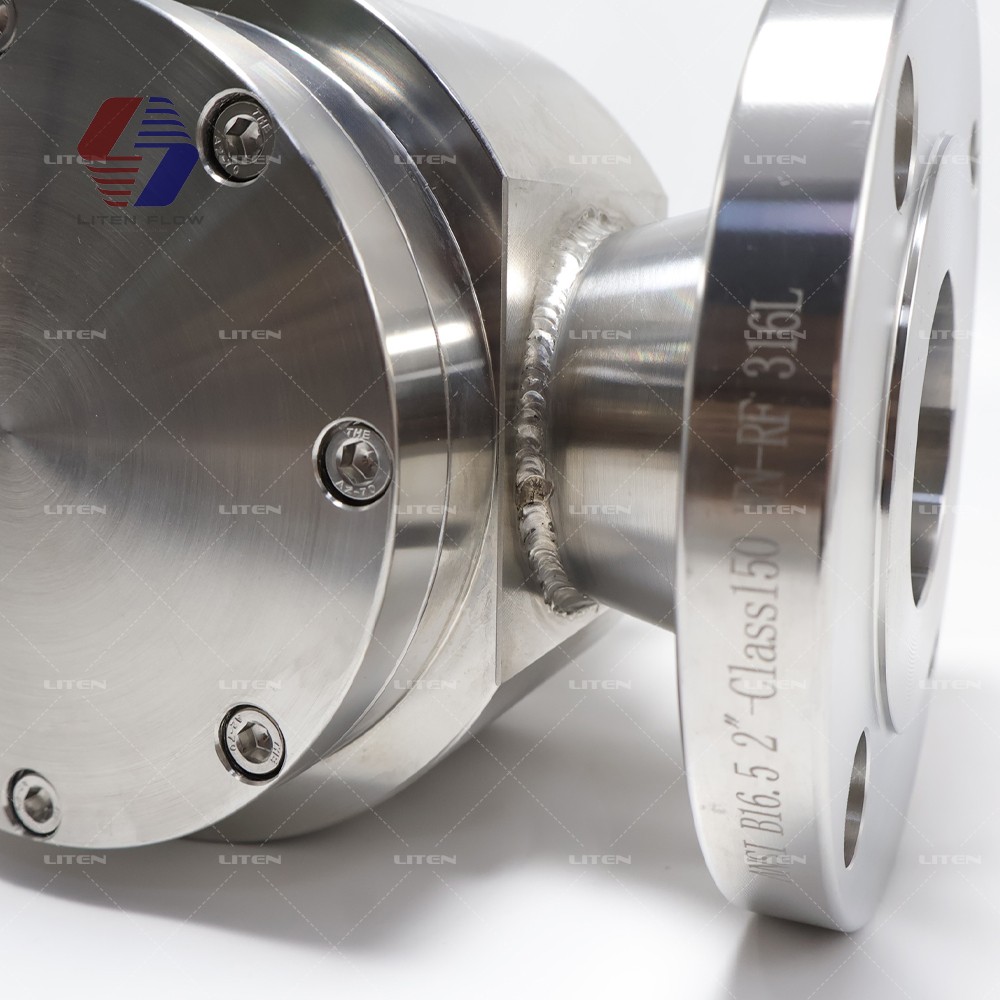

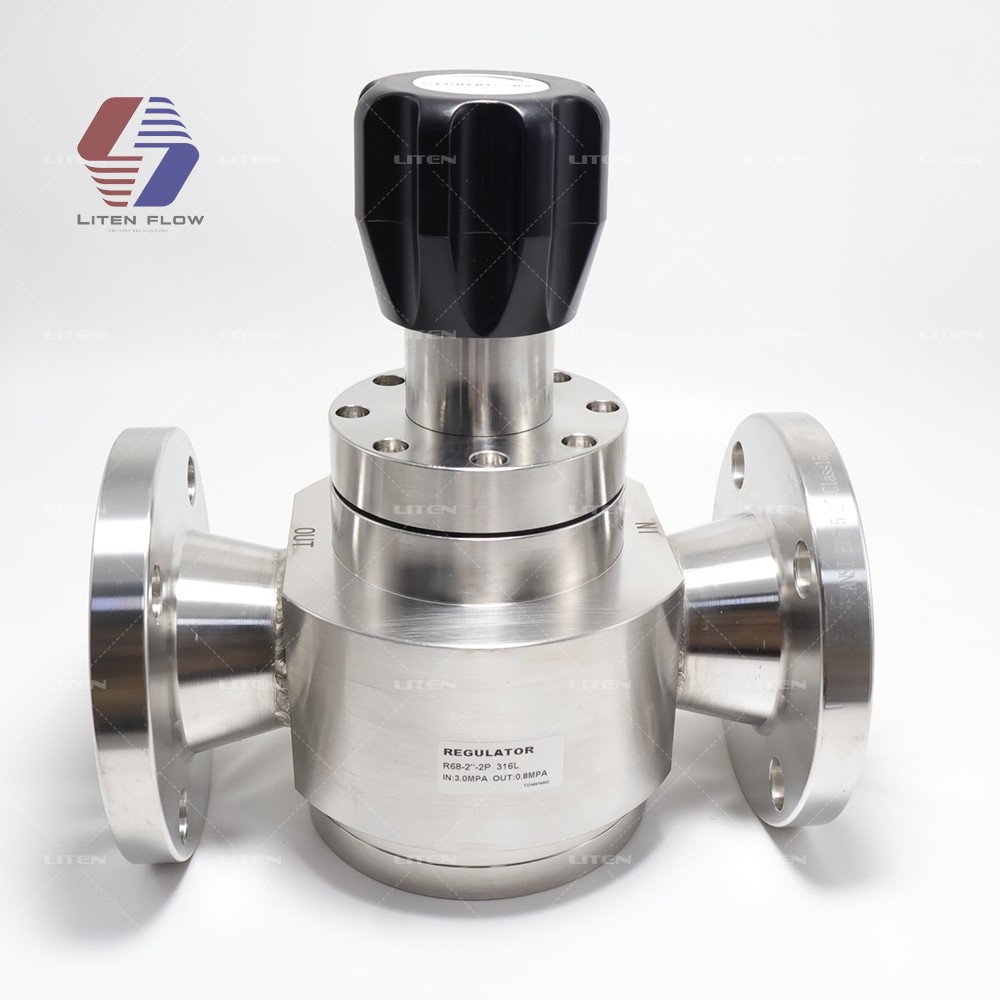

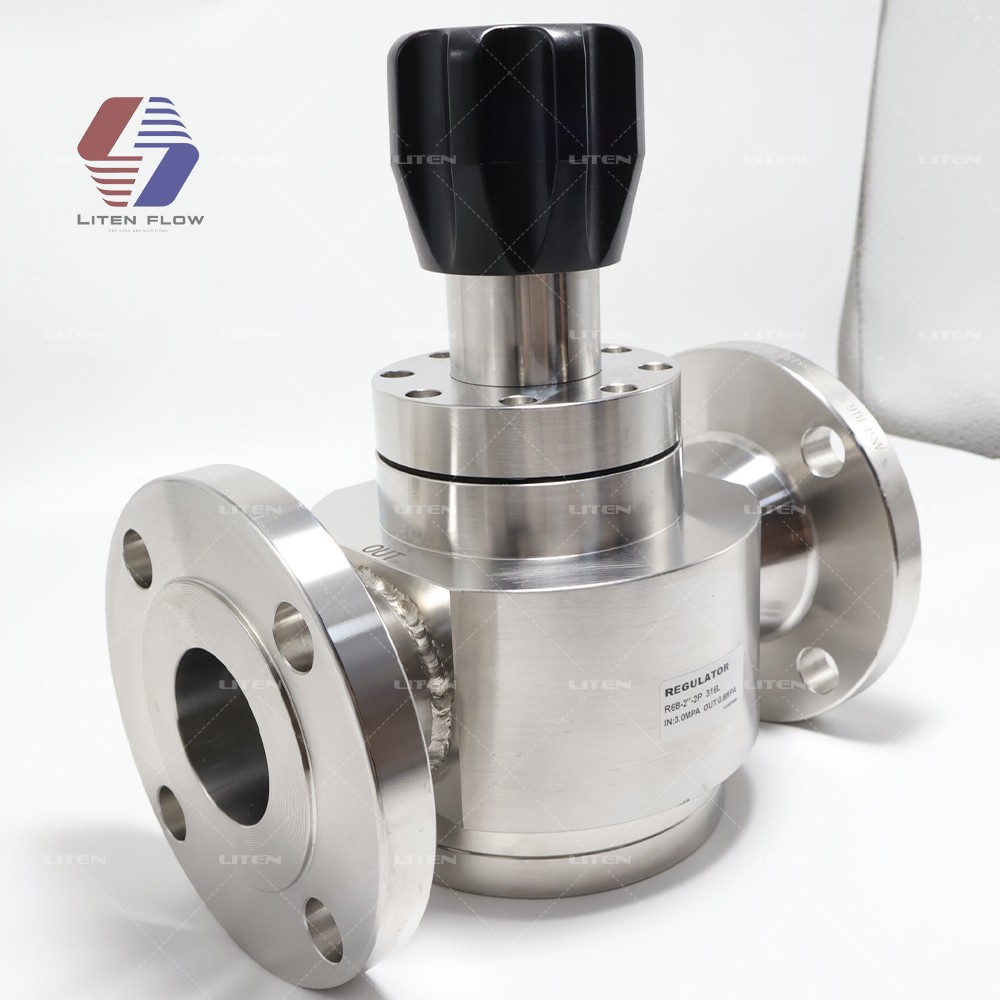

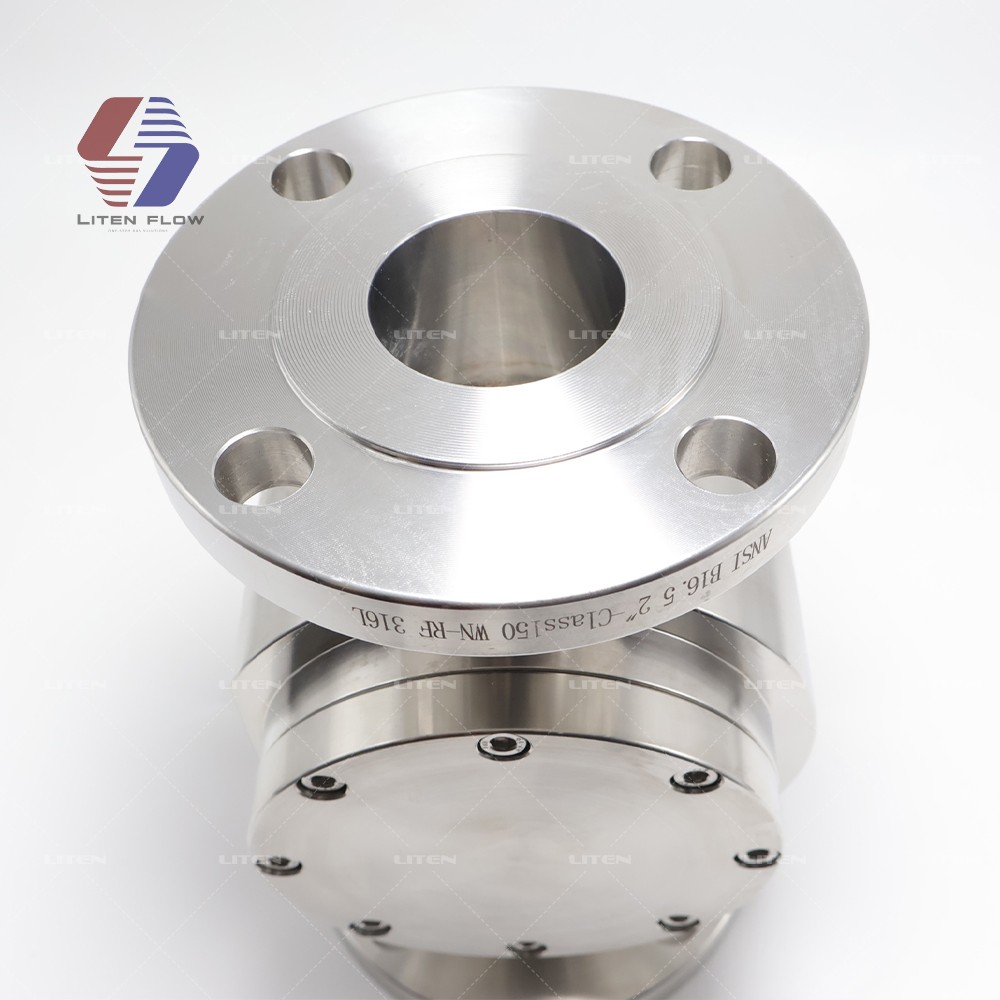

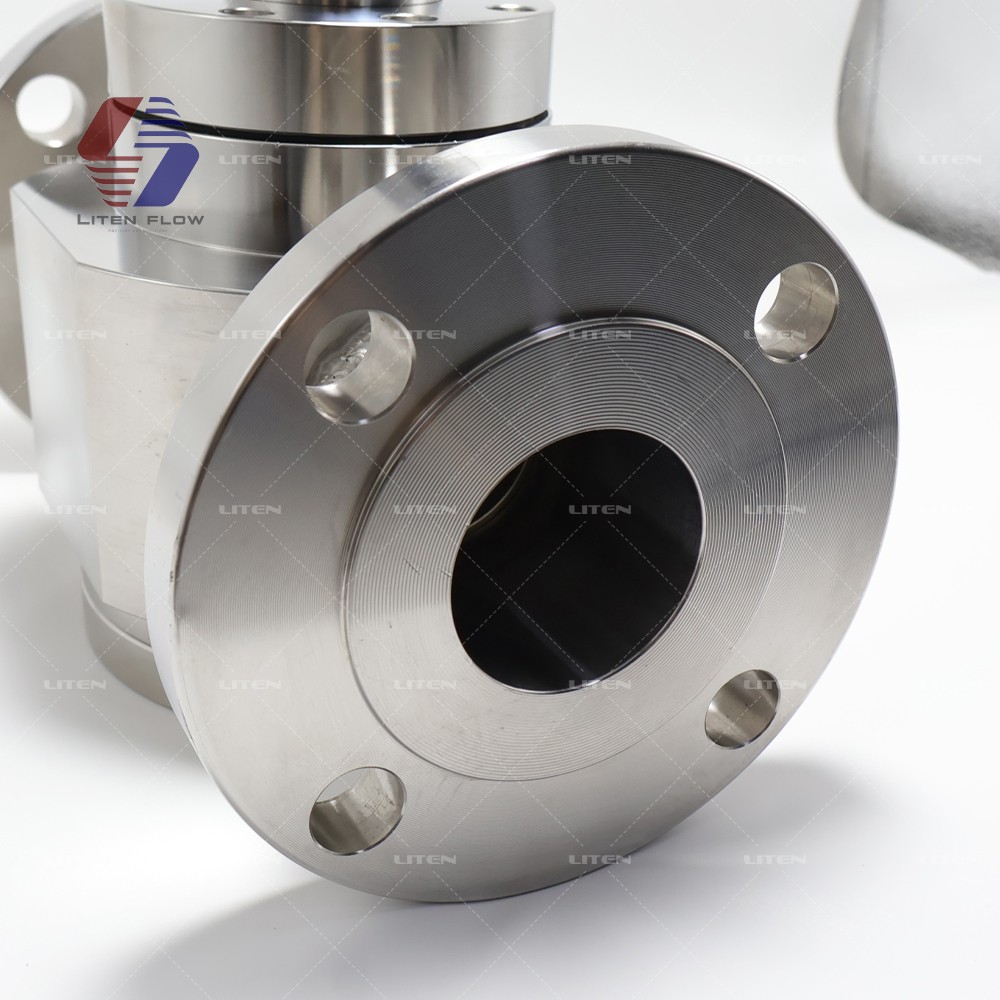

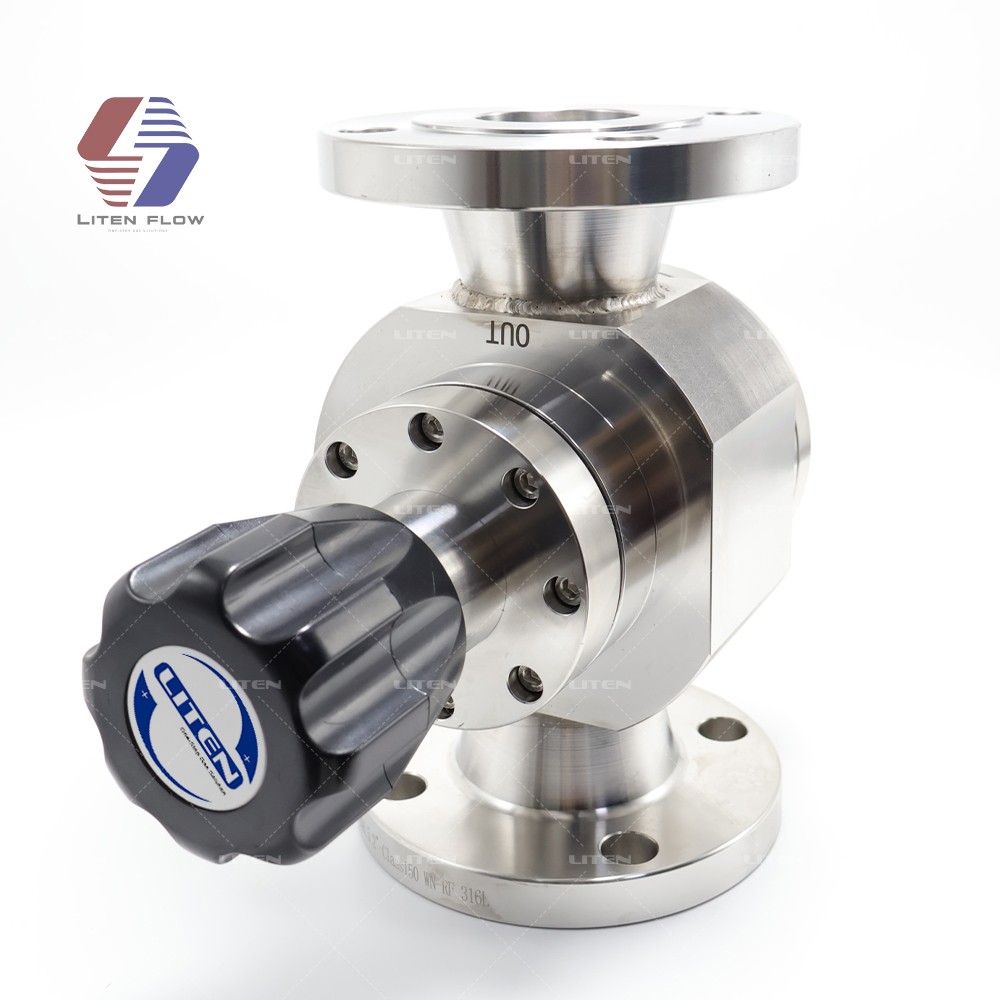

316 Stainless Steel 150# Flange In-Line Pressure Reducing Valve 2

316 Stainless Steel 150# Flange In-Line Pressure Reducing Valve CV10

Product name：Flange In-Line Pressure Reducing Valve
Maximum Inlet Pressure ：300Psig
Outlet Pressure Ranges：0~100 Psig
Material: SS316L and SS304
Body Connection:2"NPT
Internal and External Leak Rate: <1 x 10-6 mbar.L/s
Applicable temperature：40 ℃ to +74 ℃

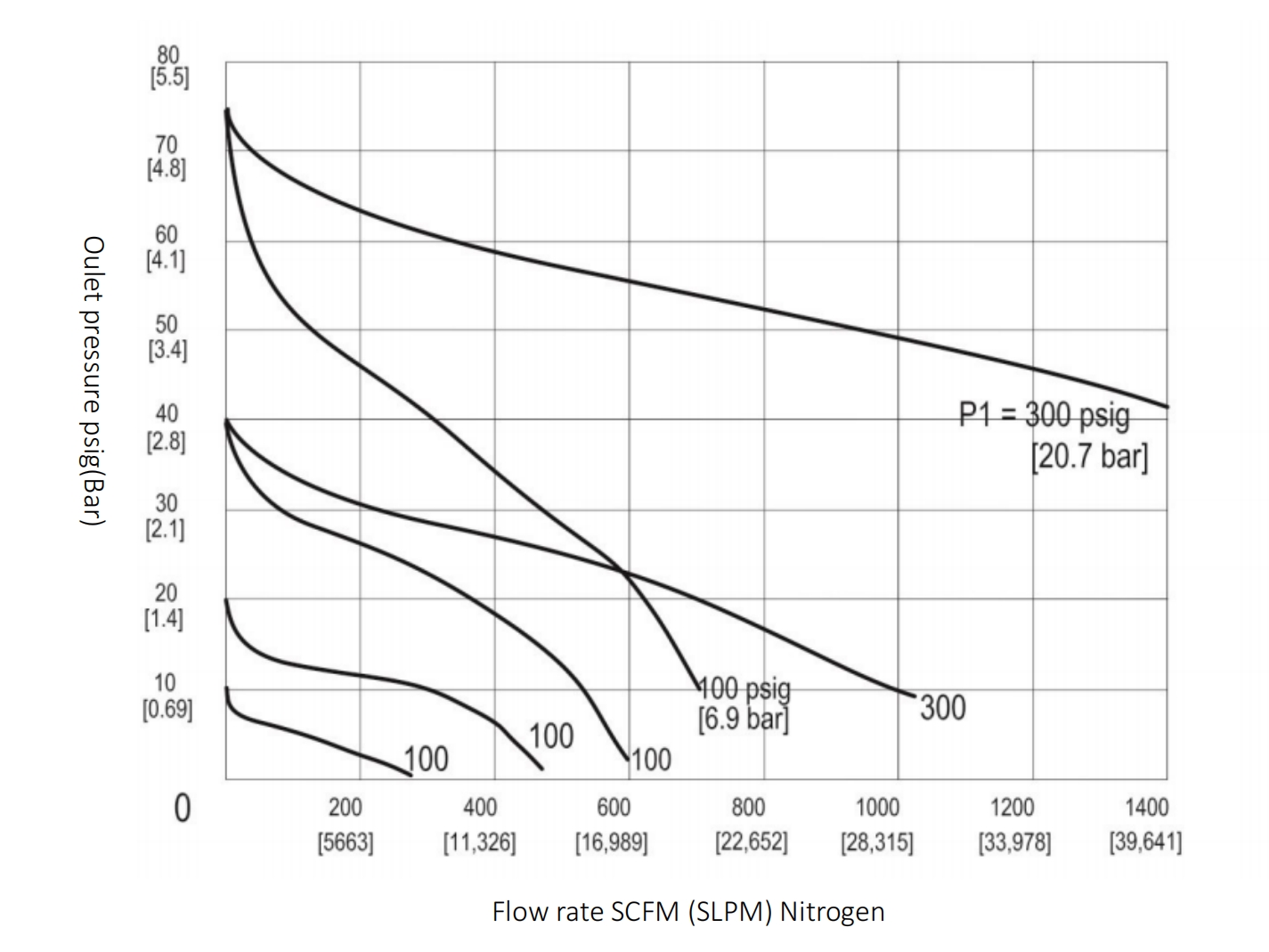

Flow Capacity Cv = 10
Valve body weight About 10kg
Safety pressure:  1.5 times the maximum input pressure

INQUIRY down load to pdf

Product Details

Product Tags

FEATURES:

◎ Cv = 10 in a compact design

◎ Precise adjustment of oversized flow rate and wide range of outlet pressures

◎ A variety of inlet and outlet fittings can be selected

◎ Multiple load options

APLICATION:

Purging, blanketing, high flow inerting, heat

treating, and shielding gases
Gas cabinets
Performs well at very low pressure differentials such as dewar-supplied processes
Semiconductor manufacturing
Multi-drop breathing air stations
Research labs
