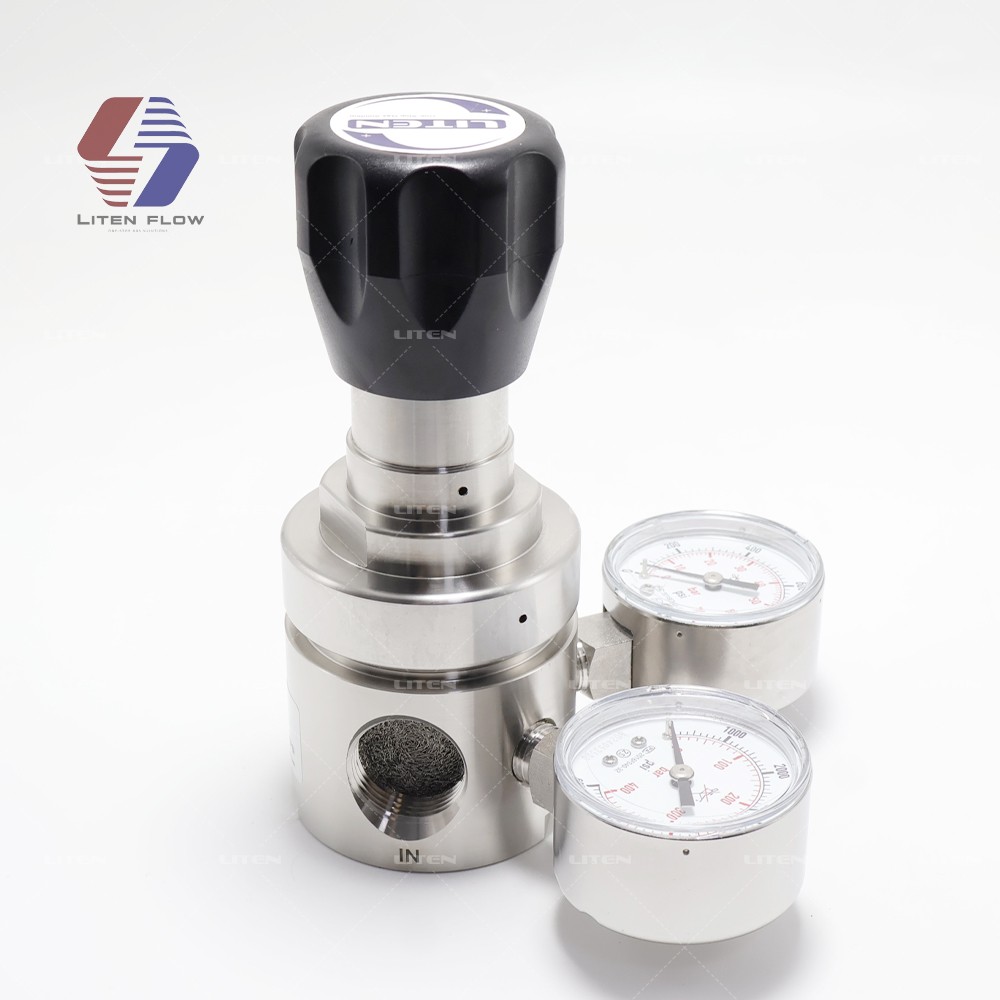

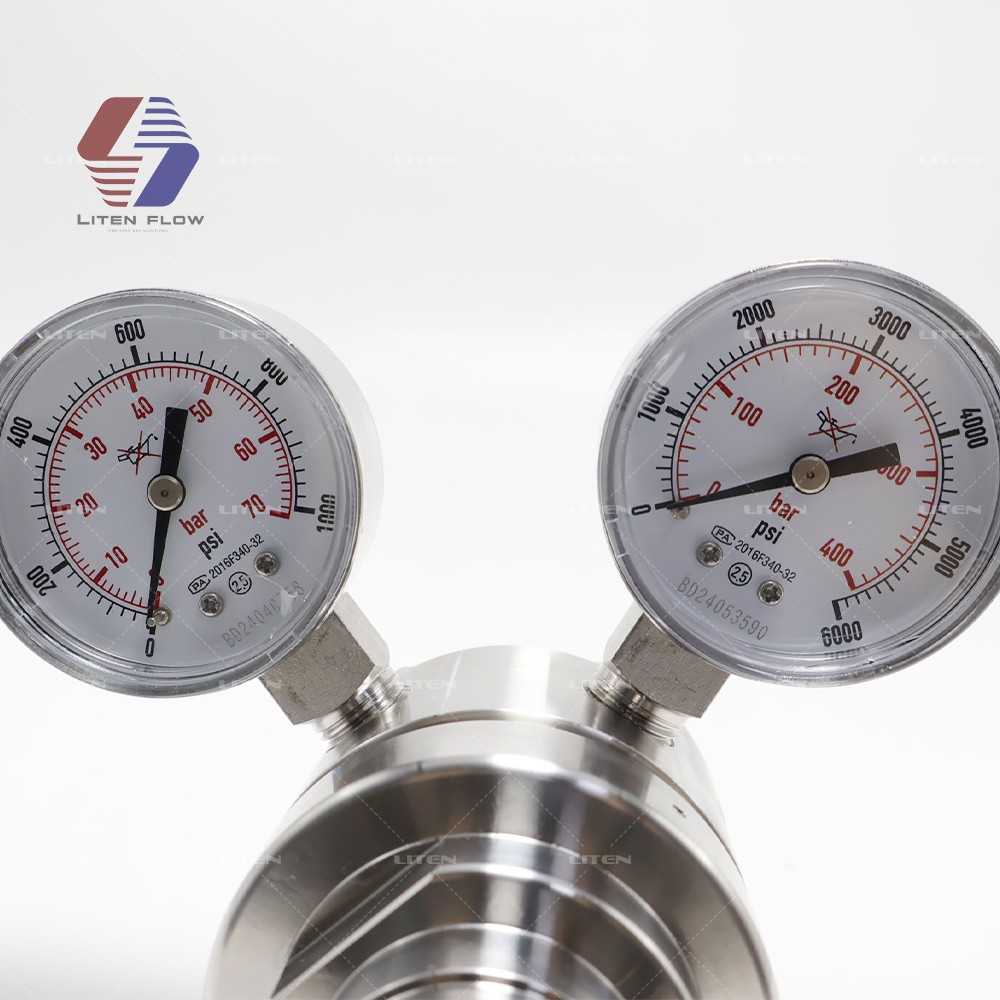

3/4" Female NPT Pressure Regulator Inlet 4500psig Outlet 600psig CV:1.0 316L SS

3/4" Female NPT Pressure Regulator Inlet 4500psig Outlet 600psig CV:1.0 316L SS

◎ Inlet/Outlet Gas Connection: 1/2" NPT (optional 3/4" NPT)
◎ Maximum Inlet Pressure: 6000 Psi
◎ Output Pressure Range: 500,1000,2000 Psi
◎ Operating Temperature: -40 to 74°C
◎ CV Value: 1.0
◎ Material:
 Valve Body: 316L
 Valve Core: 316L
 Valve Seat: PTFE/VITON
 Other Components: 304

INQUIRY down load to pdf

Product Details

Product Tags

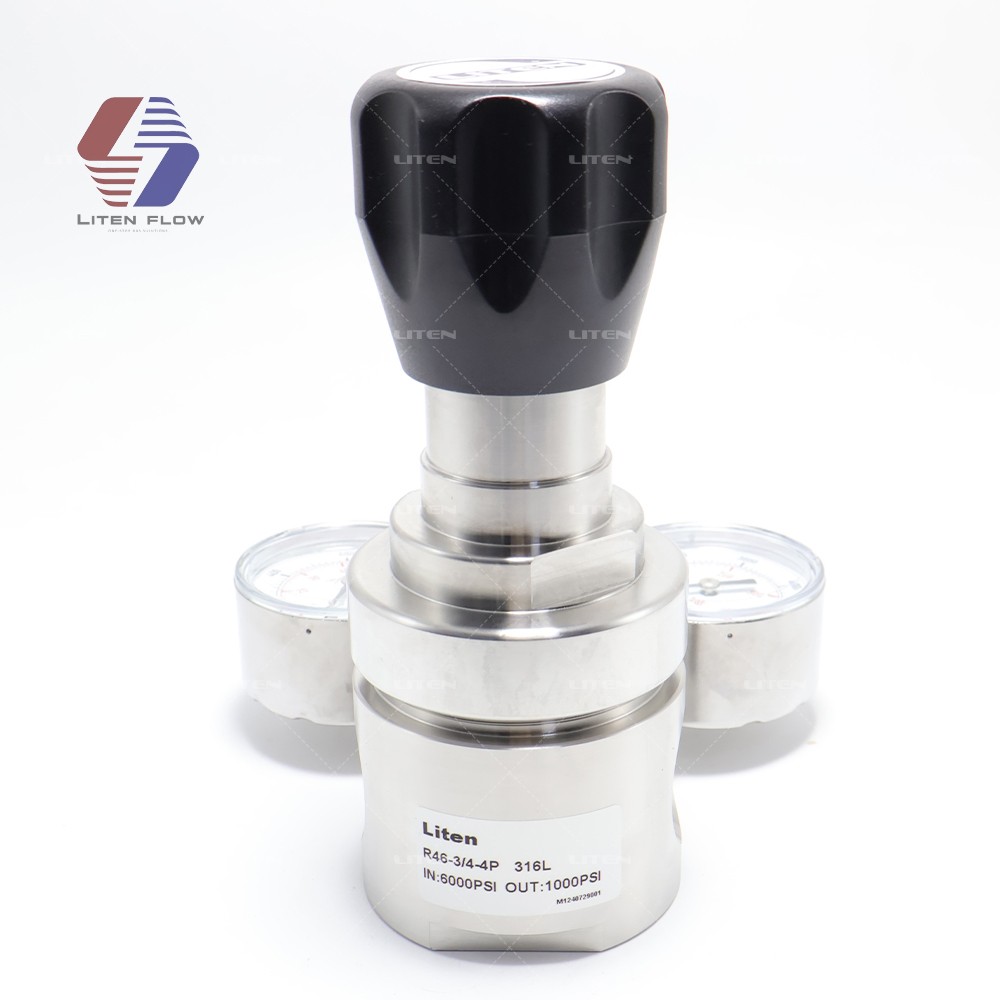

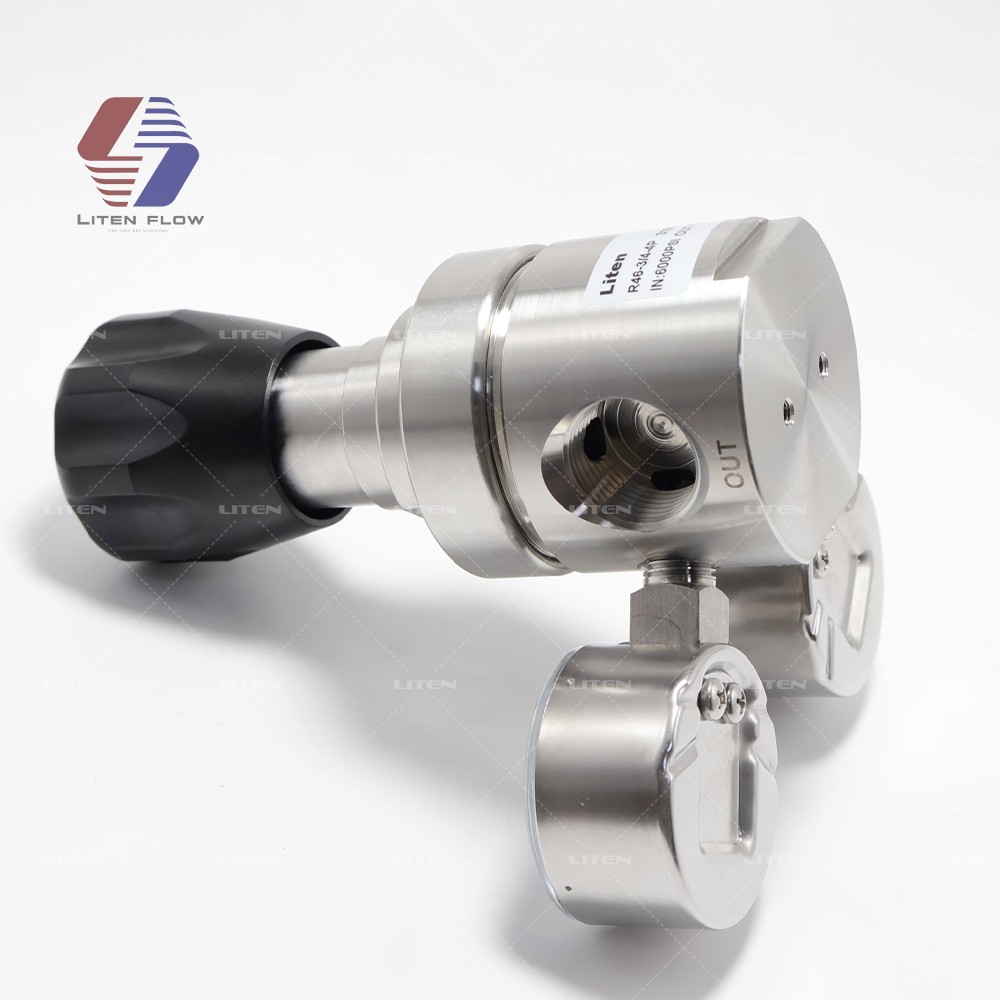

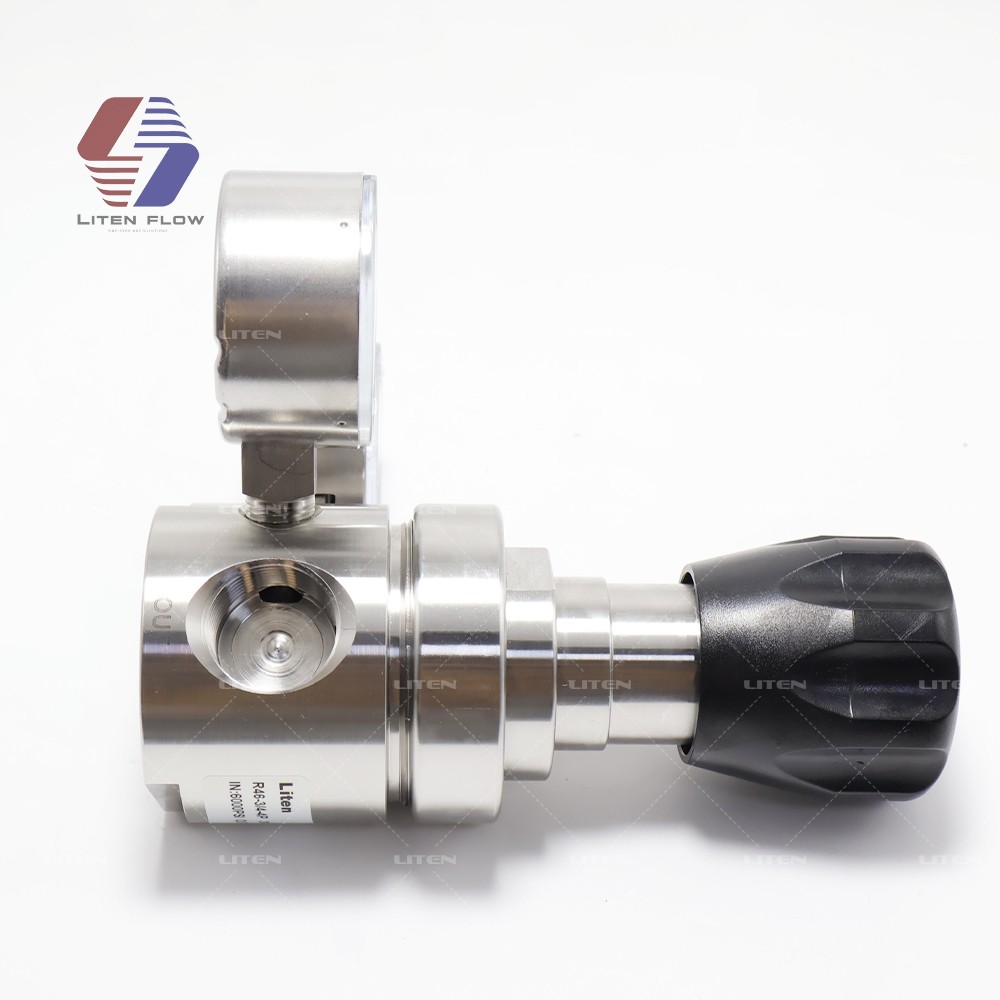

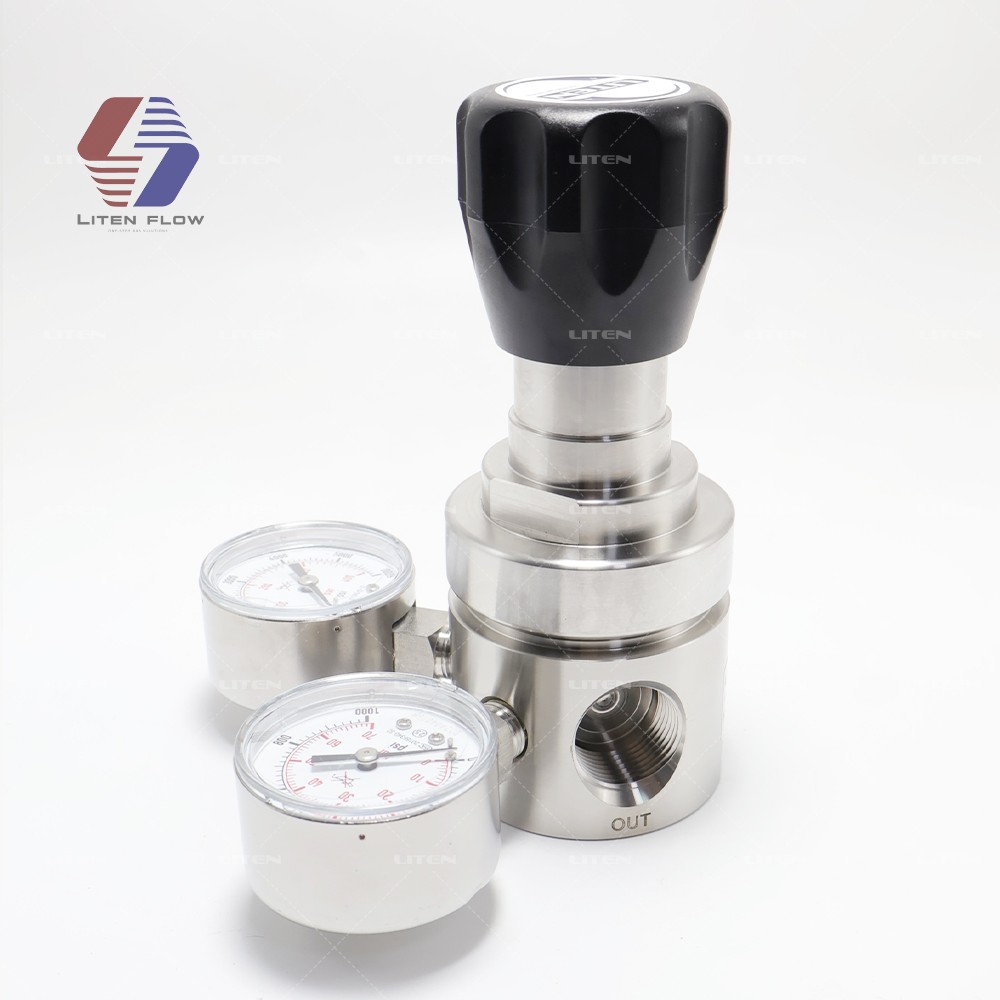

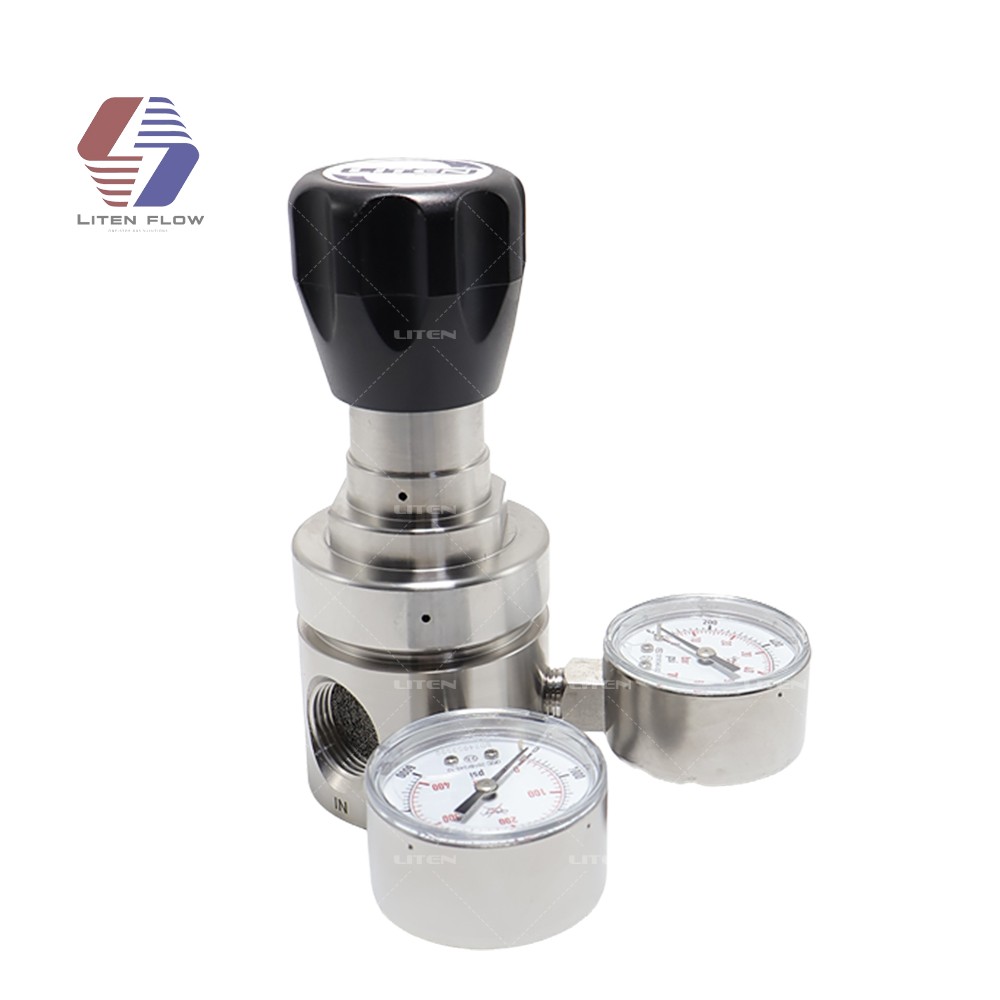

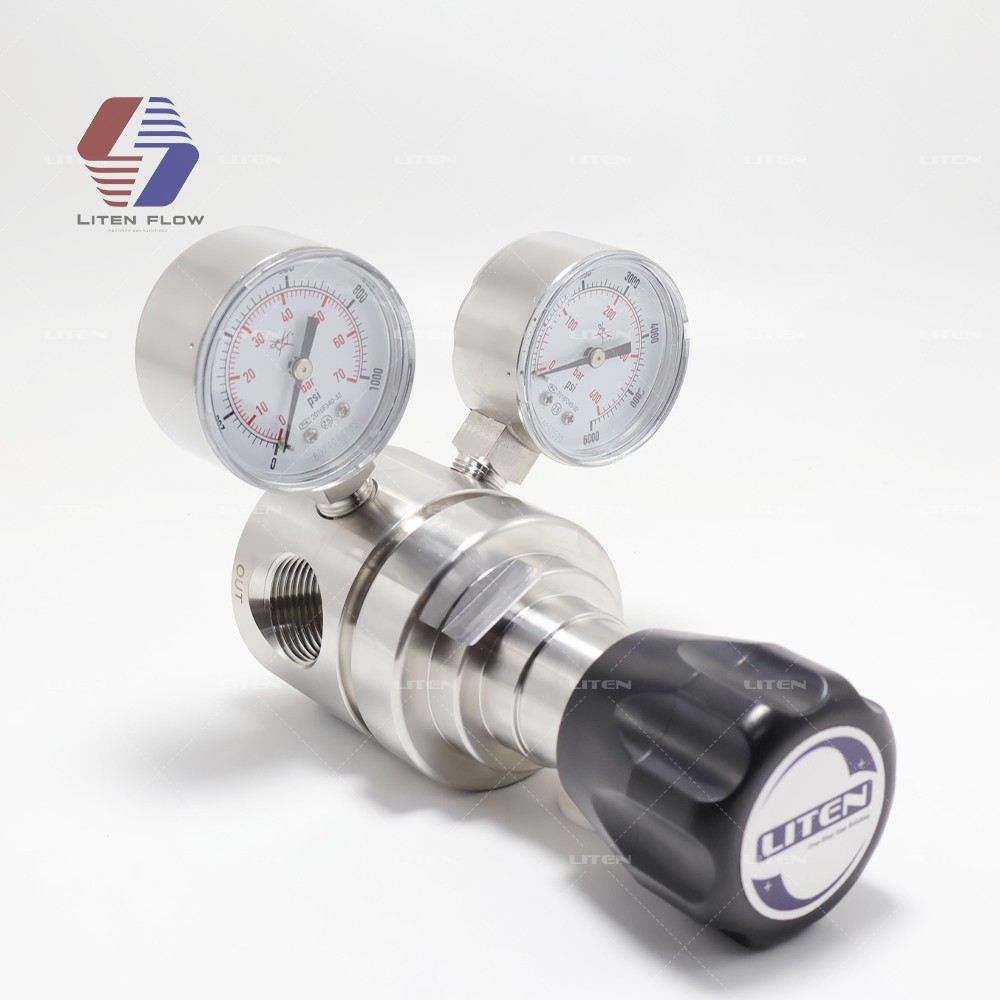

R46 Series High pressure Medium Flow Pressure Regulator

The R46 series stainless steel pressure regulator, which adopts a piston type structure, provides stable high-pressure output and is suitable for high pressure, high-flow applications.

FEATURES

◎ High input pressure，large outlet flow

◎ Piston design, high safety and reliability

◎ Balanced spool design, optional panel installation.

TECHNICAL DATA

◎ Inlet/Outlet Gas Connection: 1/2" NPT (optional 3/4" NPT)

◎ Maximum Inlet Pressure: 6000 Psi

◎ Output Pressure Range: 500,1000,2000 Psi

◎ Operating Temperature: -40 to 74°C

◎ CV Value: 1.0

◎ Material:

Valve Body: 316L
